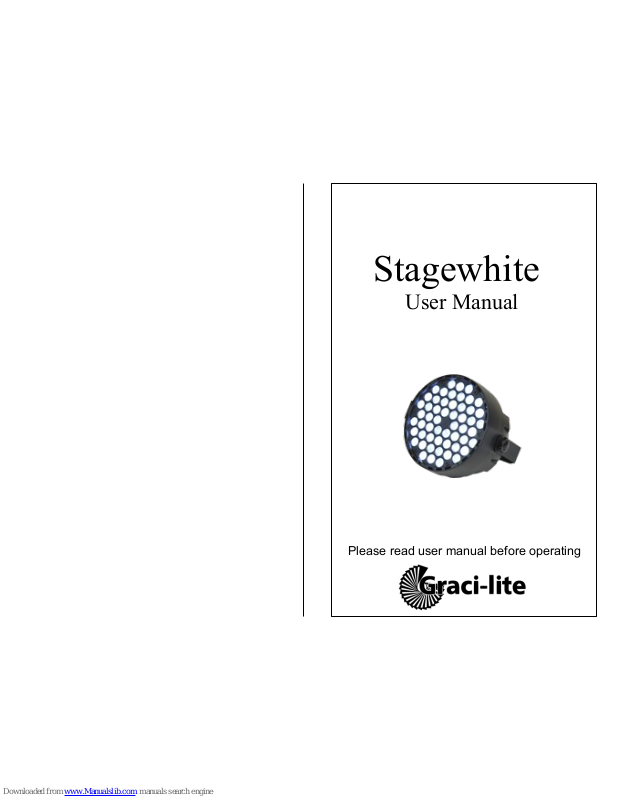

Graci-lite Stagewhite User Manual

Stagewhite

User Manual

Please read user manual before operating

Note: in order to use a DMX
controller you must make sure the
back panel is in DMX mode. To do
this press “MENU” until the LED
screen reads [D001], and the press
“ENTER” to confirm.

I.Operation

This light has 4 functions:

1. DMX512 with 3 channels

2. Automatic operation

3. Sound Activated

4. Master/slave

Channel Function

CH1 0 – 10 CH2/CH3 allowed

11 – 40 Sound Activated

41 – 255 Strobe

CH2 Strobe Speed

CH3 Dim

III. DMX Channel List:

(For use with controller)

IV. Specifications:

(For use without controller)

II. Menu:

●

DMX512 with 3 channels, Automatic operations, Sound
activated, and Master/slave

●

Super bright 3W LED Lamp

●

54pcs*1W White LED

●

Color temperature less than 6000K

●

0 – 100% light dimmer

●

Multi-flash effect 1 – 10 time per sec open/close

●

Low power consumption. Est. 100,000 hour life span

●

Voltage: AC90V-240V/50 or 60Hz

●

Power: 80W

Note: There is a power linking output socket

on the back that allows you to link another LED
fixture to this one. Since this fixture is 80W, it
is advised that you do not connect more than 10
to one fixture on one power source for best
performance.

When you press the “MENU” switch there are the
following options:

1. [D001]: This is the lights DMX address. You can press “UP” or
“DOWN” to set it from [D000] up to [D512] and press “ENTER” to
confirm it. This function allows you to put the light fixture in DMX mode
so that you may use a controller if needed.

2. [IP01]: This is the lights IP address. You can press “UP” or “DOWN”
to set it from “IP01” up to “IP170” and press “ENTER” to confirm it.

3. [A4.xx]: These are the automatic sound activated effect. You can press
“UP” or “DOWN to set it from [A4.01] up to [A4.19] and press “ENTER”
to confirm it these are sound action effects. When the display is flickering
press “UP” or “DOWN” to change the sensitivity of the sound activated
effect from [01] up to [04] and press “ENTER” to confirm it.

4. [A5.xx]: This is the strobe effect. You can press “UP” or “DOWN to
set it from [A5.01] up to [A5.19] and press “ENTER” to confirm. When
the display is flickering press “UP” or “DOWN” to change the speed of
the strobe effect from [01] up to [32] and press “ENTER” to confirm it.

5. [uxxx]: This is the white color dim. You can press “UP” or “DOWN” to
set it from [u000] to [u255] to dim the white color, and press “ENTER” to
confirm it.

Menu Panel:

(on back)
