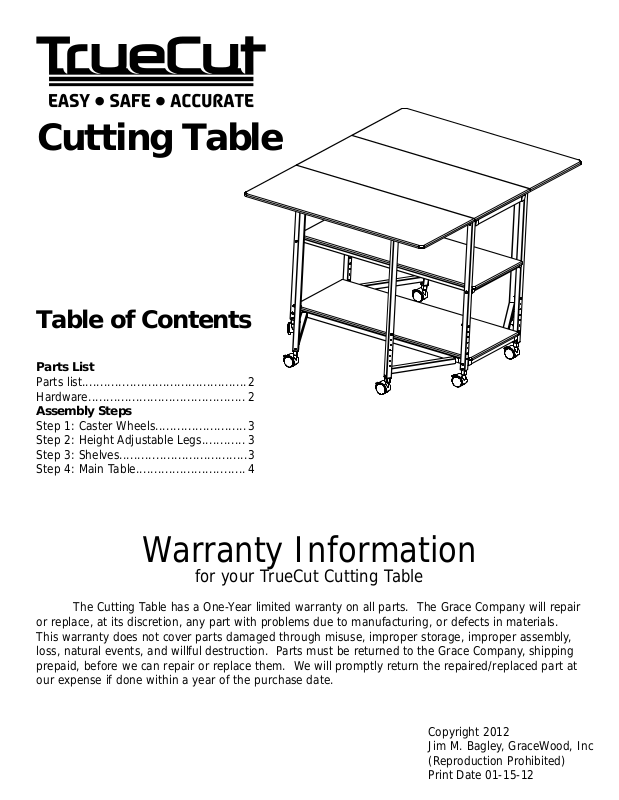

GraceWood TrueCut User Manual

Cutting Table

Table of Contents

Parts List

Parts list.............................................

Hardware...........................................

Assembly Steps

Step 1: Caster Wheels.........................

Step 2: Height Adjustable Legs............

Step 3: Shelves...................................

Step 4: Main Table..............................

2
2

3
3
3
4

Warranty Information

for your TrueCut Cutting Table

The Cutting Table has a One-Year limited warranty on all parts. The Grace Company will repair
or replace, at its discretion, any part with problems due to manufacturing, or defects in materials.
This warranty does not cover parts damaged through misuse, improper storage, improper assembly,
loss, natural events, and willful destruction. Parts must be returned to the Grace Company, shipping
prepaid, before we can repair or replace them. We will promptly return the repaired/replaced part at
our expense if done within a year of the purchase date.

Copyright 2012
Jim M. Bagley, GraceWood, Inc
(Reproduction Prohibited)
Print Date 01-15-12

Parts List

Table Side (2)

Long Support (2)

Short Support (4)

Main Table (1)

Shelf (2)

Caster Wheel (8)

Hardware

M6 X 60mm Socket Button

Head Cap Screw (SBHCS)

(8)

12mm Open End

Wrench

4mm Allen

Wrench

M6 X 55mm Socket Button

Head Cap Screw (SBHCS)

(4)

M6 X 10mm
Connector

Bolt (12)

Welcome!

As you begin assembly of your new Cutting Table, keep in mind the following:
1: The assembly process will be simple and step by step.

2: Read through each step completely before beginning that step.
3: Using the parts list as a reference, take the parts out of the box and make
sure that you have all the parts.
4: Identify hardware packets: All hardware is separated by type and each

  packetislabeledforeaseinidentication.

Step 1: Caster Wheels

Parts Needed:
8- Caster Wheels
2- Table Side

Note: Open the Table Extension Legs on the Table
Sides to help stand up the table during assembly.

Note: Before installing each Caster Wheel, make sure
the locking switch on the wheel is engaged, so the
wheels can’t roll around.

1-1: Turn each Table Side on its top when inserting
Caster Wheels.

1-1: Insert a Caster Wheel into each leg, as shown
on Fig. 1-1.

Step 2: Height Adjustable Legs

To adjust the height of your table, un-thread the M6 X
32mm SBHCS and pull the leg down to the desired height.
Align the hole in the height adjustable leg with the desired
hole on the table leg and insert the M6 X 32mm SBHCS
back into the M6 Flat Washer and M6 Nylock Nut, as shown
in Fig. 2-1.

Table Height

1st hole 32”

Caster Wheel

Locking Switch

Fig. 1-1

Table Side

M6 Flat
Washer

M6 Nylock

Nut

M6 X 32mm

SBHCS

Fig. 2-1

Height Adjustable

Leg

2nd hole 33”
3rd hole 34”
4th hole 35’’
5th hole 36”
6th hole 37”
bottom hole 38”

Step 3: Shelves

Table Side

Parts Needed:
4- M6 X 60mm SBHCS

Shelf

4- M6 X 55mm SBHCS
2- Short Support
2- Long Support
2- Table Side
2- Shelf

Note: Do not tighten SBHCS screws until noted in step 4, to

M6 X 60mm SBHCS

Short Support

Fig. 3-1

help prevent the table from getting out of square.
3-1: Insert (2) M6 X 60mm SBHCS into the bottom holes on

each Table Side and thread the screws into (2) Short Supports, as shown in Fig. 3-1.

Table Extension

Leg

3-2: Remove the cover on the pre-installed double sided sticky tape. Line up a Shelf with the edges

ofthetableframeandpressrmly.

3-3: Insert (2) M6 X 55mm SBHCS
into the middle holes on each Table
Side and thread the screws into (2)
Long Supports, as shown in Fig.
3-2.

Fig. 3-2

Shelf

M6 X 55mm SBHCS

3-4: Repeat Step 3-2 for the Middle
Shelf.

3-5: Insert (2) M6 X 60mm SBHCS
into the top holes on each Table
Side and thread the screws into (2)
Short Supports, as shown in Fig.
3-3.

Step 4: Main Table

Parts Needed:
1- Main Table
12- M6 X 10mm Connector Bolt

Long Support

Short Supports

Fig. 3-3

M6 X 60mm

SBHCS

Fig. 4-1

Main Table

4-1: Insert (12) M6 X 10mm Connector Bolt
through each of the inside holes on table
hinges and into the Main Table as shown in
Fig. 4-1.

4-2: Completely tighten all the screws at
this time. Make sure you start at one end
of the table and work your way to the other
end, keeping your supports lined up as you
go.

M6 X 10mm Connector Bolt

Congratulations you have completed assembly of your new TrueCut Cutting Table!
For any further questions, or if anything appears to be missing/damaged please contact your

dealer or the Grace Company directly at 1-800-264-0644 or [e-mail].
