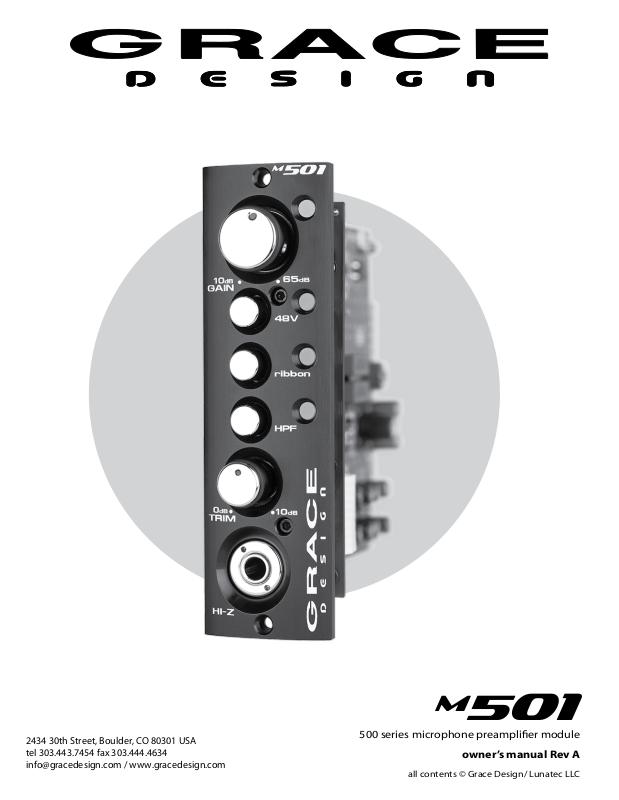

500 series microphone preamplifier module
owner’s manual Rev A
all contents © Grace Design/ Lunatec LLC
Welcome and thanks for purchasing the Grace Design m501 microphone 500 series preamplier and
instrument DI. We design and build our products to be completely reliable and easy to use, so you
can concentrate on making great recordings, not struggling with complicated equipment or dicult
product manuals. While you will nd the m501 is completely straightforward to use, we do ask that you
spend a little time familiarizing yourself with this product manual to help avoid any diculties.
In the event that you do encounter any issues with this or any of our products, feel free to call us at
303-443-7454. Our oce hours are 9 to 5, Monday through Friday, MST, or you may email any technical
questions to: info@gracedesign.com.
Also, please check out our web site (www.gracedesign.com) for the latest Grace Design product information, owners manuals and technical documents.
Grace Design has been building audiophile-quality products for the recording industry over 15 years.
The technology in the m501 is the result of extensive listening, eld-testing and careful renement.
Your new m501 preamplier represents a combination of absolutely pristine audio performance, robust
mechanical construction and bombproof reliability at a reasonable price. Regardless of what audio
sources you plan to record, your m501 will faithfully serve as an invisible link between your microphone
or instrument and recording device.
We sincerely hope our products help you achieve a new level of excellence in your work!
The Grace Design Team
CONTENTS
IMPORTANT SAFETY INFORMATION 3
GENERAL 3
SAFETY MARKING SYMBOLS 3
SERVICE INFORMATION 3
FEATURES 4
FRONT PANEL FEATURES 4
m501 CONNECTIONS 5
BASIC OPERATION 6
USING ThE TRIM CONTROL 6
USING RIBBON MIC MOdE 6
USING ThE hPF 6
CABLE DIAGRAMS 7
BASIC WIRING DIAGRAM 7
CARD EDGE CONNECTOR CONTACT ASSIGNMENTS 7
SPECIFICATIONS 8
WARRANTY INFORMATION 9
MANUAL REVISIONS 10
m
501
page 2
IMPORTANT SAFETY INFORMATION
GENERAL
•Indoor use only
•Ordinary Protection: This equipment should not be exposed to dripping or splashing.
•Avoid placing objects lled with liquids, such as vases or glasses, on this equipment.
•Pollution Degree 2
•Maximum Relative Humidity: <80%
•Operation temperature range: 10 °C to 40 °C
•Storage and transportation temperature range –40 °C to 70 °C
•Maximum altitude: 3000m (9843 ft)
•Equipment suitable for continuous operation
•Weight: preamplier 0.31kg (.7lbs)
SAFETY MARKING SYMBOLS
CAUTION: READ ACCOMPANYING DOCUMENTS
This symbol, located on the equipment and in this manual, refers to important instructions. Read
this manual thoroughly before operating this equipment.
WARNING: ELECTRICAL SHOCK HAZARD
This symbol, located on the equipment and in this manual, indicates the potential for electrical
shock hazard.
SERVICE INFORMATION
The Grace Design m501 contains no user serviceable components. Contact Grace Design for repair and upgrade
information. In the event that your Grace Design m501 needs to be returned to the factory, contact us for a
return authorization number.
m
501
page 3
FEATURES
10dB
1
m
50
GAIN
TRIM
HI-Z
48V
ribbon
HPF
10dB10dB
0dB0dB 10dB
65dB65dB
Fast, musical transimpedance amplier architecture•
Fully balanced, transformerless XLR microphone input•
High impedance 1/4 inch instrument DI input•
12 position precision gold contact rotary switch gain control•
0.5% precision metal lm resistors in signal path•
High quality conductive plastic 10dB output trim control•
75Hz 12dB/octave high pass lter•
Two color LED peak meter shows signal present and peak•
Ribbon mic mode (also great for dynamic mics)- Optimizes signal path for ribbon mics•
Aluminum 1/2 width 1U chassis / two units t together in a standard 1U rack tray•
Sealed gold contact relays for signal switching•
High precision active balanced output circuit•
No electrolytic capacitors in the signal path•
Ultra clean 48 Volt phantom power•
Minimal internal signal wiring•
Robust RFI and EMI protection•
5 year warranty on parts and labor•
Made in the USA•
FRONT PANEL FEATURES
PEAK INDICATOR
The LED peak indicator, which monitors the signal at the output of the pream-
plier, illuminates green at -14dBu and red at +16dB (10dB before clipping).
GAIN CONTROL
The gain control has 12 positions and adjusts the voltage gain on the micro-
phone input from 10dB to 65dB in 5dB steps. When using the instrument
input, the gain range is –10dB to 45dB in 5dB steps.
48V PHANTOM POWER
This switch provides 48 Volts to power condenser microphones. LED indicator
illuminates red when active.
RIBBON SWITCH
Pushing this switch activates ribbon mic mode which optimizes the signal path
for non-active ribbon mics. LED indicator illuminates white when activated.
HIGH PASS FILTER
(labeled HPF) 75Hz, 12dB/Octave high pass lter.
TRIM CONTROL
The trim control provides zero to +10dB of continuously variable output trim.
m
501
1/4” TRS INSTRuMENT HI-Z INPuT
For high-impedance instrument or line level inputs.
page 4
m501 CONNECTIONS
MICROPHONE INPuT
The mic input is located on the back of your 500 series rack. This connector should be wired pin 2 positive, pin 3 negative and pin 1 ground (check with your rack manufacturer’s documentation for connector details). 48V phantom power, if used, is supplied on pins 2 and 3.
BALANCED XLR OuTPuT
Balanced XLR line output connector are located on the back of your 500 series rack. This connector
should be wired pin 2 positive, pin 3 negative and pin 1 ground (check with your rack manufacturer’s
documentation for connector details).
INSTRuMENT AND LINE INPuT
Instrument and line level signal connections are made using the ¼” TRS jack on the front panel of the
m501 module. This connector is balanced with the tip positive, ring negative and sleeve ground.
When a plug is inserted into the instrument input, a sealed gold contact relay switches the preamplier
input source from the rear panel mic input connector to the front panel TRS jack. The input impedance
of the instrument input is 2.5M Ohm unbalanced and 5M Ohm balanced, which is ideal for inserting
high impedance sources such as guitars with passive pickups, as well as any instrument with a high level
output. Please note that the gain range of the preamplier when using the instrument input is –10dB to
+55dB.
Using the instrument input with an unbalanced source is simple. When a mono ¼” jack is used, the
sleeve will automatically ground the inverting input (ring) when plugged in.
INSTALLING THE m501 IN A 500 SERIES RACK
Open your m501 box. The module is in a bag under the plastic ‘korvu’ retain-1.
ing sheet, which you should be careful not to cut. Simply fold down the outer
cardboard aps, then the under side aps, which will loosen the module from
under the plastic sheet.
Turn o and unplug your 500 series rack frame. Inspect the card slot you intend 2.
you use to make sure that it is clean and free of any debris.
Before removing your m501 from its anti-static bag, discharge any static electric-3.
ity buildup you may have by touching your 500 series rack.
Pull your m501 module out of its anti-static bag and carefully slide it into place 4.
in the designated opening. Sight down the back of the module (use a ashlight
if necessary) and ensure the card edge connector is aligned to seat into the card
slot of the frame.
Firmly and evenly push the m501 module into place until its is positively seated 5.
in the card slot.
Use the 2 supplied #4-40 hex head screws and 3/32” hex wrench to mount the 6.
m501 front panel to the 500 series rack. These screws have a pretty tight t;
please be careful not to cross thread.
Plug your 500 series rack back into the AC source and power up your rack. Your 7.
m501 will automatically power up with your 500 series rack.
m
501
page 5
OPERATING THE m501
BASIC OPERATION
Turn the gain and trim controls fully counter-clockwise and check that the +48V phantom power is o.
Connect the microphone to the preamplier and then turn on the phantom power switch on if required.
When sending a signal to a recorder that has xed input levels, simply increase the gain until the optimum recording level is reached.
When sending a signal to a recorder with a variable input, set the record level control on the recorder to
12 o’clock or midway between minimum and maximum, then set the gain on the m501 until the optimum recording level is reached.
NOTE: It is important to observe proper microphone power sequencing when using phantom powered
mics. Always make sure that the +48V phantom power is turned o and discharged before connecting
or disconnecting a microphone. The red +48V LED indicates the presence of voltage at the microphone
input connector. It will go out when the +48V supply is suciently discharged.
uSING THE TRIM CONTROL
The trim control can be used for ne output level adjustment as well as for level riding during recording. It can also add an additional 10dB of gain for a total maximum preamplier gain of 75dB. If the trim
control is not needed for riding gain or providing extra gain, then it should be left at zero (fully counter
clockwise).
uSING RIBBON MIC MODE
Pushing the ribbon switch does three things: +48V phantom power is locked-out to prevent potential
damage to ribbon microphones, the impedance of the mic input is raised from 8.1k Ohms to 20k Ohms,
and the 48V DC blocking input capacitors are bypassed with sealed gold contact relays.
The maximum gain available on the m501 is 75dB, which is achieved by setting the gain control to 65dB
and the trim to 10dB. For recording low level sources with ribbon microphones, the m501 has ample
available gain, sucient for even the most demanding low-level recording scenarios.
Note that if the +48V phantom power is on and then the ribbon mode is engaged there will be a
momentary delay before the m501 enters ribbon mode. This is because the m501 logic circuitry waits
for the +48V at the mic input to discharge before enabling ribbon mode. Likewise, if you are in ribbon
mode and the +48V switch is on, then phantom power will turn on immediately if the ribbon mode
switch is released. In general it is best practice to turn o the +48V phantom power before entering
ribbon mode.
The ribbon mode on the m501 is also ideal for many dynamic mics.
uSING THE HPF
The high pass lter (HPF), sometimes referred to as a bass roll-o, starts at 75Hz. This 12dB/octave lter
is optimized for minimum phase shift. The most common uses for this are in situations where low-end
rumble from mechanical sources or wind are present, to reduce excessive proximity eect, or to simply
help reign in excessive low end during recording.
m
501
page 6
1
2
3
SHIELD
HOT
GROUND
(OPEN)
Unbalanced 1/4”
Balanced Output XLR
CABLE DIAGRAMS
500 series rack frame rearpanel
PUSH
IN
OUT
PUSH
IN
OUT
PUSH
IN
OUT
PUSH
IN
OUT
PUSH
IN
OUT
PUSH
IN
OUT
microphone
Instrument
Recorder / Converter / DAW Interface
Mixer / PA system
10
dB
1
m
50
GAIN
TRIM
HI-Z
48V
ribbon
HPF
10dB10
dB
0dB0
dB
10
dB
65dB65dB
m501 frontpanel
Use this cable when connecting the balanced XLR output to an unbalanced, 1/4” input.
BASIC WIRING DIAGRAM
The following is a basic overview of common wiring possibilities for the m501. All applications
will vary, so please feel free to contact your dealer or us directly for setup and wiring information.
CARD EDGE CONNECTOR CONTACT ASSIGNMENTS
1) Chassis Ground
2) Output +
3) NC
4) Output -
5) Audio Ground
6) NC
7) NC
8) Input -
9) NC
10) Input +
11) NC
12) +16VDC IN
13) Power Ground
14) -16VDC IN
15) +48VDC IN
m
501
page 7
SPECIFICATIONS
GAIN RANGE (5dB steps)
Mic input 10 - 65dB
Hi-Z input -10 - 45dB
Output trim control 0 to +10dB
THD+N
@ 20dB Gain +20dBu out <0.00085%
@ 40dB Gain +20dBu out <0.0 010%
@ 60dB Gain +20dBu out <0.0050%
INTERMODULATION DISTORTION (
SMPTE/DIN 4:1 7kHz/50Hz <0.0020
NOISE - REFERRED TO INPUT
50Ω source <-130dB
150Ω source <-12 8 d B
600Ω source <-124dB
CMRR
100Hz >55d B
1kH z >75 d B
10kHz >65dB
PHASE DEVIATION
50Hz-25kHz @40dB Gain <10°
FREQUENCY RESPONSE
Mic input @ 40dB Gain -3dB 3.8Hz-288kHz
Mic input @ 40dB Gain -0.5dB 8.35Hz-135kHz
Hi-Z input @ 20dB Gain -3dB 1.7Hz-180kHz
Hi-Z input @ 20dB Gain -0.5dB 4Hz-72kHz
Mic input
Mic input, Ribbon mode
Hi-Z input (unbalanced) 2.5MΩ
Hi-Z input (balanced) 5MΩ
Balanced Output 300Ω
Unbalanced Output 150Ω
Green threshold -12dBu
Red threshold +16dBu
MAXIMUM OUTPUT LEVEL
100k Ohm load, 0.1% THD , 1kHz, API Lunchbox 27d Bu
WEIGHT and DIMENSIONS
0.7 lb H5.25” x W1.5” x D6.6”
316g H13.34cm x W3.81cm x D16.75cm
POWER CONSUMPTION
Current required from +16V and -16V power supplies 120mA Max
(1kHz, 22Hz-22kHz BW)
@ 40dB Gain, +20dBu out)
(@60dB Gain, 3.5Vcm)
(HPF o)
IMPEDANCE
8.1kΩ
20kΩ
PEAK LED METER
m
501
page 8
WARRANTY INFORMATION
Grace Design warrants all of our products to be free of defective parts and workmanship for a period of ve
years. This warranty period begins at the original date of purchase and is transferable to any person who may
subsequently purchase the product during this time.
This warranty excludes the following conditions: normal wear and tear, misuse, customer negligence, acciden-
tal damage, unauthorized repair or modication, cosmetic damage and damage incurred during shipment.
During the time of this warranty, Grace Design will repair or replace, at its option, any defective parts or repair
defective workmanship without charge, provided the customer has appropriate proof of purchase and that the
product has its original factory serial number. In all warranty claims the customer is responsible for shipping
costs to the Grace Design facility, and Grace Design pays for return ground shipping.
In order for Grace Design to provide ecient and timely warranty service, it is important that you mail the
completed warranty registration card enclosed with all of our products within 10 days of the original date of
purchase. You may also register your product directly with Grace Design by telephone (303-443-7454 MondayFriday 9:00am to 5:00pm MST), or you can register your product online at www.gracedesign.com.
This warranty is in lieu of all other warranties whether written, expressed, or implied, INCLUDING ANY WAR-
RANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
In no event will Grace Design be liable for lost prots or any other incidental, consequential or Exemplary dam-
ages, even if Grace Design is aware of the possibility of such damages. In no event will Grace Design’s liability
exceed the purchase price of the product.
This warranty gives the customer specic legal rights. The customer may also have other rights, which vary
from state to state. Some states do not allow limitations on implied warranties or consequential damages, so
some of the limitations of the above may not apply to a particular customer.
m
501
page 9
MANUAL REVISIONS
Revision Page Change Date Initials
A all 9/15/09 edg
m
501
page 10
Loading...
