Page 1

USER’S GUIDE

V: 699-01

For the most up-to-date version of this User’s Guide, go to www.gpx.com

TE5582B

55” LED HDTV

Page 2

WARNING: Shock hazard - Do Not Open.

AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains Plug or Direct plug-in adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the Mains Plug or Direct plug-in adapter should be disconnected from the mains socket outlet completely.

La che d’alimentation ou adaptateur de courant est utilisé comme dispositif de déconnexion et doit rester accessible pendant l’utilisation. Pour mettre l’appareil hors tension, la che ou adaptateur de courant doit être débranché de la prise de courant.

Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

No mezcle baterías viejas y nuevas.

No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.).

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.

AVERTISSEMENT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.

CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specied may result in hazardous radiation exposure.

WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.

WARNING: Use of this unit near uorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as it may be the cause.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l’équivalent.

WARNING: The battery, batteries, and battery pack shall not be exposed to excessive heat such as sunshine, re, or the like.

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

WARNING: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ATTENTION

RISQUE D' ÉLECTROCUTION

NE PAS OUVRIR

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Warnings and Precautions

Page 3

Customer Support: 1-888-999-4215

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Important Safety Instructions

Special note: When placing your unit on a lacquered or natural nish, protect your furniture with a cloth or other protective material.

WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

The apparatus shall not be exposed to dripping or splashing and that no objects lled with liquids, such as vases, shall be placed on apparatus.

L’appareil ne doit pas être exposé aux écoulements ou aux éclaboussures et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.

Battery shall not be exposed to excessive heat such as sunshine, re or the like.

Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à la lumière du soleil, au feu ou autres choses de semblable.

Caution marking is located at the rear or bottom of the apparatus.

Attention marquage est situé sur le paneau arrière ou inférieur de l’unité.

The marking information is located at the rear or bottom of apparatus.

Le marquage est situé sur le paneau arrière ou inférieur de l’unité.

FCC Warnings

Additional Warnings

Page 4

55” LED HDTV

• 55” LED display

• Display supports: 720p, 1080i,

1080p

• 1920 x 1080 native resolution

• 1080p Full HD

• Aspect ratio: 16:9

• Dynamic contrast: 50,000:1

• Brightness: 500cd/m²

• Max color: 1073.7 million

• Contrast: 1400:1

• Refresh rate: 120Hz

• Response time: <6.5ms

• Viewing angle: 178°H, 178°V

• ATSC/NTSC tuner

• Progressive scan

• V-chip - parental controls/viewer

controls

• Multi-language on-screen display

• Auto-scan

• Electronic program guide

• Sleep timer

• Closed captioning

• Digital volume control

• 3 HDMI inputs

• Component video input

• VGA PC video input

• Composite video input

• USB port: supports JPEG, MP3 le

formats

• Optical digital audio output

• RCA stereo audio inputs

• RCA stereo audio outputs

• 3.5mm PC audio input

• RF input

• Built-in stereo speakers

• Full-function remote

• Wall mountable

• Dual Voltage: 220V/50Hz,

120V/60Hz

• AC power input: requires an AC power cable (included)

• Remote control: requires 2 AAA batteries (included)

• Removable stand

• AC power cable

* Please note, LCD panel specications are subject to change without notice.

* Some pixels may be visible on the screen, appearing as tiny red, green, blue or black spots. This is normal and is

not a defect on the TV nor does it negatively aect the performance.

Features

Includes

Setup

AC power input: requires an AC power adapter (included)

Requires 2, AAA-size, batteries (included)

Power Remote

Page 5

Customer Support: 1-888-999-4215

Table of Contents

Warnings and Precautions ............................................................................ 2

Important Safety Instructions ......................................................................... 3

55” LED HDTV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Features

Setup ................................................................................................ 4

Power Remote Includes

Table of Contents ..................................................................................... 5

Introduction ......................................................................................... 6

Setup ................................................................................................ 8

Connecting a TV Antenna Connecting a Set-Top box Connecting Basic Cable

Favorites and Clock ................................................................................... 9

Adding Favorites Viewing Favorites Setting the Clock

Channels ...........................................................................................10

Auto Scanning for Channels

TV Menu and Parental Controls ......................................................................11

Parental Controls (V-Chip)

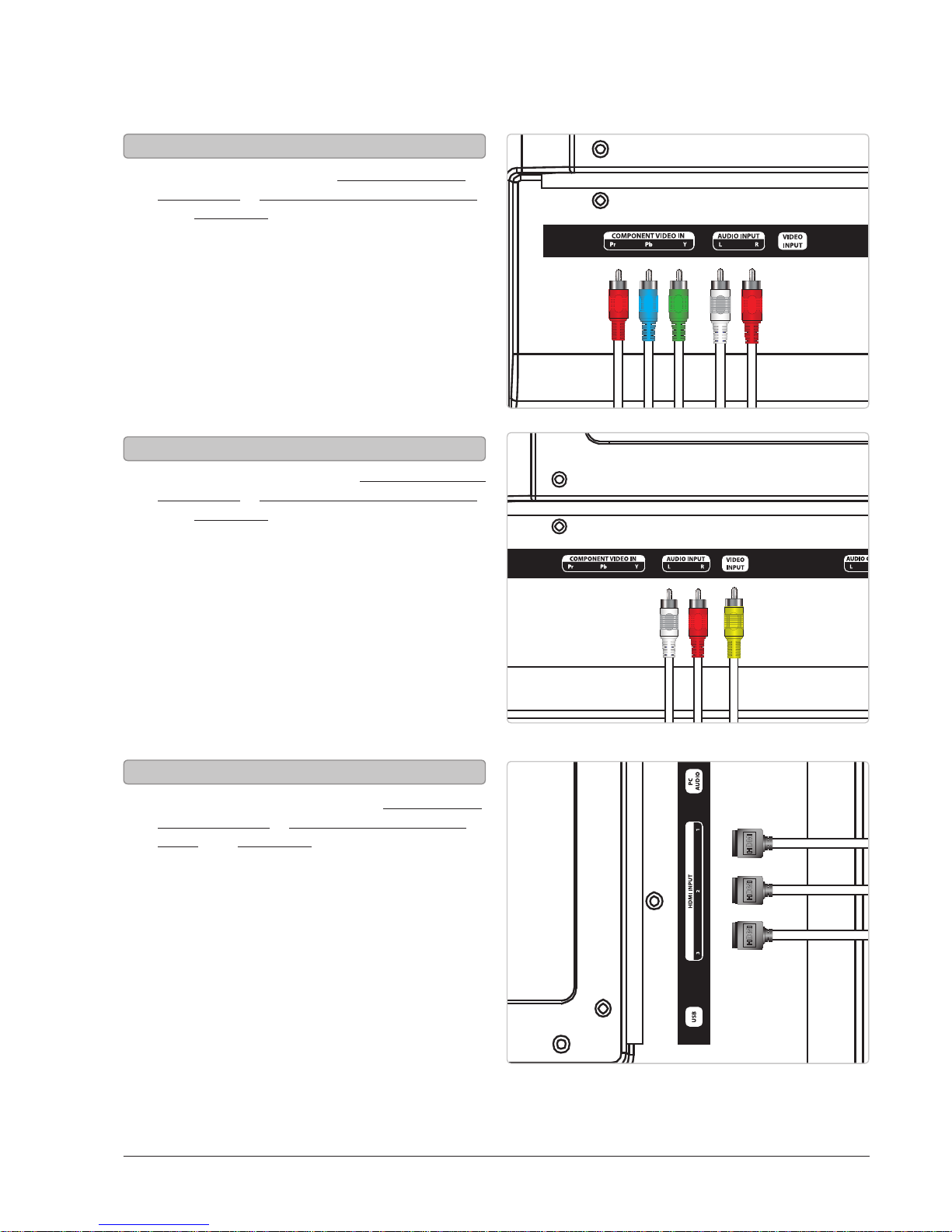

Connecting Other Devices ...........................................................................12

Connecting a Set-Top Box Connecting a Gaming Device Connecting a DVD Player or VCR

Connecting Other Devices ...........................................................................13

Connecting a Computer Using the Optical Audio Out

USB .................................................................................................14

Connecting a USB Thumb Drive Using a USB Thumb Drive

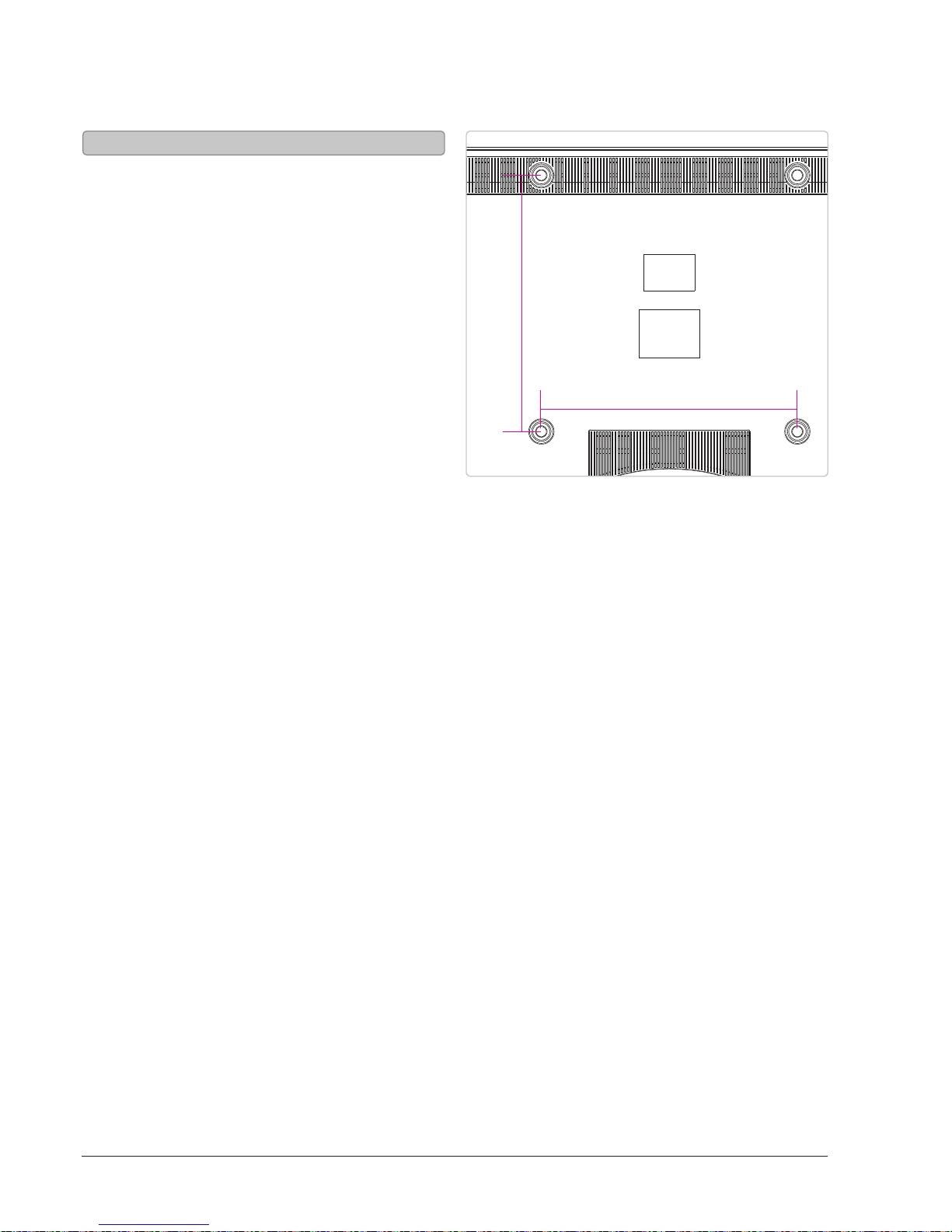

Mounting ...........................................................................................15

Mounting the Television

Company Information ...............................................................................16

International Support Contact Information Warranty Green Initiative

Page 6

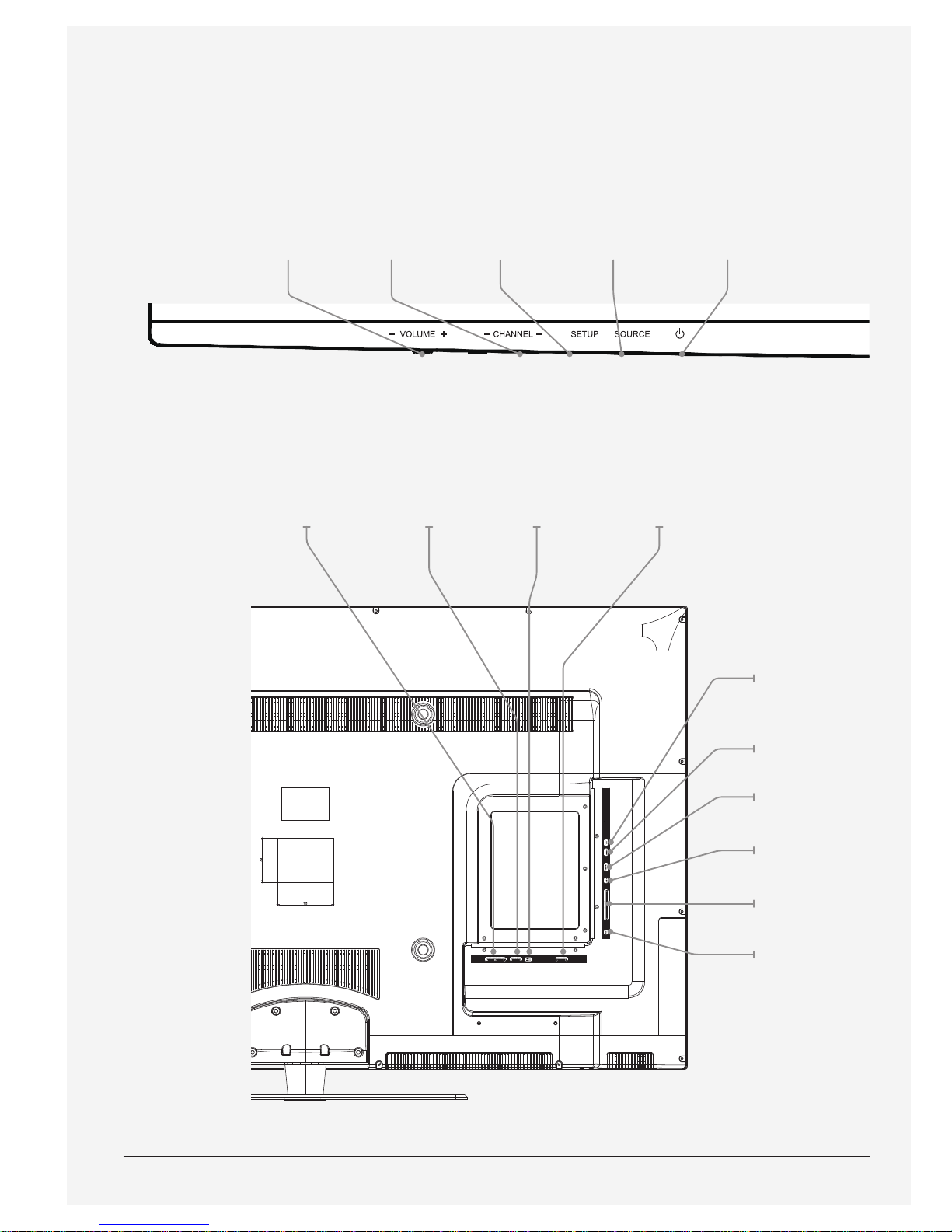

Introduction

Optical Audio Output

RF Input

VGA Video Input

PC Audio Input

HDMI Inputs

USB Port

Volume ±

Press to adjust

the volume.

Setup

Press to access

the television

menu.

Composite

Video Input

Power

Press to turn

the television

o and on.

Component Video Input

Channel ±

Press to adjust

the television

channel.

RCA Stereo

Audio Outputs

Source

Press to adjust

the source.

RCA Stereo

Audio Inputs

Page 7

Customer Support: 1-888-999-4215

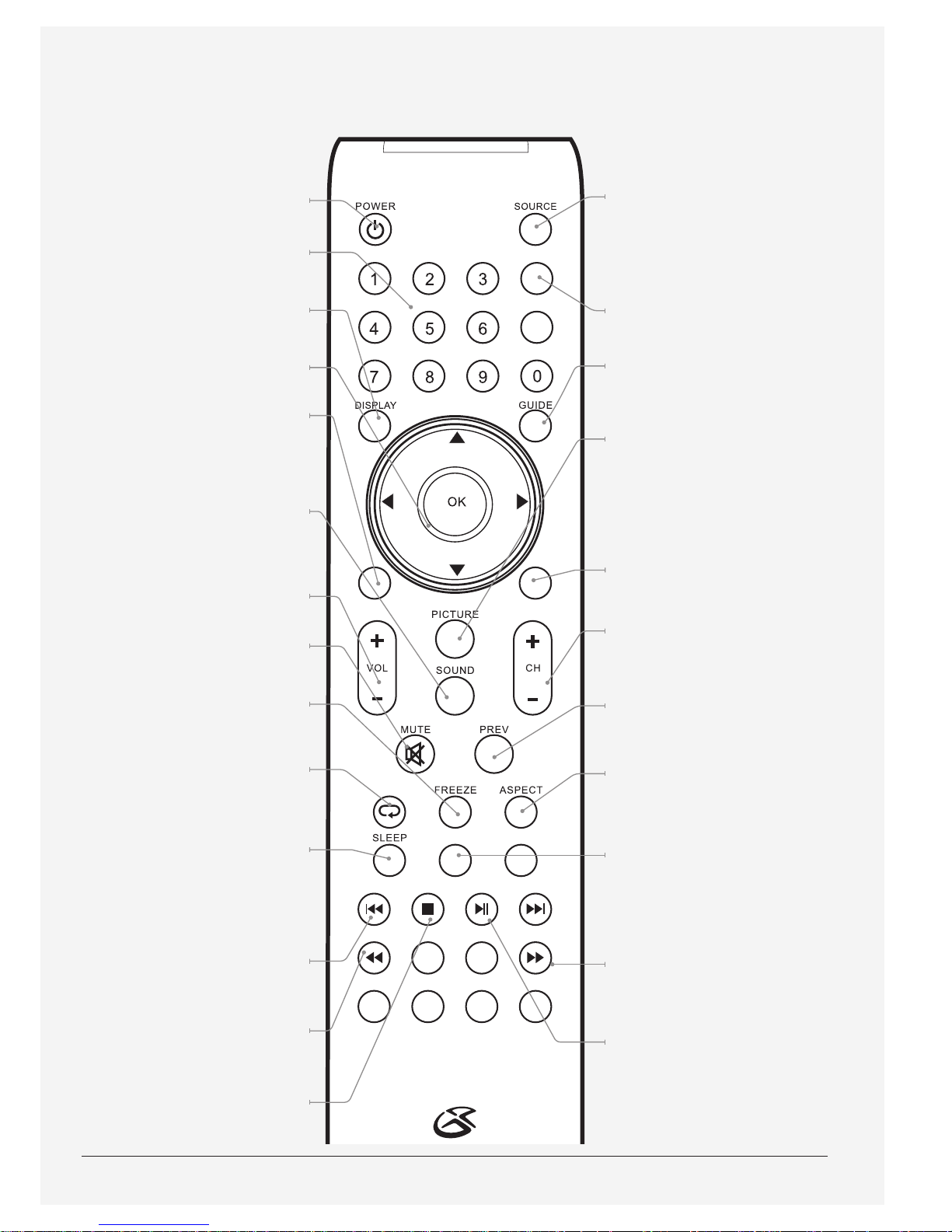

SETUP EXIT

FAVORITES

AUDIO/CC

REPEAT

Power

Press to power the television o

or on.

Number Keypad

Display

Press to view the on-screen

display.

OK/Arrow Keys

Setup

Press to view the television setup

menu.

Sound

Press to adjust the sound between

STANDARD, SOFT, USER, and

DYNAMIC. The user mode can be

customized by accessing Sound

Settings in the menu.

Volume

Press to adjust the volume.

Mute

Press to mute the volume.

Freeze

Press to freeze or unfreeze the

current frame in TV mode.

Repeat

Press to repeat loaded content on

a connected USB drive.

Sleep

Press repeatedly to set the sleep timer. After the set time has expired the television will

automatically power o.

Skip

Press to skip through loaded

content on a connected USB drive.

Rewind

Press to search through loaded

content on a connected USB drive.

Stop

Press to stop loaded content on a

connected USB drive.

Source

Press to view the available television sources. Press the ARROW and OK buttons to adjust the current television source.

Favorites

Press to cycle through saved favorite channels in TV mode.

Guide

In TV mode, press to view the onscreen television guide.


Press to adjust the picture between STANDARD, MOVIE, USER, and DYNAMIC. The user mode can be customized by accessing Picture Settings in the menu.

Exit

Press to exit the current menu.

Channel

Press to adjust the television channel.

In TV mode, press to switch to the previous channel.

Aspect

Press to adjust the aspect ratio between FULL, NORMAL, WIDE, and CINEMA.

Audio/CC

Press to adjust the current audio settings. Press to view the closed captioning in TV mode.

Fast Fwd

Press to search through loaded content on a connected USB drive.

Play/Pause

Press to play or pause loaded content on a connected USB drive.

Page 8

Setup

Connecting a Set-Top box

Requires a TV antenna (not included).

1. Connect a VHF, UHF, or HDTV antenna to the RF Input on the television.

2. Press the Source button to switch to TV mode.

3. Press the Setup button to access the setup menu.

4. Press the Arrow () buttons to highlight the CHANNEL icon. Press the Enter button.

5. Press the Arrow () buttons to highlight SIGNAL TYPE. Press the Arrow () buttons to select AIR.

6. Press the Arrow () buttons to highlight AUTO CHANNEL SEARCH. Press the Enter button to begin scanning for available channels.

Connecting a TV Antenna

Requires a cable connection.

1. Connect a cable to the RF Input on the television.

2. Press the Source button to switch to TV mode.

3. Press the Setup button to access the setup menu.

4. Press the Arrow () buttons to highlight the CHANNEL icon. Press the Enter button.

5. Press the Arrow () buttons to highlight SIGNAL TYPE. Press the Arrow () buttons to select CABLE.

6. Press the Arrow () buttons to highlight AUTO CHANNEL SEARCH. Press the Enter button to begin scanning for available channels.

Connecting Basic Cable

Requires a Set-Top Box (not included).

If your Set-Top Box has an HDMI Output:

• Connect the HDMI output on the Set-Top Box to the HDMI Input on the television using an HDMI cable (not included).

If your Set-Top Box has a Composite Video Output:

• Connect the video output on the Set-Top Box to the Composite Video Input on the television using an A/V RCA cable (not included). Connect the audio output on the Set-Top Box to the RCA Audio Input on the television.

If your Set-Top Box has a Component Video Output:

• Connect the component video output on the Set-Top Box to the Component Video Input on the television using a component RCA cable (not included). Connect the audio output on the Set-Top Box to the RCA Audio Input on the television.

After connecting your Set-Top Box:

• Press the Source button to switch to YPbPr, AV, or HDMI to match the connection used.

Page 9

Customer Support: 1-888-999-4215

Favorites and Clock

Adding Favorites

1. Press the Source button to switch to TV mode.

2. Press the Setup button to access the setup menu.

3. Press the Arrow () buttons to highlight the CHANNEL icon. Press the Enter button.

4. Press the Arrow () buttons to highlight the CHANNEL SETTING icon. Press the Enter button.

5. Use the Arrow () buttons to select a channel.

6. Press the Arrow () buttons to highlight the FAVORITE CHANNEL icon. Press the Enter button.

1. Press the Source button to switch to TV mode.

2. Press the Favorites button to view a list of your saved favorites.

Viewing Favorites

1. Press the Setup button to access the setup menu.

2. Press the Arrow () buttons to highlight the SETUP icon. Press the Enter button.

3. Press the Arrow () buttons to highlight CLOCK. Press the Enter button.

4. Press the Arrow () buttons to highlight TIME ZONE. Press the Arrow () buttons to select your current time zone.

5. Press the Arrow() buttons to highlight AUTO CLOCK. Press the Arrow() buttons to turn auto clock o and on.

When the correct time zone is set, auto clock will automatically set your clock and date for you.

6. To set the time and date manually, turn auto clock o, highlight SETUP TIME, and use the Arrow and Enter buttons to manually set the time and date.

Setting the Clock

Page 10

Channels

The Auto Channel Scan must be run before any channels can be viewed on the television.

1. Press the Source button to switch to TV mode.

2. Press the Setup button to access the setup menu.

3. Press the Arrow () buttons to highlight the CHANNEL icon. Press the Enter button.

4. Press the Arrow () buttons to highlight SIGNAL TYPE. Press the Arrow () buttons to select AIR.

5. Press the Arrow () buttons to highlight AUTO CHANNEL SEARCH. Press the Enter button to begin scanning for available channels.

Auto Scanning for Channels

Page 11

Customer Support: 1-888-999-4215

TV Menu and Parental Controls

Parental Controls (V-Chip)

1. Press the Source button to switch to TV mode.

2. Press the Setup button.

3. Press the Arrow () buttons, highlight PARENTAL CONTROL PICTURE, and press the Enter button.

4. The default passcode for the parental lock is:

0 0 0 0

5. Enter the passcode to access the PARENTAL CONTROL preferences.

6. From this menu, you can lock specic ratings from the United States rating system or the Canadian rating system by accessing the V-CHIP settings. You can also lock the buttons on the television or lock specic sources from access.

Page 12

You will need: a set-top box, composite and RCA stereo cables or component and RCA stereo cables or an HDMI cable (not included).

1. Connect the set-top box’s audio and video outputs to the corresponding audio

and video inputs on the television.

2. Power the television on and press the Source button to switch to the connected input (AV (composite), YPbPr (component), or HDMI 1, 2, or 3).

You will need: a gaming device, composite and RCA stereo cables or component and RCA stereo cables or an HDMI cable (not included).

1. Connect the gaming device’s audio and video outputs to the corresponding audio

and video inputs on the television.

2. Power the television on and press the Source button to switch to the connected input (AV (composite), YPbPr (component), or HDMI 1, 2, or 3).

You will need: a DVD player or VCR, composite and RCA stereo cables or component and RCA stereo cables or an HDMI cable (not included).

1. Connect the DVD player or VCR’s audio and video outputs to the corresponding audio

and video inputs on the television.

2. Power the television on and press the Source button to switch to the connected input (AV (composite), YPbPr (component), or HDMI 1, 2, or 3).

HDMI HDMI HDMI

Connecting Other Devices

Connecting a Set-Top Box

Connecting a Gaming Device

Connecting a DVD Player or VCR

Page 13

Customer Support: 1-888-999-4215

Connecting Other Devices

You will need: a PC with a VGA output, and a VGA cable (not included).

1. Connect the computer’s VGA output to the VGA/PC Input on the television.

2. Power the television on and press the Source button to switch to the PC Mode.

3. Audio from the connected PC can be input to the television through the TV’s PC Audio Input by using a 3.5mm audio cable (not included).

You will need: a (home theater) with an Optical Audio Input and a Digital Optical Audio Cable (not included).

1. Connect the Digital Optical Audio Cable to the (home theater system) and the television.

2. Adjust the settings on your (home theater) to play audio from the connected Optical Audio Input.

Please note: home theater systems may label the Optical Audio Input source dierently, such as “PCM”, or “Digital Audio Input”. Please consult your home theater system’s user manual in order to select the correct input source.

3. Audio from the television will now be played through the connected (home theater system).

Connecting a Computer

Using the Optical Audio Out

Page 14

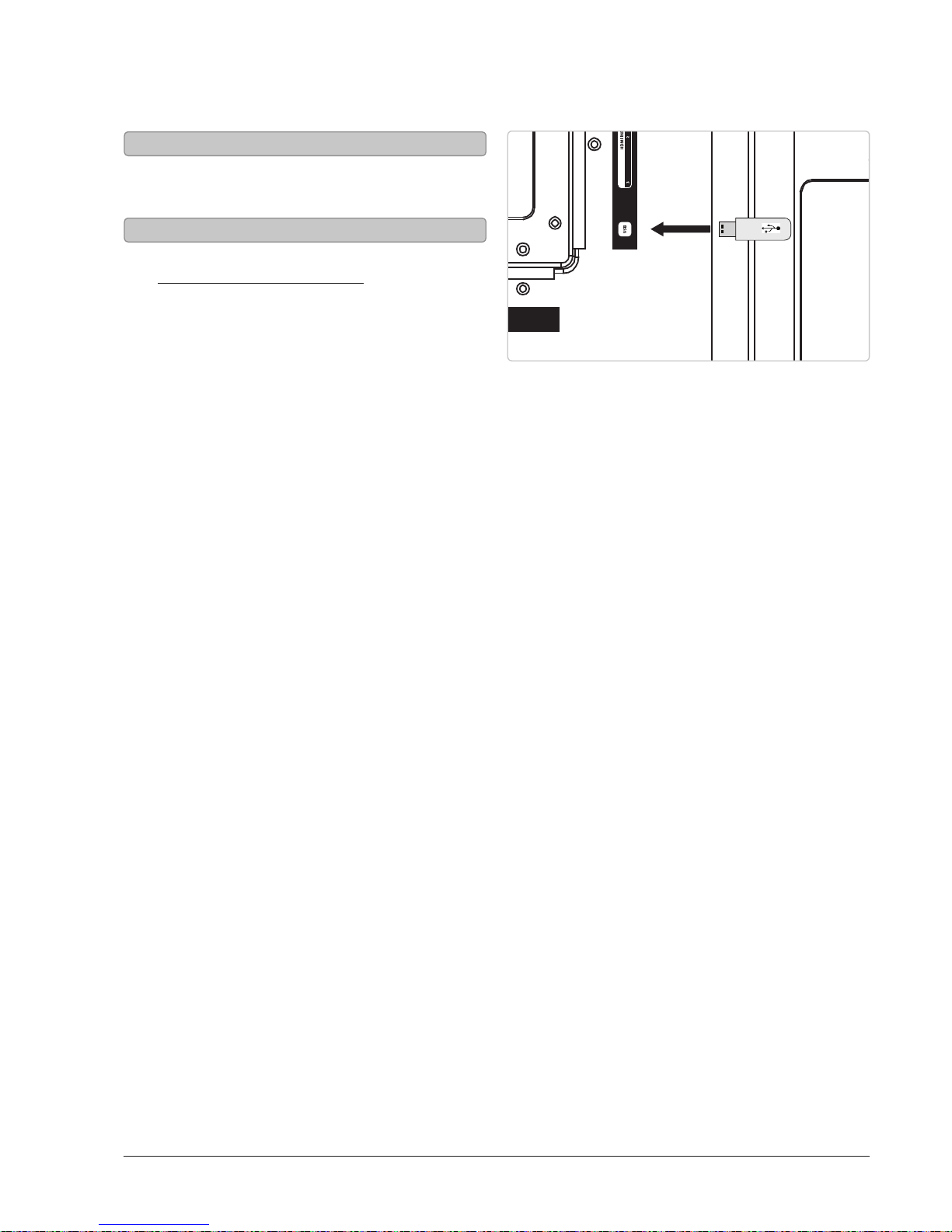

1. Load a USB thumb drive into the USB Port as shown in the image to the right.

1. Follow the instructions for Connecting a USB thumb drive.

2. Press the Source button to switch to Media mode.

3. Use the Arrow and Enter buttons to select and play content from the connected USB thumb drive.

USB

Connecting a USB Thumb Drive

Using a USB Thumb Drive

Page 15

Customer Support: 1-888-999-4215

Mounting

COMPONENT VIDEO IN

400MM

Please consult a professional before attempting to mount the television.

Due to it’s large size, it is recommended to have two or more people when attempting to move or mount this unit.

Mounting the Television

Page 16
