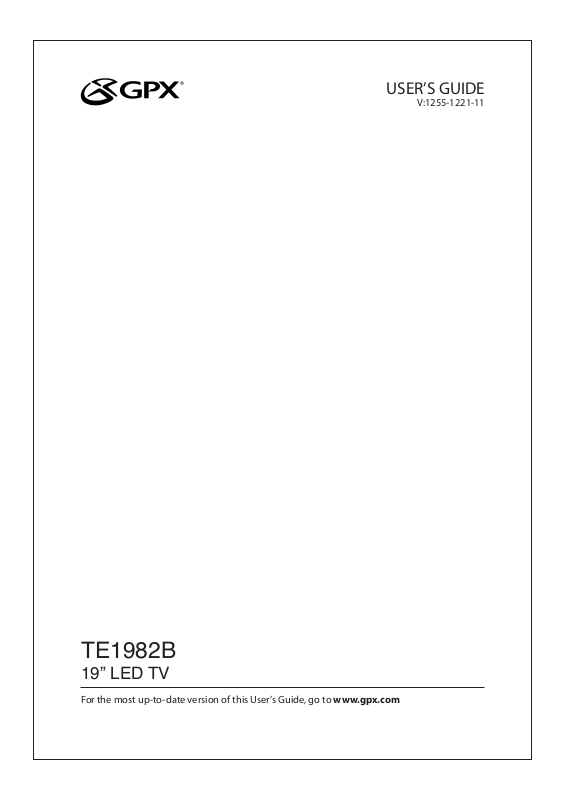

Page 1

USER’S GUIDE

V:1255-1221-11

TE1982B

19” LED TV

For the most up-to-date version of this User’s Guide, go to www.gpx.com

Page 2

Warnings and Precautions

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.

AVERTISSEMENT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.

CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specied may result in hazardous radiation exposure.

WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.

WARNING: Use of this unit near uorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as it may be the cause.

PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l’équivalent.

WARNING: Shock hazard - Do Not Open.

AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains Plug or Direct plug-in adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the Mains Plug or Direct plug-in adapter should be disconnected from the mains socket outlet completely.

La che d’alimentation ou adaptateur de courant est utilisé comme dispositif de déconnexion et doit rester accessible pendant l’utilisation. Pour mettre l’appareil hors tension, la che ou adaptateur de courant doit être débranché de la prise de courant.

Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

No mezcle baterías viejas y nuevas.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.).

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

RISQUE D' ÉLECTROCUTION

NE PAS OUVRIR

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Page 3

Important Safety Instructions

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12.

Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Special note: When placing your unit on a lacquered or natural nish, protect your furniture with a cloth or other protective material.

FCC Warnings

WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings

The apparatus shall not be exposed to dripping or splashing and that no objects lled with liquids, such as vases, shall be placed on apparatus.

L’appareil ne doit pas être exposé aux écoulements ou aux éclaboussures et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.

Battery shall not be exposed to excessive heat such as sunshine, re or the like.

Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à la lumière du soleil, au feu ou autres choses de semblable.

Caution marking is located at the rear or bottom of the apparatus.

Attention marquage est situé sur le paneau arrière ou inférieur de l’unité.

The marking information is located at the rear or bottom of apparatus.

Le marquage est situé sur le paneau arrière ou inférieur de l’unité.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

Customer Support: 1-888-999-4215 3

Page 4

TE1982B

AUDIO

R L

HDMI

AUDIOTVANTENNA

DC IN 12V

VIDEOVGA/PC IN

OPTICAL

OUT

USB

VIDEO INPUT

Y Pb Pr

OPTICAL

OUT

OPTICAL

Features Includes

• 18.5” LED display

• HDTV supports up to 1080p

• 1366 x 768 native resolution

• Aspect ratio: 16:9

• Brightness: 450cd/m²

• Max color: 16.7 million

• Contrast: 3000:1

• Response time: <6.5ms

• Viewing angle: 176°H, 176°V

• ATSC/NTSC tuner

• Progressive scan

• V-chip

• Multi-language on-screen display

• Auto-scan

• Electronic program guide

• Sleep timer

• Closed captioning

• Digital volume control

• Built-in stereo speakers

• HDMI input

• Component video input

• VGA PC video input

• Composite video input

• USB port: supports JPEG, MP3 le formats

• Optical digital audio output

• RCA stereo audio inputs

• 3.5mm PC audio input

• RF input

• Stereo headphone jack

• Full-function remote

• Wall mountable

• DC power input: requires an AC/DC power adapter (not included)

• Dual Voltage: 220V/50Hz, 120V/60Hz

• Remote control: requires 2 AAA batteries (included)

• Removable stand

• AC/DC power adapter

Setup

Power Remote

AC power: requires an AC/DC power adapter (included).

Attaching the Stand

Use a philips-head screwdriver to tighten or remove the screws. Using an power drill could damage the TV stand.

VIDEO INPUT

Y Pb Pr

USB

AUDIO

DC IN 12V

HDMI

VIDEOVGA/PC IN

R L

AUDIOTVANTENNA

PC AUDIOTVANTENNA

OUT

VIDEO INPUT

Y Pb Pr

USB

AUDIO

DC IN 12V

HDMI

VIDEOVGA/PC IN

R L

Requires 2 AA batteries (included)

OPEN

Page 5

Table of Contents

Warnings and Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

TE1982B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Features Includes

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Power Attaching the Stand Remote

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Connecting a TV Antenna Connecting a Set-Top box Connecting Basic Cable

Favorites and Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Adding Favorites Viewing Favorites Setting the Clock

Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Auto Scanning for Channels

Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Parental Controls (V-Chip)

Connecting Other Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

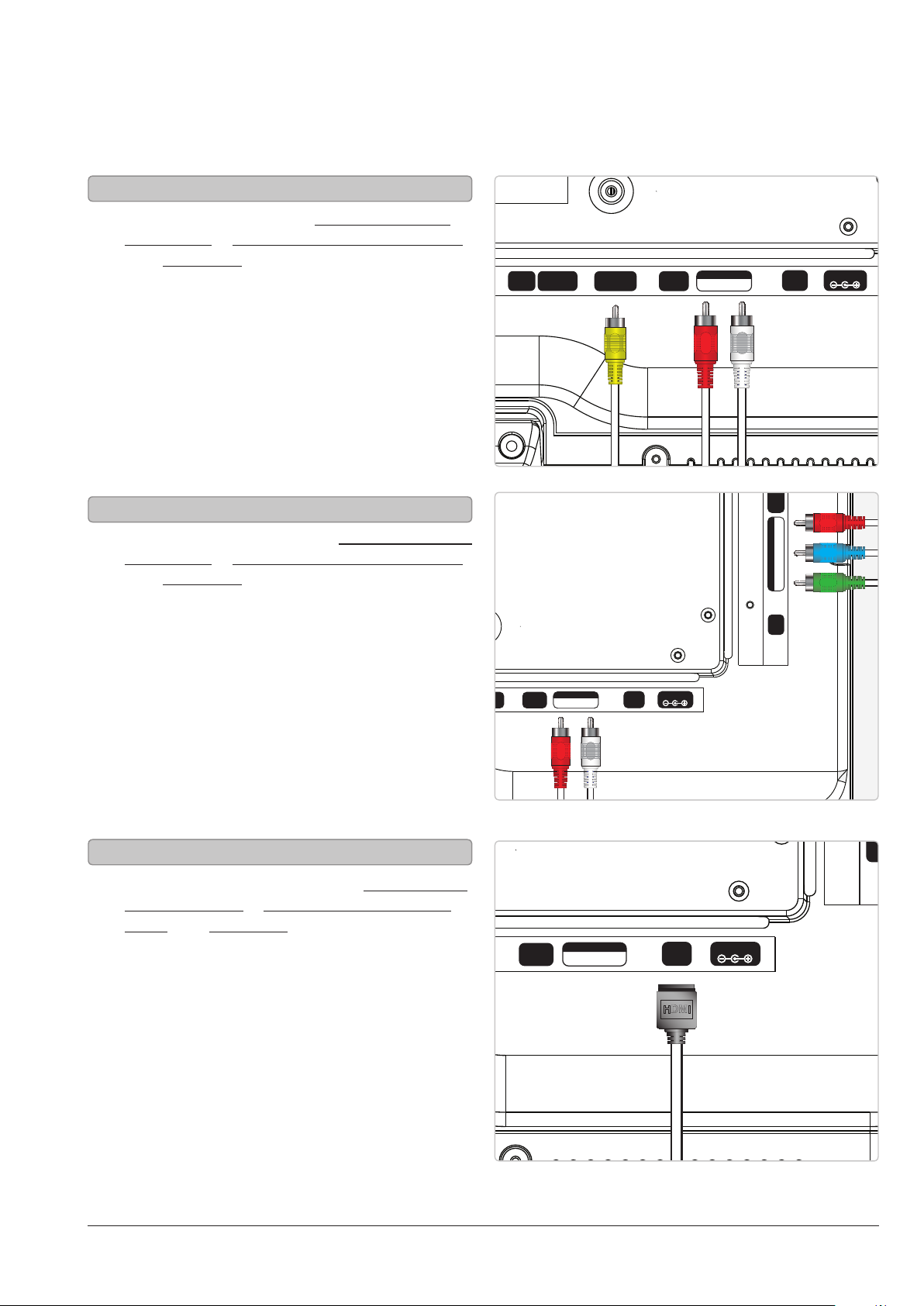

Connecting a Set-Top Box Connecting a Gaming Device Connecting a DVD Player or VCR

Connecting Other Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

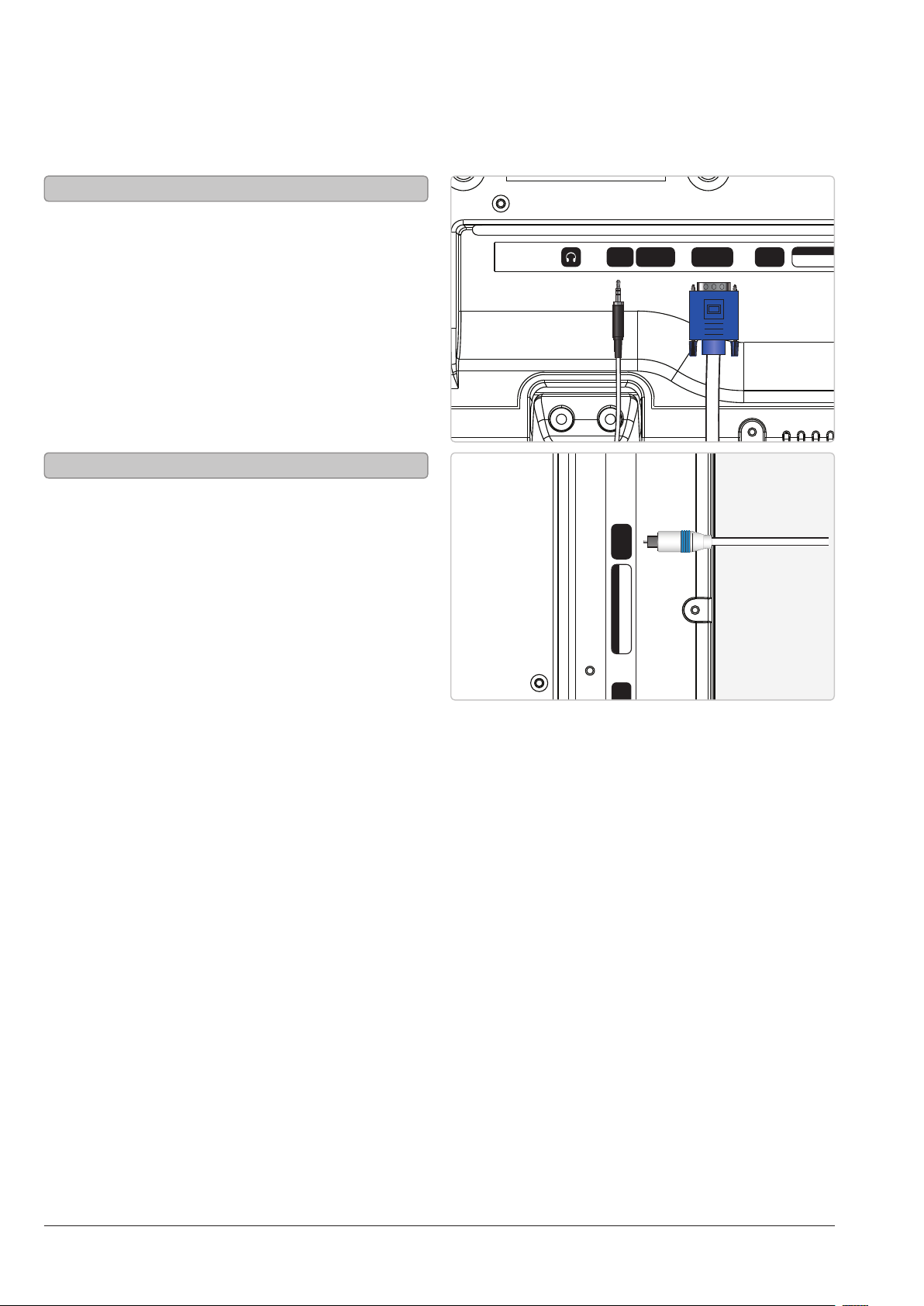

Connecting a Computer Using the Optical Audio Out

USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

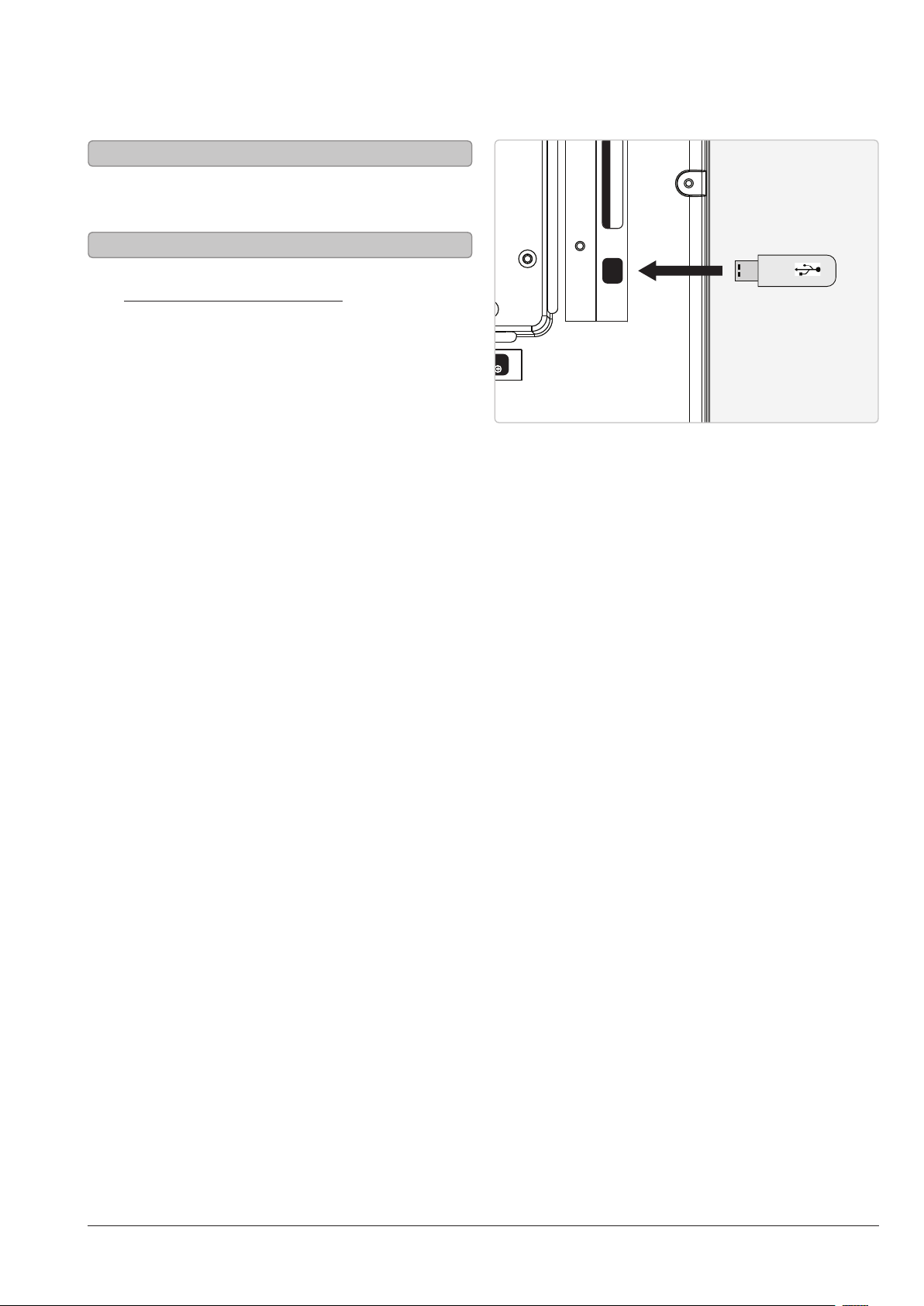

Connecting a USB Thumb Drive Using a USB Thumb Drive

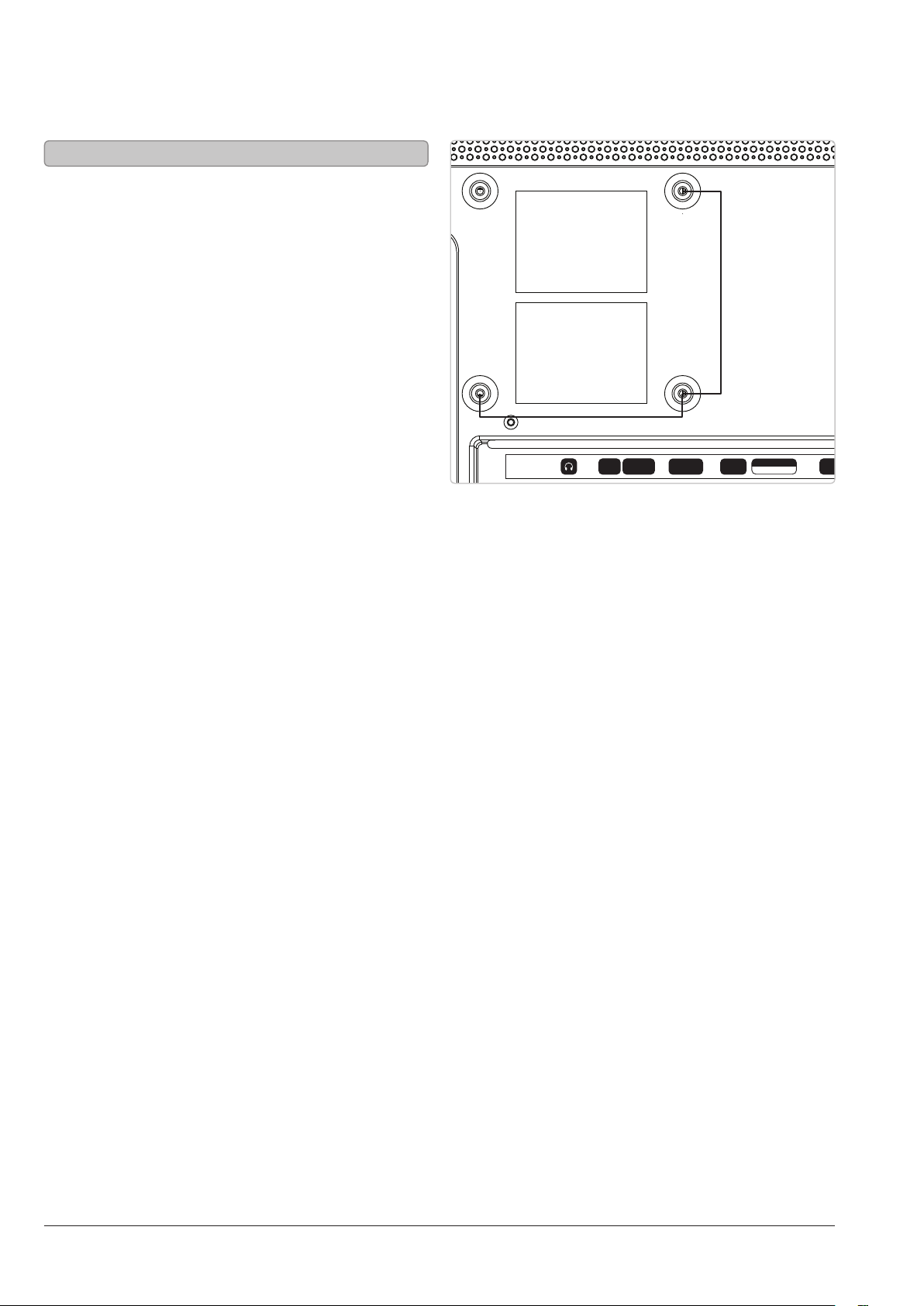

Mounting to a Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Important Notes

Company Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

International Support Contact Information Green Initiative

Customer Support: 1-888-999-4215 5

Page 6

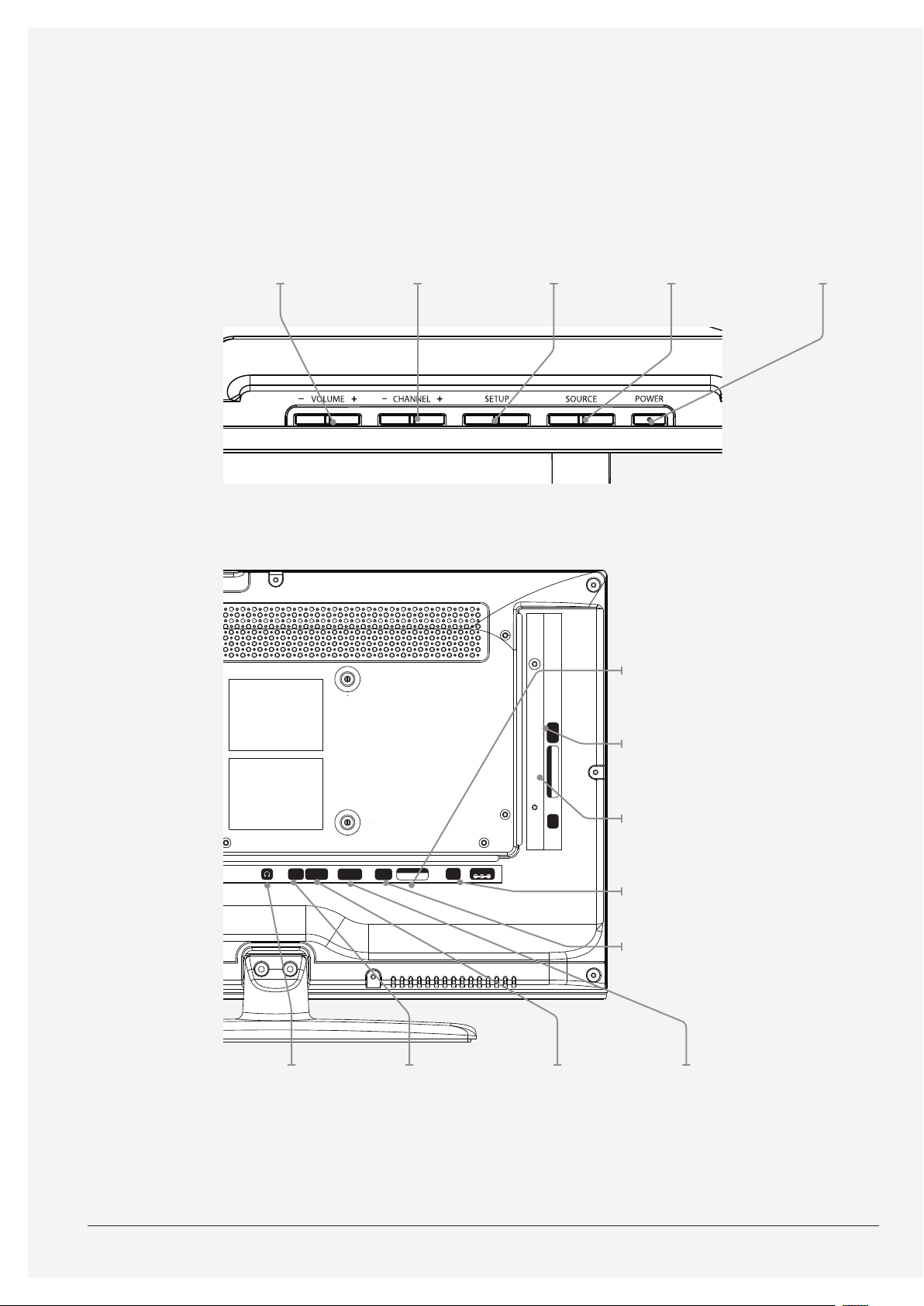

Introduction

Volume

Press to adjust

the volume.

Channel

Press to adjust

the television

channel.

Setup

Press to view

the television

setup menu.

Source

Press and use

the Arrow/

Enter buttons

to adjust the

source.

Power

Press to power the television o or on.

AUDIOTVANTENNA

Stereo

Headphone

Jack

RCA Stereo Inputs

OUT

OPTICAL

VIDEO INPUT

Y Pb Pr

USB

AUDIO

VIDEOVGA/PC IN

R L

DC IN 12V

HDMI

Optical Output

Component Video Ouput

HDMI Input

Composite Video Input

PC Audio Input RF Input VGA/PC Input

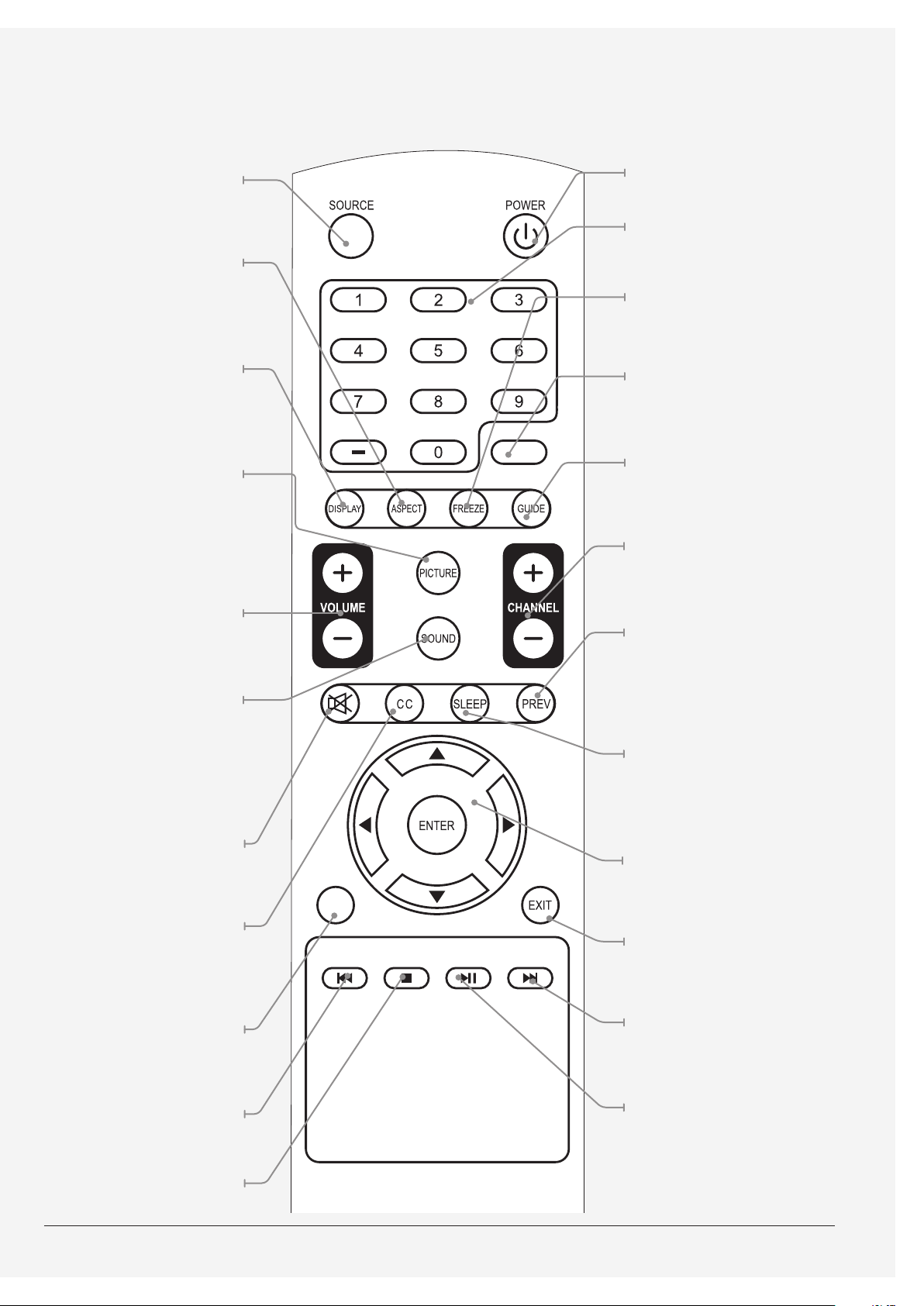

Page 7

Source

Press and use the

Arrow/Enter buttons

to adjust the source.

Aspect

Press to adjust the

aspect ratio between

WIDE, CINEMA, ZOOM,

and NORMAL.

Power

Press to power the television o or on.

Number Keypad

Freeze

Press to freeze or unfreeze the current frame in TV mode.

Display

Press to view the on-

screen display.


Press to adjust the picture

between STANDARD,

MOVIE, USER, and

DYNAMIC. The user

mode can be customized

by accessing Picture

Settings in the menu.

Volume ±

Press to adjust the volume.

Sound

Press to adjust the sound

between STANDARD,

SOFT, USER, and

DYNAMIC. The user

mode can be customized

by accessing Sound

Settings in the menu.

AUDIO

FAVORITES

Favorites

In TV mode, press to view your favorites list.

Guide In TV mode, press to view the on-screen television guide.

Channel ±

Press to adjust the television channel.

In TV mode, press to switch to the previous channel.

Sleep

Press repeatedly to set the sleep timer. After the set time has expired the television will automatically power o.

Mute

Press to mute the volume.

Arrows/Enter

Press to make selections in the on screen

Audio/CC

Press to adjust the current

audio settings.

In TV mode, press to turn

closed captioning o or on.

Setup

Press to view the television

setup menu.

Skip

SETUP

Press to skip backward

in Media Mode.

Stop

Press to stop in

Media Mode.

Customer Support: 1-888-999-4215 7

or disc menus.

Exit

Press to exit the current on-screen menu.

Skip

Press to skip forward in Media Mode.

Play/Pause

Press to play or pause in Media Mode.

Page 8

Setup

Connecting a TV Antenna

Requires a TV antenna (not included).

1. Connect a VHF, UHF, or HDTV antenna to the RF Input on the television.

2. Press the Source button to switch to TV mode.

3. Press the Setup button to access the setup menu.

4. Press the Arrow () buttons to highlight the CHANNEL icon. Press the Enter button.

5. Press the Arrow () buttons to highlight SIGNAL TYPE. Press the Arrow () buttons to select AIR.

6. Press the Arrow () buttons to highlight AUTO CHANNEL SEARCH. Press the Enter button to begin scanning for available channels.

Connecting a Set-Top box

Requires a Set-Top Box (not included).

Connecting Basic Cable

Requires a cable connection.

1. Connect a cable to the RF Input on the television.

2. Press the Source button to switch to TV mode.

3. Press the Setup button to access the setup menu.

4. Press the Arrow () buttons to highlight the CHANNEL icon. Press the Enter button.

5. Press the Arrow () buttons to highlight SIGNAL TYPE. Press the Arrow () buttons to select CABLE.

6. Press the Arrow () buttons to highlight AUTO CHANNEL SEARCH. Press the Enter button to begin scanning for available channels.

If your Set-Top Box has an HDMI Output:

• Connect the HDMI output on the Set-Top Box to the HDMI Input on the television using an HDMI cable (not included).

If your Set-Top Box has a Composite Video Output:

• Connect the video output on the Set-Top Box to the Composite Video Input on the television using an A/V RCA cable (not included). Connect the audio output on the Set-Top Box to the RCA Audio Input on the television.

If your Set-Top Box has a Component Video Output:

• Connect the component video output on the Set-Top Box to the Component Video Input on the television using a component RCA cable (not included). Connect the audio output on the Set-Top Box to the RCA Audio

Input on the television.

After connecting your Set-Top Box:

• Press the Source button to switch to YPBPR, AV, or HDMI to match the connection used.

Page 9

Favorites and Clock

Adding Favorites

1. Press the Source button to switch to TV mode.

2. Press the Setup button to access the setup menu.

3. Press the Arrow () buttons to highlight the CHANNEL icon. Press the Enter button.

4. Press the Arrow () buttons to highlight the CHANNEL SETTING icon. Press the Enter button.

5. Use the Arrow () and Enter buttons to select the channel as a favorite.

Viewing Favorites

1. Press the Source button to switch to TV mode.

2. Press the Favorites button to view a list of your saved favorites.

Setting the Clock

1. Press the Setup button to access the setup menu.

2. Press the Arrow () buttons to highlight the SETUP icon. Press the Enter button.

3. Press the Arrow () buttons to highlight CLOCK. Press the Enter button.

4. Press the Arrow () buttons to highlight TIME ZONE. Press the Arrow () buttons to select your current time zone.

5. Press the Arrow() buttons to highlight AUTO CLOCK. Press the Arrow() buttons to turn auto clock o and on.

When the correct time zone is set, auto clock will automatically set your clock and date for you.

6. To set the time and date manually, turn auto clock o, highlight SETUP TIME, and use the Arrow and Enter buttons to manually set the time and date.

Customer Support: 1-888-999-4215 9

Page 10

Channels

Auto Scanning for Channels

The Auto Channel Scan must be run before any channels can be viewed on the television.

1. Press the Source button to switch to TV mode.

2. Press the Setup button to access the setup menu.

3. Press the Arrow () buttons to highlight the CHANNEL icon. Press the Enter button.

4. Press the Arrow () buttons to highlight SIGNAL TYPE. Press the Arrow () buttons to select AIR.

5. Press the Arrow () buttons to highlight AUTO CHANNEL SEARCH. Press the Enter button to begin scanning for available channels.

Page 11

Parental Controls

Parental Controls (V-Chip)

1. Press the Source button to switch to TV mode.

2. Press the Setup button.

3. Press the Arrow () buttons, highlight the PARENTAL CONTROL picture, and press the Enter button.

4. The default passcode for the parental lock is:

0 0 0 0

5. Enter the passcode to access the PARENTAL CONTROL preferences.

6. From this menu, you can lock specic ratings from the United States rating system or the Canadian rating system by accessing the V-CHIP settings. You can also lock the buttons on the television or lock specic sources from access.

Customer Support: 1-888-999-4215 11

Page 12

AUDIO

R L

HDMI

AUDIOTVANTENNA

DC IN 12V

VIDEOVGA/PC IN

OPTICAL

OUT

USB

VIDEO INPUT

Y Pb Pr

AUDIO

R L

HDMI

DC IN 12V

VIDEOVGA/PC IN

OPTICAL

OUT

USB

VIDEO INPUT

Y Pb Pr

AUDIO

R L

HDMI

DC IN 12V

VIDEOVGA/PC IN

OPTICAL

OUT

USB

VIDEO INPUT

Y Pb Pr

HDMI

Connecting Other Devices

Connecting a Set-Top Box

You will need: a set-top box, composite and RCA stereo cables or component and RCA stereo cables or an HDMI cable (not included).

1. Connect the set-top box’s audio and video outputs to the corresponding audio

and video inputs on the television.

2. Power the television on and press the Source button to switch to the connected input (AV (composite), YPbPr (component), or HDMI).

Connecting a Gaming Device

You will need: a gaming device, composite and RCA stereo cables or component and RCA stereo cables or an HDMI cable (not included).

1. Connect the gaming device’s audio and video outputs to the corresponding audio

and video inputs on the television.

2. Power the television on and press the Source button to switch to the connected input (AV (composite), YPbPr (component), or HDMI).

Connecting a DVD Player or VCR

You will need: a DVD player or VCR, composite and RCA stereo cables or component and RCA stereo cables or an HDMI cable (not included).

1. Connect the DVD player or VCR’s audio and video outputs to the corresponding audio

and video inputs on the television.

2. Power the television on and press the Source button to switch to the connected input (AV (composite), YPbPr (component), or HDMI).

Page 13

Connecting Other Devices

AUDIO

R L

HDMI

AUDIOTVANTENNA

DC IN 12V

VIDEOVGA/PC IN

OPTICAL

OUT

USB

VIDEO INPUT

Y Pb Pr

OPTICAL

OUT

VIDEO INPUT

Y Pb Pr

Connecting a Computer

You will need: a PC with a VGA output, and a VGA cable (not included).

1. Connect the computer’s VGA output to the VGA/PC Input on the television.

2. Power the television on and press the Source button to switch to the PC Mode.

3. Audio from the connected PC can be input to the television through the TV’s PC Audio Input by using a 3.5mm audio cable (not included).

Using the Optical Audio Out

You will need: a (home theater) with an Optical Audio Input and a Digital Optical Audio Cable (not included).

1. Connect the Digital Optical Audio Cable to the (home theater system) and the television.

2. Adjust the settings on your (home theater) to play audio from the connected Optical Audio Input.

Please note: home theater systems may label the Optical Audio Input source dierently, such as “PCM”, or “Digital Audio Input”. Please consult your home theater system’s user manual in order to select the correct input source.

3. Audio from the television will now be played through the connected (home theater system).

Customer Support: 1-888-999-4215 13

Page 14

OPTICAL

OUT

USB

VIDEO INPUT

Y Pb Pr

USB

Connecting a USB Thumb Drive

1. Load a USB thumb drive into the USB Port as shown in the image to the right.

Using a USB Thumb Drive

1. Follow the instructions for Connecting a USB thumb drive.

2. Press the Source button to switch to USB mode.

3. Use the Arrow and Enter buttons to select and play content from the connected USB thumb drive.

Page 15

Mounting to a Wall

AUDIOTVANTENNA

DC IN 12V

VGA/PC IN

OPTICAL

OUT

HDMI INPUT

VIDEO INPUT

AUDIO

R L

VIDEO INPUT

Y Pb Pr

3.93” (100 mm)

Important Notes

We recommend having this television professionally mounted.

Customer Support: 1-888-999-4215 15

Page 16
