GPX PD951 User Manual

Download

Page 1

USER’S GUIDE

V:1641-0316-11

PD951

9” Portable DVD Player

For the most up-to-date version of this User’s Guide, go to www.gpx.com

Page 2

Warnings and Precautions

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• WARNING:To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.

• AVERTISSEMENT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.

• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specied may result in hazardous radiation exposure.

• WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.

• WARNING: Use of this unit near uorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as it may be the cause.

• CAUTION:Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l’équivalent.

• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.

• WARNING:The battery, batteries, and battery pack shall not be exposed to excessive heat such as sunshine, re, or the like.

• WARNING:Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

• WARNING: Shock hazard - Do Not Open.

• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains Plug or Direct plug-in adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the Mains Plug or Direct plug-in adapter should be disconnected from the mains socket outlet completely.

La che d’alimentation ou adaptateur de courant est utilisé comme dispositif de déconnexion et doit rester accessible pendant l’utilisation. Pour mettre l’appareil hors tension, la che ou adaptateur de courant doit être débranché de la prise de courant.

Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

No mezcle baterías viejas y nuevas. No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.).

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

RISQUE D' ÉLECTROCUTION

NE PAS OUVRIR

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible laser radiation is present when the CD Player’s lid is open and the system’s interlock has failed or been defeated. It is very important that you avoid direct exposure to the laser beam at all times. Please do not attempt to defeat or bypass the safety switches.

Page 3

Important Safety Instructions

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12.

Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Warnings

WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings

• The apparatus shall not be exposed to dripping or

splashing and that no objects lled with liquids, such as vases, shall be placed on apparatus.

L’appareil ne doit pas être exposé aux écoulements

ou aux éclaboussures et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.

• Battery shall not be exposed to excessive heat

such as sunshine, re or the like.

Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à

la lumière du soleil, au feu ou autres choses de semblable.

• Caution marking is located at the rear or bottom of the apparatus.

Attention marquage est situé sur le paneau

arrière ou inférieur de l’unité.

• The marking information is located at the

rear or bottom of apparatus.

Le marquage est situé sur le paneau arrière ou inférieur de l’unité.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering and disassembly are prohibited.

Special note: When placing your unit on a lacquered or natural nish, protect your furniture with a cloth or other protective material.

Customer Support: 1-888-999-4215 3

Page 4

DVD Player

Features

• DVD player: DVD, DVD±R/RW

• CD player: CD, CD-R/RW, JPEG CD

• 9” TFT LCD display

• Convertible tablet design

• USB port & SD card reader

• Aspect ratio: 16:9

• 3.5mm audio/video output

• 3.5mm audio/video input

• Stereo headphone jack

• Built-in speakers

• Full function remote

• Multi-language on-screen display

• NTSC video system

• Built-in rechargeable battery

• DC power input

Included

• Remote control: requires 2 AAA batteries (not included)

• 3.5mm-RCA audio/video adapter

• One set of stereo earbuds

• AC/DC power adapter

• 12V DV car adapter

Page 5

Table of Contents

DVD Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Features Included

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Power Battery Power Remote Charging the Built-in Battery

DVD, CD, and Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Loading a Disc Playing a Loaded Disc Programming a Loaded Disc Accessing the Setup Menu Setup Menu Contents

Using a USB Thumb Drive or Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Connecting a USB Thumb Drive Accessing Content on a USB Drive Connecting a Memory Card Accessing Content on a Memory Card

Audio/Video Output and Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Using the 3.5mm Audio/Video Output Using the 3.5mm Audio/Video Input

Company Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

International Support Contact Information Green Initiative

Customer Support: 1-888-999-4215 5

Page 6

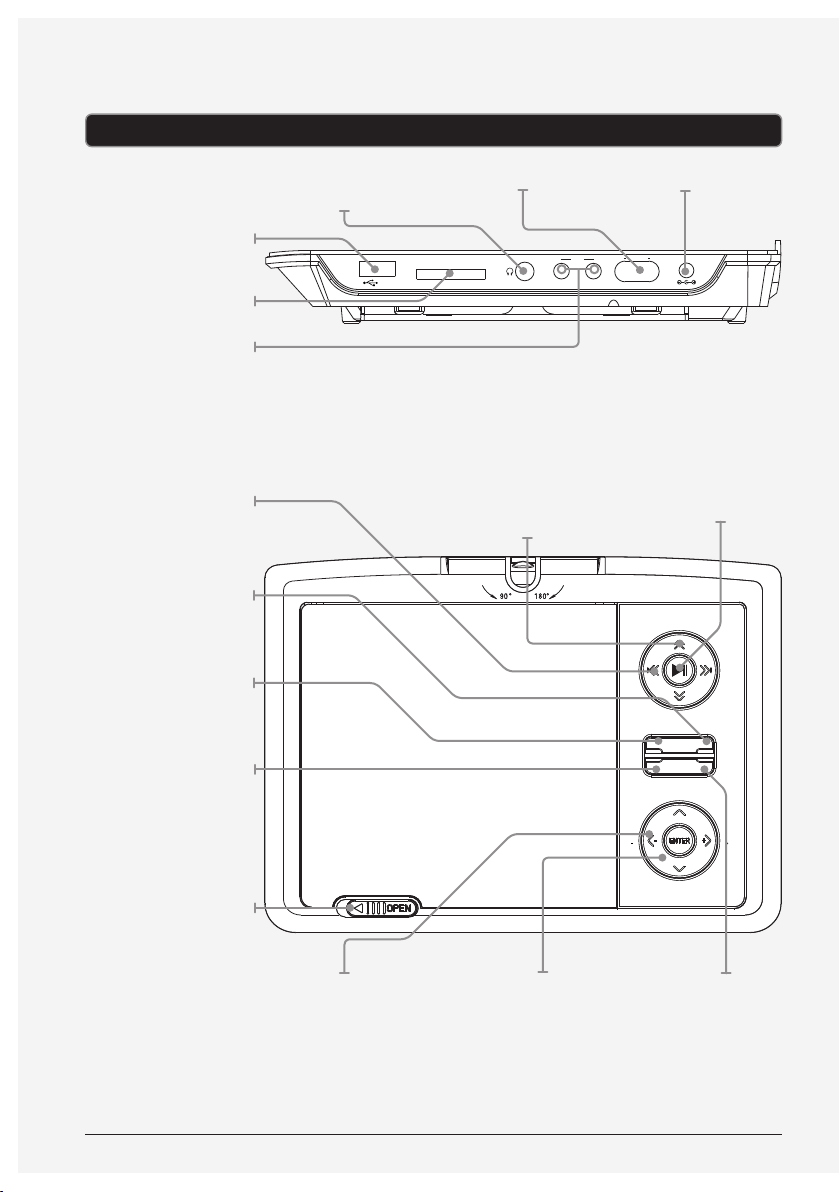

Introduction

USB PORT

MEMORY CARD

SLOT

AUDIO/VIDEO

INPUT AND OUTPUT

PREV/NEXT

Press to skip between

chapters and tracks

on a loaded disc.

SETUP

Press to access the

setup menu.

STOP/DVD/SD/USB

Press to stop a disc

during play.

AV IN

Press to switch

between AV input

mode and DVD

mode.

HEADPHONE JACK

USB

POWERSTEREO

SD/MMC/MS CARD

FWD/REW

Press to rewind and

fast forward through

chapters and tracks

on a loaded disc.

OUT IN

DC POWER INPUT

OFF

POWER

DC IN 12V

PLAY/PAUSE

Press to play or pause

a loaded disc.

FWD

PREV NEXT

REW

STOP/

DVD/SD/USB SETUP

AV IN

VOL

OPEN

Use to open the disc

door.

VOLUME

Press to adjust the

volume.

ARROW/ENTER

Use to navigate the

disc and system

menus and make

Press to access the main menu on the

loaded DVD.

selections.

Page 7

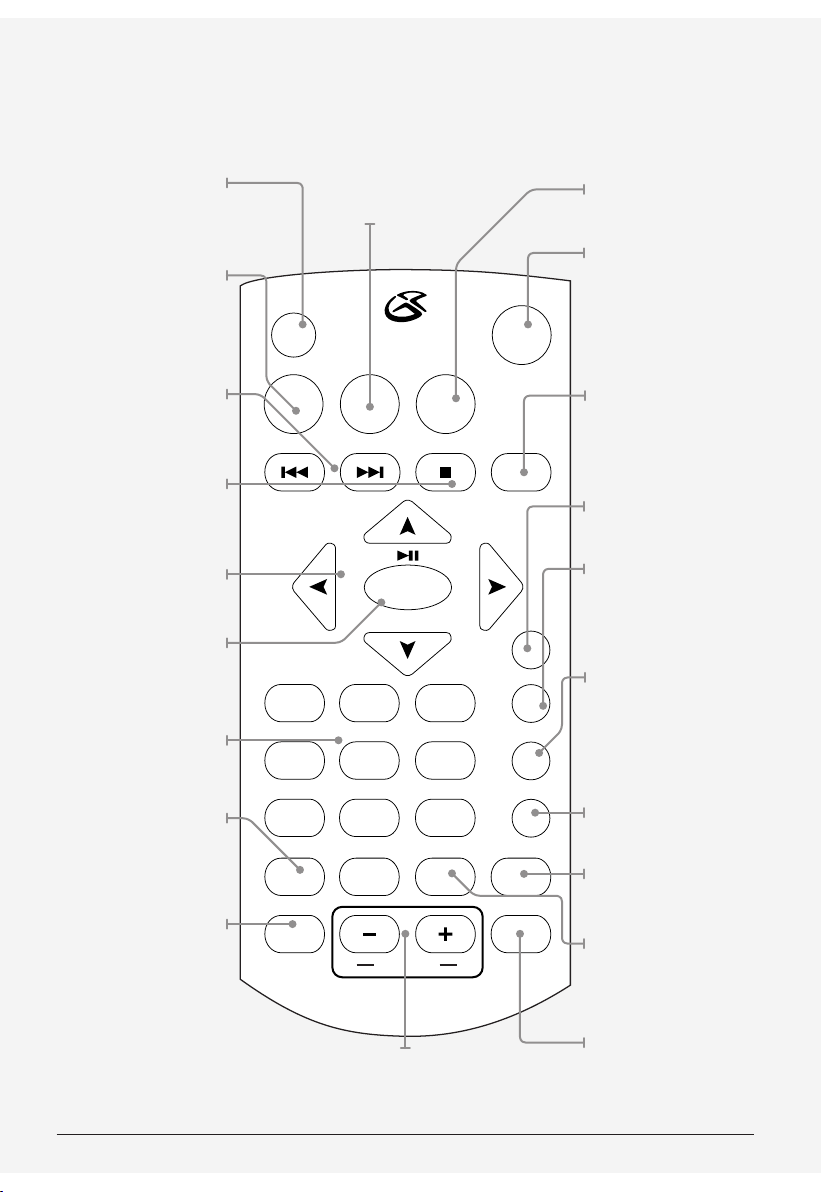

DISPLAY MODE

Press to adjust the

brightness and color. Press

and hold to turn the display

o and on.

TITLE

Press to view the title menu

on the loaded DVD.

REW/FWD

Press to skip between

chapters or tracks on a

loaded disc. Press and hold to search through the current chapter or track on

the loaded disc.

DVD/SD/USB/STOP

Press and hold to access

DVD, CARD, and USB

modes. Press to stop a disc

during play.

ARROWS

Use to navigate the disc

and system menus.

PLAY/PAUSE/ENTER

Press to play or pause

a loaded disc or make

selections in disc or system

menus.

NUMBER KEYPAD

PROGRAM/ANGLE

Press to program a loaded

disc to play chapters and

titles or tracks in a specified

order. Press and hold to

access different viewing

angles on supported DVDs.

MUTE

Press to mute the volume.

Press to view the main

menu on a loaded DVD.

DISPLAY MODE

TITLE MENU

REW FWD DVD/SD/USB

SETUP

ENTER

PROGRAM REPEAT

ANGLE

VOLUME

Press to adjust the volume.

SLOW

VOLUME

DVD

AV IN

WIDE

OSD

AUDIO

SUBTITLE

ZOOMMUTE

SETUP

Press to access the setup menu.

DVD/AV IN

Press to switch between AV input mode and DVD mode.

WIDE

Press and hold to adjust the aspect ratio.

OSD

Press to view the on-screen display.

AUDIO

Press repeatedly to cycle through available audio options for the playing DVD.

SUBTITLE

Press repeatedly to cycle through available subtitle options for the playing DVD.

During play, press and enter in a specic title, chapter, track, and or time to go to on a loaded disc.

REPEAT

Press repeatedly to cycle through repeat options for the loaded disc.

SLOW

Press and hold to view the loaded DVD in slow motion.

ZOOM

Press repeatedly to zoom in or out on a loaded DVD.

Customer Support: 1-888-999-4215 7

Page 8

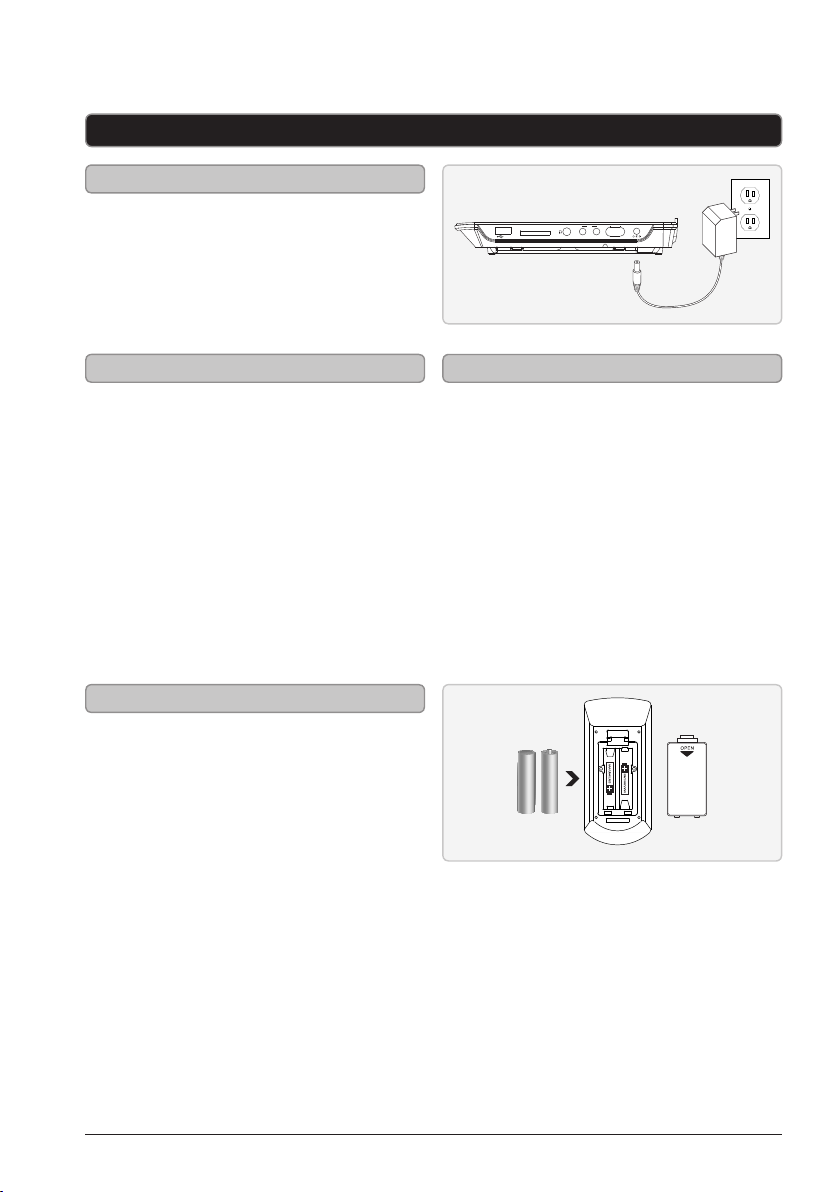

Setup

Power

DC power input: requires an AC/DC adapter (included)

The POWER INDICATOR will turn green whenever the portable DVD player is powered on.

OFF

POWER

OUT IN

DC IN 12V

SD/MMC/MS CARD

USB

Battery Power

DC battery power: built-in rechargeable battery

The CHARGE INDICATOR will turn red whenever the built-in rechargeable battery is charging.

The POWER INDICATOR will turn green whenever the portable DVD player is powered on.

When the battery is fullly charged, the CHARGE INDICATOR will turn o.

Remote

Requires 2 AAA batteries (included)

Charging the Built-in Battery

1. Plug the included AC/DC power adapter into the DC POWER INPUT on the portable DVD player and an AC power outlet.

2. Adjust the POWER switch to the o position.

The CHARGE INDICATOR will turn red whenever the built-in rechargeable battery is charging.

When the battery is fullly charged, the CHARGE INDICATOR will turn o.

Page 9

STOP/

DVD/SD/USB SETUP

VOL

PREV NEXT

VOL

FWD

REW

AV IN

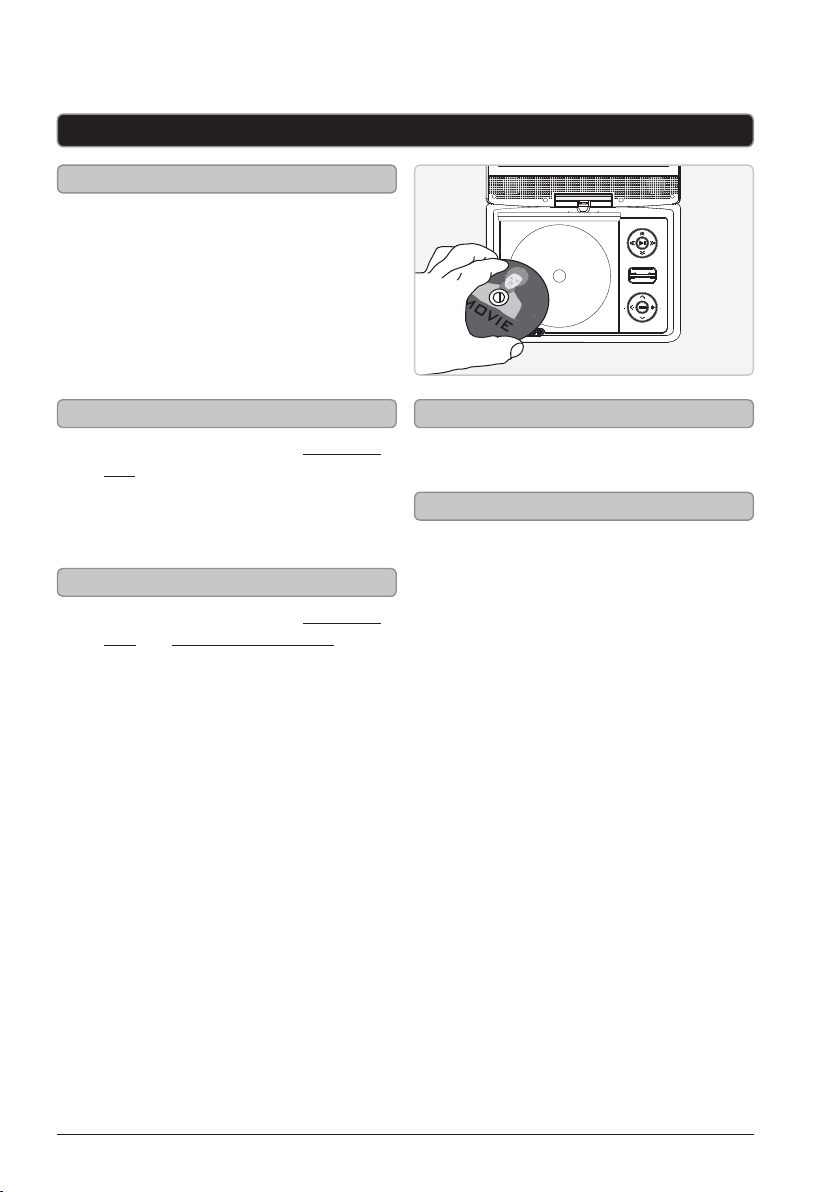

DVD, CD, and Setup Menu

Loading a Disc

1. Use the OPEN switch to open the DISC DOOR.

2. Load a disc into the DVD player, label side facing up.

3. Manually close the DISC DOOR.

After a disc is loaded, it will begin playing automatically.

Playing a Loaded Disc

1. Follow the instructions for Loading a Disc.

2. If the disc does not begin playing automatically, press the PLAY/PAUSE button.

Programming a Loaded Disc

1. Follow the instructions for Loading a Disc and Playing a Loaded Disc.

2. While the loaded disc is playing, press the PROGRAM button on the remote.

3. Use the NUMBER KEYPAD to enter in the titles and chapters in the order you want to view them.

DVD Titles and chapters or CD tracks will play in the order they are programmed.

4. Repeat step 3 until the desired DVD titles and chapters or CD tracks are programmed.

Accessing the Setup Menu

1. Press the SETUP button to access the setup menu.

Setup Menu Contents

General Setup Page

TV Display Angle Mark OSD Lang Captions Screen Saver Last Memory

Audio Setup Page

Speaker Setup

Video Setup Page

Pannel Quality

Preference Page

TV Type Audio Subtitle Disc Menu Default

Customer Support: 1-888-999-4215 9

Page 10

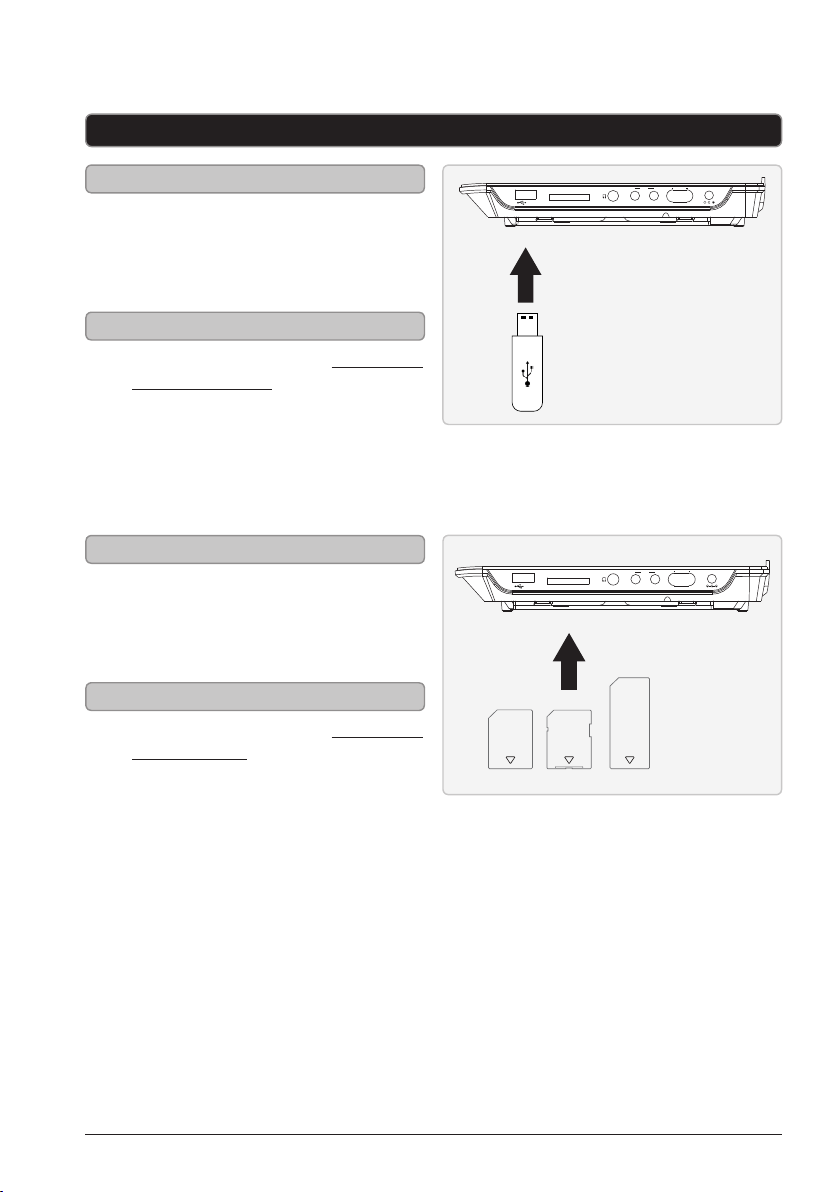

Using a USB Thumb Drive or Memory Card

Connecting a USB Thumb Drive

1. Connect a USB Thumb Drive to the USB PORT.

MPEG 1 and MPEG 2 video formats are supported.

Accessing Content on a USB Drive

1. Follow the instructions for Connecting a USB thumb drive.

2. Press and hold the STOP/DVD/USB/ SD button to switch to USB mode.

3. Use the ARROWS and ENTER buttons to select and play content from the connected USB thumb drive.

Connecting a Memory Card

1. Connect a SD or MMC memory card to the MEMORY CARD SLOT.

MPEG 1 and MPEG 2 video formats are supported.

Accessing Content on a Memory Card

1. Follow the instructions for Connecting a Memory Card.

2. Press and hold the STOP/DVD/USB/ SD button to switch to MCR mode.

3. Use the ARROWS and ENTER buttons to select and play content from the connected SD, MMC, or MS memory card.

MMC

OFF

POWER

SD/MMC/MS CARD

USB

SD/MMC/MS CARD

USB

OUT IN

DC IN 12V

OFF

POWER

DC IN 12V

Page 11

Audio/Video Output and Input

Using the 3.5mm Audio/Video Output Using the 3.5mm Audio/Video Input

Requires a 3.5mm to 3 x RCA audio/video adapter (included) and an RCA audio/video cable (not included).

1. Connect the 3.5mm to 3 x RCA audio/ video adapter to the 3.5mm AUDIO/ VIDEO OUTPUT on the portable DVD player.

2. Connect the RCA audio/video cable to the 3.5mm to 3 x RCA audio/video adapter and the RCA stereo audio inputs and composite video input on a television.

3. Audio and video played through the portable DVD player will now be output through the connected television.

1. Connect the 3.5mm to 3 x RCA audio/ video adapter to the 3.5mm AUDIO/ VIDEO INPUT on the portable DVD player.

2. Connect the RCA audio/video cable to the 3.5mm to 3 x RCA audio/video adapter and the RCA stereo audio outputs and composite video outputs on an audio/video source such as a television.

3. Press the AV IN button to switch to AV in mode.

4. Audio and video played through the connected television will now be output to the portable DVD player.

Customer Support: 1-888-999-4215 11

Page 12
