Pro5
IMPACT DOT-MATRIX PRINTER
Proficient in Commercial POS Receipt Printers
Safety Notice:
* Don't touch the printer head with anything.
* Don't touch the cutter blade.
* Don't bend the power cord excessively or place any heavy objects onto it.
* Don't use the printer when it is out of order. This can cause a fire or and electrocution.
* When connecting or disconnecting the plug, always hold the plug but not the cord.
* Keep the desiccant out of children's reach.
* Use only approved accessories and do not try to disassemble, repair or remodel it by yourself.
* Install the printer on the stable surface. Choose firm, level surface where avoid vibration.
* Don't let water or other foreign objects into the printer.
* Don't connect a telephone line into the peripheral drive connector.
* We recommend that you unplug the printer from the power outlet if no use it for a long period .
Applications:
* POS system Receipts
* EFT POS system Receipts
* Gym, post, hospital, civil aviation system Receipts
* Inquiry, Service system Receipts
* Instrument test Receipts
* Tax, Tab Receipts
Unpacking
After unpacking the unit, check that all the necessary accessories are included in the package.
User's Manual 1 PCS
Printer 1 PCS
Data Cable 1 PCS
Power Adapter (include power cord) 1 SET
IMPACT DOT-MATR IX PRINTE R
The main features
· Adoptin g 400 d ot/line h igh r eso lution, m ake t he workin g acc uracy imp rov ed
· Two- col or printi ng in r ed an d blac k, im por tmant inf orm ation can b e pri nted in dif fer ent co lor
· Differ ent dot den sit y bitmap ca n be pr int ed and down loa ded
· Print He ad is u sing Dent ifo rm Be lt dri vin g mod e, drivin g mec hanism an d key c omponen ts
have ado pte d dustpro of pr oce ssing, gr eat ly increa sin g the print er se rvice lif e.
· Black ma rk in 6 d iffe ren t loc atio n can b e det ected, en han cing the sc ope o f applica tio ns.
· Compat ibl e with stan dar d OPO S/ES C com man d.
· A l ong l ifetime a uto c utter is op tio nal, with n eve r pap er jams per for mance, al low ing your
pro5 to pr int u p to two mill ion l ine s.
· A w ide r ange of int erf aces allo w you e asy conne cti vit y: Serial , Par allel, US B, Et hernet,
Blueto oth .
· Vari ous i nternat ion al la ngua ge pr int ing suppo rte d
Streamlined structure design
A computer connected to print more
High speed printing
Senior OPOS driver
IMPACT DOT-MATR IX PRINTE R
Support for authentication
Support for multiple international
language character
Technical parameters
Number
Print metho d
Print speed
Paper width
Printi ng density
Character S ize
The prin t command
Interface
Reliab ilit y
Copy ability
The paper thi ckness
Adaptor inpu t vo ltage
Adapter voltage output
Adaptor input voltage
Cash Drawer
Work Temperature
Storage temperature
Pro 5
9pin impact dot matrix printi ng
5li ne/ sec
76±0.5mm
385dots/line、400dots/line
ANK F ont Fon t A: 9× 9dot s Fon t B: 7×9 dots
Sim plifi ed/ Trad iti onal C hine se Ch arac ter: 16×1 6dot s
Compatible with the ESC/POS command
Ser ial/U SB/Paral lel/ Eth erne t
Line 15 million
1 plain paper or 2 to 3 coupon from the copy paper
0.05 ~ 0.08 mm (total thickness of 0.2 mm or less)
5~50℃ Dampness: 10~80%
-10~50℃, Dampness: 10~90%
IMPACT DOT-MATR IX PRINTE R

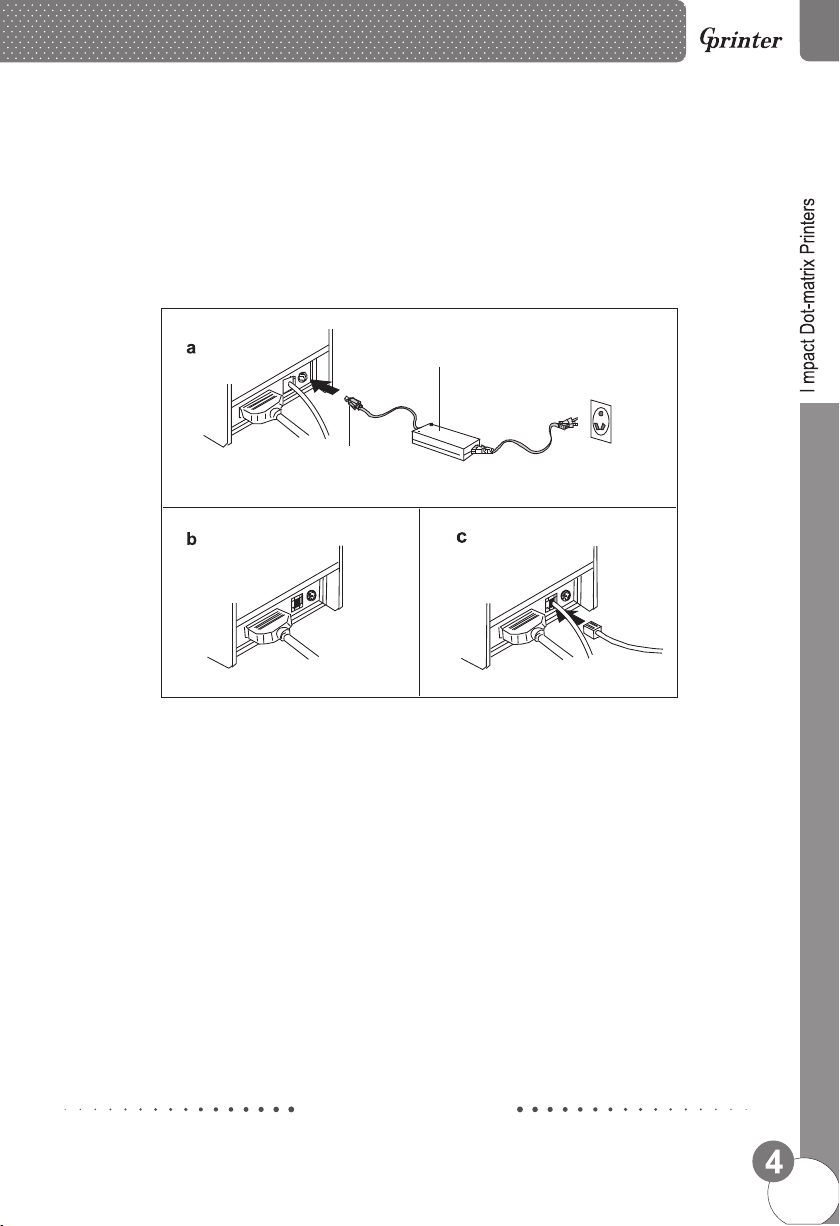

Printer Connection
a. Plug the DC cord connector into the printer's power connector.
b. Plug the data cable connector into the printer's interface connector.
c. Plug the drawer cable into the drawer kick-out connector on the back of the printer
next to the interface connector.
Power a dap ter
Power l ine
Paper Roll Installation
a. Turn on the printer and open the top cover.
b. Install the paper roll according to the chart below.
c. Place the paper into the paper path, and printer will automatically feed the paper.
d. Open the cutter, separate plies of paper. Insert the upper copies through the upper cutter slot, and
the lower copies under the cutter.
e. Insert the lower copies into the paper receiver gap, and rotate the receiver pole a round to lock the
paper. Then close the cutter and place the ribbon cartridge followed by the arrow.
IMPACT DOT-MATR IX PRINTE R
Set the print mode (DIP switch)
Through the DIP sw itc h Set tin gs ca n change the black label, cuttin g kni fe, p oin t/l ine ,
one-way printing, defa ult l ang uag e and s tri ng of B PS mo de setting.
IMPACT DOT-MATR IX PRINTE R
Driver installation
a. Insert the driver CD , in th e men u cli ck GP 76D RVCN V8. Exe to start t he in sta lla tio n.
(if no CD to jia bo's offic ial w ebs ite w ww.gainscha.com, please dow nlo ad) .
b. Th e cla use t o rea d, ac cep t and c ont inue with the installation.
IMPACT DOT-MATR IX PRINTE R
c. Choose to fit your com put er op era tin g sys tem , cli ck next.
d. Choose Pro5 series inst all ed mo dul es.
IMPACT DOT-MATR IX PRINTE R
e. Select the corresponding printer port.
f. After the installation is complete, the control panel - printers and faxes, right-click the
printer - properties, depending on the type of printer interface, select the corresponding
interface.
I mpact Dot-matrix Printers
IMPACT DOT-MATR IX PRINTE R
8
War nin g: This manual c ont ent w ith out c ons ent s hal l not b e arbitrarily changed, ou r com pan y
keep changes in techn olo gy, sp are p arts, software and hardwa re pr odu cts . Use r if
you need any further in for mat ion r ela ted t o the p rod uct, can contact the dealer s.
Without permissio n, an y sec tio n of th is ma nua l sha ll not, in any form by any means
to copy or transfer.
