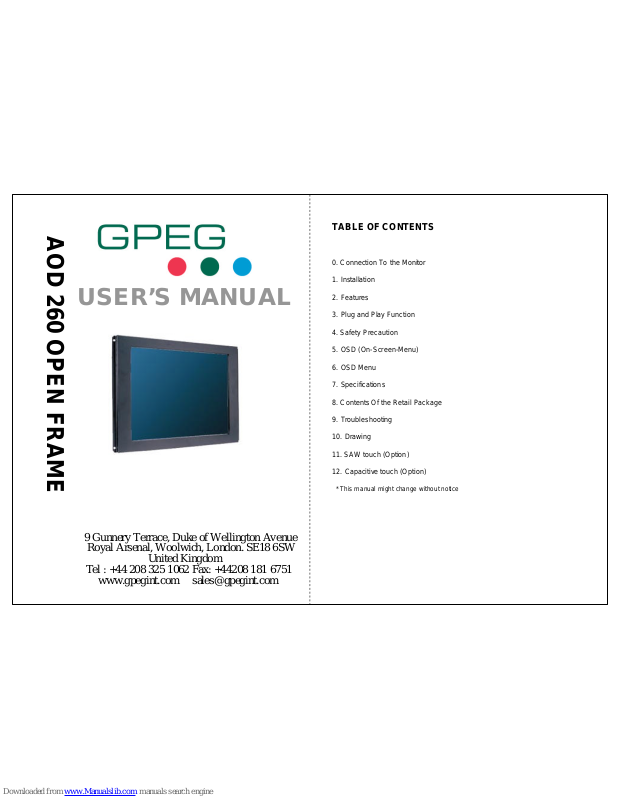

GPEG AOD260 User Manual

AOD 260 OPEN FRAME

USER’S MANUAL

TABLE OF CONTENTS

0. Connection To the Monitor

1. Installation

2. Features

3. Plug and Play Function

4. Safety Precaution

5. OSD (On-Screen-Menu)

6. OSD Menu

7. Specifications

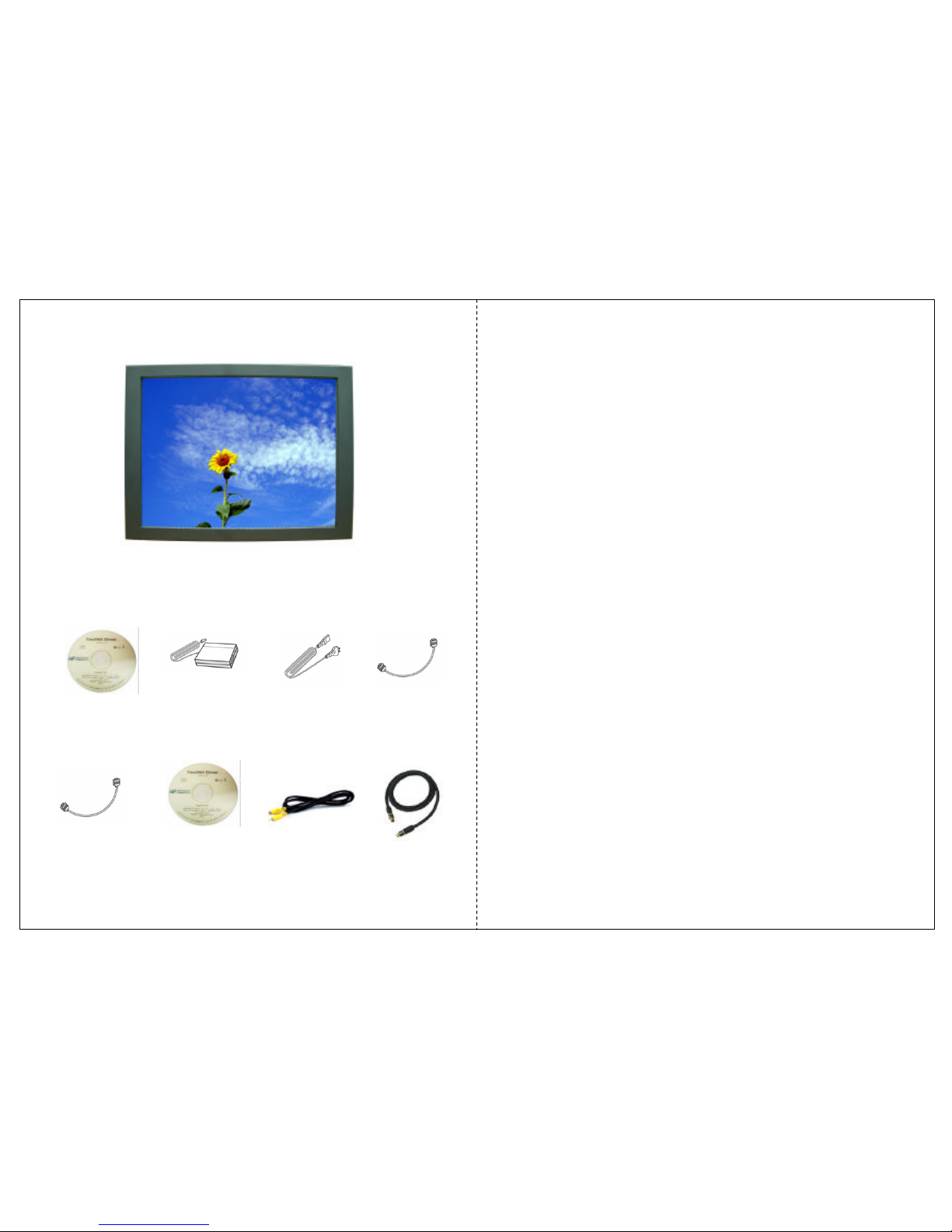

8. Contents Of the Retail Package

9. Troubleshooting

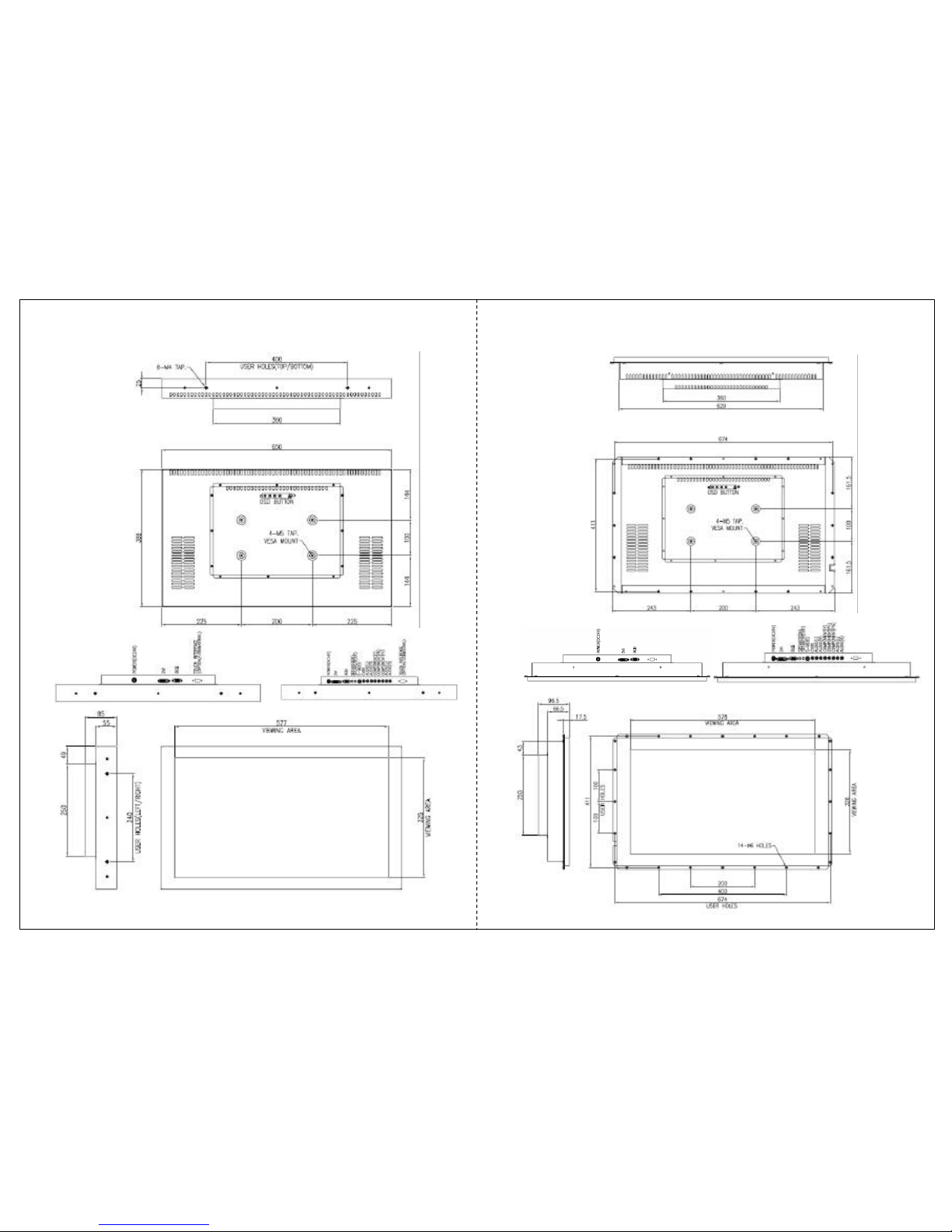

10. Drawing

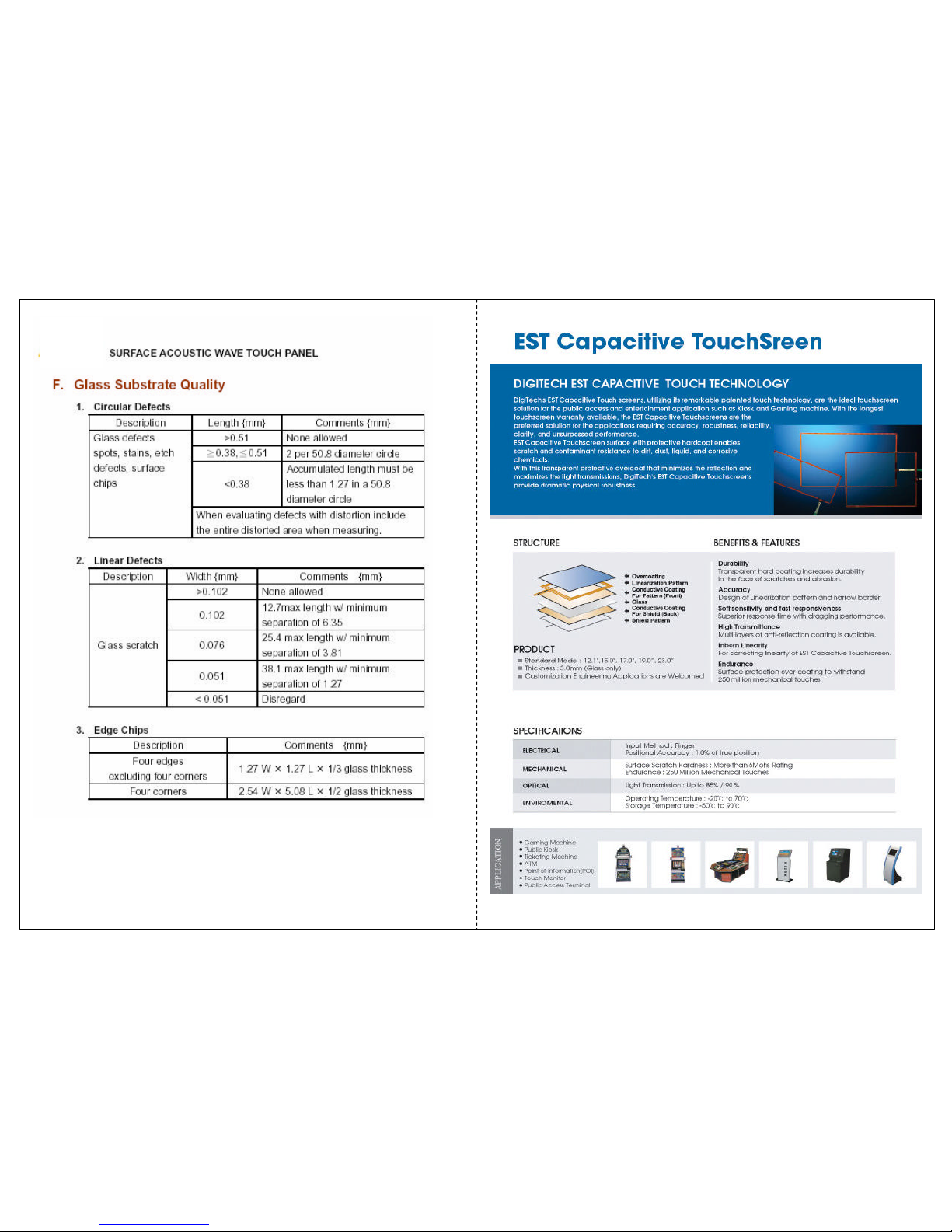

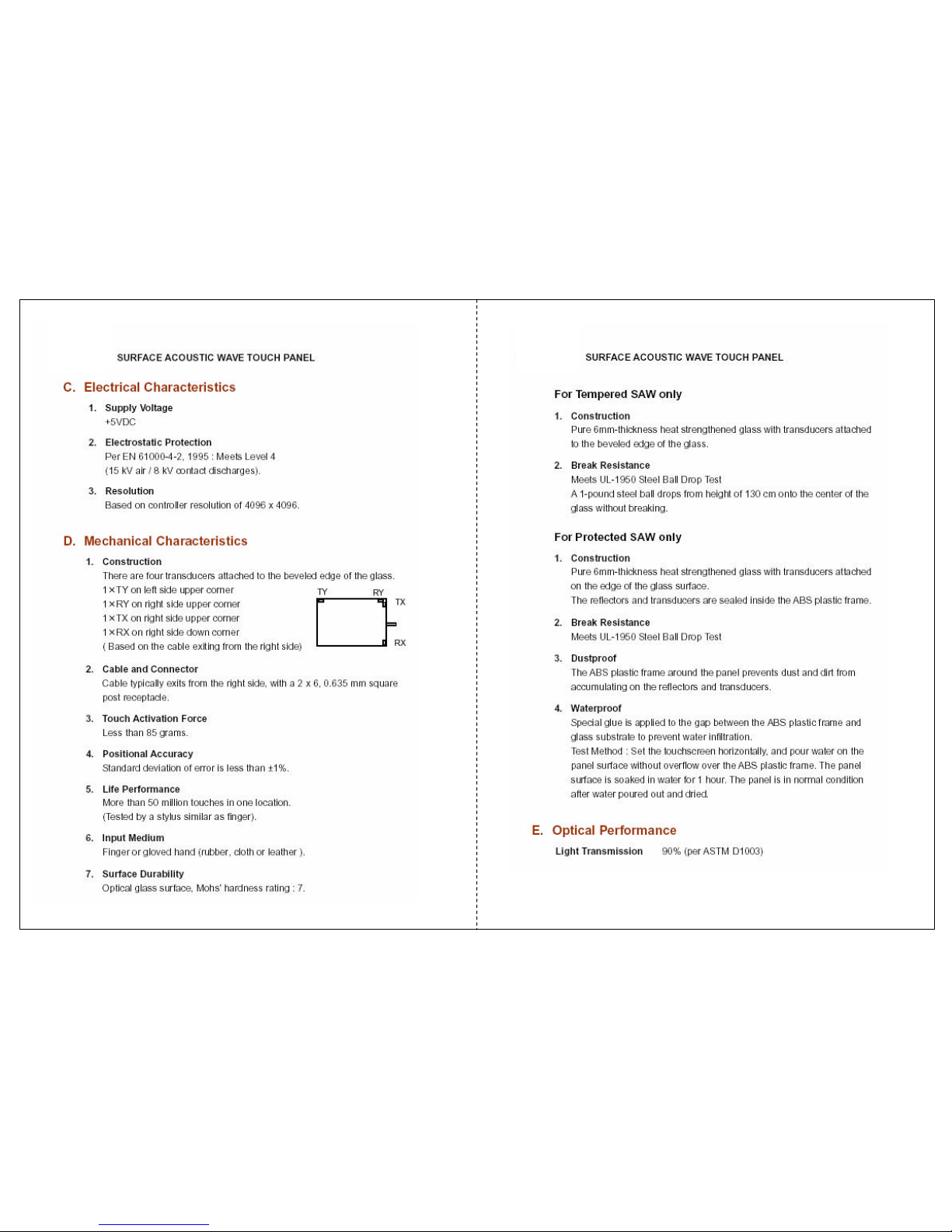

11. SAW touch (Option)

12. Capacitive touch (Option)

* This manual might change without notice

9 Gunnery Terrace, Duke of Wellington Avenue

Royal Arsenal, Woolwich, London. SE18 6SW

United Kingdom

Tel : [phone] Fax: [phone]

www.gpegint.com [e-mail]

0. Connection To the Monitor

• Connect the signal(VGA) cable to the VGA port of computer. Tighten the
two thumbscrews by turning clockwise.

• You can adjust the connection for your PC environment.

• Plug the DC cord of the AC adapter to the power connector and the plug
the end of AC adapter to and electrical outlet socket(110V/220V)

• Connect DC cord of adapter (12V DC) to the monitor..

• AOD260 is 26” LCD monitor and support up to 75Hz.

• You can adjust brightness, contrast, horizontal & vertical positions by OSD
menus and use auto adjust function for instant adjustment.

• High-qualified LCD Controller inside

• Compact space saving design and power saving mode

• 100% compatible with Windows PC environment without the installation of
driver CD or software program.

1. Installation

2. Features

3. Plug and Play Function

AOD260 can be installed and connected automatically to any computer systems without
driver CD or software programs. Monitor will recognize the optimized value of video mode
by DDC(Display Data Channel) method that makes the graphic card of computer to
communicate with the monitor.

AOD260 supports VESA DDC 1/2B.

4. Safety Precaution

We strongly recommend that you carefully read this User’s Manual before operating
your LCD monitor. FOLLOW INSTRUCTIONS in this manual.
Please read and comprehend all using directives before use this machine.

? Power

— Use the type of power indicated on the marking label.

? Adapter

— Only use an adapter designed of the LCD monitor.

? Plug

— Do not remove any of the prongs of the monitor's three-pronged power plug.
— Disconnect the power plug from the AC outlet if you will not use it for an indefinite

period of time.

? Power and extension cord

— Use the proper power cord with ground conductor
— Do not overload wall outlets or power cords. Ensure that the total of all units plugged

into the wall outlet does not exceed 7 amperes.

— Do not allow anything to rest on the power cord. Do not locate this product where

persons will walk on the cord.

? Care and maintenance

— Slots and openings in the cabinet are provided for ventilation. Do not block or cover

these openings.

— Do not push objects of any kind into cabinet slots or openings. The screen surface

is easily scratched.

— Do not use paper towels to clean the display. Avoid touching it with your fingers,

pens, or pencils.

— Turn off the AC adapter and the monitor over long periods when not in use.

5. OSD (On-Screen-Menu)

menu select down up power

Button Function Status

POWER Power ON or OFF

ON/OFF

LED Indicate working status

Green : On
Red : Stand-by
Orange : No signal

UP

Launch OSD Menu or
Add Value

Move to OSD Menu

DOWN

Launch OSD Menu or
Down value

Move to OSD Menu

SELECT Select OSD Menu

MENU On / Off OSD Menu

6. OSD Menu

Adjust the color balance of the
screen

Auto Color

Blue

Green

Only
usable
on
Analog
Mode

Control the intensity of the color of
the screen’s image
(Usable when Color temperature is
USER mode.)

Red

Control the temperature of the colorUser
Reddish
Bluish

Color
Temp

Color

Automatically adjust the Horizontal

position, Vertical position, Horizontal

size, and Phase Window's

background or characters should be

displayed on your Full screen prior

to proceed this function

Auto Adjust

Adjust the horizontal size of the

screen's image

Clock

Adjust the focus of the screen's


Phase

Adjust the vertical position of the

screen's image

V.Position

Only
usable
on
Analog
Mode

Adjust the horizontal position of the

screen's image

H.Position

Adjust the contrast of the screenContrast

Adjust the brightness of the screenBrightness


RemarksDescriptionOSD Menu
