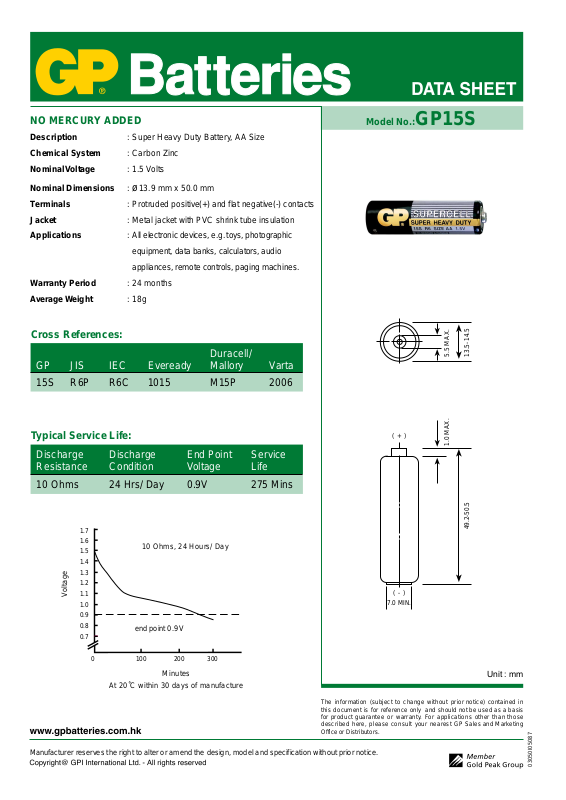

Gp batteries GP15S DATA SHEET

NO MERCURY ADDED

Description : Super Heavy Duty Battery, AA Size
Chemical System : Carbon Zinc
Nominal Voltage : 1.5 Volts

Nominal Dimensions : ø13.9 mm x 50.0 mm
Terminals : Protruded positive(+) and flat negative(-) contacts
Jacket : Metal jacket with PVC shrink tube insulation
Applications : All electronic devices, e.g. toys , photographic

equipment, data banks, calculators, audio
appliances, remote controls, paging machines.

Warranty Period : 24 months
Average Weight : 18g

Cross References:

Model No.:GP15S

Duracell/

GP JIS IEC Eveready Mallory Varta

15S R6P R6C 1015 M15P 2006

Typical Service Life:

Discharge Discharge End Point Service
Resistance Condition Voltage Life

10 Ohms 24 Hrs/ Day 0.9V 275 Mins

1.7

1.6

1.5

1.4

1.3

1.2

1.1

Voltage

1.0

0.9

0.8

0.7

10 Ohms, 24 Hours/ Day

end point 0.9 V

( + )

( - )

7.0 MIN.

13.5-14.5

5.5 MAX.

1.0 MAX.

49.2-50.5

0 100 200 300

Minutes

At 20˚C within 30 days of manufacture

The information (subject to change without prior notice) contained in
this document is for reference only and should not be used as a basis
for product guarantee or warranty. For applications other than those
described here, please consult your nearest GP Sales and Marketing
Office or Distributors.

Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.

Unit : mm

03050I05087
