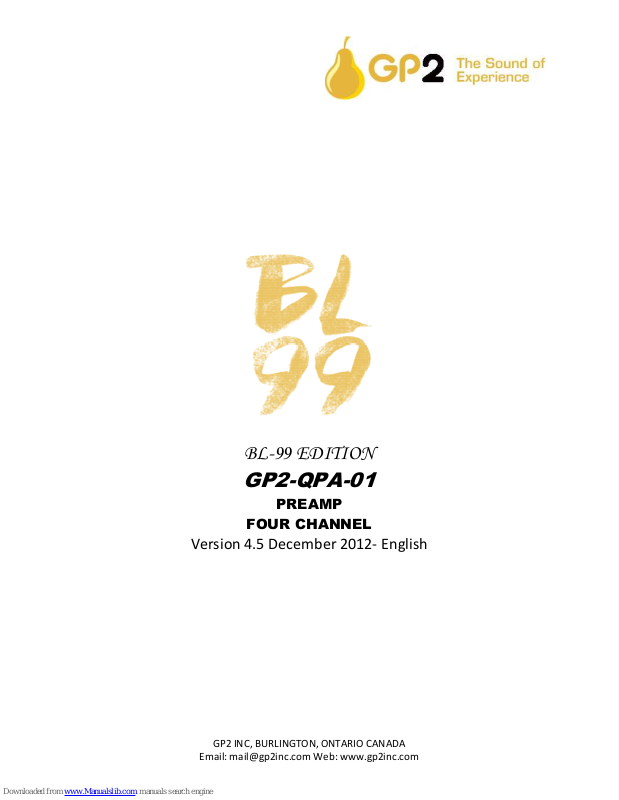

GP2 GP2-QPA-01, BL-99 User Manual

BL-99 EDITION

GP2-QPA-01

PREAMP

FOUR CHANNEL

Version 4.5 December 2012- English

Email: [e-mail] Web: www.gp2inc.com

GP2 INC, BURLINGTON, ONTARIO CANADA

Email: [e-mail] Web: www.gp2inc.com

GP2 INC, BURLINGTON, ONTARIO CANADA

CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS

2. INTRODUCTION

3. INSTALLATION

a. AC MAINS SUPPLY
b. AUDIO OPERATION LEVEL
c. MICROPHONE INPUTS
d. INSTRUMENT INPUTS
e. BALANCED OUTPUTS
f. VENTILATION
g. REAR PANEL
h. MOUNTING RACK

4. OPERATION

a. FRONT PANEL
b. MICROPHONE INPUTS
c. 20DB PAD SWITCH
d. PHANTOM POWER
e. INPUT GAIN
f. DRIVE AND PEAK LAMPS
g. PHASE REVERSE

5. BLOCK DIAGRAM

6. GETTING STARTED

7. SPECIFICATIONS

8. WARRANTY

Email: [e-mail] Web: www.gp2inc.com

GP2 INC, BURLINGTON, ONTARIO CANADA

1. IMPORTANT SAFETY INSTRUCTIONS

1. Read all these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block ventilation openings, install in accordance with manufacturer‘s instructions.

8. Do not install near any heat sources such as radiators heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized grounding type plug. A polarized plug has two

blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or third prong is provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience

receptacles, and at the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the Manufacturer.

12. Unplug the apparatus during lightning storms or when unused for long periods of time.

13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has

been damaged in any way, such as power supply plug has been damaged. Liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.

Warning: To Reduce the Risk of Fire or Electric Shock, Do Not Expose
This Apparatus to Rain or Moisture

Email: [e-mail] Web: www.gp2inc.com

GP2 INC, BURLINGTON, ONTARIO CANADA

2. INTRODUCTION

Congratulations on purchasing the GP2-QPA-01 4-channel Preamp by
Gp2 Inc.

The GP2 Pre-amp is designed with the knowledgeable user in mind.
It picks up where the standard pre-amp leaves off.
Basically, hiss free and harmonic distortion almost too low to measure.
The sound is very robust and holds up under wild equalization.
No mid range fog or harshness, as with other pre-amps.
The entire mid-range is well defined and allows for a whole new
experience in the studio.
The top end is smooth with ‘air’ but no roughness
Extends easily beyond hearing range. (No bumping at around 8k or lack
of air)
Headroom is exceptional
Almost impossible to get distortion.

For the user who doesn’t want the classic English ‘processed’ sound or
the American ‘harshness’

.
