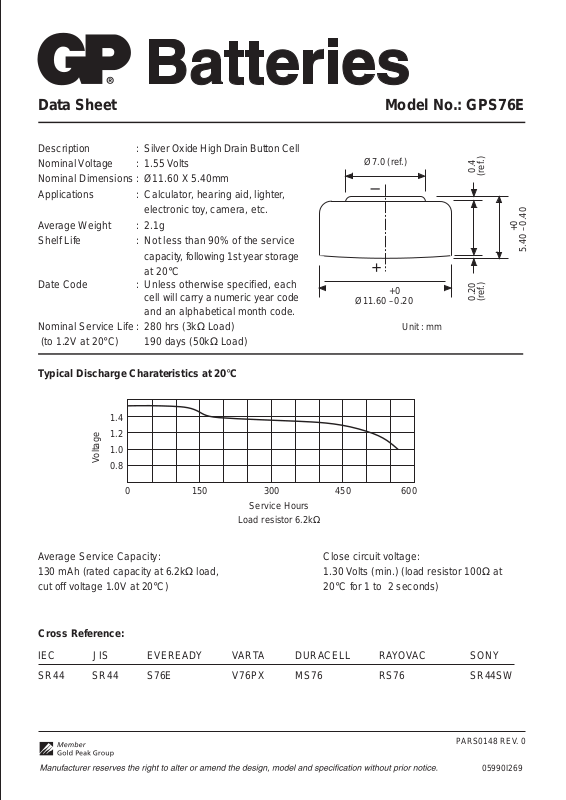

Data Sheet Model No.: GPS76E
Description : Silver Oxide High Drain Button Cell
Nominal Voltage : 1.55 Volts
Nominal Dimensions : Ø11.60 X 5.40mm
Applications : Calculator, hearing aid, lighter,
electronic toy, camera, etc.
Average Weight : 2.1g
Shelf Life : Not less than 90% of the service
capacity, follo wing 1st y ear storage
at 20°C
Date Code : Unless otherwise specified, each
cell will carry a numeric year code
and an alphabetical month code.
Nominal Service Life : 280 hrs (3kΩ Load)
(to 1.2V at 20°C) 190 days (50kΩ Load)
Typical Discharge Charateristics at 20°C
Ø7.0 (ref.)
+0
Ø11.60 –0.20
Unit : mm
0.4
(ref.)
0.20
(ref.)
+0
5.40 –0.40
1.4
1.2
1.0
Voltage
0.8
0 150 300 450 600
Service Hours
Load resistor 6.2kΩ
Average Service Capacity:
130 mAh (rated capacity at 6.2kΩ load,
cut off voltage 1.0V at 20°C)
Close circuit voltage:
1.30 Volts (min.) (load resistor 100Ω at
20°C for 1 to 2 seconds)
Cross Reference:
IEC JIS EVEREADY VARTA DURACELL RAYOVAC SONY
SR44 SR44 S76E V76PX MS76 RS76 SR44SW
PARS0148 REV. 0
05990I269
