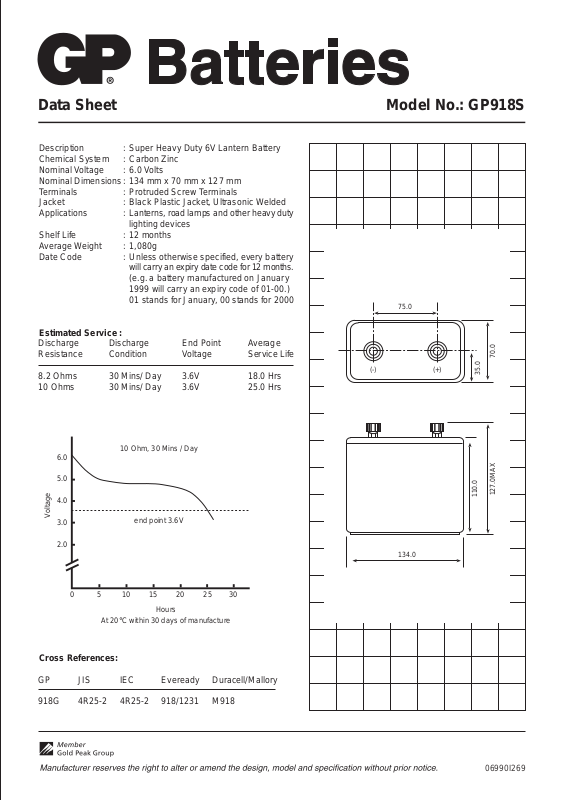

Data Sheet Model No.: GP918S
Description : Super Heavy Duty 6V Lantern Battery
Chemical System : Carbon Zinc
Nominal Voltage : 6.0 Volts
Nominal Dimensions: 134 mm x 70 mm x 127 mm
Terminals : Protruded Screw Terminals
Jacket : Black Plastic Jacket, Ultrasonic Welded
Applications : Lanterns, road lamps and other heavy duty
lighting devices
Shelf Life : 12 months
Average Weight : 1,080g
Date Code : Unless otherwise specified, every battery
will carry an expiry date code for 12 months.
(e.g. a battery manufactured on January
1999 will carry an expiry code of 01-00.)
01 stands for January, 00 stands for 2000
Estimated Service :
Discharge Discharge End Point Average
Resistance Condition Voltage Service Life
8.2 Ohms 30 Mins/ Day 3.6V 18.0 Hrs
10 Ohms 30 Mins/ Day 3.6V 25.0 Hrs
75.0
(-) (+)
70.0
35.0
6.0
5.0
4.0
Voltage
3.0
2.0
0 5 10 15 20 25
10 Ohm, 30 Mins / Day
end point 3.6V
30
Hours
At 20°C within 30 days of manufacture
Cross References:
GP JIS IEC Eveready Duracell/Mallory
918G 4R25-2 4R25-2 918/1231 M918
134.0
110.0
127.0MAX
06990I269
