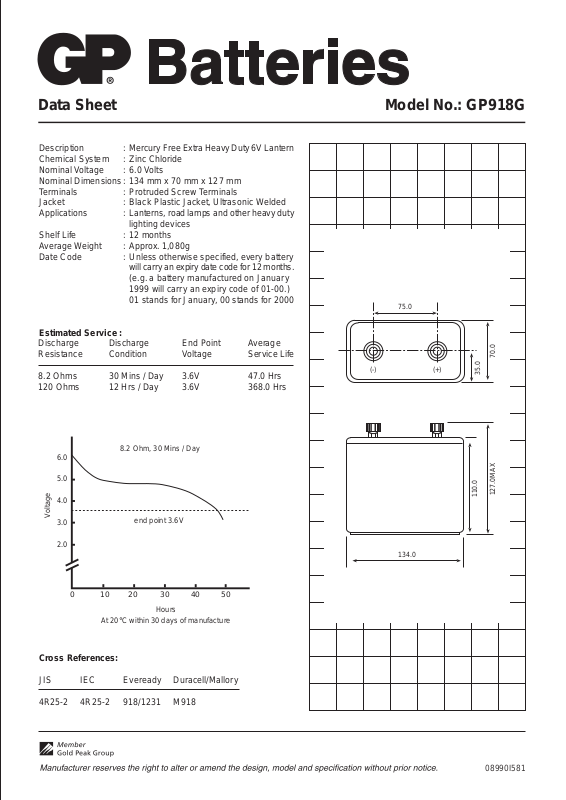

Data Sheet Model No.: GP918G
Description : Mercury Free Extra Heavy Duty 6V Lantern
Chemical System : Zinc Chloride
Nominal Voltage : 6.0 Volts
Nominal Dimensions: 134 mm x 70 mm x 127 mm
Terminals : Protruded Screw Terminals
Jacket : Black Plastic Jacket, Ultrasonic Welded
Applications : Lanterns, road lamps and other heavy duty
lighting devices
Shelf Life : 12 months
Average Weight : Approx. 1,080g
Date Code : Unless otherwise specified, every battery
will carry an expiry date code for 12 months.
(e.g. a battery manufactured on January
1999 will carry an expiry code of 01-00.)
01 stands for January, 00 stands for 2000
Estimated Service :
Discharge Discharge End Point Average
Resistance Condition Voltage Service Life
8.2 Ohms 30 Mins / Day 3.6V 47.0 Hrs
120 Ohms 12 Hrs / Day 3.6V 368.0 Hrs
75.0
(-) (+)
70.0
35.0
6.0
5.0
4.0
Voltage
3.0
2.0
0 10 20 30 40 50
8.2 Ohm, 30 Mins / Day
end point 3.6V
Hours
At 20°C within 30 days of manufacture
Cross References:
JIS IEC Eveready Duracell/Mallory
4R25-2 4R25-2 918/1231 M918
134.0
110.0
127.0MAX
08990I581
