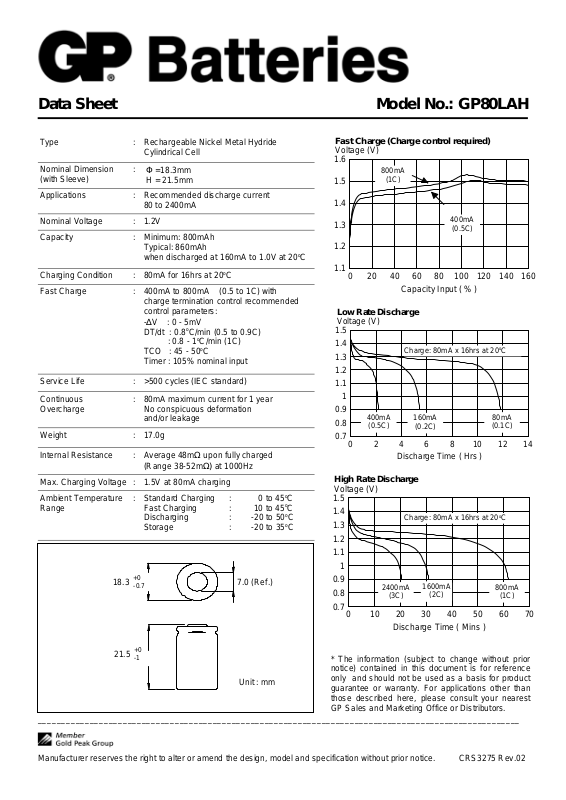

Data Sheet Model No.: GP80LAH
(with Sleeve)
Overcharge
Range
18.3
Rechargeable Nickel Metal Hydride
:Type
Cylindrical Cell
:Nominal Dimension
Φ =18.3mm
H = 21.5mm
Recommended discharge current
:Applications
80 to 2400mA
1.2V:Nominal Voltage
Minimum: 800mAh
:Capacity
Typical: 860mAh
when discharged at 160mA to 1.0V at 20
80mA for 16hrs at 20
400mA to 800mA (0.5 to 1C) with
:Fast Charge
o
C:Charging Condition
charge termination control recommended
control parameters:
-∆V : 0 - 5mV
DT/dt : 0.8
: 0.8 - 1
TCO : 45 - 50
o
C/min (0.5 to 0.9C)
o
C/min (1C)
o
C
Timer : 105% nominal input
>500 cycles (IEC standard):Service Life
:Continuous
80mA maximum current for 1 year
No conspicuous deformation
and/or leakage
17.0g:Weight
:Internal Resistance
Average 48mΩ upon fully charged
(Range 38-52mΩ) at 1000Hz
1.5V at 80mA charging:Max. Charging Voltage
:Ambient Temperature
Standard Charging
Fast Charging
Discharging
Storage
+0
-0.7
0 to 45oC
:
10 to 45
:
:
-20 to 50
:
-20 to 35
7.0 (Ref.)
Fast Charge (Charge control required)
Voltage (V)
1.6
800mA
1.5
(1C)
1.4
1.3
o
C
1.2
400mA
(0.5C)
1.1
0 20 40 60 80 100 120 140 160
Capacity Input ( % )
Low Rate Discharge
Voltage (V)
1.5
1.4
1.3
Charge: 80mA x 16hrs at 20oC
1.2
1.1
1
0.9
0.8
400mA
(0.5C)
160mA
(0.2C)
80mA
(0.1C)
0.7
0 2 4 6 8 10 12 14
Discharge Time ( Hrs )
High Rate Discharge
Voltage (V)
o
C
o
C
o
C
1.5
1.4
1.3
Charge: 80mA x 16hrs at 20oC
1.2
1.1
1
0.9
0.8
2400mA
(3C)
1600mA
(2C)
800mA
(1C)
0.7
0 10203040506070
Discharge Time ( Mins )
+0
21.5
-1
* The information (subject to change without prior
notice) contained in this document is for reference
Unit : mm
only and should not be used as a basis for product
guarantee or warranty. For applications other than
those described here, please consult your nearest
GP Sales and Marketing Office or Distributors.
______________________________________________________________________________________________________
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice. CRS3275 Rev.02
