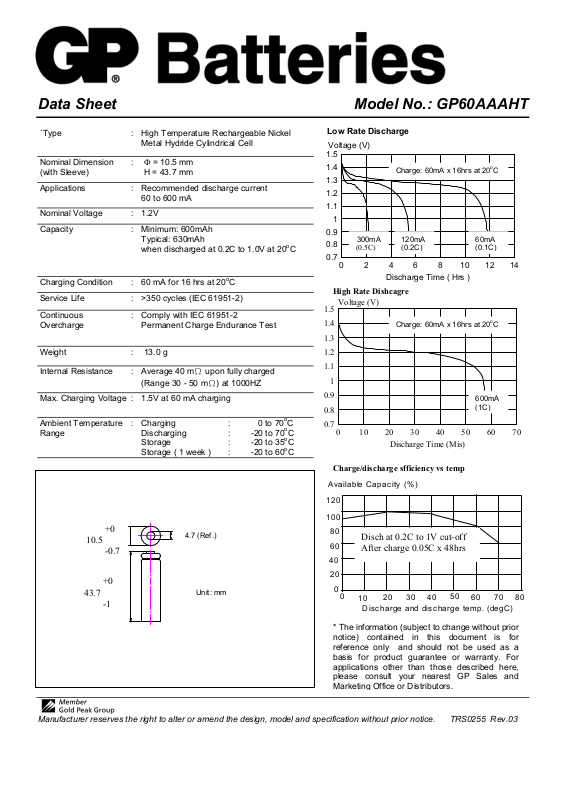

Data Sheet Model No.: GP60AAAHT
r
r
g
(
C)
(
(
(1C)
`Type : High Temperature Rechargeable Nickel
Metal Hydride Cylindrical Cell
Nominal Dimension
(with Sleeve)
:
Φ = 10.5 mm
H = 43.7 mm
Applications : Recommended discharge current
60 to 600 mA
Nominal Voltage : 1.2V
Capacity : Minimum: 600mAh
Typical: 630mAh
when discharged at 0.2C to 1.0V at 20
Charging Condition : 60 mA for 16 hrs at 20oC
Service Life : >350 cycles (IEC 61951-2)
Continuous
Overcharge
: Comply with IEC 61951-2
Permanent Charge Endurance Test
Weight : 13.0 g
Internal Resistance :
Average 40 mΩ upon fully charged
(Range 30 - 50 mΩ) at 1000HZ
Max. Charging Voltage : 1.5V at 60 mA charging
Ambient Temperature
Range
: Charging
Discharging
Storage
Storage ( 1 week )
0 to 70
:
:
-20 to 70
:
-20 to 35
:
-20 to 60
o
o
o
o
o
C
C
C
C
C
Low Rate Discharge
Voltage (V)
1.5
1.4
1.3
1.2
1.1
1
0.9
0.8
0.7
300mA
0.5
02468101214
Charge: 60mA x 16hrs at 20oC
120mA
0.2C)
Discharge Time ( Hrs )
60mA
0.1C)
High Rate Dishcagre
Voltage (V)
1.5
1.4
Charge: 60mA x 16hrs at 20oC
1.3
1.2
1.1
1
0.9
0.8
0.7
0 10203040506070
600mA
Discharge Time (Mis)
Charge/discharge sfficiency vs temp
Available Capacity (% )
120
100
+0
10.5
4.7 (Ref.)
-0.7
+0
43.7
Unit: mm
-1
80
60
40
20
0
Disch at 0.2C to 1V cut-off
After charge 0.05C x 48hrs
0
10
Discharge and discharge temp. (degC)
20
30
40
50
60
70
* The information (subject to change without prior
notice) contained in this document is fo
reference only and should not be used as a
basis for product guarantee or warranty. Fo
applications other than those described here,
please consult your nearest GP Sales and
Marketin
Office or Distributors.
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice. TRS0255 Rev.03
