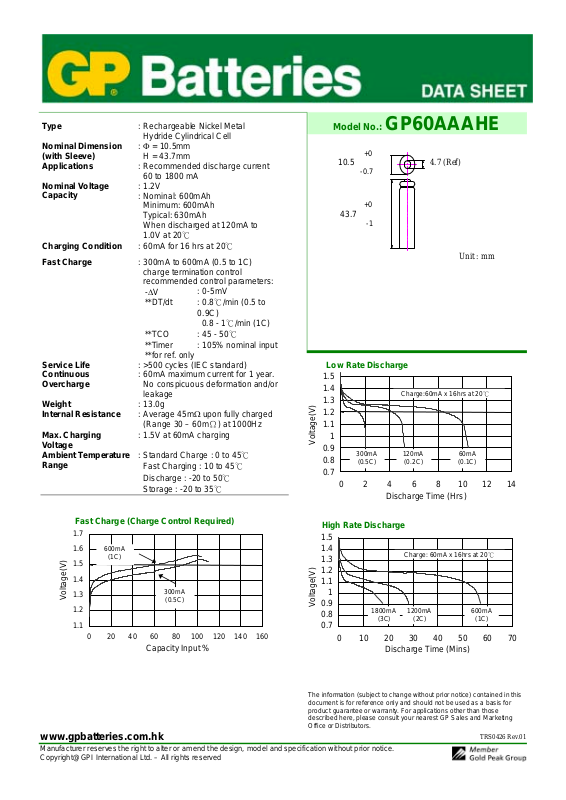

Page 1
Type
Nominal Dimension
(with Sleeve)
Applications
Nominal Voltage
Capacity
Charging Condition
Fast Charge
Service Life
Continuous
Overcharge
Weight
Internal Resistance
Max. Charging
Voltage
Ambient Temperature
Range
Fast Charge (Charge Control Required)
1.7
1.6
1.5
1.4
1.3
Voltage(V)
1.2
1.1
600mA
(1C)
0 20 40 60 80 100 120 140 160
: Rechargeable Nickel Metal
Hydride Cylindrical Cell
:
Φ = 10.5mm
H = 43.7mm
: Recommended discharge current
60 to 1800 mA
: 1.2V
: Nominal: 600mAh
Minimum: 600mAh
Typical: 630mAh
When discharged at 120mA to
1.0V at 20℃
:
60mA for 16 hrs at 20℃
: 300mA to 600mA (0.5 to 1C)
charge termination control
recommended control parameters:
-∆V
**DT/dt
**TCO
**Timer
**for ref. only
: >500 cycles (IEC standard)
: 60mA maximum current for 1 year.
No conspicuous deformation and/or
leakage
: 13.0g
:
Average 45mΩ upon fully charged
(Range 30 – 60mΩ) at 1000Hz
: 1.5V at 60mA charging
:
Standard Charge : 0 to 45℃
Fast Charging : 10 to 45℃
Discharge : -20 to 50℃
Storage : -20 to 35℃
: 0-5mV
: 0.8℃/min (0.5 to
0.9C)
0.8 - 1℃/min (1C)
: 45 - 50℃
: 105% nominal input
300mA
(0.5C)
Capacity Input %
Model No.:
+0
10.5
-0.7
+0
43.7
-1
4.7 (Ref)
Unit : mm
GP60AAAHE
Low Rate Discharge
1.5
1.4
1.3
1.2
1.1
1
Voltage(V) Voltage(V)
0.9
0.8
0.7
300mA
(0.5C)
0 2 4 6 8 10 12 14
Charge:60mA x 16hrs at 20℃
120mA
(0.2C)
Discharge Time (Hrs)
60mA
(0.1C)
High Rate Discharge
1.5
1.4
1.3
1.2
1.1
1
0.9
0.8
0.7
0 10 20 30 40 50 60 70
1800mA
Charge: 60mA x 16hrs at 20℃
1200mA
(3C)
Discharge Time (Mins)
(2C)
600mA
(1C)
The information (subject to change without prior notice) contained in this
document is for reference only and should not be used as a basis for
product guarantee or warranty. For applications other than those
described here, please consult your nearest GP Sales and Marketing
Office or Distributors.
www.gpbatteries.com.hk
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
Copyright@GPI International Ltd. – All rights reserved
TRS0426 Rev.01
