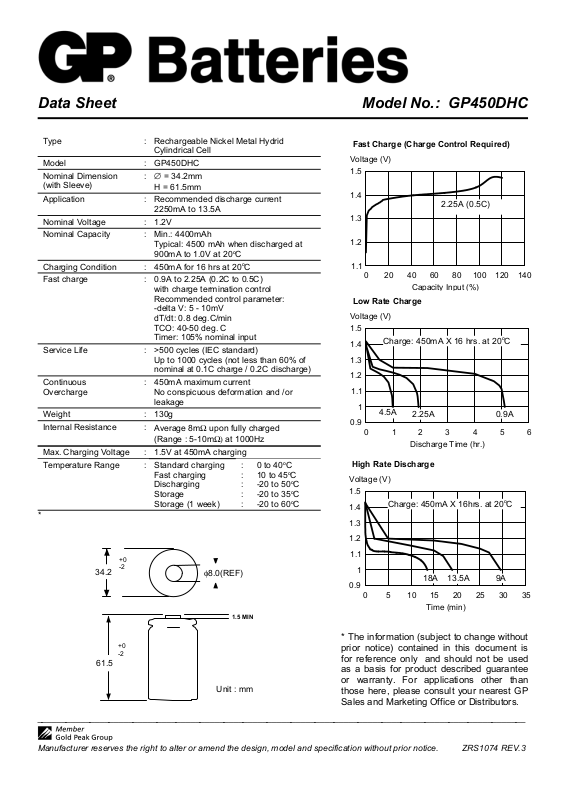

Data Sheet Model No.: GP450DHC
Rechargeable Nickel Metal Hydrid
(with Sleeve)
Overcharge
*
+ 0
26.20mm
φ
φφ
φ
- 1.5
34.2
:Type
Cylindrical Cell
GP450DHC:Model
:Nominal Dimension
∅ = 34.2mm
H = 61.5mm
Recommended discharge current
:Application
2250mA to 13.5A
1.2V:Nominal Voltage
:Nominal Capacity
Min.: 4400mAh
Typical: 4500 mAh when discharged at
900mA to 1.0V at 20
450mA for 16 hrs at 20
:Fast charge
0.9A to 2.25A (0.2C to 0.5C)
o
C
o
C:Charging Condition
with charge termination control
Recommended control parameter:
-delta V: 5 - 10mV
dT/dt: 0.8 deg.C/min
TCO: 40-50 deg. C
Timer: 105% nominal input
:Service Life
>500 cycles (IEC standard)
Up to 1000 cycles (not less than 60% of
nominal at 0.1C charge / 0.2C discharge)
:Continuous
450mA maximum current
No conspicuous deformation and /or
leakage
130g:Weight
:Internal Resistance
Average 8mΩ upon fully charged
(Range : 5-10mΩ) at 1000Hz
1.5V at 450mA charging:Max. Charging Voltage
:Temperature Range
Standard charging
Fast charging
Discharging
Storage
Storage (1 week)
+0
-
φ8.0(REF)
5.5 - 7.5 mm
φφφφ
:
:
:
:
:
1.5 MIN
0 to 40oC
10 to 45
-20 to 50
-20 to 35
-20 to 60
o
C
o
C
o
C
o
C
Fast Charge (Charge Control Required)
Voltage (V)
1.5
1.4
2.25A (0.5C)
1.3
1.2
1.1
0 20 40 60 80 100 120 140
Capacity Input (%)
Low Rate Charge
Voltage (V)
1.5
1.4
Charge: 450mA X 16 hrs. at 20oC
1.3
1.2
1.1
1
4.5A
0.9A2.25A
0.9
0123456
Discharge Time (hr.)
High Rate Discharge
Voltage (V)
1.5
1.4
Charge: 450mA X 16hrs. at 20oC
1.3
1.2
1.1
1
0.9
13.5A 9A18A
0 5 10 15 20 25 30 35
Time (min)
+ 0
- 2.0
+0
-2
61.5
50.00mm
Unit : mm
Unit : mm
