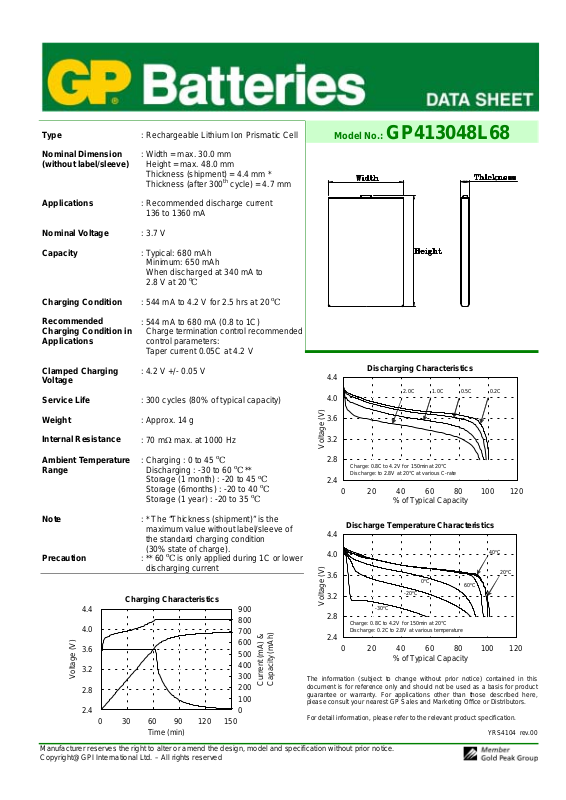

Page 1
Type
: Rechargeable Lithium Ion Prismatic Cell
Model No.:
GP413048L68
Nominal Dimension
(without label/sleeve)
: Width = max. 30.0 mm
Height = max. 48.0 mm
Thickness (shipment) = 4.4 mm *
Thickness (after 300
th
cycle) = 4.7 mm
Applications
: Recommended discharge current
136 to 1360 mA
Nominal Voltage
: 3.7 V
Capacity
: Typical: 680 mAh
Minimum: 650 mAh
When discharged at 340 mA to
2.8 V at 20
o
C
Charging Condition
544 mA to 4.2 V for 2.5 hrs at 20 oC
:
Recommended
Charging Condition in
Applications
: 544 mA to 680 mA (0.8 to 1C)
Charge termination control recommended
control parameters:
Taper current 0.05C at 4.2 V
Clamped Charging
Voltage
Service Life
: 4.2 V +/- 0.05 V
: 300 cycles (80% of typical capacity)
4.4
4.0
Discharging Charact er i st ics
Weight
: Approx. 14 g
3.6
Internal Resistance
Ambient Temperature
Range
:
70 mΩ max. at 1000 Hz
Charging : 0 to 45 oC
:
Discharging : -30 to 60
o
C **
Storage (1 month) : -20 to 45
Storage (6months) : -20 to 40
Storage (1 year) : -20 to 35
o
C
o
C
o
C
3.2
Voltage ( V)
2.8
Charge: 0.8C to 4.2V for 150min at 20°C
Discharge: to 2.8V at 20°C at various C-rate
2.4
0 20 40 60 80 100 120
Note
Precaution
4.4
4.0
3.6
3.2
Voltage ( V)
2.8
2.4
0 30 60 90 120 150
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
Copyright@GPI International Ltd. – All rights reserved
:
* The “Thickness (shipment)” is the
maximum value without label/sleeve of
the standard charging condition
(30% state of charge).
o
** 60
:
C is only applied during 1C or lower
discharging current
Charging Characteristi cs
900
800
700
600
500
400
300
200
100
0
Time (min )
Current (mA) &
Discharge Temper at ure Characteri st i c s
4.4
4.0
3.6
3.2
Voltage ( V)
2.8
2.4
0 20406080100120
Capacity (mAh)
The information (subject to change without prior notice) contained in this
document is for reference only and should not be used as a basis for product
guarantee or warranty. For applications other than those described here,
please consult your nearest GP Sales and Marketing Office or Distributors.
For detail information, please refer to the relevant product specification.
-30oC
Charge: 0.8C to 4.2V for 150min at 20°C
Discharge: 0.2C to 2.8V at various temperature
% of Ty pical Capacity
o
0
C
o
-20
C
% of Ty pical Capacity
60oC
0.2C0.5C1.0C2.0C
o
C
40
o
C
20
YRS4104 rev.00
