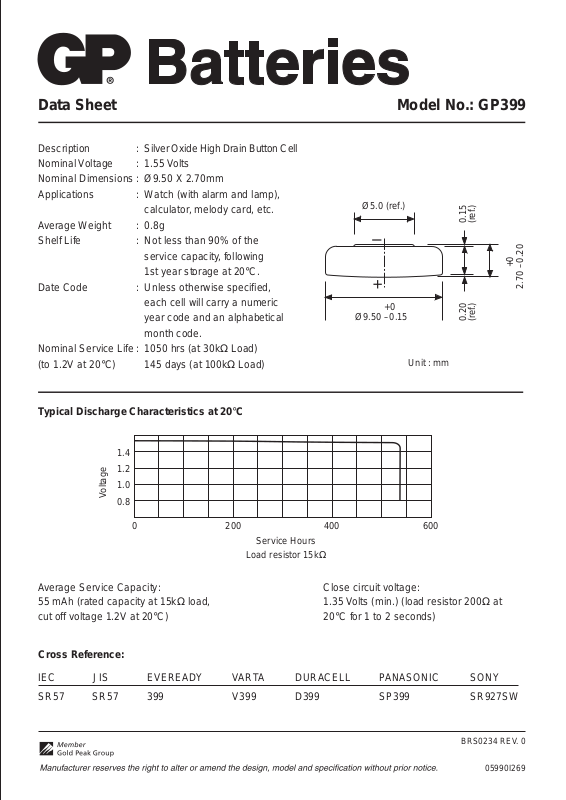

Data Sheet Model No.: GP399
Description : Silver Oxide High Drain Button Cell
Nominal Voltage : 1.55 Volts
Nominal Dimensions : Ø9.50 X 2.70mm
Applications : Watch (with alarm and lamp),
calculator, melody card, etc.
Average Weight : 0.8g
Shelf Life : Not less than 90% of the
service capacity, following
1st year storage at 20°C.
Date Code : Unless otherwise specified,
each cell will carry a numeric
year code and an alphabetical
month code.
Nominal Service Life : 1050 hrs (at 30kΩ Load)
(to 1.2V at 20°C) 145 days (at 100kΩ Load)
Ø5.0 (ref.)
+0
Ø9.50 –0.15
Unit : mm
0.15
(ref.)
0.20
(ref.)
+0
2.70 –0.20
Typical Discharge Characteristics at 20°C
1.4
1.2
1.0
Voltage
0.8
0 200 400 600
Service Hours
Load resistor 15kΩ
Average Service Capacity:
55 mAh (rated capacity at 15kΩ load,
cut off voltage 1.2V at 20°C)
Close circuit voltage:
1.35 Volts (min.) (load resistor 200Ω at
20°C for 1 to 2 seconds)
Cross Reference:
IEC JIS EVEREADY VARTA DURACELL PANASONIC SONY
SR57 SR57 399 V399 D399 SP399 SR927SW
BRS0234 REV. 0
05990I269
