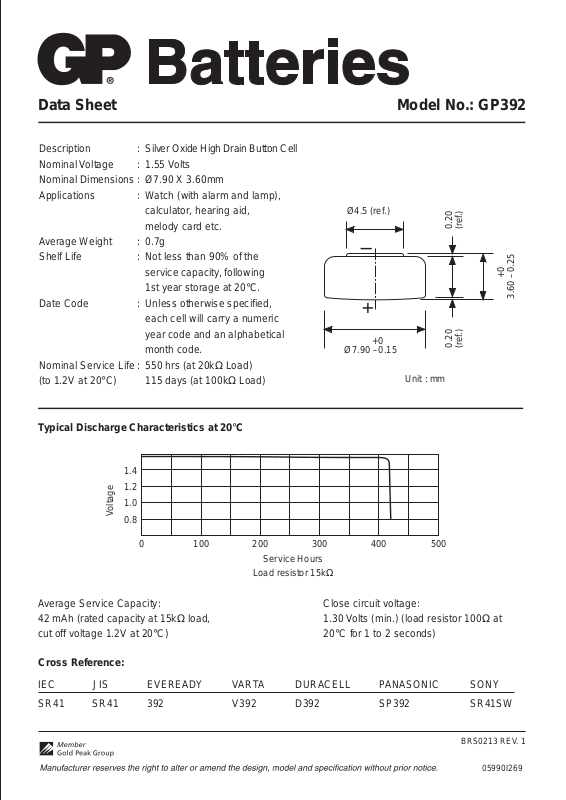

Data Sheet Model No.: GP392
Description : Silver Oxide High Drain Button Cell
Nominal Voltage : 1.55 Volts
Nominal Dimensions : Ø7.90 X 3.60mm
Applications : Watch (with alarm and lamp),
calculator, hearing aid,
melody card etc.
Average Weight : 0.7g
Shelf Life : Not less than 90% of the
service capacity, following
1st year storage at 20°C.
Date Code : Unless otherwise specified,
each cell will carry a numeric
year code and an alphabetical
month code.
Nominal Service Life : 550 hrs (at 20kΩ Load)
(to 1.2V at 20°C) 115 days (at 100kΩ Load)
Ø4.5 (ref.)
+0
Ø7.90 –0.15
Unit : mm
0.20
(ref.)
0.20
(ref.)
+0
3.60 –0.25
Typical Discharge Characteristics at 20°C
1.4
1.2
1.0
Voltage
0.8
0 100 200 300 400 500
Service Hours
Load resistor 15kΩ
Average Service Capacity:
42 mAh (rated capacity at 15kΩ load,
cut off voltage 1.2V at 20°C)
Close circuit voltage:
1.30 Volts (min.) (load resistor 100Ω at
20°C for 1 to 2 seconds)
Cross Reference:
IEC JIS EVEREADY VARTA DURACELL PANASONIC SONY
SR41 SR41 392 V392 D392 SP392 SR41SW
BRS0213 REV. 1
05990I269
