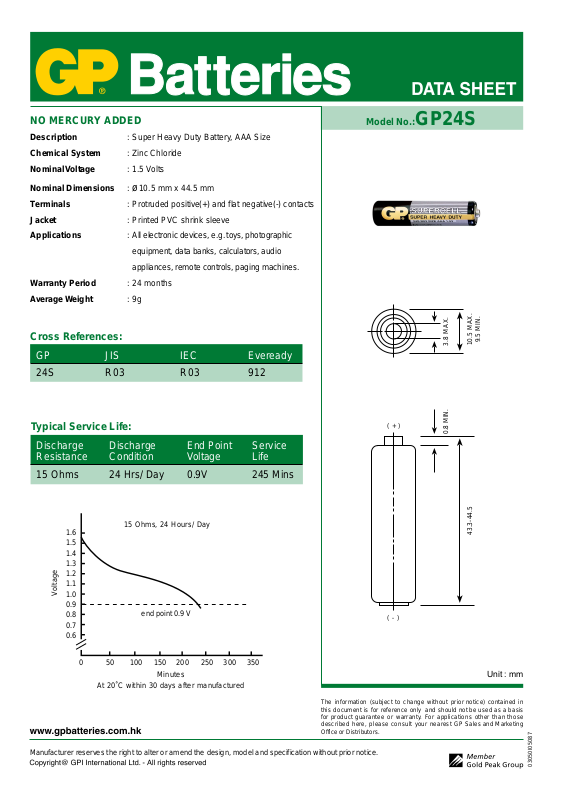

Page 1
NO MERCURY ADDED
Description : Super Heavy Duty Battery, AAA Size
Chemical System : Zinc Chloride
Nominal Voltage : 1.5 Volts
Nominal Dimensions : ø10.5 mm x 44.5 mm
Terminals : Protruded positive(+) and flat negative(-) contacts
Jacket : Printed PVC shrink sleeve
Applications : All electronic devices, e.g. toys , photographic
equipment, data banks, calculators, audio
appliances, remote controls, paging machines.
Warranty Period : 24 months
Average Weight : 9g
Model No.:GP24S
Cross References:
GP JIS IEC Eveready
24S R03 R03 912
Typical Service Life:
Discharge Discharge End Point Service
Resistance Condition Voltage Life
15 Ohms 24 Hrs/ Day 0.9V 245 Mins
1.6
1.5
1.4
1.3
1.2
1.1
Voltage
1.0
0.9
0.8
0.7
0.6
15 Ohms, 24 Hours/ Day
end point 0.9 V
( + )
( - )
3.8 MAX.
0.8 MIN.
9.5 MIN.
10.5 MAX.
43.3-44.5
0 50 100 150 200 250 300 350
Minutes
At 20˚C within 30 days after manufactured
The information (subject to change without prior notice) contained in
this document is for reference only and should not be used as a basis
for product guarantee or warranty. For applications other than those
described here, please consult your nearest GP Sales and Marketing
Office or Distributors.
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
Unit : mm
