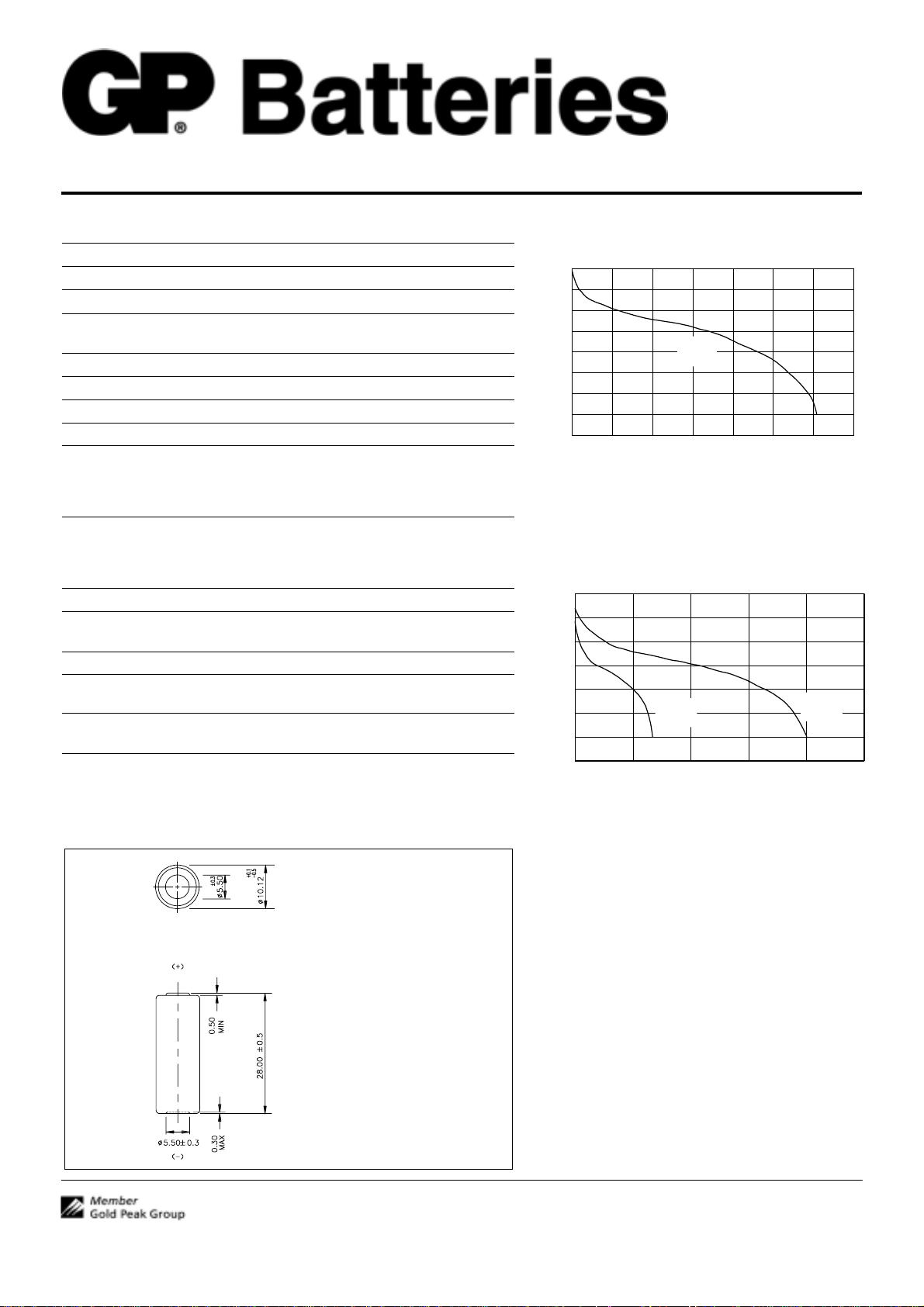

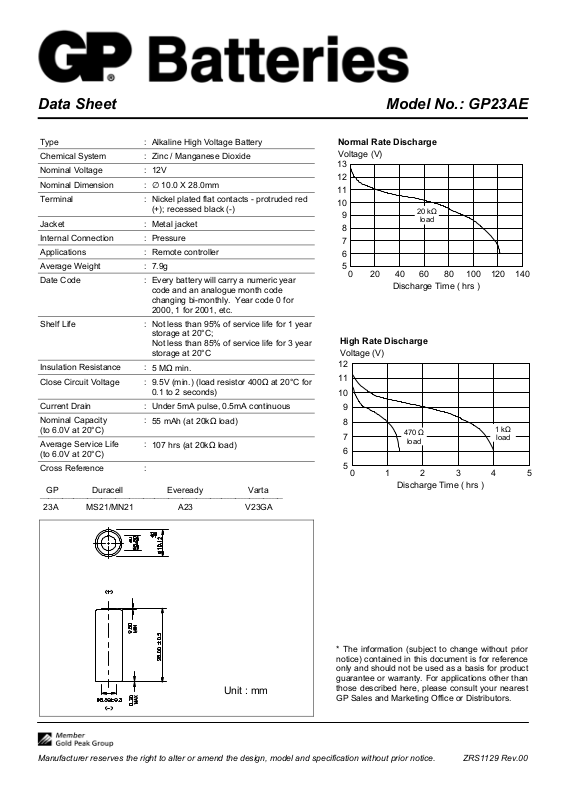

Data Sheet Model No.: GP23AE
Alkaline High Voltage Battery:Type
Zinc / Manganese Dioxide:Chemical System
:
Nominal Voltage
(to 6.0V at 20°C)
(to 6.0V at 20°C)
GP Duracell Eveready Varta
_______________________________________________________________________________________
23A MS21/MN21 A23 V23GA
12V
:Nominal Dimension
∅ 10.0 X 28.0mm
Nickel plated flat contacts - protruded red
:Terminal
(+); recessed black (-)
Metal jacket:Jacket
Pressure:Internal Connection
Remote controller:Applications
:Average Weight
7.9g
:Date Code
Every battery will carry a numeric year
code and an analogue month code
changing bi-monthly. Year code 0 for
2000, 1 for 2001, etc.
:Shelf Life
Not less than 95% of service life for 1 year
storage at 20°C;
Not less than 85% of service life for 3 year
storage at 20°C
:Insulation Resistance
5 MΩ min.
:Close Circuit Voltage
9.5V (min.) (load resistor 400Ω at 20°C for
0.1 to 2 seconds)
Under 5mA pulse, 0.5mA continuous:Current Drain
:Nominal Capacity
55 mAh (at 20kΩ load)
:Average Service Life
107 hrs (at 20kΩ load)
:Cross Reference
Normal Rate Discharge
Voltage (V)
13
12
11
10
9
20 kΩ
load
8
7
6
5
0 20 40 60 80 100 120 140
Discharge Time ( hrs )
High Rate Discharge
Voltage (V)
12
11
10
9
8
470
7
Ω
load
1 k
load
Ω
6
5
012345
Discharge Time ( hrs )
* The information (subject to change without prior
notice) contained in this document is for reference
only and should not be used as a basis for product
guarantee or warranty. For applications other than
Unit : mm
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice. ZRS1129 Rev.00
those described here, please consult your nearest
GP Sales and Marketing Office or Distributors.
