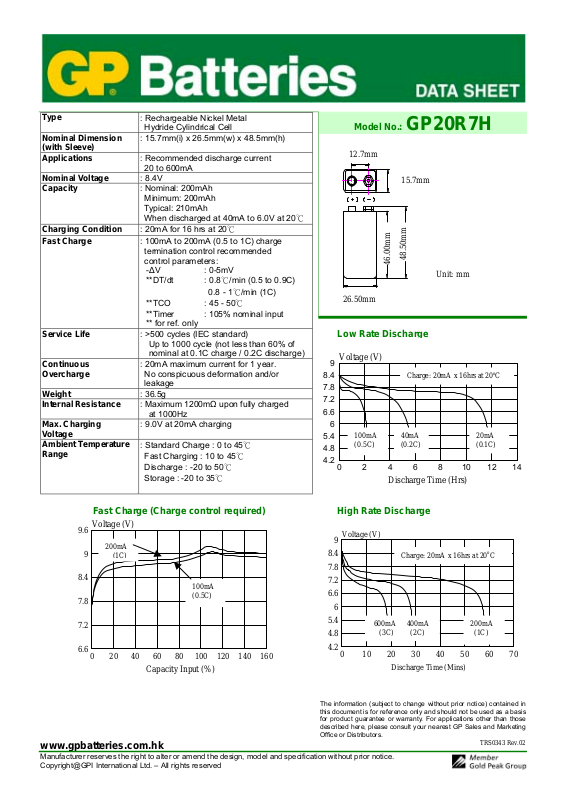

Page 1
(1C)
Type
Nominal Dimension
(with Sleeve)
Applications
Nominal Voltage
Capacity
Charging Condition
Fast Charge
Service Life
Continuous
Overcharge
Weight
Internal Resistance
Max. Charging
Voltage
Ambient Temperature
Range
Fast Charge (Charge control required)
Voltage (V)
9.6
200mA
9
8.4
7.8
7.2
6.6
0 20 40 60 80 100 120 140 160
: Rechargeable Nickel Metal
Hydride Cylindrical Cell
: 15.7mm(i) x 26.5mm(w) x 48.5mm(h)
: Recommended discharge current
20 to 600mA
: 8.4V
: Nominal: 200mAh
Minimum: 200mAh
Typical: 210mAh
When discharged at 40mA to 6.0V at 20℃
: 20mA for 16 hrs at 20℃
: 100mA to 200mA (0.5 to 1C) charge
termination control recommended
control parameters:
-∆V : 0-5mV
**DT/dt
**TCO
**Timer
** for ref. only
: >500 cycles (IEC standard)
Up to 1000 cycle (not less than 60% of
nominal at 0.1C charge / 0.2C discharge)
: 20mA maximum current for 1 year.
No conspicuous deformation and/or
leakage
: 36.5g
: Maximum 1200mΩ upon fully charged
at 1000Hz
: 9.0V at 20mA charging
: Standard Charge : 0 to 45℃
Fast Charging : 10 to 45℃
Discharge : -20 to 50℃
Storage : -20 to 35℃
: 0.8℃/min (0.5 to 0.9C)
0.8 - 1℃/min (1C)
: 45 - 50℃
: 105% nominal input
100mA
(0.5C)
Capacity Input (%)
Model No.:
12.7mm
26.50mm
15.7mm
48.50mm
46.00mm
Unit: mm
GP20R7H
Low Rate Discharge
Voltage (V)
9
8.4
7.8
7.2
6.6
6
5.4
4.8
4.2
100mA
(0.5C)
02468101214
Discharge Time (Hrs)
High Rate Discharge
Voltage (V)
9
8.4
7.8
7.2
6.6
6
5.4
4.8
4.2
0 10203040506070
600mA
(3C)
Discharge Time (Mins)
Charge: 20mA x 16hrs at 20oC
40mA
(0.2C)
Charge: 20mA x 16hrs at 20oC
400mA
(2C)
20mA
(0.1C)
200mA
(1C)
The information (subject to change without prior notice) contained in
this document is for reference only and should not be used as a basis
for product guarantee or warranty. For applications other than those
described here, please consult your nearest GP Sales and Marketing
Office or Distributors.
www.gpbatteries.com.hk
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
Copyright@GPI International Ltd. – All rights reserved
TRS0343 Rev.02
