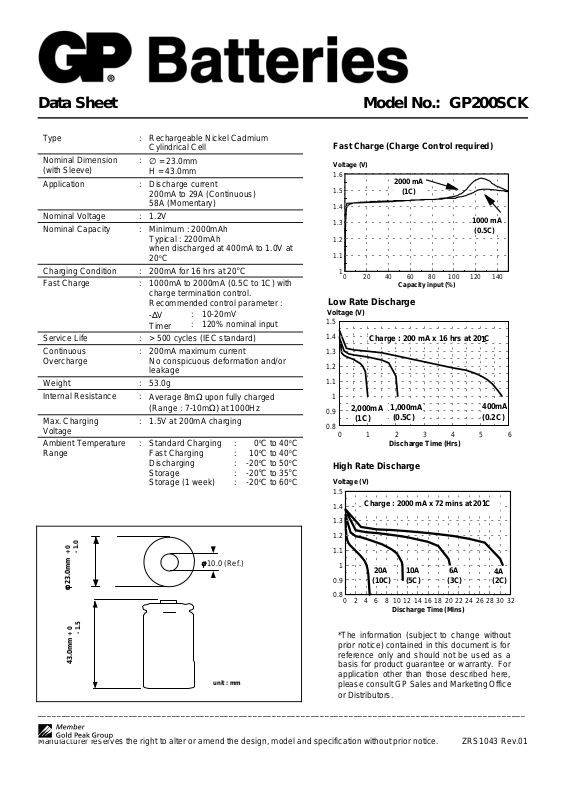

Data Sheet Model No.: GP200SCK
Rechargeable Nickel Cadmium
(with Sleeve)
Overcharge
Voltage
Range
+ 0
- 1.0
23.0mm
φ
φφ
φ
:Type
Cylindrical Cell
:Nominal Dimension
∅ = 23.0mm
H = 43.0mm
:Application
Discharge current
200mA to 29A (Continuous)
58A (Momentary)
1.2V:Nominal Voltage
Minimum : 2000mAh
:Nominal Capacity
Typical : 2200mAh
when discharged at 400mA to 1.0V at
o
20
C
200mA for 16 hrs at 20
:Fast Charge
1000mA to 2000mA (0.5C to 1C) with
o
C:Charging Condition
charge termination control.
Recommended control parameter :
10-20mV
-∆V
Timer
:
120% nominal input
:
> 500 cycles (IEC standard):Service Life
:Continuous
200mA maximum current
No conspicuous deformation and/or
leakage
53.0g:Weight
:Internal Resistance
Average 8mΩ upon fully charged
(Range : 7-10mΩ) at 1000Hz
1.5V at 200mA charging:Max. Charging
:Ambient Temperature
Standard Charging
Fast Charging
Discharging
Storage
Storage (1 week)
10.0 (Ref.)
φ
φ
φ φ
:
10
:
-20
:
:
-20
:
-20
0oC to 40oC
o
C to 40oC
o
C to 50oC
o
C to 35oC
o
C to 60oC
Fast Charge (Charge Control required)
Voltage (V)
1.6
1.5
1.4
1.3
1.2
1.1
1
0 20406080100120140
2000 mA
(1C)
1000 mA
(0.5C)
Capacity input (%)
Low Rate Discharge
Voltage (V)
1.5
1.4
1.3
1.2
1.1
1
0.9
0.8
0123456
Charge : 200 mA x 16 hrs at 20
2,000mA
(1C)
1,000mA
(0.5C)
Discharge Time (Hrs)
C
1111
400mA
(0.2C)
High Rate Discharge
Voltage ( V)
1.5
1.4
1.3
1.2
1.1
0.9
0.8
Charge : 2000 mA x 72 mins at 20
1
02468101214161820222426283032
20A
(10C)
10A
(5C)
Discharge Ti me (Mins)
6A
(3C)
C
1111
4A
(2C)
- 1.5
+ 0
*The information (subject to change without
prior notice) contained in this document is for
43.0mm
reference only and should not be used as a
basis for product guarantee or warran t y. For
application other than those described here,
unit : mm
please consult GP Sal es and M arketing Office
or Distri but ors.
______________________________________________________________________________________________________
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice. ZRS1043 Rev.01
