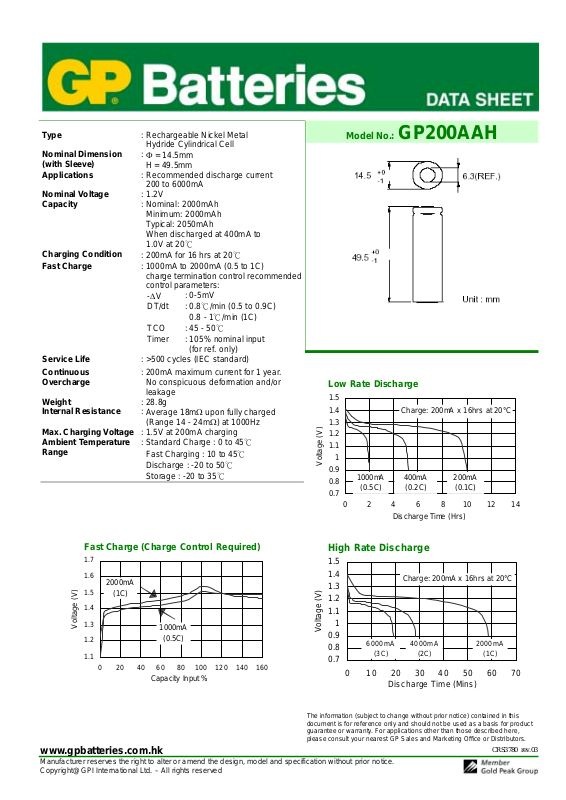

Page 1
Type
Nominal Dimension
(with Sleeve)
Applications
Nominal Voltage
Capacity
Charging Condition
Fast Charge
Service Life
Continuous
Overcharge
Weight
Internal Resistance
Max. Charging Voltage
Ambient Temperature
Range
: Rechargeable Nickel Metal
Hydride Cylindrical Cell
:
Φ = 14.5mm
H = 49.5mm
: Recommended discharge current
200 to 6000mA
: 1.2V
: Nominal: 2000mAh
Minimum: 2000mAh
Typical: 2050mAh
When discharged at 400mA to
1.0V at 20℃
:
200mA for 16 hrs at 20℃
: 1000mA to 2000mA (0.5 to 1C)
charge termination control recommended
control parameters:
-∆V
DT/dt :
TCO :
Timer :105% nomina l input
: >500 cycles (IEC standard)
: 200mA maximum current for 1 year.
No conspicuous deformation and/or
leakage
: 28.8g
:
Average 18mΩ upon fully charged
(Range 14 - 24mΩ) at 1000Hz
: 1.5V at 200mA charging
:
Standard Charge : 0 to 45℃
Fast Charging : 10 to 45℃
Discharge : -20 to 50℃
Storage : -20 to 35℃
:0-5mV
0.8℃/min (0.5 to 0.9C)
0.8 - 1℃/min (1C)
45 - 50℃
(for ref. only)
GP200AAH
Model No.:
Low Ra te Discharge
1.5
1.4
1.3
1.2
1.1
1
Voltage (V)
0.9
1000mA
0.8
0.7
(0.5C)
02468101214
Charge: 200mA x 16hrs at 20°C
400mA
(0.2C)
Discharge Time (Hrs)
200mA
(0.1C)
Fast Charge (Charge Control Required)
1.7
1.6
2000mA
1.5
1.4
1.3
Voltage (V)
1.2
1.1
(1C)
1000mA
(0.5C)
0 20 40 60 80 100 120 140 160
Capacity Input %
High Rate Discharge
1.5
1.4
1.3
1.2
1.1
1
Volt ag e (V)
0.9
0.8
0.7
6000mA
(3C)
0 10203040506070
Discharge Time (Mins)
The information (subject to change without prior notice) contained in this
document is for reference only and should not be used as a basis for product
guarantee or warranty. For applications other than those described here,
please consult your nearest GP Sales and Marketing Office or Distributors.
www.gpbatteries.com.hk
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
Copyright@GPI International Ltd. – All rights reserved
Charge: 200mA x 16hrs at 20°C
4000mA
(2C)
2000mA
(1C)
CRS3780 rev.03
