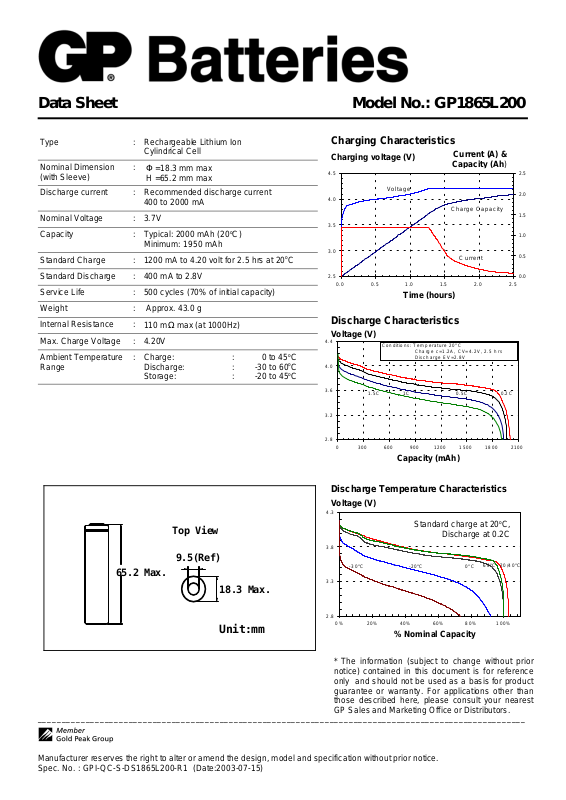

Data Sheet
)
Model No.: GP1865L200
(with Sleeve)
Range
Rechargeable Lithium Ion
:Type
Cylindrical Cell
:Nominal Dimension
Φ =18.3 mm max
H =65.2 mm max
Recommended discharge current
:Discharge current
400 to 2000 mA
3.7V:Nominal Voltage
Typical: 2000 mAh (20
:Capacity
o
C)
Minimum: 1950 mAh
1200 mA to 4.20 volt for 2.5 hrs at 20
400 mA to 2.8V:Standard Discharge
500 cycles (70% of initial capacity):Service Life
Approx. 43.0 g:Weight
:Internal Resistance
110 mΩ max (at 1000Hz)
4.20V :Max. Charge Voltage
:Ambient Temperature
Charge:
Discharge:
Storage:
:
0 to 45oC
:
-30 to 60
:
-20 to 45
Charging Characteristics
Charging voltage (V)
4.5
Voltage
4.0
3.5
o
C:Standard Charge
3.0
2.5
0.0 0.5 1.0 1.5 2.0 2.5
Time (hours
Current (A) &
Capacity (Ah
Charge Capacity
Current
)
2.5
2.0
1.5
1.0
0.5
0.0
Discharge Characteristics
Voltage (V)
4.4
o
C
o
C
4.0
3.6
3.2
Cond itions: Tem perature 20°C
C h arg e c= 1.2 A, C V = 4.2 V, 2 .5 h rs
D isch arge E V =2 .8V
1C 0.2C
0.5C1.5C
2.8
0 300 600 900 1200 1500 1800 2100
Capacity (mAh)
Discharge Temperature Characteristics
Voltage (V)
4.3
Standard charge at 20oC,
Discharge at 0.2C
20/40°C
60°C
0°C-20° C
65.2 Max.
Top View
9.5(Ref)
3.8
-30° C
3.3
18.3 Max.
2.8
Unit:mm
______________________________________________________________________________________________________
0% 20% 40% 60% 80% 100%
% Nominal Capacity
* The information (subject to change without prior
notice) contained in this document is for reference
only and should not be used as a basis for product
guarantee or warranty. For applications other than
those described here, please consult your nearest
GP Sales and Marketing Office or Distributors.
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
Spec. No. : GPI-QC-S-DS1865L200-R1 (Date:2003-07-15)
