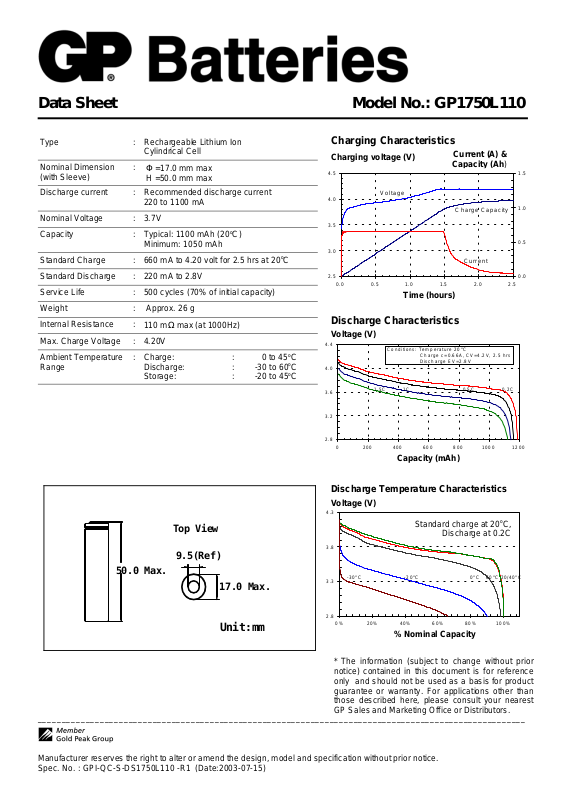

Page 1
Data Sheet
)
Model No.: GP1750L110
(with Sleeve)
Range
Rechargeable Lithium Ion
:Type
Cylindrical Cell
:Nominal Dimension
Φ =17.0 mm max
H =50.0 mm max
Recommended discharge current
:Discharge current
220 to 1100 mA
3.7V:Nominal Voltage
Typical: 1100 mAh (20
:Capacity
o
C)
Minimum: 1050 mAh
660 mA to 4.20 volt for 2.5 hrs at 20
220 mA to 2.8V:Standard Discharge
500 cycles (70% of initial capacity):Service Life
Approx. 26 g:Weight
:Internal Resistance
110 mΩ max (at 1000Hz)
4.20V :Max. Charge Voltage
:Ambient Temperature
Charge:
Discharge:
Storage:
:
0 to 45oC
:
-30 to 60
:
-20 to 45
Charging Characteristics
Charging voltage (V)
4.5
4.0
3.5
o
C:Standard Charge
3.0
2.5
0.0 0.5 1.0 1.5 2.0 2.5
Voltage
Time (hours
Current (A) &
Capacity (Ah
Charge Capacity
Current
)
1.5
1.0
0.5
0.0
Discharge Characteristics
Voltage (V)
4.4
o
C
o
C
4.0
3.6
3.2
Cond itions: Tem perature 20°C
C h arg e c= 0.6 6A , C V =4 .2V , 2.5 h rs
D isch arge E V =2 .8V
1C 0.2C
0.5C1.5C
2.8
0 200 400 600 800 1000 1200
Capacity (mAh)
Discharge Temperature Characteristics
Voltage (V)
4.3
Top View
3.8
Standard charge at 20oC,
Discharge at 0.2C
9.5(Ref)
50.0 Max.
17.0 Max.
Unit:mm
______________________________________________________________________________________________________
3.3
2.8
0% 20% 40% 60% 80% 100%
% Nominal Capacity
* The information (subject to change without prior
notice) contained in this document is for reference
only and should not be used as a basis for product
guarantee or warranty. For applications other than
those described here, please consult your nearest
GP Sales and Marketing Office or Distributors.
20/40°C0°C-20°C 60°C-30° C
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
Spec. No. : GPI-QC-S-DS1750L110 -R1 (Date:2003-07-15)
