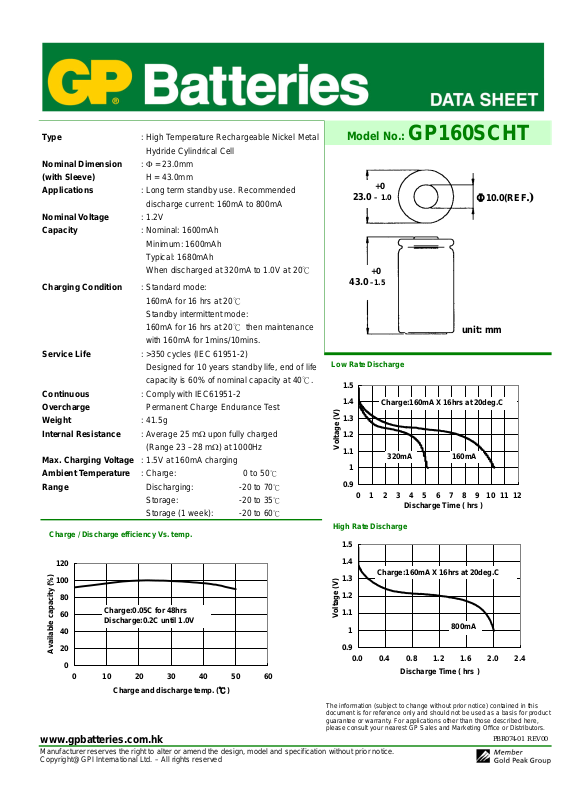

Page 1
Type
Nominal Dimension
(with Sleeve)
Applications
Nominal Voltage
Capacity
Charging Condition
Service Life
Continuous
Overcharge
Weight
Internal Resistance
Max. Charging Voltage
Ambient Temperature
Range
Charge / Discharge efficiency Vs. temp.
: High Temperature Rechargeable Nickel Metal
Hydride Cylindrical Cell
: Φ = 23.0mm
H = 43.0mm
: Long term standby use. Recommended
discharge current: 160mA to 800mA
: 1.2V
: Nomina l: 1600mAh
Minimum: 1600mAh
Typical: 1680mAh
When discharged at 320mA to 1.0V at 20℃
: Standard mode:
160mA for 16 hrs at 20℃
Standby intermittent mode:
160mA for 16 hrs at 20℃ then maintenance
with 160mA for 1mins/10mins.
: >350 cycles (IEC 61951-2)
Designed for 10 years standby life, end of life
capacity is 60% of nominal capacity at 40℃.
: Comply with IEC61951-2
Permanent Charge Endurance Test
: 41.5g
: Average 25 mΩ upon fully charged
(Range 23 –28 mΩ) at 1000Hz
: 1.5V at 160mA charging
: Charge:
Discharging:
Storage:
Storage (1 week):
℃
0 to 50
-20 to 70
-20 to 35℃
-20 to 60
℃
℃
Model No.:
GP160SCHT
+0
+ 0
34.2
23.0
43.0
61.5
– 1.0
+0
+ 0
–1.5
- 2
- 2
Φ10.0(REF
7.8-9.5(REF)
.)
unit: mm
Low Rate Discharge
1.5
1.4
1.3
1.2
Voltage (V)
1.1
1
0.9
High Rate Discharge
1.5
Charge:160mA X 16hrs at 20deg.C
320mA 160mA
0123456789101112
Discharge Time ( hrs )
120
100
80
60
40
20
Available capacity (%)
0
0 102030405060
Charge:0.05C for 48hrs
Discharge:0.2C until 1.0V
Charge and discharge temp. (℃)
www.gpbatteries.com.hk
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
Copyright@GPI International Ltd. – All rights reserved
1.4
1.3
1.2
1.1
Voltage (V)
0.9
The information (subject to change without prior notice) contained in this
document is for reference only and should not be used as a basis for product
guarantee or warranty. For applications other than those described here,
please consult your nearest GP Sales and Marketing Office or Distribut ors .
Charge:160mA X 16hrs at 20deg.C
1
0.0 0.4 0.8 1.2 1.6 2.0 2.4
800mA
Discharge Time ( hrs )
PBR074-01 REV00
