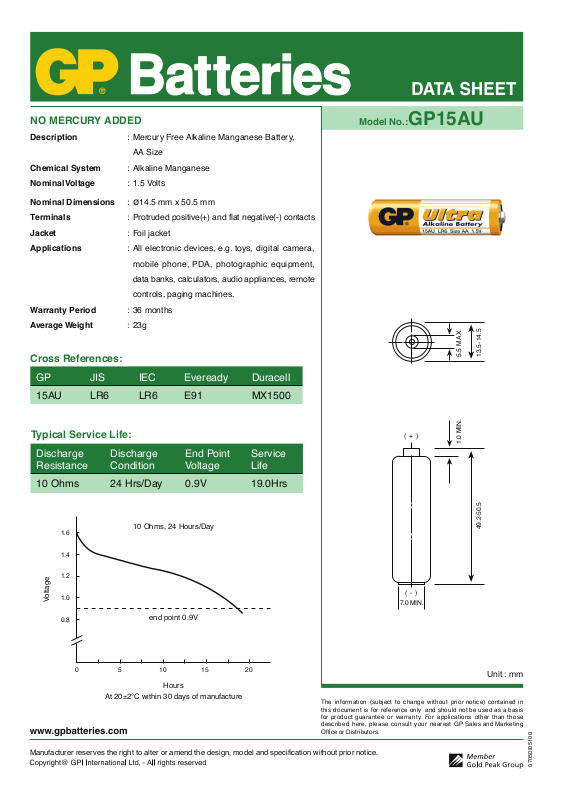

Page 1
NO MERCURY ADDED
Description : Mercury Free Alkaline Manganese Battery,
AA Size
Chemical System : Alkaline Manganese
Nominal Voltage : 1.5 Volts
Nominal Dimensions : ø14.5 mm x 50.5 mm
Terminals : Protruded positive(+) and flat negative(-) contacts
Jacket : Foil jacket
Applications : All electronic devices, e.g. toys, digital camera,
mobile phone, PDA, photographic equipment,
data banks, calculators, audio appliances, remote
controls, paging machines.
Warranty Period : 36 months
Average Weight : 23g
Cross References:
GP JIS IEC Eveready Duracell
15AU LR6 LR6 E91 MX1500
Model No.:GP15AU
5.5 MAX.
13.5-14.5
Typical Service Life:
Discharge Discharge End Point Service
Resistance Condition Voltage Life
10 Ohms 24 Hrs/Day 0.9V 19.0Hrs
1.6
1.4
1.2
e
ga
t
l
o
1.0
V
0.8
0 5 10
10 Ohms, 24 Hours/Day
end point 0.9V
15
Hours
At 20±2°C within 30 days of manufacture
20
( + )
( - )
7.0 MIN.
1.0 MIN.
49.2-50.5
Unit : mm
The information (subject to change without prior notice) contained in
this document is for reference only and should not be use d as a basis
for product guara ntee or warranty. For applicat ions other than those
descr ibed here, please consult your nearest GP Sales and Mar keting
Office or Distributors.
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
07050I0 5100
