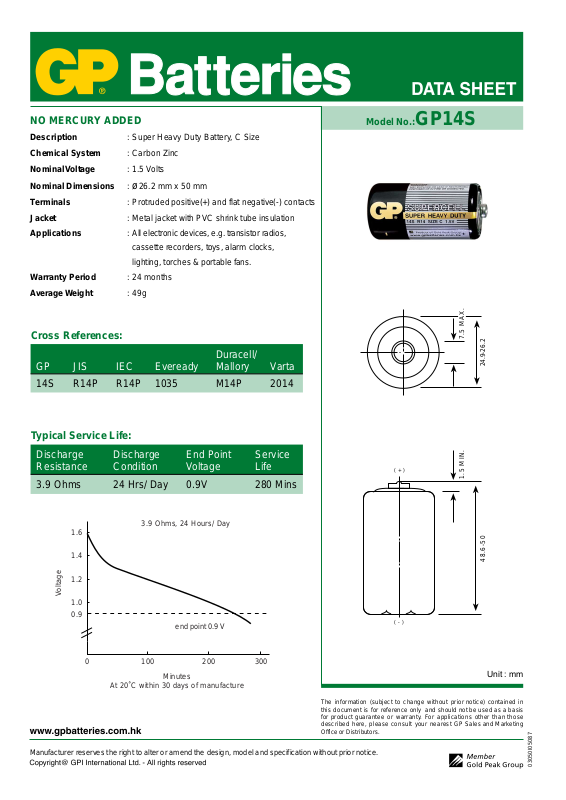

Page 1
NO MERCURY ADDED
Description : Super Heavy Duty Battery, C Size
Chemical System : Carbon Zinc
Nominal Voltage : 1.5 Volts
Nominal Dimensions : ø26.2 mm x 50 mm
Terminals : Protruded positive(+) and flat negative(-) contacts
Jacket : Metal jacket with PVC shrink tube insulation
Applications : All electronic devices, e.g. transistor radios,
cassette recorders, toys, alarm clocks,
lighting, torches & portable fans.
Warranty Period : 24 months
Average Weight : 49g
Model No.:GP14S
Cross References:
Duracell/
GP JIS IEC Eveready Mallory Varta
14S R14P R14P 1035 M14P 2014
Typical Service Life:
Discharge Discharge End Point Service
Resistance Condition Voltage Life
3.9 Ohms 24 Hrs/ Day 0.9V 280 Mins
3.9 Ohms, 24 Hours/ Day
1.6
1.4
1.2
Voltage
1.0
0.9
end point 0.9 V
( + )
( - )
7.5 MAX.
24.9-26.2
1.5 MIN.
48.6-50
0 100 200 300
Minutes
At 20˚C within 30 days of manufacture
The information (subject to change without prior notice) contained in
this document is for reference only and should not be used as a basis
for product guarantee or warranty. For applications other than those
described here, please consult your nearest GP Sales and Marketing
Office or Distributors.
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
Unit : mm
03050I05087
