NO MERCURY ADDED

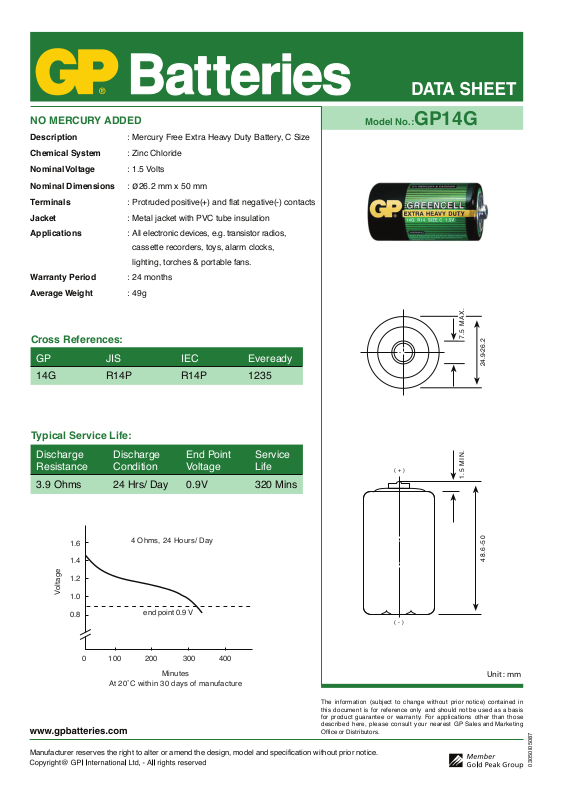

Description : Mercury Free Extra Heavy Duty Battery, C Size
Chemical System : Zinc Chloride
Nominal Voltage : 1.5 Volts
Nominal Dimensions : ø26.2 mm x 50 mm
Terminals : Protruded positive(+) and flat negative(-) contacts
Jacket : Metal jacket with PVC tube insulation
Applications : All electronic devices, e.g. transistor radios,
cassette recorders, toys, alarm clocks,
lighting, torches & portable fans.
Warranty Period : 24 months
Average Weight : 49g
Model No.:GP14G
Cross References:
GP JIS IEC Eveready
14G R14P R14P 1235
Typical Service Life:
Discharge Discharge End Point Service
Resistance Condition Voltage Life
3.9 Ohms 24 Hrs/ Day 0.9V 320 Mins
1.6
1.4
1.2
Voltage
1.0
0.8
4 Ohms, 24 Hours/ Day
end point 0.9 V
( + )
( - )
7. 5 MAX .
24.9-26.2
1. 5 MIN .
48 . 6 -50
0 100 200 300 400
Minutes
At 20˚C within 30 days of manufacture
The information (subjec t to change without prior not ice) contained in
this document is for reference only and should not be used as a basis
for pro duct guarantee or warranty. For appli cati ons other than those
descr ibed here, please consult your neares t GP Sales and Marketing
Office or Distributors.
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
Unit : mm
