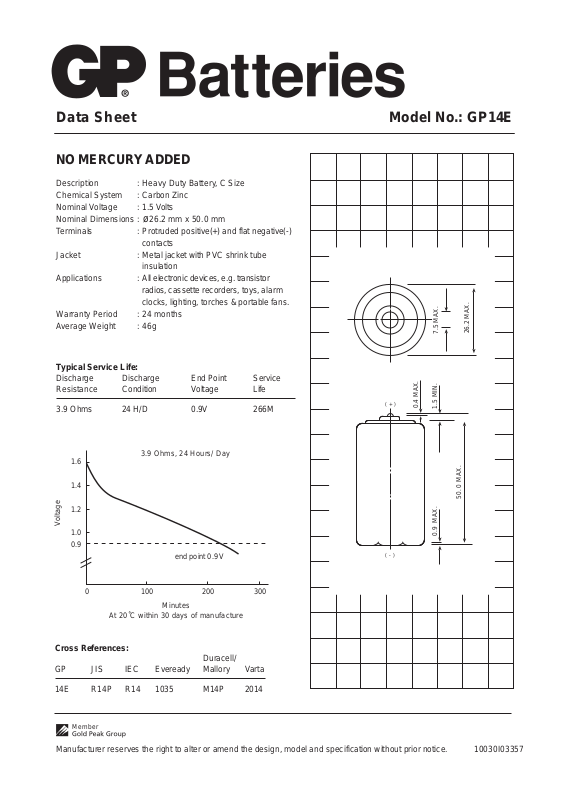

Data Sheet
NO MERCUR Y ADDED
Description : Heavy Duty Battery, C Size
Chemical System : Carbon Zinc
Nominal Voltage : 1.5 Volts
Nominal Dimensions : 26.2 mm x 50.0 mm
Terminals : Protruded positive(+) and flat negative(-)
Jacket : Metal jacket with PVC shrink tube
Applications : All electronic devices, e.g. transistor
Warranty Period : 24 months
Average Weight : 46g
Typical Service Life:
Discharge Discharge End Point Service
Resistance Condition V oltage Life
3.9 Ohms 24 H/D 0.9V 266M
ø
contacts
insulation
radios, cassette recorders, toys, alarm
clocks, lighting, torches & portable fans.
Model No.: GP14E
26.2 MAX.
( + )
0.4 MAX.
1.5 MIN.
7.5 MAX.
1.6
3.9 Ohms, 24 Hours/ Day
1.4
1.2
Voltage
1.0
0.9
end point 0.9 V
0 100 200 300
Minutes
At 20˚C within 30 days of manufacture
Cross References:
Duracell/
GP JIS IEC Eveready Mallory Varta
14E R14P R14 1035 M14P 2014
Member
50.0 MAX.
0.9 MAX.
( - )
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
10030I03357
