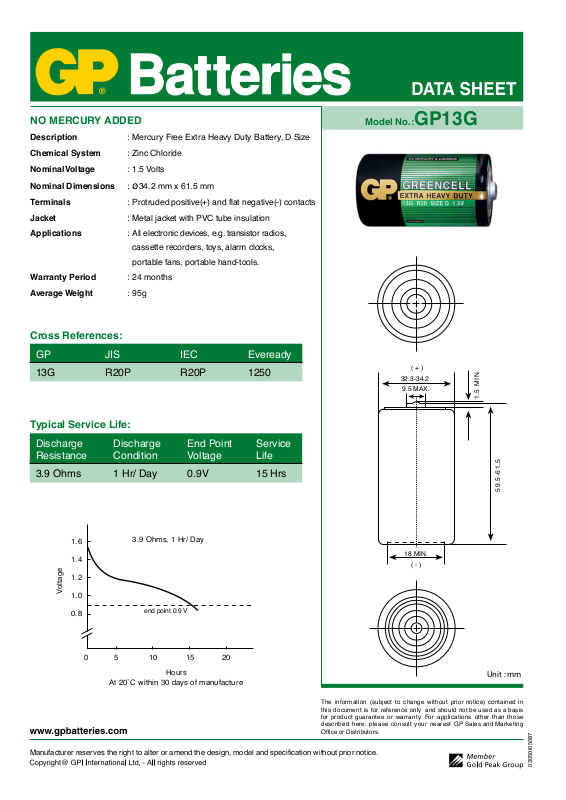

Page 1
NO MERCURY ADDED
Description : Mercury Free Extra Heavy Duty Battery, D Size
Chemical System : Zinc Chloride
Nominal Voltage : 1.5 Volts
Nominal Dimensions : ø34.2 mm x 61.5 mm
Terminals : Protruded positive(+) and flat negative(-) contacts
Jacket : Metal jacket with PVC tube insulation
Applications : All electronic devices, e.g. transistor radios,
cassette recorders, toys, alarm clocks,
portable fans, portable hand-tools.
Warranty Period : 24 months
Average Weight : 95g
Cross References:
GP JIS IEC Eveready
13G R20P R20P 1250
Model No.:GP13G
( + )
32.3-34.2
9.5 MAX.
1. 5 MIN .
Typical Service Life:
Discharge Discharge End Point Service
Resistance Condition Voltage Life
3.9 Ohms 1 Hr/ Day 0.9V 15 Hrs
1.6
1.4
1.2
Voltage
1.0
0.8
0 5 10 15 20
3.9 Ohms, 1 Hr/ Day
end point 0.9 V
Hours
At 20˚C within 30 days of manufacture
59 . 5 -61 . 5
18 MIN.
( - )
Unit : mm
The information (subjec t to change without prior not ice) contained in
this document is for reference only and sho uld not be used as a basis
for pro duct guara ntee or warranty. For applications other than those
descr ibed here, please consult your neares t GP Sales and Marketing
Office or Distributors.
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
03050I0 5087
