NO MERCUR Y ADDED
Description : Mercury Free Alkaline Manganese Battery,
D Size
Chemical System : Alkaline Manganese
Nominal Voltage : 1.5 Volts
Nominal Dimensions : 34.2 mm x 61.5 mm
Terminals : Protruded positive(+) and flat negative(-)
Jacket : Foil jacket
Applications : All electronic devices, e.g. transistor radios,
Warranty Period : 36 months
Average Weight : 130g
Typical Service Life:
Discharge Discharge End Point Service
Resistance Condition V oltage Life
ø
contacts
cassette recorders, toys, alarm clocks,
portable fans, portable hand-tools.

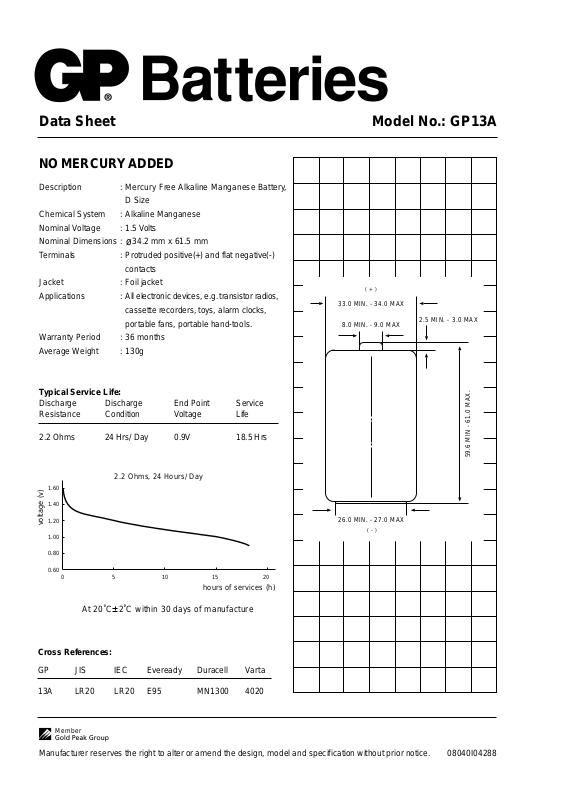

Model No.: GP13AData Sheet
( + )
33.0 MIN. - 34.0 MAX
8.0 MIN. - 9.0 MAX
2.5 MIN. - 3.0 MAX
2.2 Ohms 24 Hrs/ Day 0.9V 18.5 Hrs
2.2 Ohms, 24 Hours/ Day
1.60
1.40
1.20
voltage (v)
1.00
0.80
0.60
0 5 10 15 20
hours of services (h)
At 20˚C 2˚C within 30 days of manufacture
Cross References:
GP JIS IEC Eveready Duracell Varta
13A LR20 LR20 E95 MN1300 4020
59.6 MIN - 61.0 MAX.
26.0 MIN. - 27.0 MAX
( - )
Member
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
08040I04288
