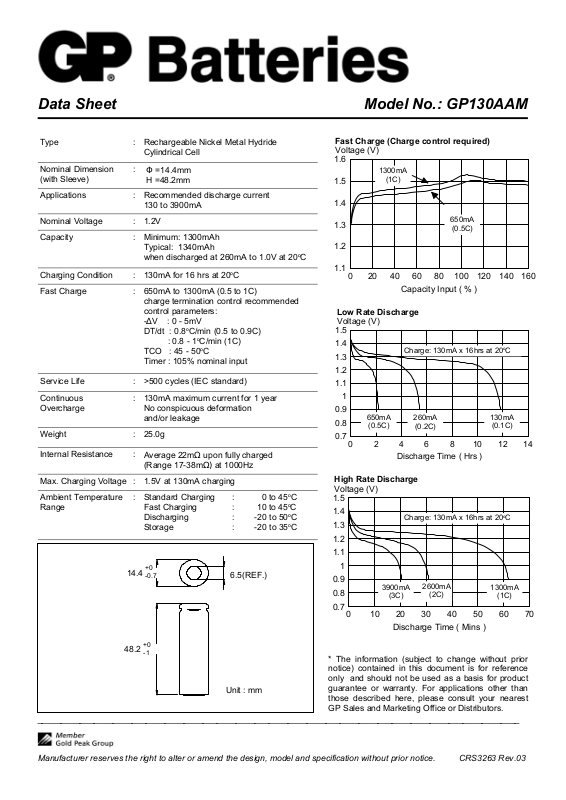

Data Sheet Model No.: GP130AAM
(with Sleeve)
Overcharge
Range
:Type
:Nominal Dimension
:Applications
:Capacity
:Fast Charge
:Continuous
:Internal Resistance
:Ambient Temperature
14.4
Rechargeable Nickel Metal Hydride
Cylindrical Cell
Φ =14.4mm
H =48.2mm
Recommended discharge current
130 to 3900mA
1.2V:Nominal Voltage
Minimum: 1300mAh
Typical: 1340mAh
when discharged at 260mA to 1.0V at 20
130mA for 16 hrs at 20
o
C:Charging Condition
650mA to 1300mA (0.5 to 1C)
charge termination control recommended
control parameters:
-∆V : 0 - 5mV
DT/dt : 0.8
: 0.8 - 1
TCO : 45 - 50
o
C/min (0.5 to 0.9C)
o
C/min (1C)
o
C
Timer : 105% nominal input
>500 cycles (IEC standard):Service Life
130mA maximum current for 1 year
No conspicuous deformation
and/or leakage
25.0g:Weight
Average 22mΩ upon fully charged
(Range 17-38mΩ) at 1000Hz
1.5V at 130mA charging:Max. Charging Voltage
Standard Charging
Fast Charging
Discharging
Storage
+0
-0.7
0 to 45oC
:
10 to 45
:
:
-20 to 50
:
-20 to 35
6.5(REF.)
o
C
o
C
o
C
Fast Charge (Charge control required)
Voltage (V)
1.6
1300mA
1.5
(1C)
1.4
1.3
o
C
1.2
650mA
(0.5C)
1.1
0 20 40 60 80 100 120 140 160
Capacity Input ( % )
Low Rate Discharge
Voltage (V)
1.5
1.4
1.3
Charge: 130mA x 16hrs at 20oC
1.2
1.1
1
0.9
0.8
650mA
(0.5C)
260mA
(0.2C)
130mA
(0.1C)
0.7
0 2 4 6 8 10 12 14
Discharge Time ( Hrs )
High Rate Discharge
Voltage (V)
1.5
1.4
Charge: 130mA x 16hrs at 20oC
1.3
1.2
1.1
1
0.9
0.8
3900mA
(3C)
2600mA
(2C)
1300mA
(1C)
0.7
0 10203040506070
Discharge Time ( Mins )
+0
48.2
-1
* The information (subject to change without prior
notice) contained in this document is for reference
only and should not be used as a basis for product
Unit : mm
guarantee or warranty. For applications other than
those described here, please consult your nearest
GP Sales and Marketing Office or Distributors.
