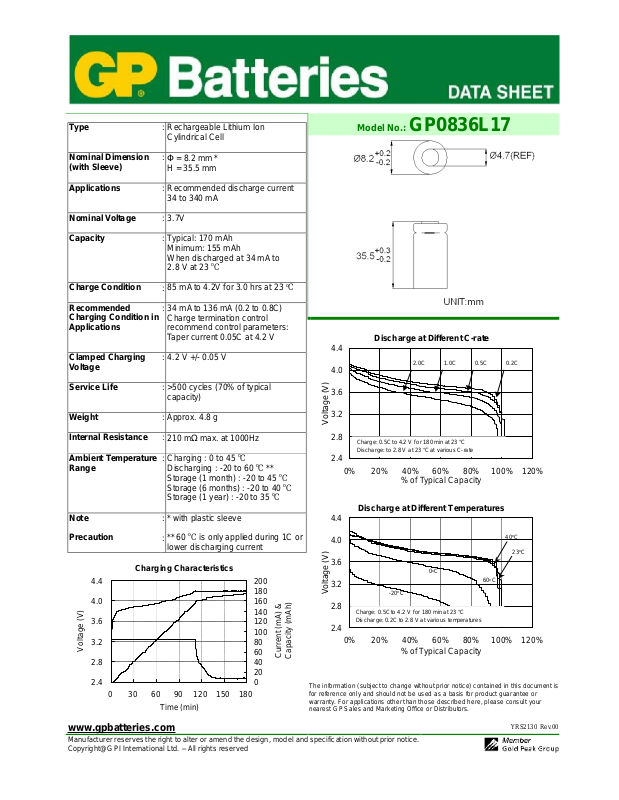

Page 1
:
:
:
Charging Condition in
:
:
:
:
The information (subject to change without prior notice) contained in this document is
Type
: Rechargeable Lithium Ion
Model No.:
GP0836L17
Cylindrical Cell
Nominal Dimension
(with Sleeve)
Φ = 8.2 mm *
H = 35.5 mm
Applications
Recommended discharge current
34 to 340 mA
Nominal Voltage
: 3.7V
Capacity
Typical: 170 mAh
Minimum: 155 mAh
When discharged at 34 mA to
2.8 V at 23 oC
Charge Condition
85 mA to 4.2V for 3.0 hrs at 23 oC
:
Recommended
34 mA to 136 mA (0.2 to 0.8C)
Charge termination control
Applications
Clamped Charging
Voltage
Service Life
Weight
Internal Resistance
Ambient Temperature
Range
recommend control parameters:
Taper current 0.05C at 4.2 V
: 4.2 V +/- 0.05 V
: >500 cycles (70% of typical
capacity)
: Approx. 4.8 g
210 mΩ max. at 1000Hz
Charging : 0 to 45
o
C
Discharging : -20 to 60 oC **
Storage (1 month) : -20 to 45 oC
Storage (6 months) : -20 to 40 oC
Discharge at Different C-rate
4.4
4.0
3.6
3.2
Voltage (V)
2.8
Charge: 0.5C to 4.2 V for 180 min at 23 °C
Discharge: to 2.8 V at 23 °C at various C-rate
2.4
0% 20% 40% 60% 80% 100% 120%
% of Typical Capacity
Storage (1 year) : -20 to 35 oC
Note
Precaution
4.4
4.0
3.6
3.2
Voltage (V)
2.8
2.4
:
* with plastic sleeve
** 60 oC is only applied during 1C or
lower discharging current
Charging Characteristics
0 30 60 90 120 150 180
Time (min)
200
180
160
140
120
100
80
60
40
20
0
Current (mA) &
Capacity (mAh)
for reference only and should not be used as a basis for product guarantee or
warranty. For applications other than those described here, please consult your
nearest GP Sales and Marketing Office or Distributors.
Discharge at Different Temperatures
4.4
4.0
3.6
3.2
Voltage (V)
2.8
Charge: 0.5C to 4.2 V for 180 min at 23 °C
Discharge: 0.2C to 2.8 V at various temperatures
-20oC
2.4
0% 20% 40% 60% 80% 100% 120%
% of Typical Capacity
www.gpbatteries.com
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
Copyright@GPI International Ltd. – All rights reserved
0.2C0.5C1.0C2.0C
40oC
23oC
0oC
60oC
YRS2130 Rev.00
