Base Unit
Search button
Press to search for the Tag unit.
Model Name
708AA
Base Unit
Tag Unit
1 pc
Batteries
CR2032x2
User manual
Strap
Hook
1
1
Base Unit
Tag Unit
1 pc
Tag Unit
Page 1 Page 2
Model Name
Function
Search Range
Alarm Triggered
Base Unit / Tag Unit
Base (M08AM)x1
Battery Type
CR2032
Battery Life Time on Standby
Over 45 days (8 hrs/day)
Beep Audible Level (at 10 cm / 3.9 inches)
Base unit : 95 db, Tag unit : 102db
Dimension (L/W/ H)
Bike Guard 708AA
Alert & Search
0~300m/984ft
1
2
3
Speaker
Battery cover
Sound output

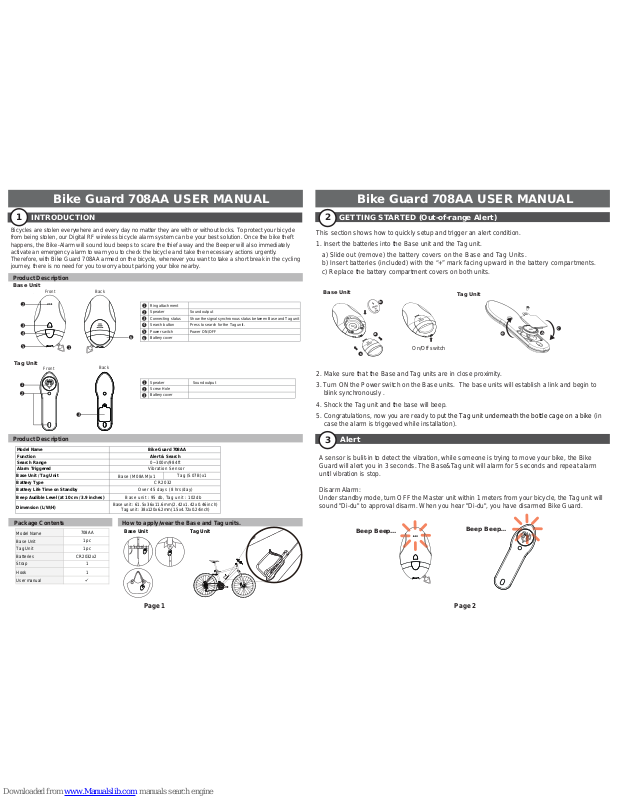

Bike Guard 708AA USER MANUAL
Bicycles are stolen everywhere and every day no matter they are with or without locks. To protect your bicycle
from being stolen, our Digital RF wireless bicycle alarm system can be your best solution. Once the bike theft
happens, the Bike-Alarm will sound loud beeps to scare the thief away and the Beeper will also immediately
activate an emergency alarm to warn you to check the bicycle and take the necessary actions urgently.
Therefore, with Bike Guard 708AA armed on the bicycle, whenever you want to take a short break in the cycling
journey, there is no need for you to worry about parking your bike nearby.
1
2
3
4
5
6
Ring attachment
Speaker
Connecting status
Power switch
Battery cover
Power ON/OFF
Show the signal synchronous status between Base and Tag unit
Sound output
Tag (S07B)x1
Vibration Sensor
Bike Guard 708AA USER MANUAL
Front
Back
1
2
3
Base unit : 61.5x36x11.6mm(2.42x1.42x0.46inch)
Tag unit : 38x120x6.2mm(1.5x4.72x0.24inch)
Front
Back
1
2
3
4
5
6
INTRODUCTION
1
Product Description
Product Description
Package Contents How to apply/wear the Base and Tag units.
GETTING STARTED (Out-of-range Alert)
2
This section shows how to quickly setup and trigger an alert condition.
1. Insert the batteries into the Base unit and the Tag unit.
a) Slide out (remove) the battery covers on the Base and Tag Units.
b) Insert batteries (included) with the “+” mark facing upward in the battery compartments.
c) Replace the battery compartment covers on both units.
2. Make sure that the Base and Tag units are in close proximity.
3. Turn ON the Power switch on the Base units. The base units will establish a link and begin to
blink synchronously .
4. Shock the Tag unit and the base will beep.
5. Congratulations, now you are ready to put the Tag unit underneath the bottle cage on a bike (in
case the alarm is triggeved while installation).
c
b
a
On/Off switch
b
a
c
Base Unit
Tag Unit
Alert
3
A sensor is bulit-in to detect the vibration, while someone is trying to move your bike, the Bike
Guard will alert you in 3 seconds. The Base&Tag unit will alarm for 5 seconds and repeat alarm
until vibration is stop.
Disarm Alarm:
Under standby mode, turn OFF the Master unit within 1 meters from your bicycle, the Tag unit will
sound "Di-du" to approval disarm. When you hear "Di-du", you have disarmed Bike Guard.
Screw Hole
Beep Beep...
Beep Beep...
Page 3
Page 4
SEARCH
4
Out of range or Loss signal :
a.) Base unit beeps and signal LED blinks for 80 seconds out of range or loss signal; then Base unit
will enter sleep mode automatically.
b.) Base unit beeps once a minute (to remind user to switch power OFF for Base unit for power-saving.)
c.) To wake-up Master , press Search button to go to wake-up process.
Low battery:
When the Matser and Slave is under low battery condition, it will beep at a 2 minutes interval,
please change the battery.
Important: Under low battery condition, it may cause abnormal function of alarm or searching.
Bike Guard 708AA USER MANUALBike Guard 708AA USER MANUAL
Additional Search Function Information
Warnings and Important Information
6
1. The Tag units are water-repellent, but not waterproof!
Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain
minerals that may corrode electronic circuits. If your device gets wet, remove the battery, and
allow the device to dry completely before replacing it.
2. If you want to use the device during air flight, please comply with the air safety regulations for
each respective country.
3. We reserve the right to change the hardware/software specifications and designs, as well as the
information in the manuals, at any time without prior notice.
4. Proper operating temperatures for this product are between 14˚F ~140˚F (-10˚C~60˚C). Proper
Storage Temperatures are between -4˚F~185˚F (-20˚C~85˚C) .
5. Under low battery charge conditions, both Base and Tag will alert with a beep every 2 minutes in this case, replace batteries immediately. Low battery conditions may result in unpredictable
product behavior, such as low alert volume and false readings. To save battery charge, turn off
both units when appropriate (e.g. evenings at home).
6. The Batteries provided in this product should be disposed of properly according to national or
regional recycling regulations - contact local authorities for more information.
Warning: Do not expose the batteries to fire or heat - this may result in danger from explosions.
Federal Communication Commission Interference Statement
This equipment has been tested and improved to comply with the limits of a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This FCC Certifications equipment
generates, uses and can radiate radio frequency energy, if installed and used not in accordance
with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determinedly turning the
equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
■ Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept an interference received, including interference that may cause
undesired operation.
FCC Caution: Any changes or modifications are not expressly approved by the party responsible
for compliance which could void the user's authority to operate this equipment.
EU Declaration Conformity
This product is carrying the CE-Mark in accordance with the related European Directives.
Certifications
7
Press once
and release
OPERATION INSTURCTION5
Scenarios Tag Unit Base unit
When the bicycle is
Shocked accidentally, …
Beeps for 3 seconds Beeps for 3 seconds.
When the bicycle
movement still
continues, …
Continuously sen d out
beeps.
Continuously sen d out
beeps.
When Base unit is
power-off, destroyed or
(the bicycle is) hijacked, ...
Continuously sen d out long
beeps.
No beep sound.
When the bicycle can’t be
located in the parking lot,
press the Search button
and ...
Continuously sen d out
beeps.
Green LED blinks
When the battery is low Buzzer beeps once every 2
minutes.
Buzzer beeps once every 2
minutes.
When a tagged item is misplaced, you can use the Base unit to search for it, if it is within a 300
meters / 984ft(line of sight) radius. On the Base unit, press the Search/Set” Button once. The
Base unit will begin to chirp and the Tag unit will begin to beep.
Beep Beep...
91E-02B8-U50G20
