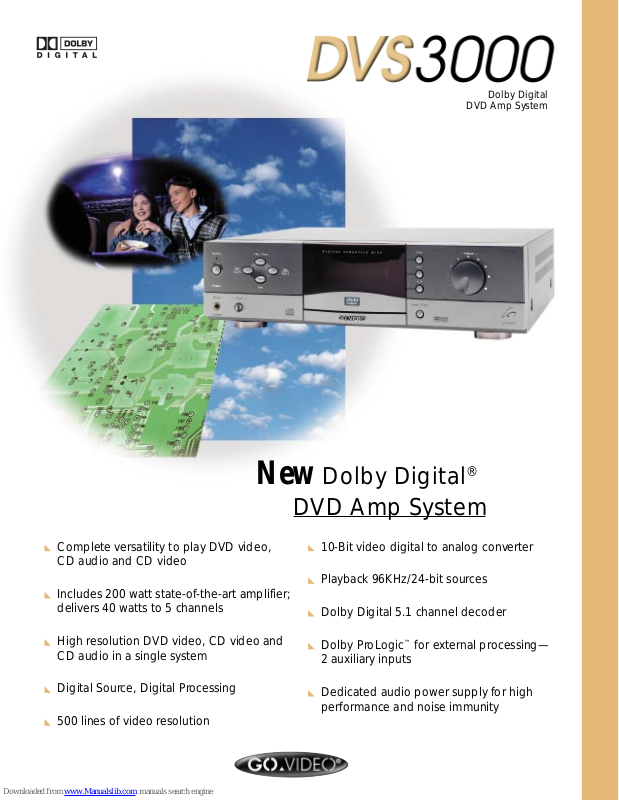

Page 1
Dolby Digital
DVD Amp System
New Dolby Digital
Complete versatility to play DVD video,
CD audio and CD video
Includes 200 watt state-of-the-art amplifier;
delivers 40 watts to 5 channels
High resolution DVD video, CD video and
CD audio in a single system
Digital Source, Digital Processing
500 lines of video resolution
®
DVD Amp System
10-Bit video digital to analog converter
Playback 96KHz/24-bit sources
Dolby Digital 5.1 channel decoder
Dolby ProLogic™ for external processing—
2 auxiliary inputs
Dedicated audio power supply for high
performance and noise immunity
Page 2
ADDITIONAL COOL FEATURES
Features
Multi-brand remote control TV/VCR/DVD
Multi-camera angle
Last memory function
Slow play (DVD/VCD)
Search play (DVD/CD)
Skip
Still frame
Frame advance
Auto power off (DVD/VCD)
Audio CD track selection
Headphone jack and volume control
Programs
- CD audio tracks
- Video chapter
- Title
Repeat
- All, title, chapter, A/B
Display dimmer
On-screen programming in
English, French, German,
Spanish, Italian and Dutch
Parental Control
4:3/16:9 compatibility
Multi-language compatibility
Subtitle compatibility
Accessories
Audio/Video cable
S-Video cable
Remote control
Instruction manual
AUDIO
• 24-bit/96KHz digital to analog
converter (16/20-bit 48KHz
compatible)
• Built-in 5.1 ch. Dolby Digital
Decoder
• Built-in Dolby ProLogic decoder
LINE OUT
Frequency response:
(48KHz sampling)
Signal to noise ratio:
Total harmonic distortion:
0.003%
Dynamic range:
Wow & flutter:
level
AMPLIFIER
Frequency response:
20KHz
Signal to noise ratio:
Total harmonic distortion:
GENERAL
•
Power
: 120V, 60Hz, 40-240W
•
Unit Dimensions
(D) x 4” (H)
•
Carton Dimensions
18.7” (D) x 9.1” (H)
•
Unit weight
•
Carton weight
•
Operating temperature range
41-95° F
: 21.4 lbs.
4Hz-22KHz
106 dB
96 dB
< measurable
10Hz-
72 dB
0.07%
: 17” (W) x 13”
: 21.8” (W) x
: 28 lbs.
•
Operating humidity range
10-75%
• UL, CSA
• 1 year parts and labor
VIDEO
• Composite (CVBS)
• S-Video output
• 10-Bit D/A Converter
• 500 lines horizontal resolution
• Picture zoom
• Screen saver
COMPATIBILITY
•
DVD video:
•
Video CD:
minutes
•
Audio CD:
REAR PANEL
• Output Jacks
- S-Video (1)
- Composite Video (2)
- Left/Right Audio (2)
• Input Jacks
- Composite Video (2)
- Left/Right Audio (2)
• Speaker Connections (5)
- Front Left and Right
:
- Rear Left and Right
- Center
• Powered subwoofer output
135 minutes
2.0 version 74
74 minutes
:
UPC 98226-13000-7
SPECIFICATIONS
7835 EAST McCLAIN DRIVE
SCOTTSDALE, ARIZONA 85260-1732
TECHNICAL
TEL. 480-998-3400 FAX 480-998-8312
www.sensoryscience.com www.govideo.com
©1999 Sensory Science Corporation. All rights reserved. Dolby, ProLogic, and the double-D symbol are trademarks of Dolby Laboratories.
All other brand and product names are trademarks or registered trademarks of their respective companies. All specifications are subject to change.
