GoVideo DDV9450 Specifications

Download

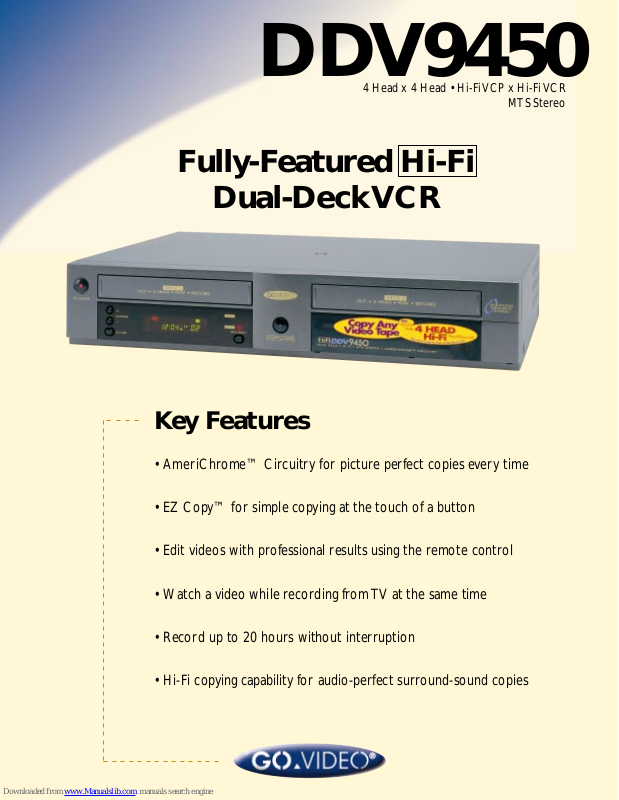

Page 1

DDV9450

4 Head x 4 Head • Hi-Fi VCP x Hi-Fi VCR

Fully-Featured Hi-Fi

Dual-Deck VCR

MTS Stereo

Key Features

• AmeriChrome™ Cir cuitry for pictur e perfect copies every time

• EZ Copy™ for simple copying at the touch of a button

• Edit videos with professional results using the remote control

• Watch a video while recording from TV at the same time

• Record up to 20 hours without interruption

• Hi-Fi copying capability f or audio-perfect surround-sound copies

Page 2

Standard Features

• AmeriChrome™ Cir cuitry

• Fully Automatic EZ Cop y™

• Multi-Brand TV Remote

• Video Sequencing Playback & Record

• Super Digital Auto Tracking

• Multi-Scene Automatic Editing

• Complete Program Record™(CPR)

• Real Time T ape Counter

• VHS Index Search System

• Hi-Speed Rewind

• Skip Search

• Date and Time Stamp

• Front Audio/Video Jacks

• 1 Year/8 Event Timer Recording

• English/French On-Screen Menus

• 181 Channel MTS Stereo Tuner

Technical Specifications

Video System

1/2 inch VHS system, 4 rotary head helical scanning: FM azimuth luminance; chrominance: converted sub system phase shift.

Television System

NTSC-type color signal EIA standard (525 lines, 60 fields)

Audio T rack

Normal: 1 track; Hi-Fi: 2 track

T ape Width

12.7mm, 1⁄2 inch

Tape Speed

SP: 33.35mm/s; SLP: 11.12mm/s

Play/Record Time

T-200 tape: SP 31⁄3 hrs, SLP 10 hrs

FF/Rew Time

T-120 tape: 2 minutes, 45 seconds

Frequency Response

20-20,000 Hz (Hi-Fi) S/N Ratio: 70dB (Hi-Fi)

Power Requirement

120V AC, 60Hz, 26 watts max.

Weight / Dimensions

20 lbs. / 534 x 100 x 400mm (21" x 4" x 15 3⁄4")

Wow & Flutter

Less than 0.005% (Hi-Fi)

Agency Appro vals

UL, FCC, CSA

RF Modulation

Channel 3 or 4

Clock Backup Time

1 Minute

Environment

41-104 F (5-40 C); 10%-75% humidity

Heads

Video: DA 4 rotary heads Audio: 2 rotary heads (Hi-Fi)

Audio: 1 stationary head (Linear) Control: 1 stationary head Erase: 1 full track, 1 audio track

Video

Input: FROM ANTENNA (“F”-Type) 75 ohms unbalanced Output: TO TV (“F”-Type) 75 ohms unbalanced Horiz Res: Monochrome, more than 230 lines (SP) S/N Ratio: Better than 43 db

Audio

Input: AUDIO IN (RCA) -8dbu, 47K ohms Output: AUDIO OUT (RCA) -8dbu,

1.5K ohm unbalanced, 1 V P-P TV Tuner: 181 channel frequency synthesized. VHF input Ch 2-Ch 13. UHF input Ch 14-Ch 69. VHF & UHF one input. Cable Ch 5A, A-5 through A-1, A-I, J through W+58, W+59 through W+84. 75 ohm unbalanced. MTS Stereo

7835 EAST McCLAIN DRIVE SCOTTSDALE, ARIZONA 85260-1732 TEL. 602-998-3400 FAX 602-998-8312 www.govideo.com

COPYRIGHT WARNING: Go-Video’s Dual-Deck VCR is not made or sold for unauthorized recording of copyrighted works, including, without limitation, unauthorized recordings from pre-recorded copyrighted movies.
