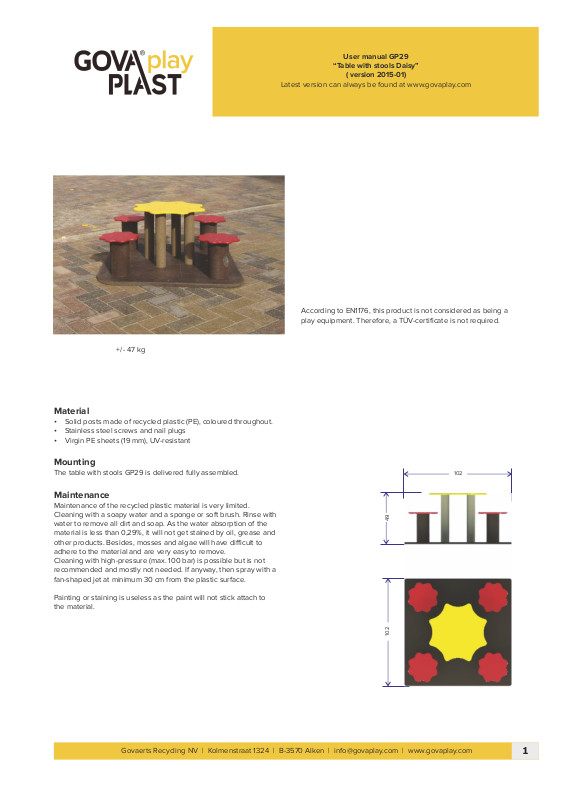

Govaplast Play Table with stools Daisy User Manual
User manual GP29
“Table with stools Daisy”
( version 2015-01)
Latest version can always be found at www.govaplay.com
According to EN1176, this product is not considered as being a
play equipment. Therefore, a TÜV-certificate is not required.
+/- 47 kg
Material
Ÿ Solid posts made of recycled plastic (PE), coloured throughout.
Ÿ Stainless steel screws and nail plugs
Ÿ Virgin PE sheets (19 mm), UV-resistant
Mounting
The table with stools GP29 is delivered fully assembled.
Maintenance
Maintenance of the recycled plastic material is very limited.
Cleaning with a soapy water and a sponge or soft brush. Rinse with
water to remove all dirt and soap. As the water absorption of the
material is less than 0,29%, it will not get stained by oil, grease and
other products. Besides, mosses and algae will have difficult to
adhere to the material and are very easy to remove.
Cleaning with high-pressure (max. 100 bar) is possible but is not
recommended and mostly not needed. If anyway, then spray with a
fan-shaped jet at minimum 30 cm from the plastic surface.
Painting or staining is useless as the paint will not stick attach to
the material.
102
49
102
Govaerts Recycling NV | Kolmenstraat 1324 | B-3570 Alken | info@govaplay.com | www.govaplay.com
1
Installation
This product is delivered fully assembled. Anchorage is possible but not required when permanent supervision of the playground is guaranteed.
No need for safety zone and safety surface
As this product is being considered as furniture there is no need to respect a safety zone. A safety surface is also not required.
Anchorage
The GP29 is anchored by fixing the included nail plugs into the surface (holes of the ground plate
are pre-drilled). Position the table and drill the holes using a 8 mm stone drill bit. Then fix the nail
4 x
plugs.
Important suggestion
To drill the holes in the ground, use a sharp drill and just put the plastic plug into the hole. It is better
to screw the nail into the plug than to hammer. This way, you don't damage the head of the nail and
unfixing will be easy.
2
Govaerts Recycling NV | Kolmenstraat 1324 | B-3570 Alken | info@govaplast.com | www.govaplast.com
