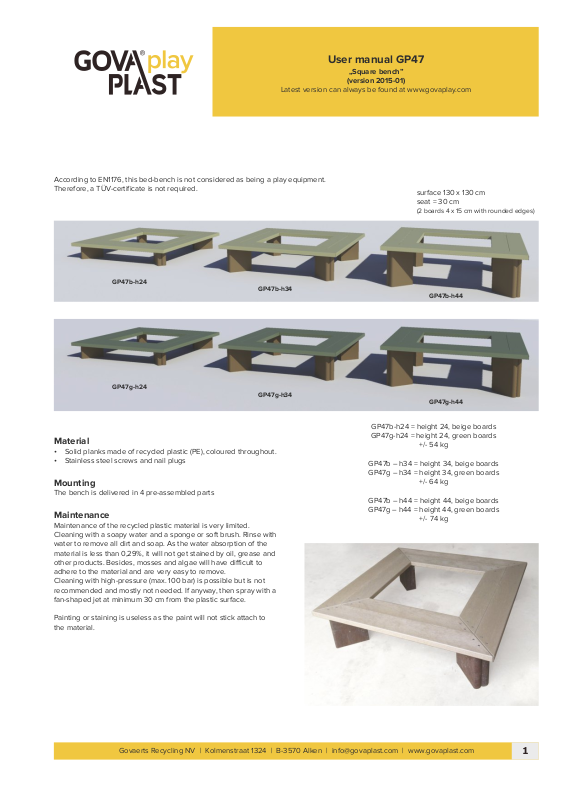

Govaplast Play Square Bench User Manual
Latest version can always be found at www.govaplay.com
According to EN1176, this bed-bench is not considered as being a play equipment.
Therefore, a TÜV-certificate is not required.
User manual GP47
„Square bench”
(version 2015-01)
surface 130 x 130 cm
seat = 30 cm
(2 boards 4 x 15 cm with rounded edges)
GP47b-h24
GP47g-h24
GP47b-h34
GP47g-h34
Material
Ÿ Solid planks made of recycled plastic (PE), coloured throughout.
Ÿ Stainless steel screws and nail plugs
Mounting
The bench is delivered in 4 pre-assembled parts
Maintenance
Maintenance of the recycled plastic material is very limited.
Cleaning with a soapy water and a sponge or soft brush. Rinse with
water to remove all dirt and soap. As the water absorption of the
material is less than 0,29%, it will not get stained by oil, grease and
other products. Besides, mosses and algae will have difficult to
adhere to the material and are very easy to remove.
Cleaning with high-pressure (max. 100 bar) is possible but is not
recommended and mostly not needed. If anyway, then spray with a
fan-shaped jet at minimum 30 cm from the plastic surface.
GP47b-h44
GP47g-h44
GP47b-h24 = height 24, beige boards
GP47g-h24 = height 24, green boards
+/- 54 kg
GP47b – h34 = height 34, beige boards
GP47g – h34 = height 34, green boards
+/- 64 kg
GP47b – h44 = height 44, beige boards
GP47g – h44 = height 44, green boards
+/- 74 kg
Painting or staining is useless as the paint will not stick attach to
the material.
Govaerts Recycling NV | Kolmenstraat 1324 | B-3570 Alken | info@govaplast.com | www.govaplast.com
1
Installation
The bench is delivered in 4 pre-assembled parts. Anchorage is possible but not required when permanent supervision of the playground is
guaranteed.
No need for safety zone and safety surface
As this product is being considered as furniture there is no need to respect a safety zone. A safety surface is also not required.

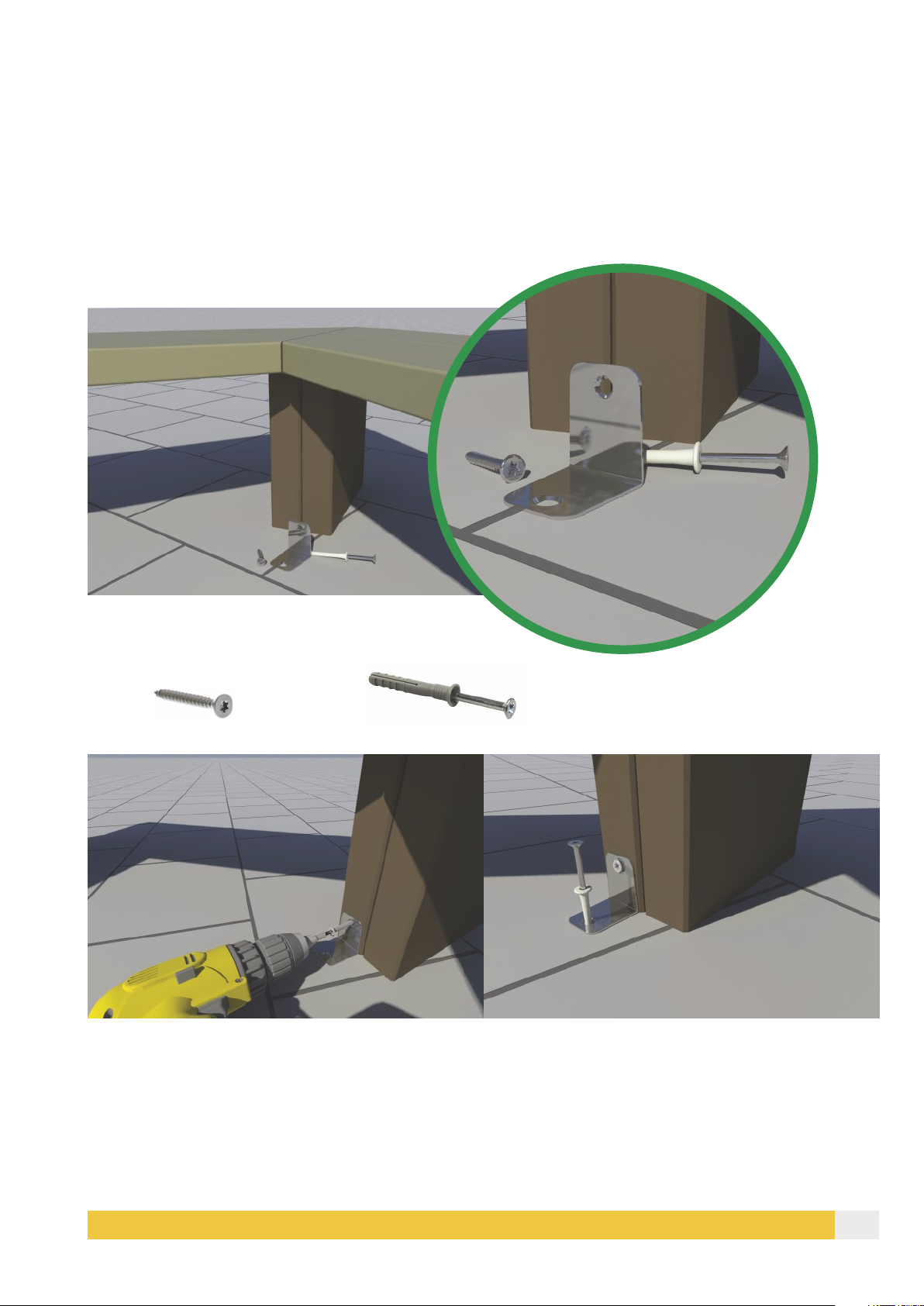

The bench legs are pre-drilled in order to assemble the
complete bench.
Use a metal drill bit of 4 mm to pre-drill
Vis Torx 25 en inox
