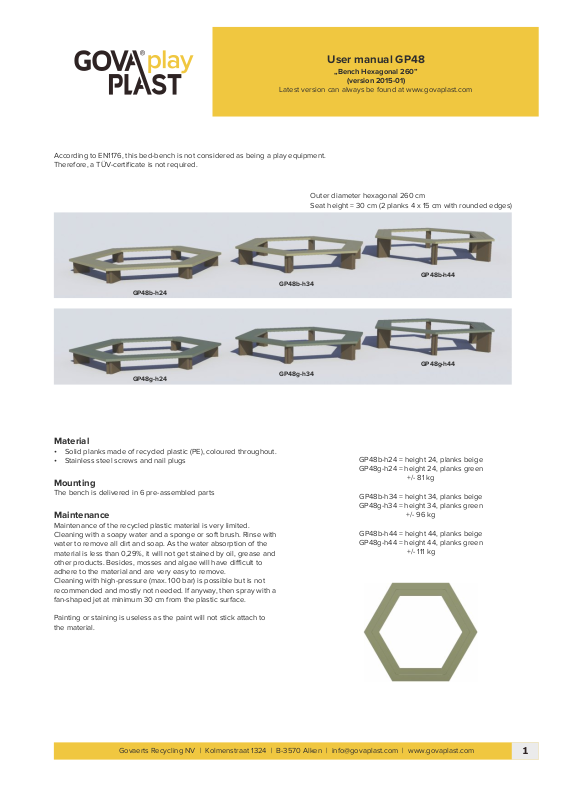

Govaplast Play Bench Hexagonal 260 User Manual
Latest version can always be found at www.govaplast.com
According to EN1176, this bed-bench is not considered as being a play equipment.
Therefore, a TÜV-certificate is not required.
Outer diameter hexagonal 260 cm
Seat height = 30 cm (2 planks 4 x 15 cm with rounded edges)
User manual GP48
„Bench Hexagonal 260”
(version 2015-01)
GP48b-h24
GP48g-h24
Material
Ÿ Solid planks made of recycled plastic (PE), coloured throughout.
Ÿ Stainless steel screws and nail plugs
Mounting
The bench is delivered in 6 pre-assembled parts
Maintenance
Maintenance of the recycled plastic material is very limited.
Cleaning with a soapy water and a sponge or soft brush. Rinse with
water to remove all dirt and soap. As the water absorption of the
material is less than 0,29%, it will not get stained by oil, grease and
other products. Besides, mosses and algae will have difficult to
adhere to the material and are very easy to remove.
Cleaning with high-pressure (max. 100 bar) is possible but is not
recommended and mostly not needed. If anyway, then spray with a
fan-shaped jet at minimum 30 cm from the plastic surface.
GP48b-h34
GP48b-h44
GP48g-h44
GP48g-h34
GP48b-h24 = height 24, planks beige
GP48g-h24 = height 24, planks green
+/- 81 kg
GP48b-h34 = height 34, planks beige
GP48g-h34 = height 34, planks green
+/- 96 kg
GP48b-h44 = height 44, planks beige
GP48g-h44 = height 44, planks green
+/- 111 kg
Painting or staining is useless as the paint will not stick attach to
the material.
Govaerts Recycling NV | Kolmenstraat 1324 | B-3570 Alken | info@govaplast.com | www.govaplast.com
1
Assembling/Installation
The hexagonal bench GP48 is delivered in 6 pre-assembled benches. Anchorage is not required if supervision of the play area is guaranteed.
No need for safety zone and safety surfacing
As a bench is not considered as being a play equipment, there is no need for a safety zone nor safety surface.

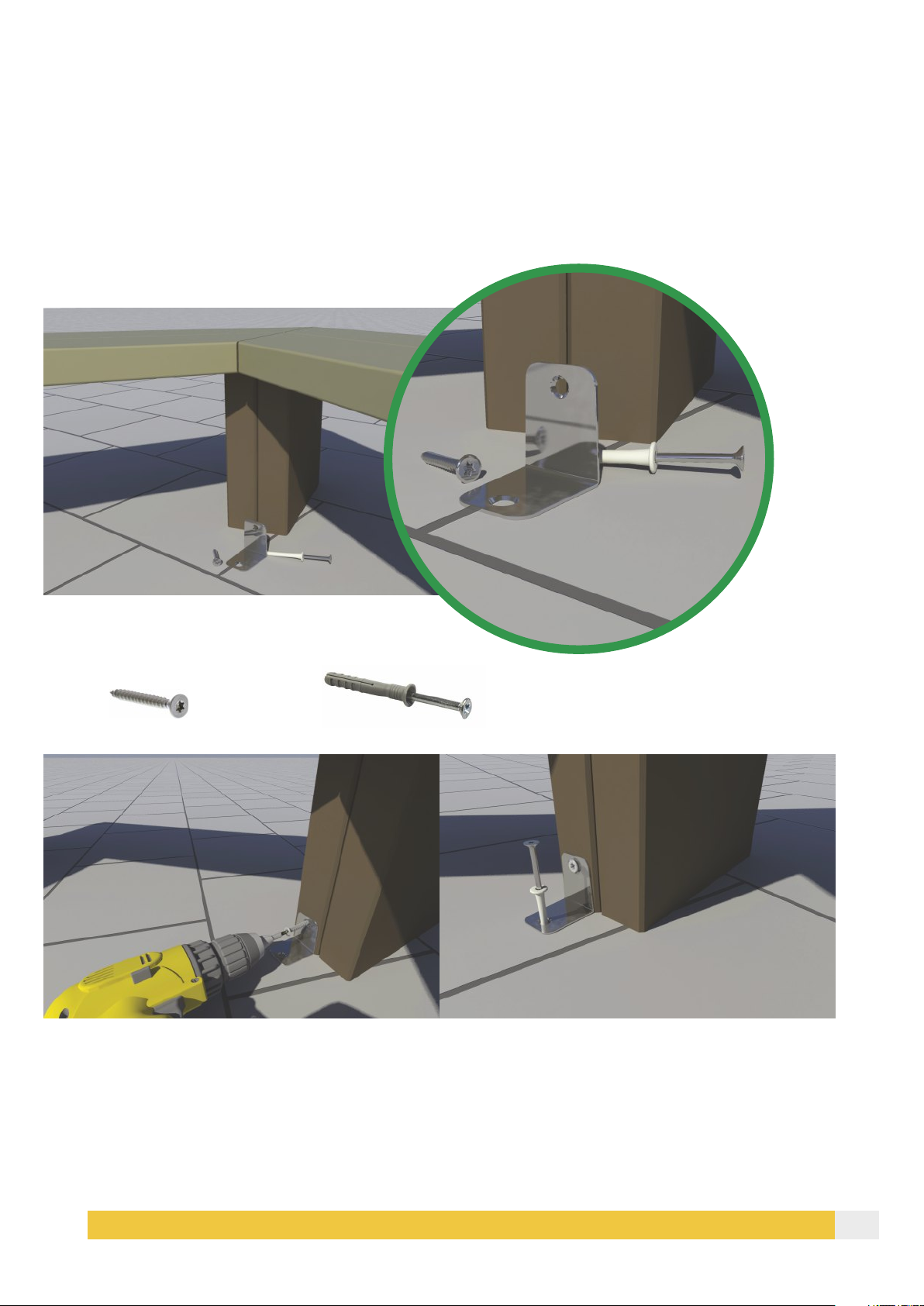

The bench legs are pre-drilled in order to assemble the
complete bench.
The 6 benches are fixed together by means of the 12
included screws. The legs are pre-drilled.
Use a metal drill bit of 4 mm to pre-drill before screwing.
Stainless steel screws Torx 25
2
Govaerts Recycling NV | Kolmenstraat 1324 | B-3570 Alken | info@govaplast.com | www.govaplast.com
