Goulds 3HM, 1HM, e-HM, 10HM, 5HM Technical Manual

...
Page 1

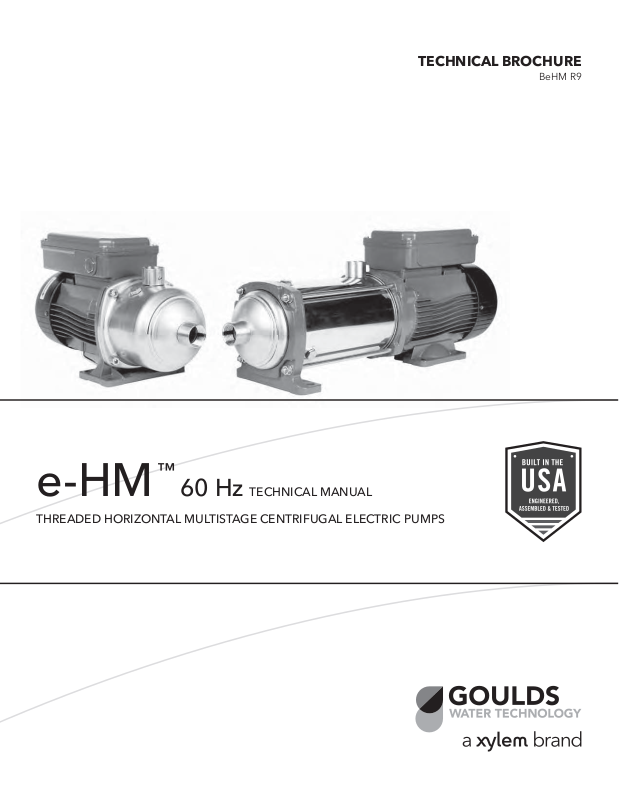

TECHNICAL BROCHURE
BeHM R9
™
e-HM
THREADED HORIZONTAL MULTISTAGE CENTRIFUGAL ELECTRIC PUMPS
60 Hz TECHNICAL MANUAL
Page 2
Commercial Water
CONTENTS
Rating Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
e-HM Hydraulic Coverage Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
General Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
MarOetW ATTlicationW 7TeciŶcationW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
General Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
e-HM
IdentiŶcation code ............................................................................. 10
1, 3, 5 HM Models (Compact Design), Cross Section and Main Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1, 3, 5, 10, 15, 22 HM Models (Sleeve Design), Cross Section and Main Components......................... 12
e-HM Mechanical Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Motor Data ......................................................................................... 14

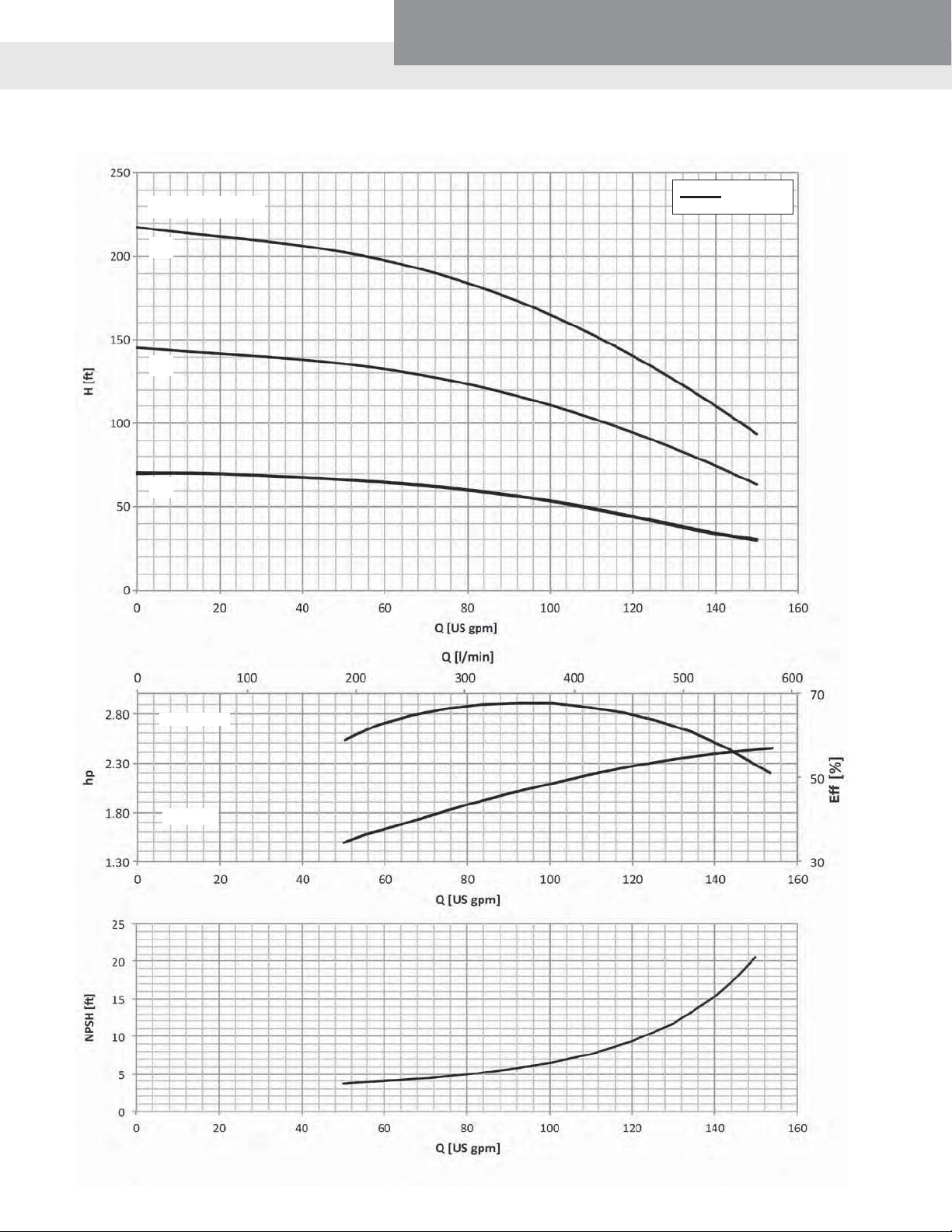

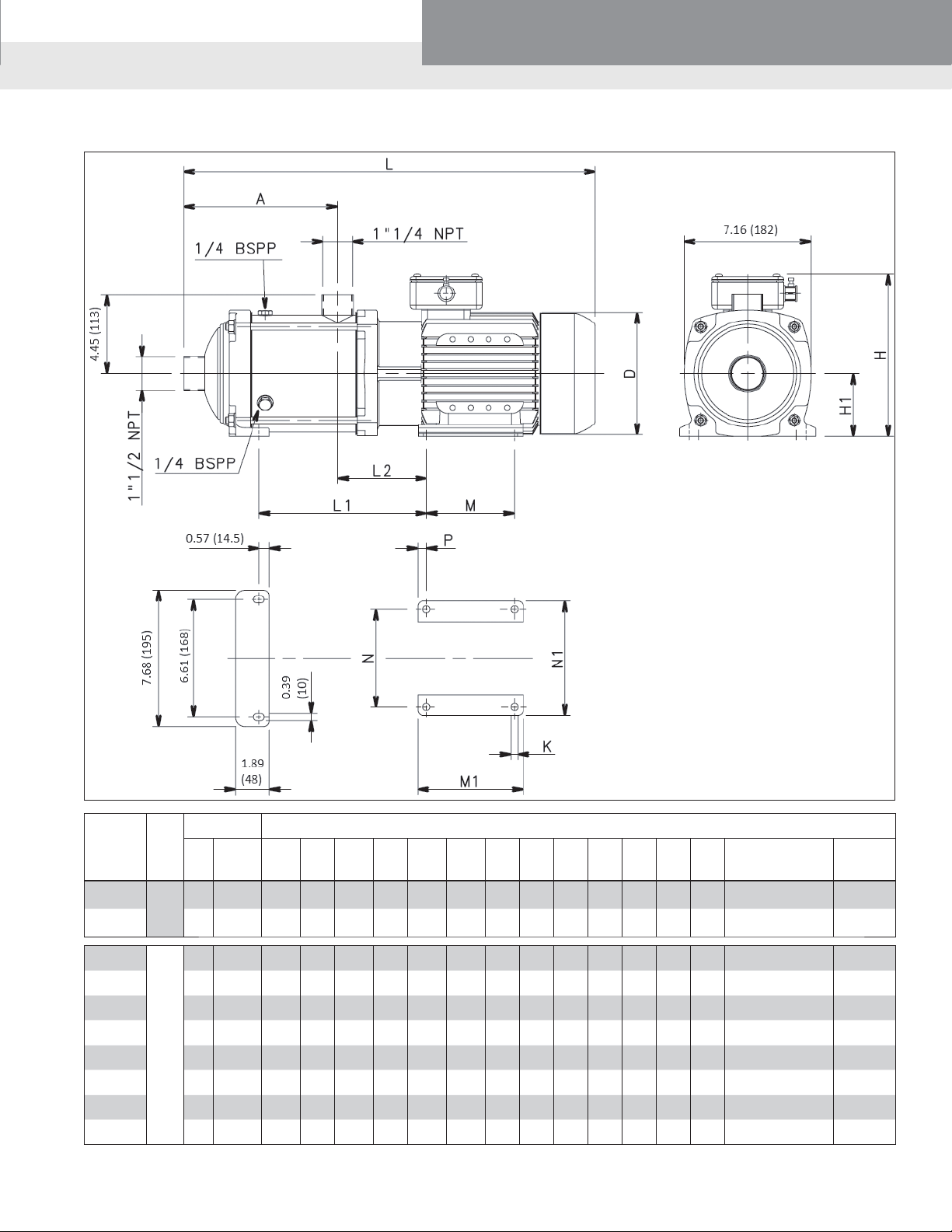

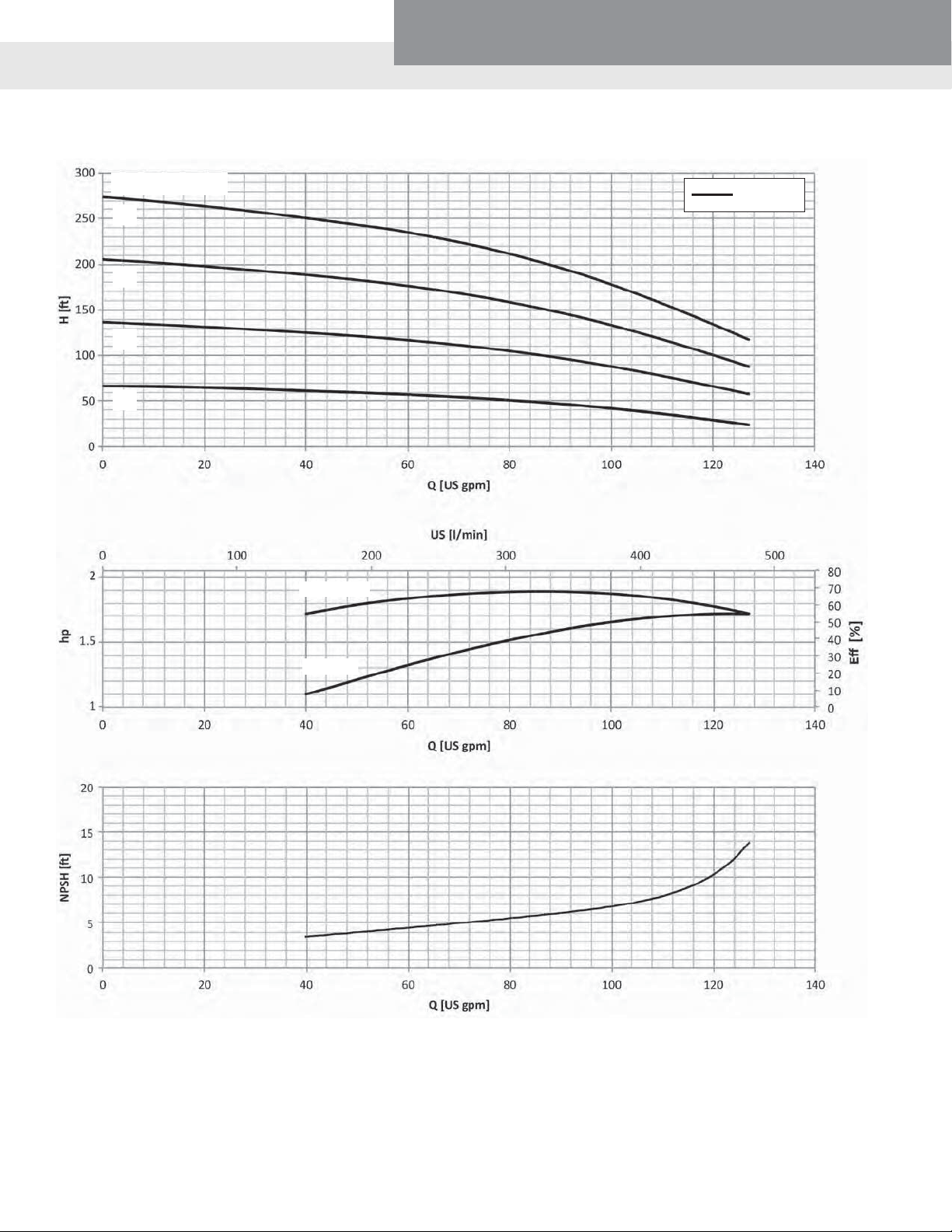

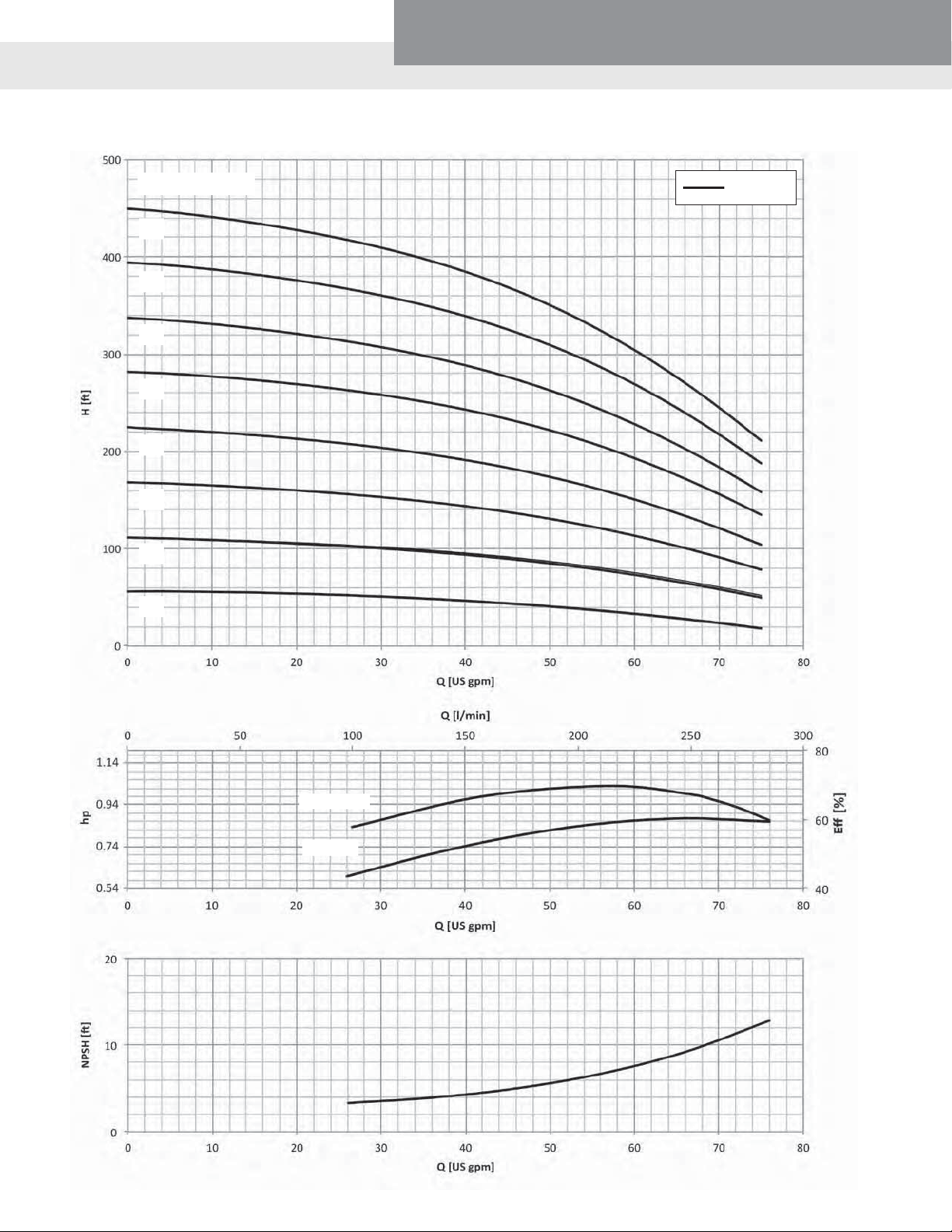

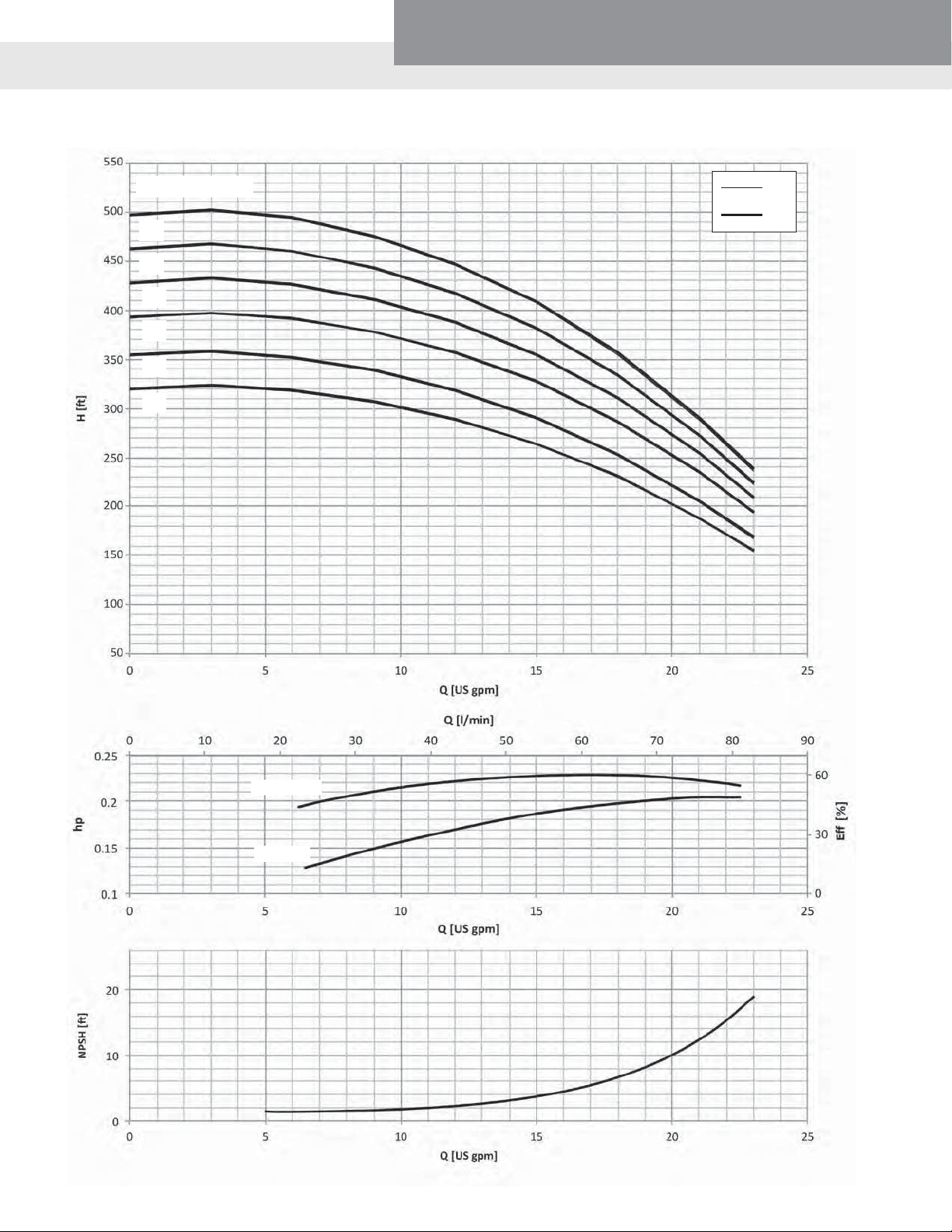

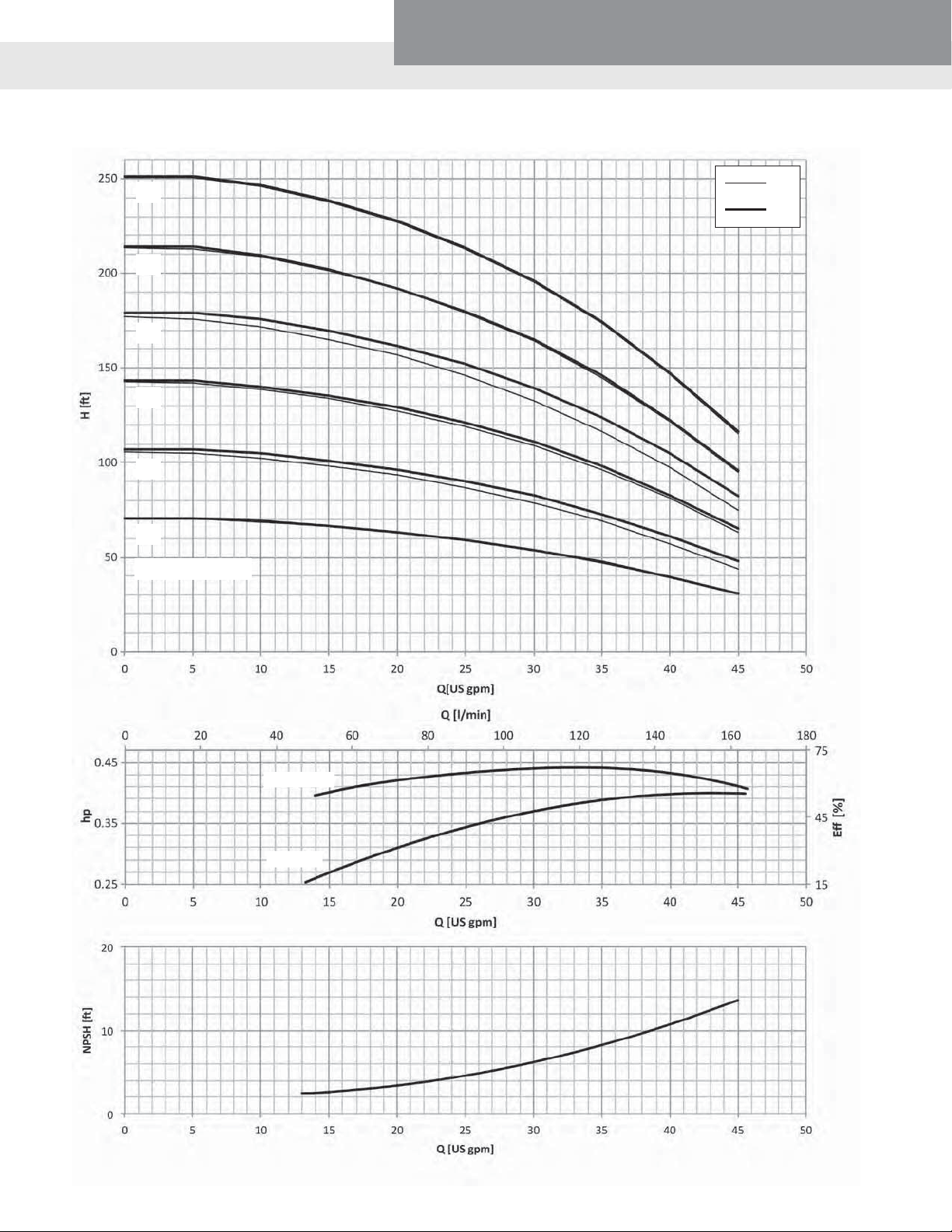

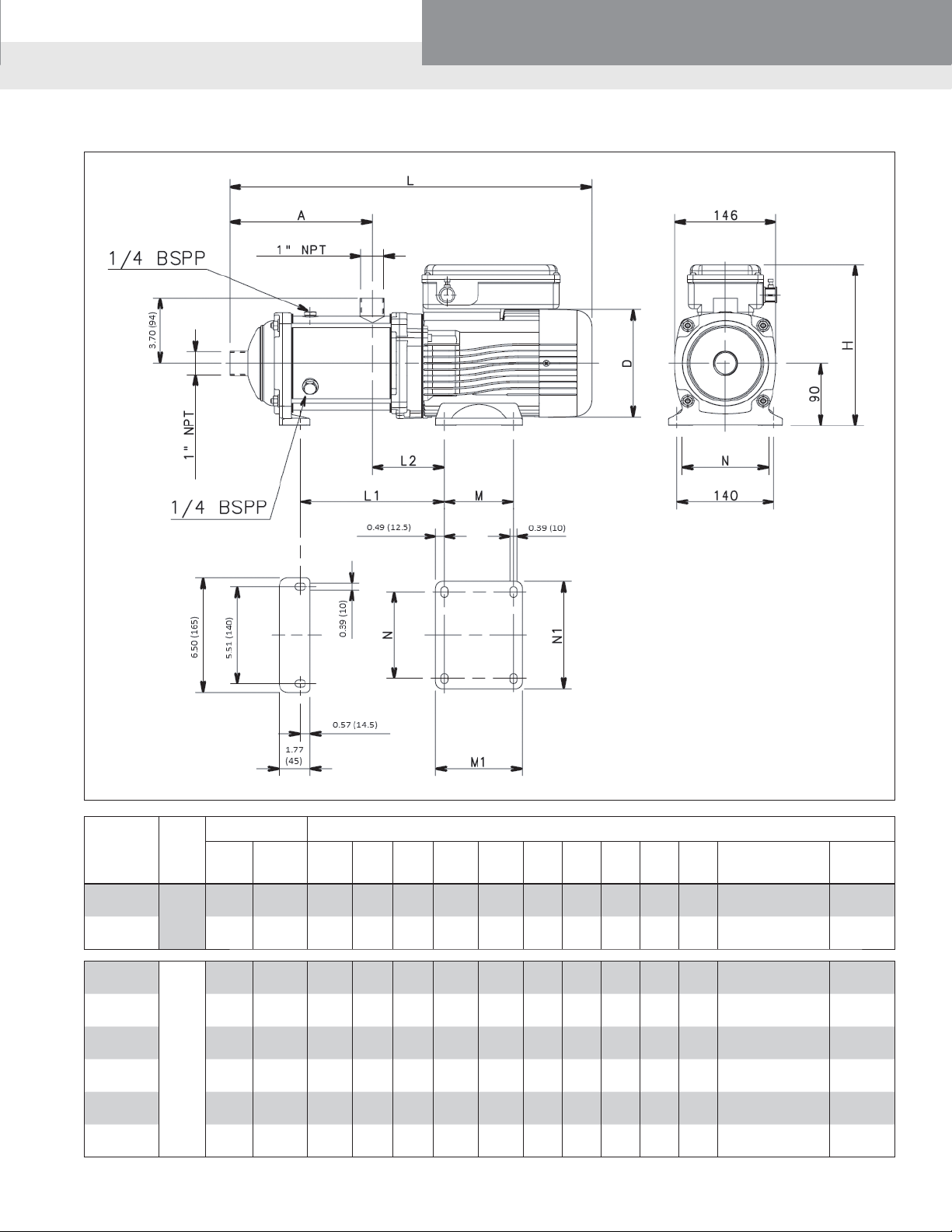

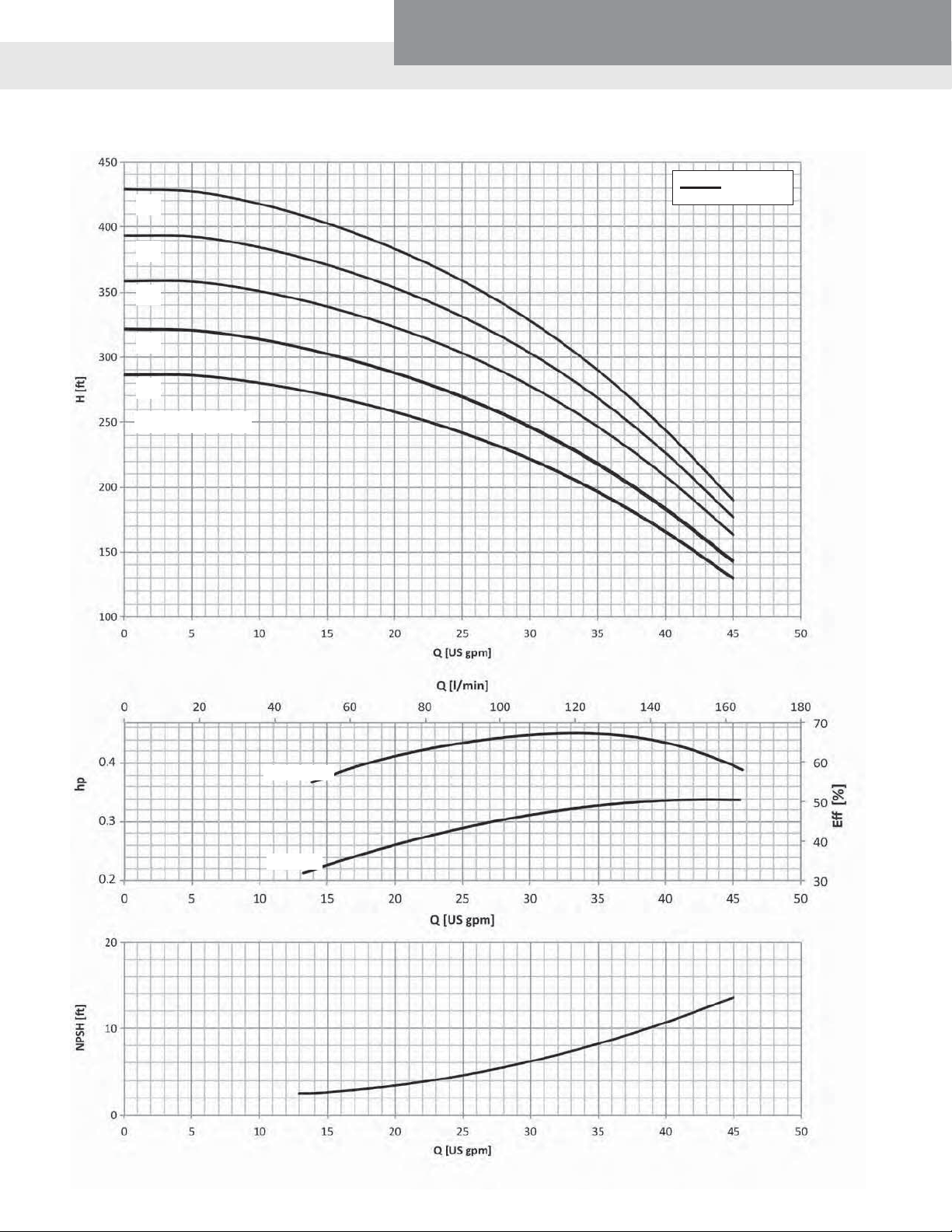

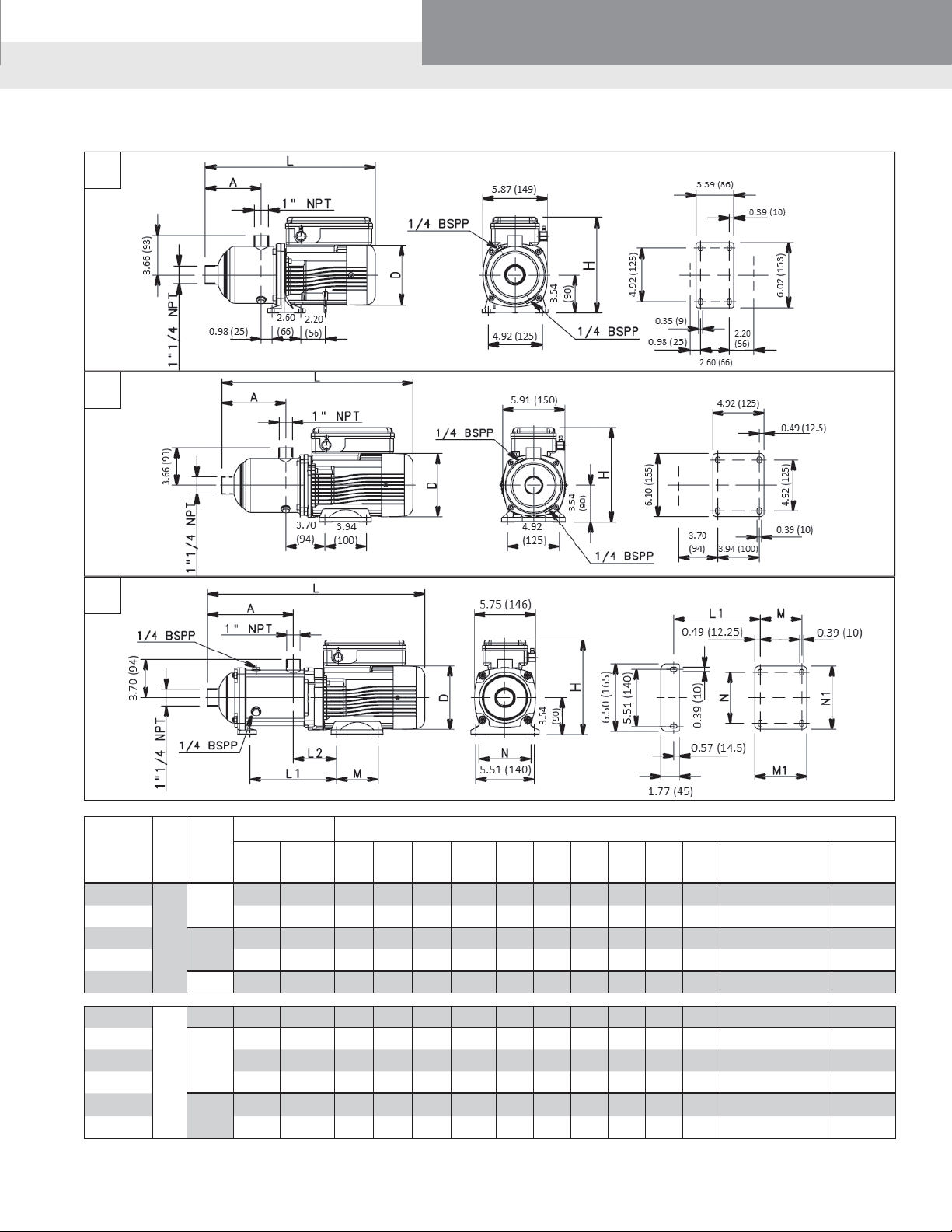

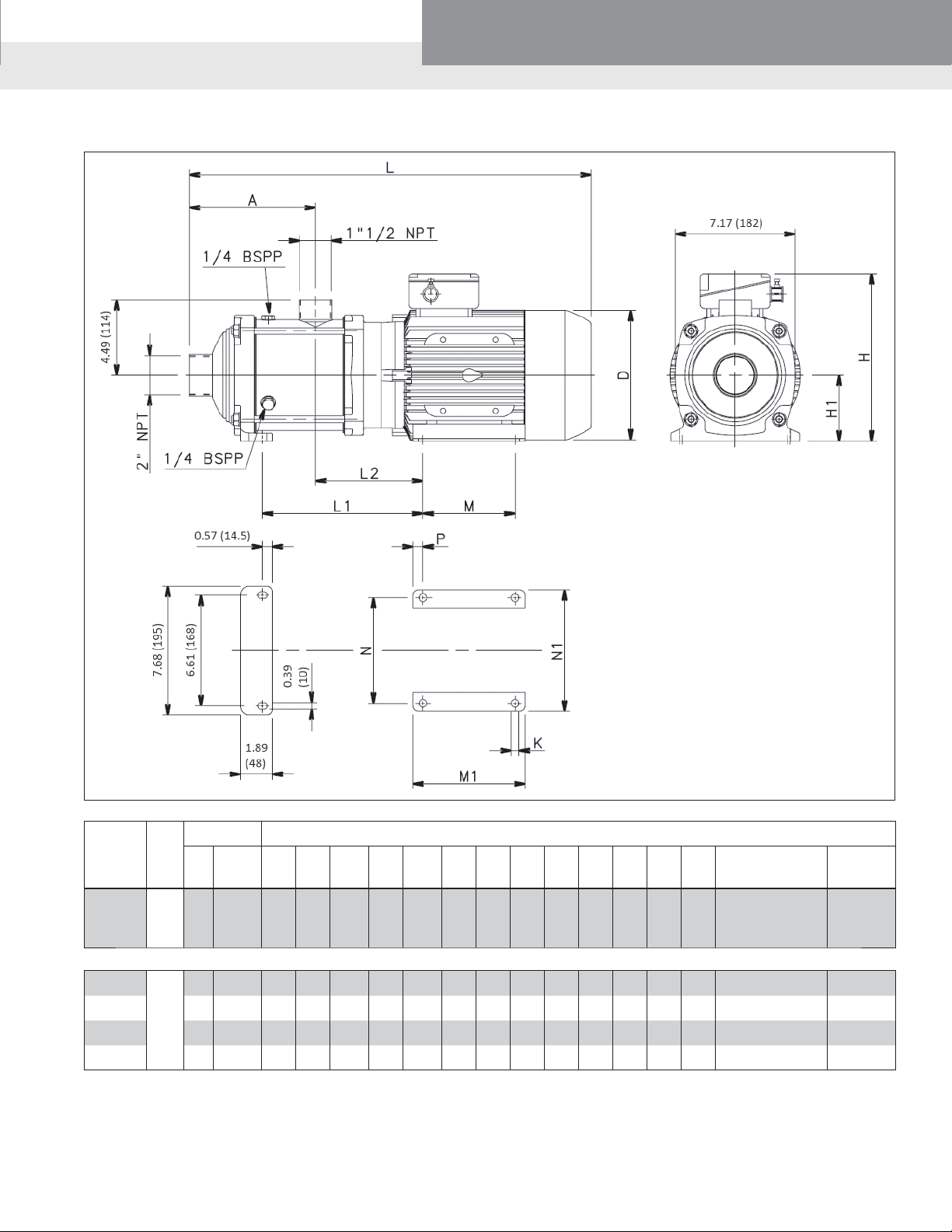

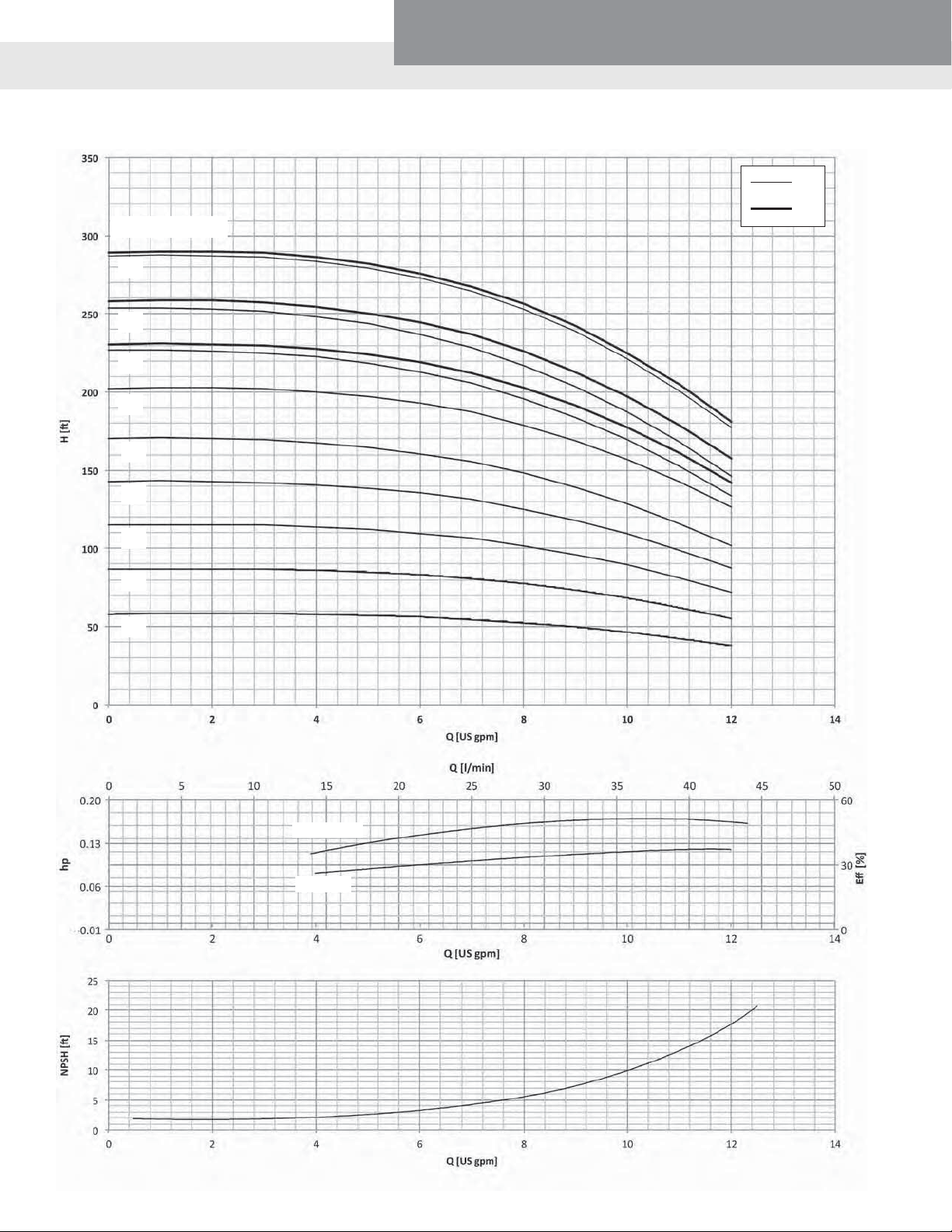

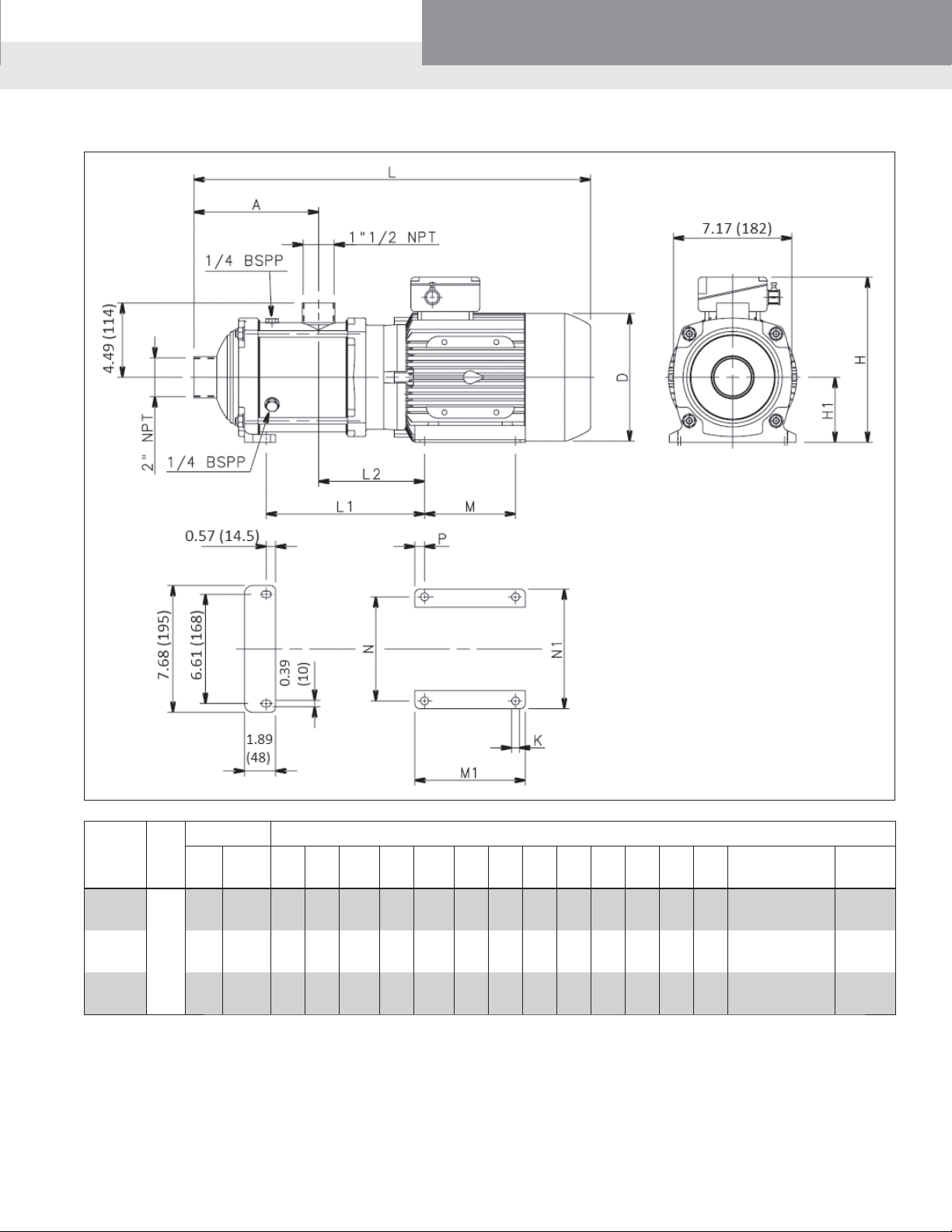

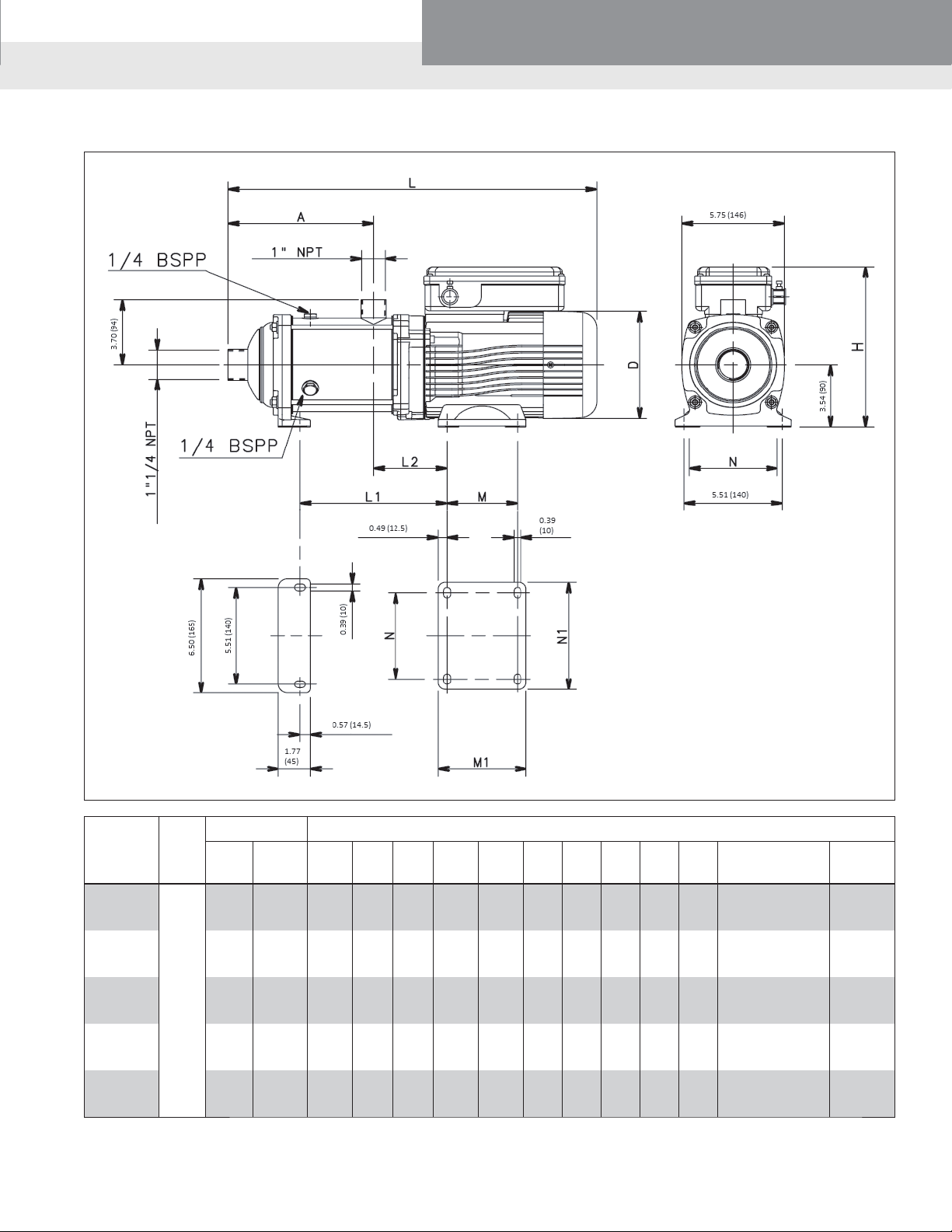

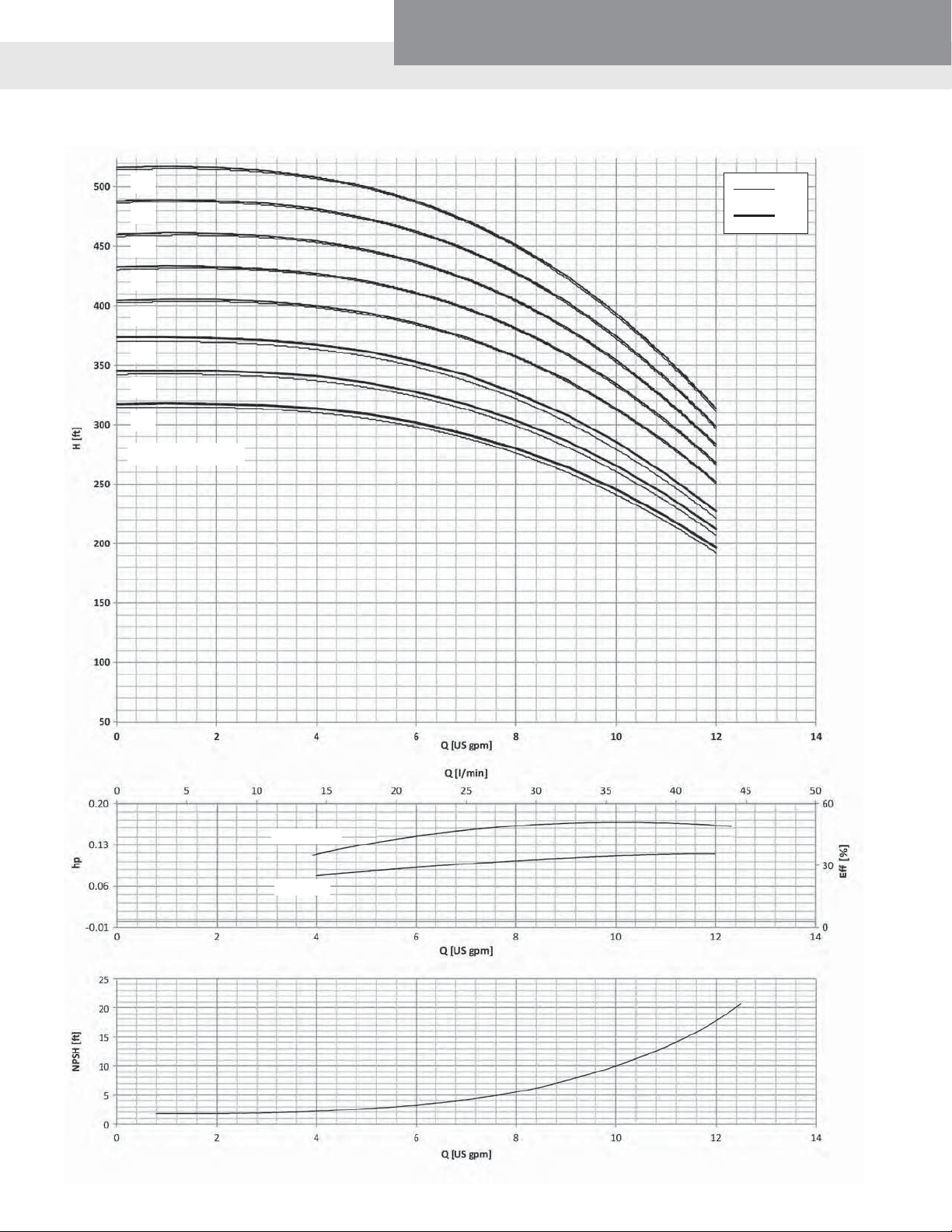

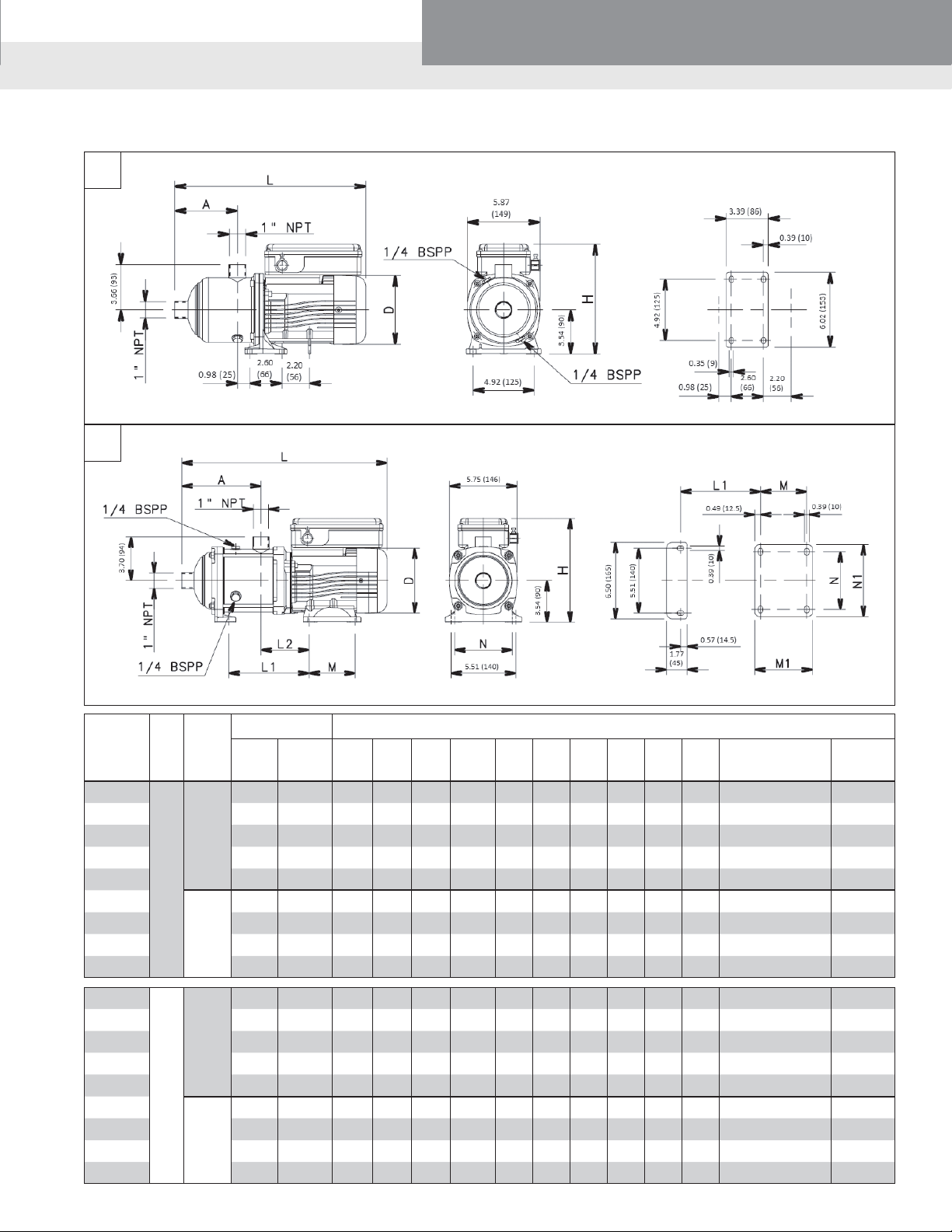

e-HM 3500 Performance Curves, Dimensions and Weights .............................................15-32
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33-35

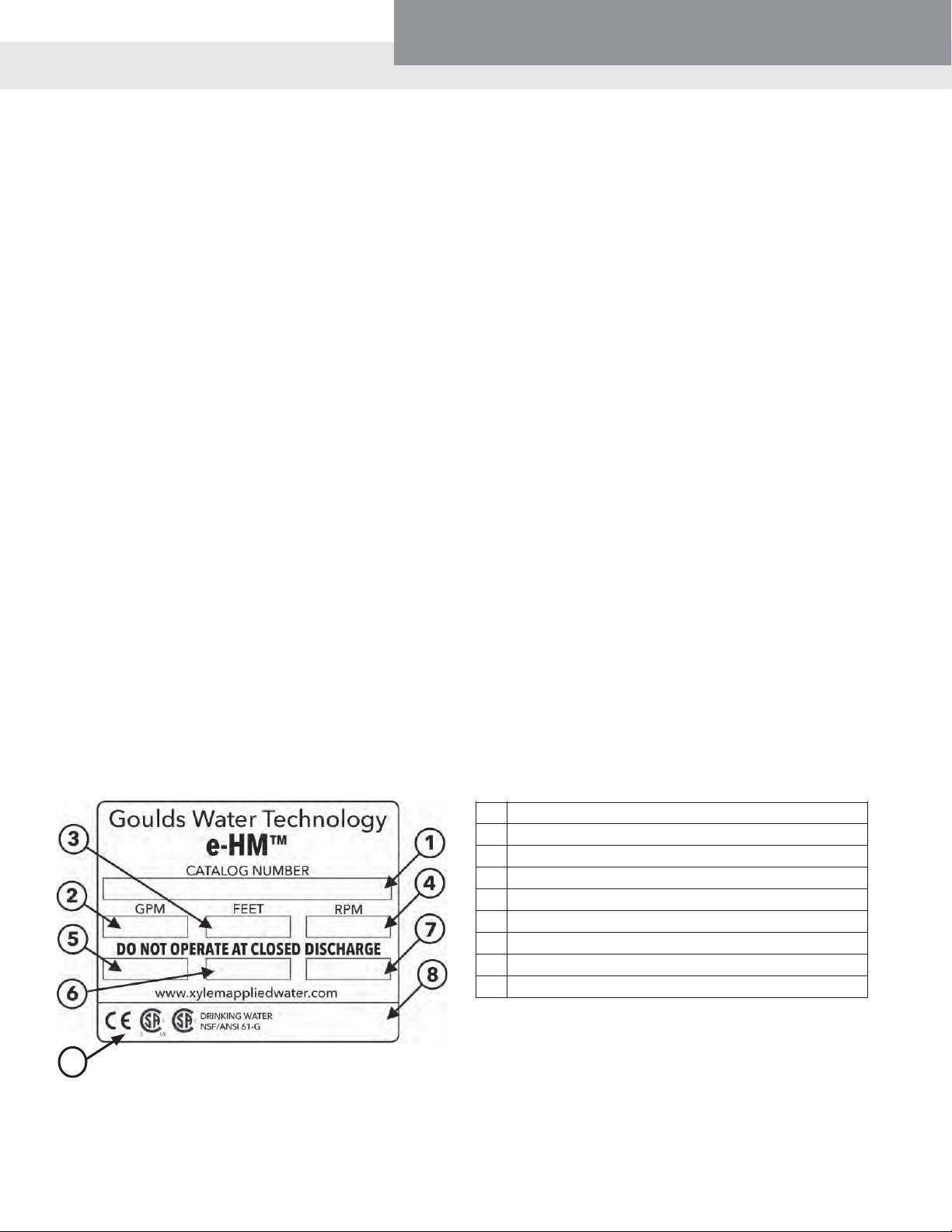

e-HM RATING PLATE
1 Goulds Water Technology Catalog Number 2 Capacity Range 3 TDH Range 4 Rated Speed 5 Rated Horsepower 6 Maximum Operating Pressure 7 Maximum Fluid Temperature 8 Pump Serial Number 9 CertiŶcations Where Applicable
9
PAGE 2
Page 3
Commercial Water

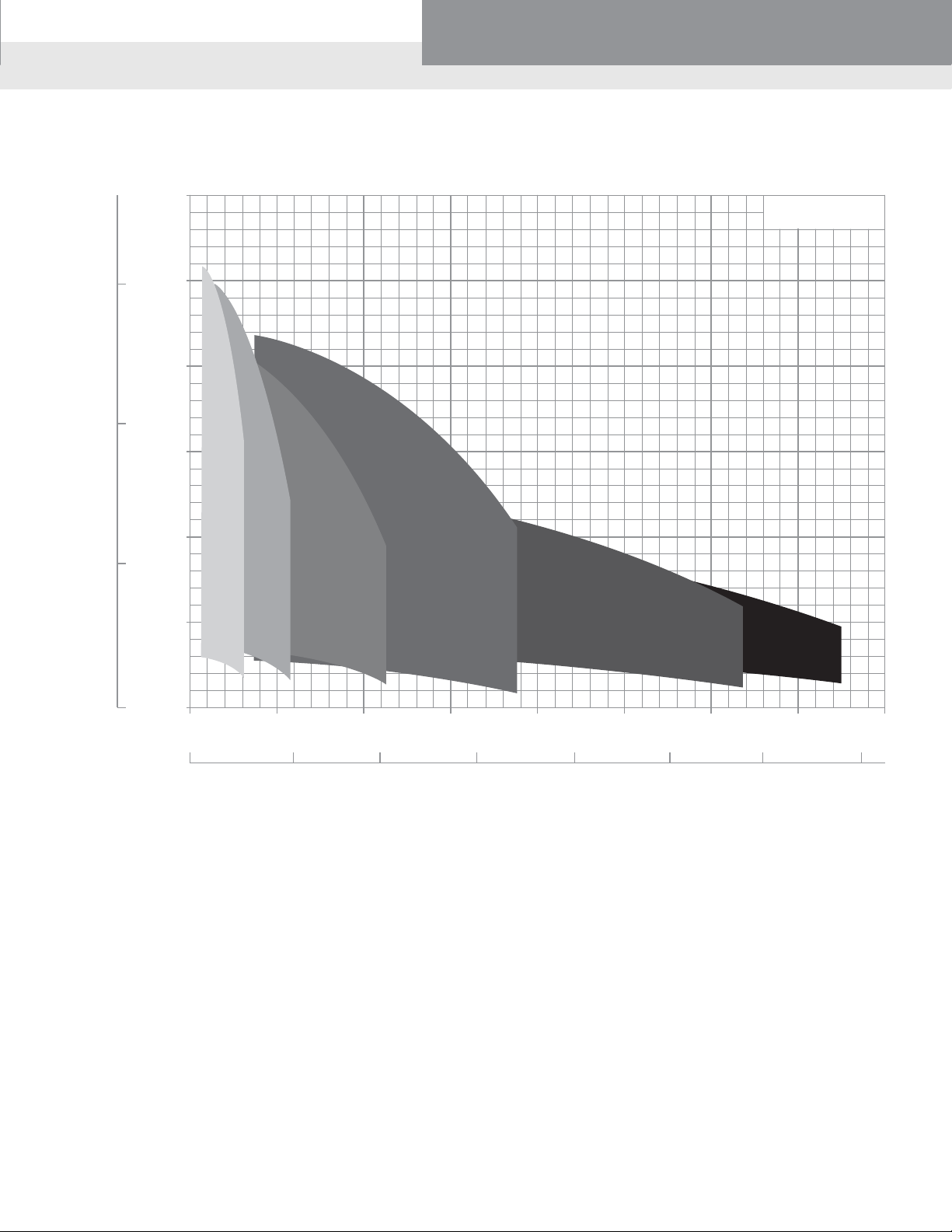

e-HM™ Series Hydraulic Coverage Curve
METERS FEET
600
3500 RPM
150
100
50
500
400
300
Head
200
100
0
1HM
3HM
5HM
0
0 20 60 80 100 120
40 14
10HM
Flow (GPM)
15HM
22HM
0160
0 5 10 15 20 25 30 35
m3/hr
PAGE 3
Page 4
Commercial Water

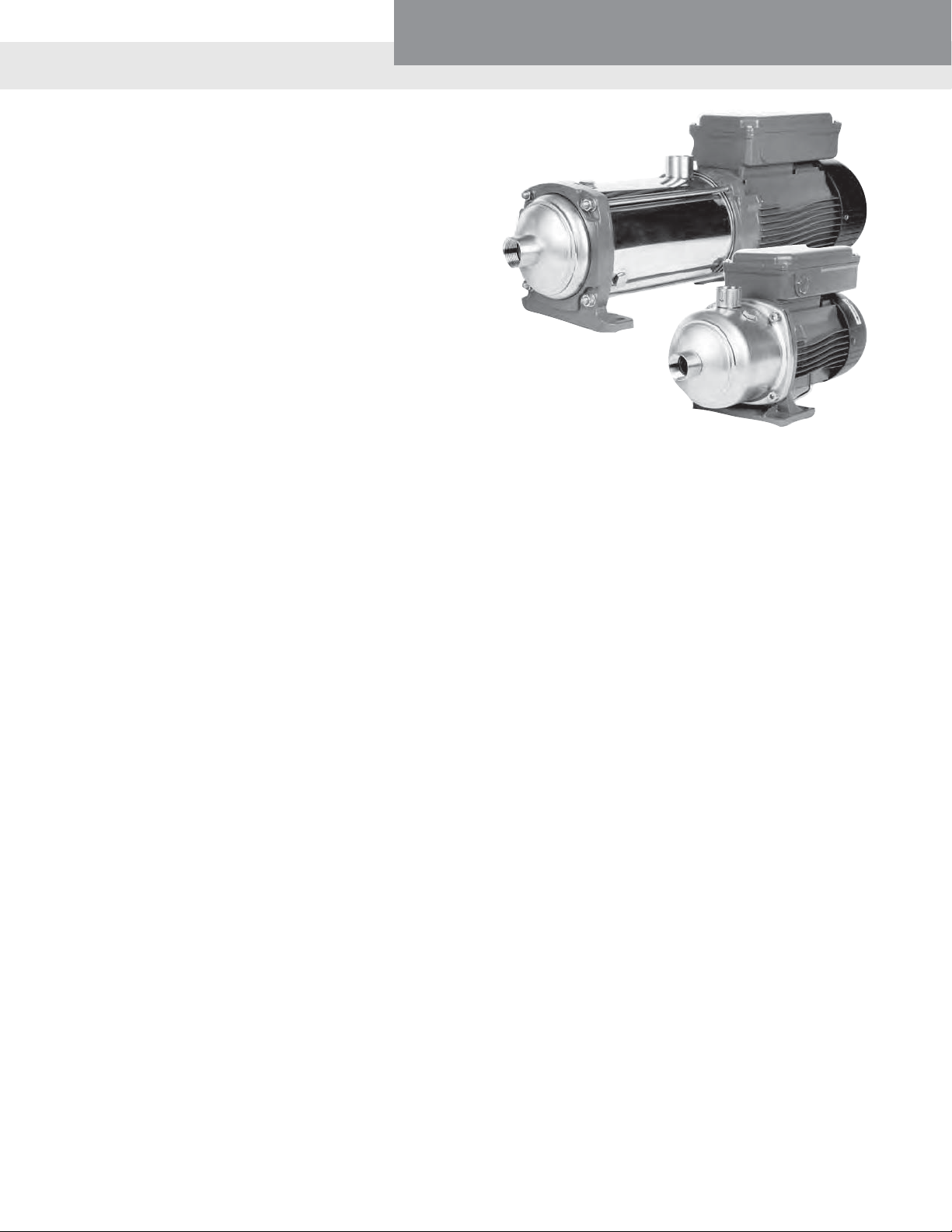

e-HM™ SERIES ATTlicaXioRs BeReŶXs aRd IRdusXry
Whether youŒre in the marOet for industry speciŶc applications,
building services, or residential applications, the e-HM is
designed to meet your water needs. Customizable options
mean you get exactly the right pump for your application,
exactly when you need it.

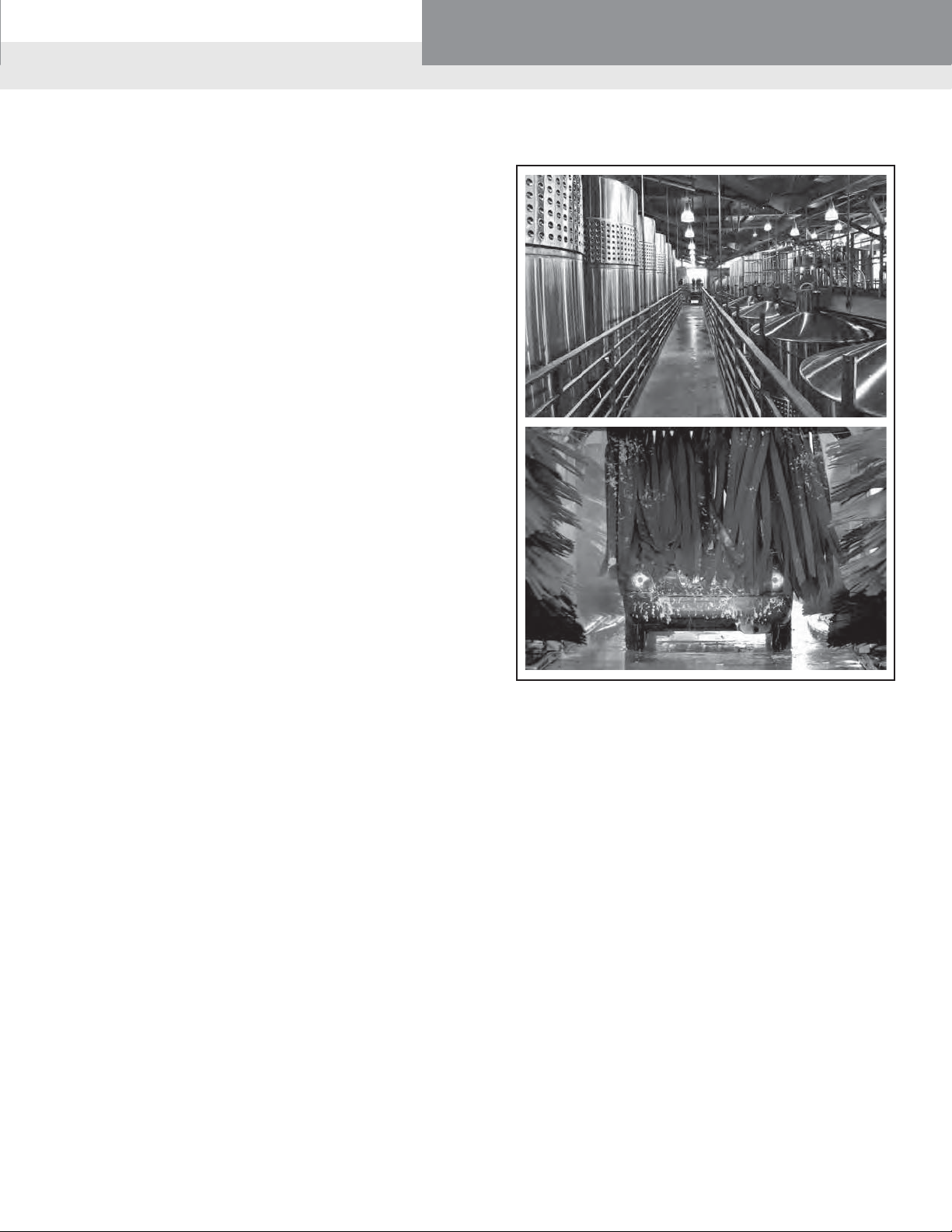

APPLICATIONS
Designed with compactness in mind, the e-HM is ideal for
applications where a smaller footprint is needed. Ideal for use in pressure
boosting and water supply systems, industrial washing and cleaning, water
treatment, or circulation of hot and cold liquids in cooling and conditioning
systems. The broad coverage and range of applications make this pump an ideal
solution in industry, building services and residential applications.
BENEFITS
Reliability: The e-HM series was designed to withstand heavy-duty applications in Industry. Made of 316 stainless
steel and construction incorporating a 20% increase in the pump body thickness, ensures enhanced durability and
reliability.
Versatility: Offering two different mechanical conŶgurations, 7 mechanical seal options, high-efŶciency motors,
and surface treatment options such as electropolishing and passivation, make the e-HM suitable for multiple
applications.
Performances: The e-HM series provides best-in-class efŶciency and is up to 72% efŶcient. Compared to similar
pumps in the market, the e-HM offers a potential of 30% in energy savings versus the competition.
Global Platform: Assembled in different factories around the world, the e-HM can offer easier accessibility due
to its proximity to our customers. Beyond our commitment to reduce the carbon footprint of e-HM, this global
platform offers the same design which is available everywhere using the same quality processes.
FEATURES
ř Wide range of performances with 6 sizes, ŷow up to 127 gpm, heads up to 525 feet
• Maximum working pressure up to 230 psi (16 bar)
• Premium efŶcient, 90 Recognized (c9Rus) motor
• 90% of the range has the same suction height (3.54”) for easy installation or system upgrades
PAGE 4
Page 5
Commercial Water

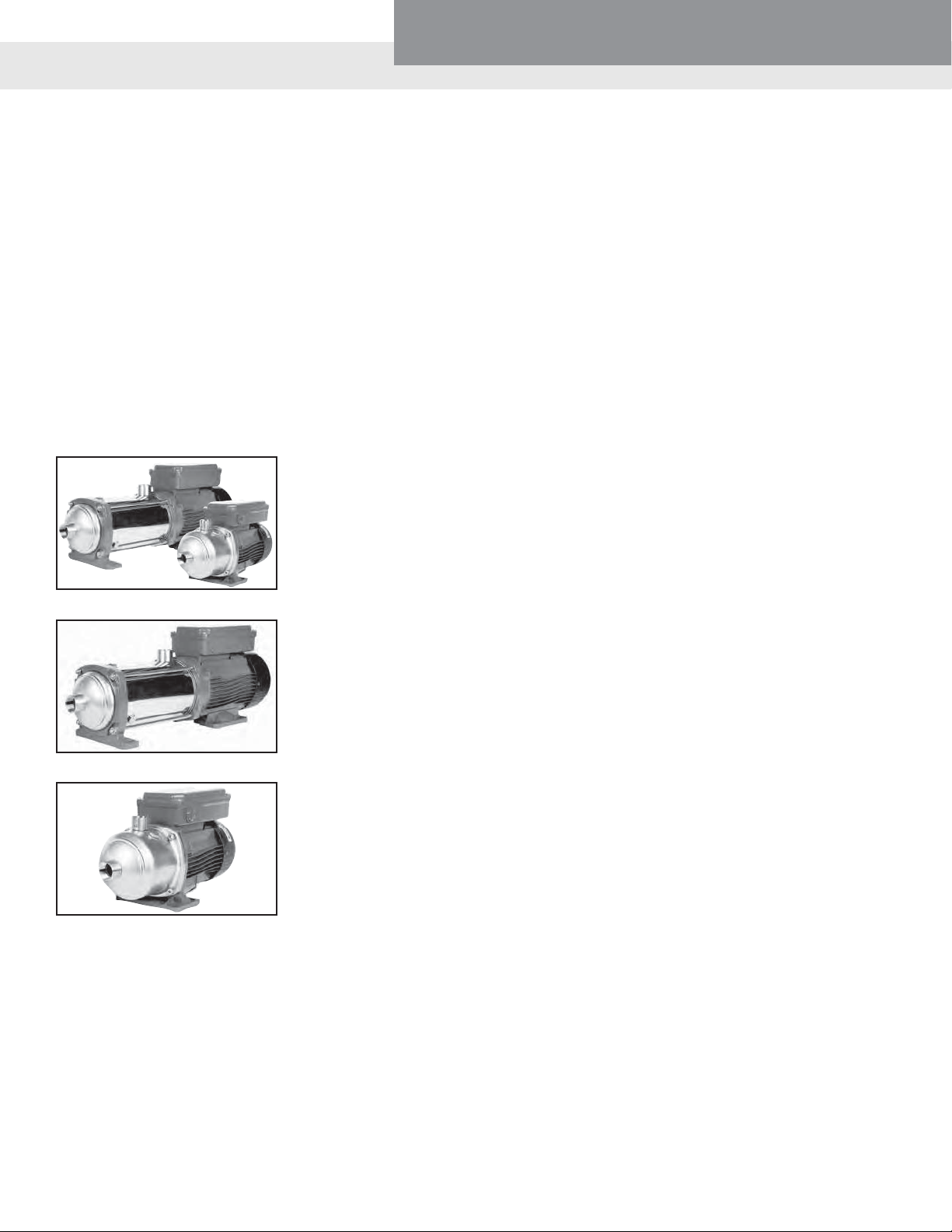

e-HM™ SERIES GENERAL INTRODUCTION
Our newly redesigned horizontal multi-stage high pressure centrifugal pump offers outstanding efŶciencies. The high­efŶciency motor coupled with an innovative hydraulic design, NPT threaded inlet and outlet connections, and broad coverage provides ŷexible options for a variety of applications. Whether you’re in the market for industry speciŶc applications, building services, or residential applications, the e-HM is designed to meet your water needs.
Pump Design
The e-HM is a close-coupled horizontal multi-stage design with NPT threaded inlet and outlet connections, and a TEFC equivalent high-efŶciency motors. The pump incorporates an innovative hydraulic design that provides the highest efŶciency in the market today.
8LII,1MWEZEMPEFPIMRX[SGSRŶKYVEXMSRW
'SQTEGX(IWMKR
Sizes 1HM, 3HM, and 5HM
• 1HM and 3HM up to 6 stages
• 5HM up to 5 stages
7PIIZI(IWMKR
Sizes 1HM, 3HM, 5HM, 10HM, 15HM and 22HM
• 1HM & 3HM start at 7 stages
• 5HM starts at 6 stages
The compact design is made of one single piece of fabricated stainless steel for the pump body which is directly connected to the motor ŷange. The sleeve design is made of an external stainless steel TIG welded sleeve, and incorporates a separate suction housing. All available in 316 stainless steel construction consisting of a 20% increase in pump body thickness for enhanced durability and reliability.
Motor
The e-HM series incorporates a 90 Recognized (c9Rus) premium efŶciency, inverter design motor for additional energy savings and versatility. The standard motor enclosure is a TEFC (IP55) design which can be paired with Goulds Water Technology variable speed drives such as the Hydrovar.
EISA Compliance
<ylem conforms to the requirements of the Energy Independence and Security Act (EISA) of 2007. 9nder the Energy Independence and Security Act of 2007 (EISA), covered motors that are manufactured or imported for distribution in commerce in the 9nited States on or after December 19, 2010, must comply with the applicable EISA energy conservation standards. EISA-covered motors include general purpose electric motors (subtype I), general purpose electric motors (subtype II), Ŷre pump motors, and NEMA Design B general purpose electric motors, which are manufactured alone or as a component of another piece of equipment. The standards are found in sections 431.25(c)-(f) of Title 10 of the Code of Federal Regulations, Part 431 (10 CFR Part 431).
PAGE 5
Page 6
Commercial Water
e-HM™ SERIES GENERAL CHARACTERISTICS
1HM, 3HM
2-6 Stages 7+ stages
t (F) PSI t (F) PSI
-20 147 -20 235
248 147 248 235
248 147 248 235
248 147
248 147 194 235
194 235
194 147
ELECTRIC PUMP NOISE
POWER NOISE
HP LpA dB
0.75 55
155
1.5 60
260
360
460
5.5 60
7.5 60
5HM
2-5 Stages 7+ stages
t (F) PSI t (F) PSI
-20 147 -20 235
248 147 248 235
248 147 248 235
248 147
248 147 194 235
194 235
194 147
10HM, 15HM, 22HM
All Stages
t (F) PSI
-20 235
248 235
248 235
194 235
194 235
194 0
The table shows the mean sound pressure (0p) measured as per Curve A (Standard ISO 1680). Noise values were measured with the 50 Hz motor running idle with a tolerance of 3 dB (A).
STORAGE AND TRANSPORT TEMPERATURE
-40°C to +60°C
NEMA MG-1 TABLE 12-12 FL EFFICIENCIES FOR 60 HZ NEMA PREMIUM
HP 2-POLE Lowara 2-POLE
177
1½ 84 85.6
2 85.5 87.2
3 86.5
5 88.5 91.0
7½ 89.5 90.5
10 90.2 90.8
15 91 92.4
20 91 93.4
25 91.7 93.5
30 91.7 93.4
40 92.4
Lowara SM IE3
Lowara PLM IE3
83.4
87.7
PAGE 6
Page 7
Commercial Water
1HM, 3HM PRESSURE AND TEMPERATURE LIMITS
250
200
150
PSI
100
50
0
-40 -20 0 20 40 60 80 100 120 140 160 180 200 220 240 260 280
7+ Stages - QQE, QQV
2-6 Stages - BVE
Temperature (ºF)
7+ Stages -
BQE, BQV
2-6 Stages ­ BQE, BQV,
QQE, QQV
5HM PRESSURE AND TEMPERATURE LIMITS
250
200
150
PSI
100
6+ Stages - QQE, QQV
2-5 Stages - BVE
50
6+ Stages -
BQE, BQV
2-5 Stages ­ BQE, BQV,
QQE, QQV
0
-40 -20 0 20 40 60 80 100 120 140 160 180 200 220 240 260 280
Temperature (ºF)
10HM, 15HM, 22HM PRESSURE AND TEMPERATURE LIMITS
250
200
150
PSI
100
50
0
-40 -20 0 20 40 60 80 100 120 140 160 180 200 220 240 260 280
All Stages - QQE, QQV
Temperature (ºF)
All Stages -
BQE, BQV
PAGE 7
Page 8
Commercial Water
e-HM™ SERIES
HigL efŶciency horizontal multistage pump
MARKETS
B9I0DING SER:ICES. IND9STR=.
APPLICATIONS
Pressure boosting and water supply systems.
Washing and cleaning industry including vehicles washing.
Circulation of hot and cold liquids (like water, water and glycol) for
heating, cooling and conditioning systems.
Water treatment applications.
Handling of moderately aggressive liquids.
Food and beverage industries.
SPECIFICATIONS
Pump
• *PS[VEXI up to 127 GPM
ř,IEHW up to 525 feet
ř(IWMKRW
Compact – one piece pump body – 1HM and 3HM, sizes up to 6 stages – 5HM, sizes up to 5 stages
Sleeve – Sleeve and separate suction housing – 1HM and 3HM, 7 stages and above – 5 HM, 6 stages and above – All 10HM, 15HM, and 22HM sizes
ř'SRRIGXMSRW NPT threaded suction and discharge
ř8IQTIVEXYVISJXLITYQTIHPMUYMH-20ºF to 248ºF ( -30ºC to 120ºC )
ř%QFMIRX8IQTIVEXYVI
Standard Offering: -15ºC to 40ºC Available Options: Single Phase: -15ºC to 45ºC
Three Phase: -15ºC to 50ºC
ř1E\MQYQ3TIVEXMRK4VIWWYVI
– Compact pump designs - 145 PSI – Sleeve pump designs - 230 PSI
PAGE 8
Motor
• Premium EfŶciency • TEFC (IP 55) design
•
C9R9S • 3500 RPM
• Class F insulation
ř7XERHEVHZSPXEKI
– Single Phase: 115 or 230:, 60 Hz - built in auto reset overload protection
– Three Phase: 208-230460:, 50 or 60 Hz or 575:, 60 Hz
Page 9
Commercial Water

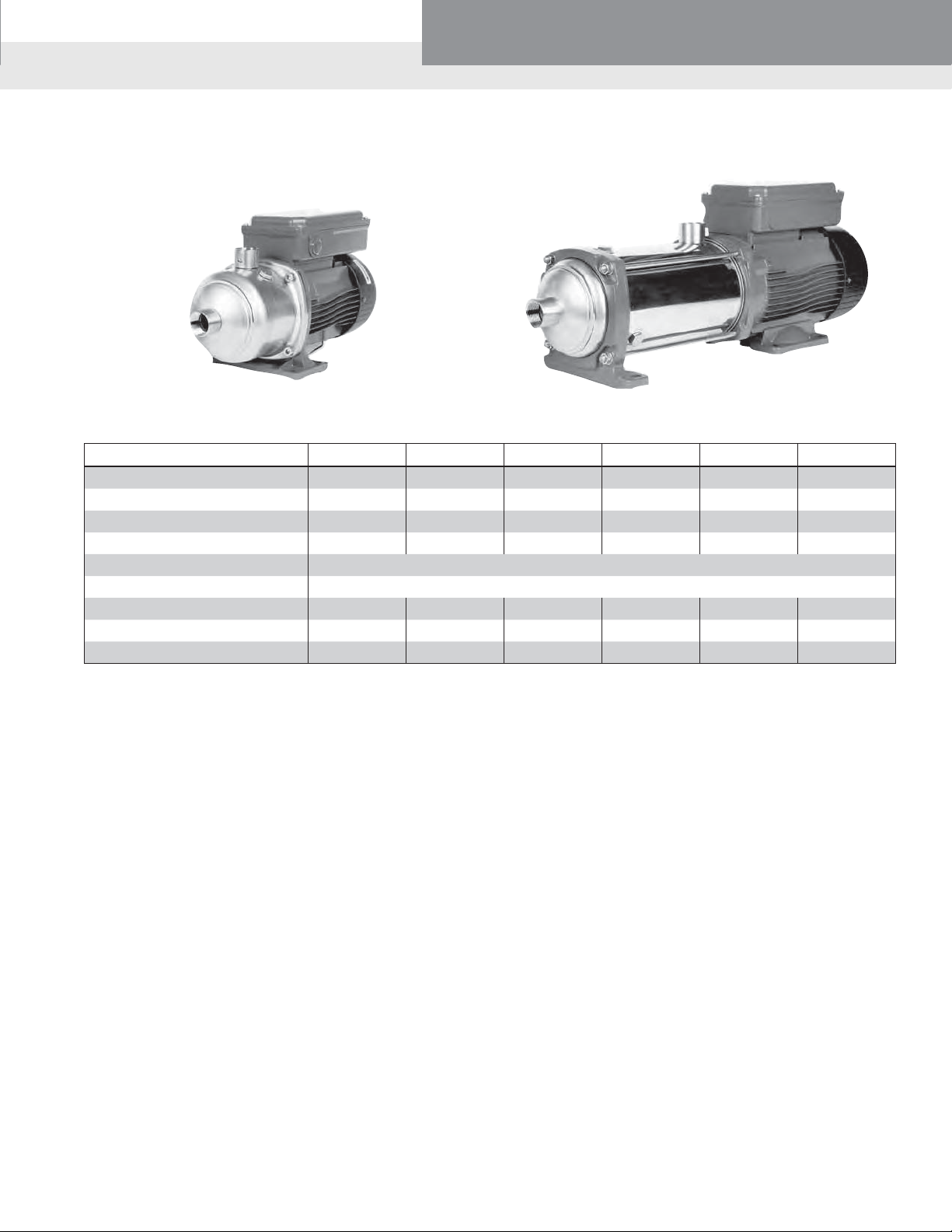

e-HM™ SERIES GENERAL CHARACTERISTICS
Compact Sleeve
HM Series 1HM 3HM 5HM 10HM 15HM 22HM
Nominal Flow ( GPM ) 10 16 33 56 90 100
*PS[6ERKI+41 3 - 12 5-23 10 - 45 15 - 75 25 - 127 30 - 150
2YQFIVSJ7XEKIW 2 - 18 2 - 14 2 - 12 1 - 8 1 - 4 1 - 3
1E\MQYQ,IEH*X 520 500 430 450 275 217
1E\MQYQ;SVOMRK4VIWWYVI 145 psi - Compact pumps 230 psi - Sleeve pumps
8IQTIVEXYVI6ERKI}* -20ºF to 248ºF (-30ºC to 120ºC )
1E\MQYQ4YQT)JŶGMIRG] 51 60 70 70 70 68
,46ERKI 3/4 - 2 3/4 - 3 3/4 - 4 1 - 7 1/2 2 - 7 1/2 3 - 7 1/2
4MTMRK'SRRIGXMSRW248 1" x 1" 1" x 1" 1 1/4" x 1" 1 1/2" x 1 1/4" 2" x 1 1/2 2" x 1 1/2
OPTIONAL FEATURES:
• Special :oltages
• 50 Hz Frequency
• Suitable for use with :FDs (ABII, SPD, Hydrovar, CPC and IPC)
PAGE 9
Page 10
Commercial Water
e-HM PRODUCT LINE NUMBERING SYSTEM FOR 1 – 22HM PUMPS
The various versions of the e-HM line are identiŶed by a product code number on the pump label. This number is also the catalog number for the pump. The meaning of each digit in the product code number is shown below. Note: Not all combinations are possible.
Example Product Code
15 HM 04 N 55 T 6P BQE H
Special ConŶguration
H = Single Phase pump label 45ºC ambient
= Three Phase pump label 50ºC ambient
Seal Material
BQE = Carbon-SilCar-EPDM (standard)
BQ: = Carbon-SilCar-:iton
QQE = SilCar-SilCar-EPDM
QQ: = SilCar-SilCar-:iton
B:E = Carbon-Ceramic-EPDM
QQK = SilCar-SilCar-Kalrez
BQK = Carbon-SilCar-Kalrez
Hz – Phase – Voltage
6F = 60 – 1 – 230:
6B = 60 – 1 – 115:
6P = 60 – 3 – 208-230/460: 50 – 3 – 220-240/380-415:
6> = 60 – 3 – 575:
5H = 50 – 1 – 220-240:
5D = 50 – 1 – 110-120:
Phase
M = 1 PH T = 3 PH
HP Rating
05 = .75 hp 22 = 3 hp
07 = 1 hp 30 = 4 hp
11 = 1.5 hp 40 = 5.5 hp
15 = 2 hp 55 = 7.5 hp
Pump Construction
N = 316 Stainless Steel
Total Number of Stages
Product Line
HM = Stainless Horizontal Multi-stage
PAGE 10
Nominal Flow
1 = 5 GPM 10 = 56 GPM
3 = 16 GPM 15 = 90 GPM
5 = 33 GPM 22 = 100 GPM
Page 11
Commercial Water

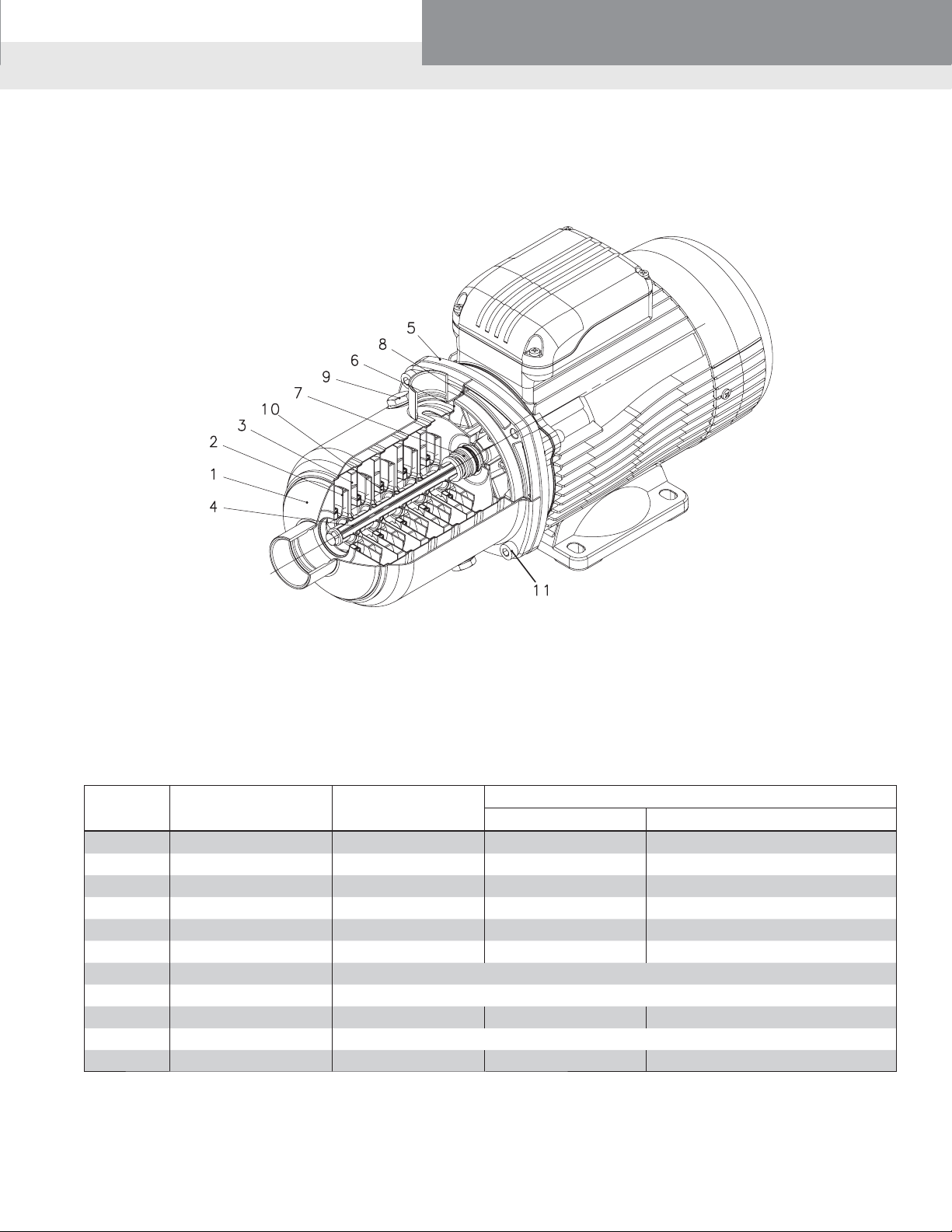

MODEL 1, 3, 5 HM..N SERIES – MAJOR COMPONENTS
(COMPACT DESIGN)
TABLE OF MATERIALS HM..N SERIES
REFRENCE
NUMBER
1 Pump body Stainless steel AISI 3160 EN 10088-1-X2CrNiMo17-12-2 (1.4404)
2 Impeller Stainless steel AISI 3160 EN 10088-1-X2CrNiMo17-12-2 (1.4404)
3 Diffuser Stainless steel AISI 3160 EN 10088-1-X2CrNiMo17-12-2 (1.4404)
4 Shaft Stainless steel AISI 316 EN 10088-1-X5CrNiMo17-12-2 (1.4401)
5 Adapter Aluminium — EN 1706-AC-AlSi11Cu2 (Fe) (AC46100)
6 Seal housing Stainless steel AISI 3160 EN 10088-1-X2CrNiMo17-12-2 (1.4404)
7 Mechanical seal Ceramic / Carbon / EPDM
8 Elastomers EPDM
9 Fill / drain plugs Stainless steel AISI 316 EN 10088-1-X5CrNiMo17-12-2 (1.4401)
10 Wear ring Technopolymer (PPS)
11 Bolts and screws Stainless steel AISI 304 EN 10088-1-X5CrNi18-10 (1.4301)
NAME MATERIAL
USA EUROPE
REFERENCE STANDARDS
PAGE 11
Page 12
Commercial Water

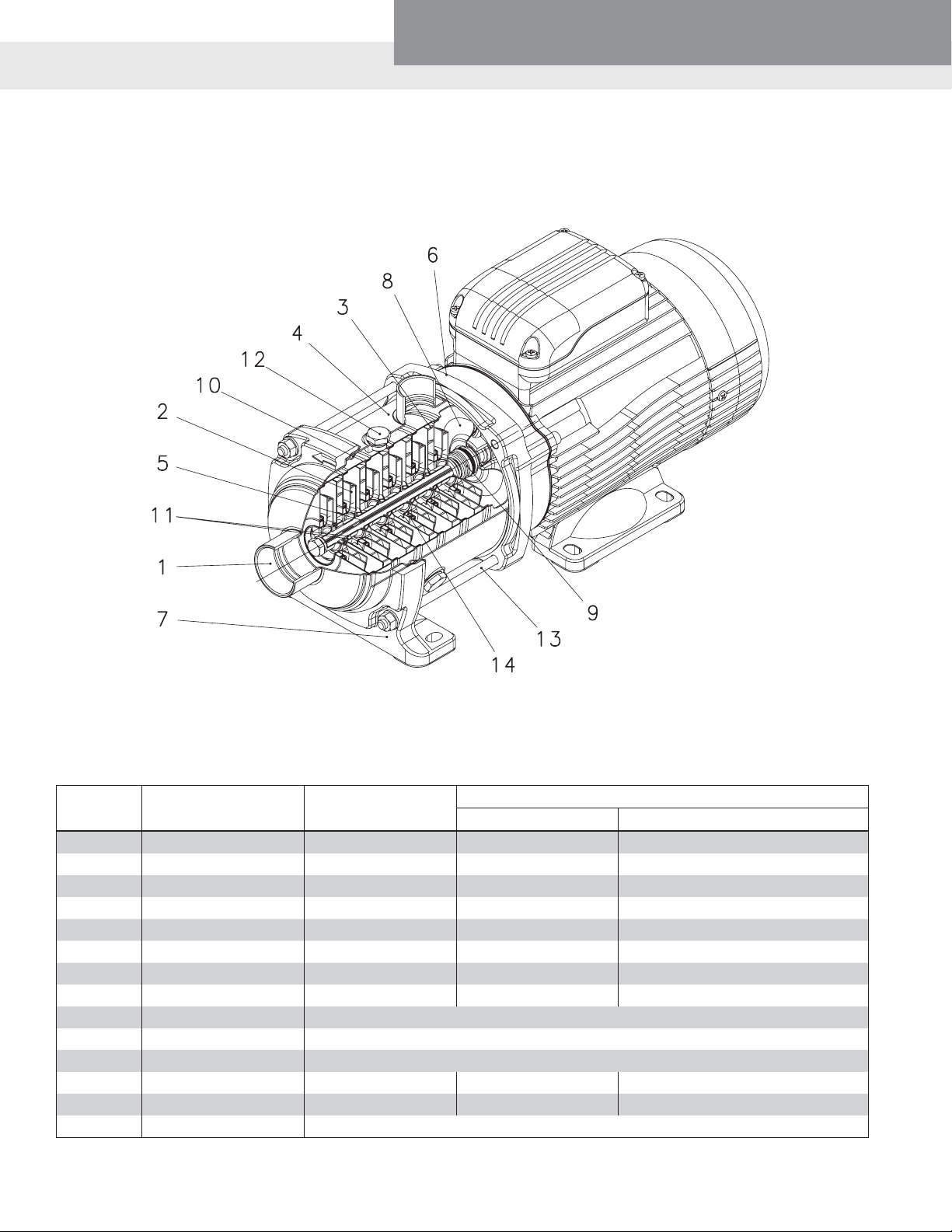

MODEL 1, 3, 5, 10, 15, 22 HM..N SERIES – MAJOR COMPONENTS
(SLEEVE DESIGN)
TABLE OF MATERIALS HM..N SERIES
REFRENCE
NUMBER
1 Head Stainless steel AISI 3160 EN 10088-1-X2CrNiMo17-12-2 (1.4404)
2 Impeller Stainless steel AISI 3160 EN 10088-1-X2CrNiMo17-12-2 (1.4404)
3 Diffuser and upper spacer Stainless steel AISI 3160 EN 10088-1-X2CrNiMo17-12-2 (1.4404)
4 Outer sleeve Stainless steel AISI 3160 EN 10088-1-X2CrNiMo17-12-2 (1.4404)
5 Shaft Stainless steel AISI 316 EN 10088-1-X5CrNiMo17-12-2 (1.4401)
6 Adapter Aluminium — EN 1706-AC-AlSi11Cu2 (Fe) (AC46100)
7 Ring with foot Aluminium — EN 1706-AC-AlSi11Cu2 (Fe) (AC46100)
8 Seal housing Stainless steel AISI 3160 EN 10088-1-X2CrNiMo17-12-2 (1.4404)
9 Mechanical seal Ceramic / Carbon / EPDM (PN10) - Silicon Carbide/Carbon/EPDM (PN16)
10 Elastomers EPDM
11 Shaft sleeve and bushing Tungsten carbide
12 Fill / drain plugs Stainless steel AISI 3160 EN 10088-1-X5CrNiMo17-12-2 (1.4401)
13 Tie rods Stainless steel AISI 431 EN 10088-1-X17CrNi16-2 (1.4057)
14 Wear ring Technopolymer (PPS)
PAGE 12
NAME MATERIAL
USA EUROPE
REFERENCE STANDARDS
Page 13
Commercial Water

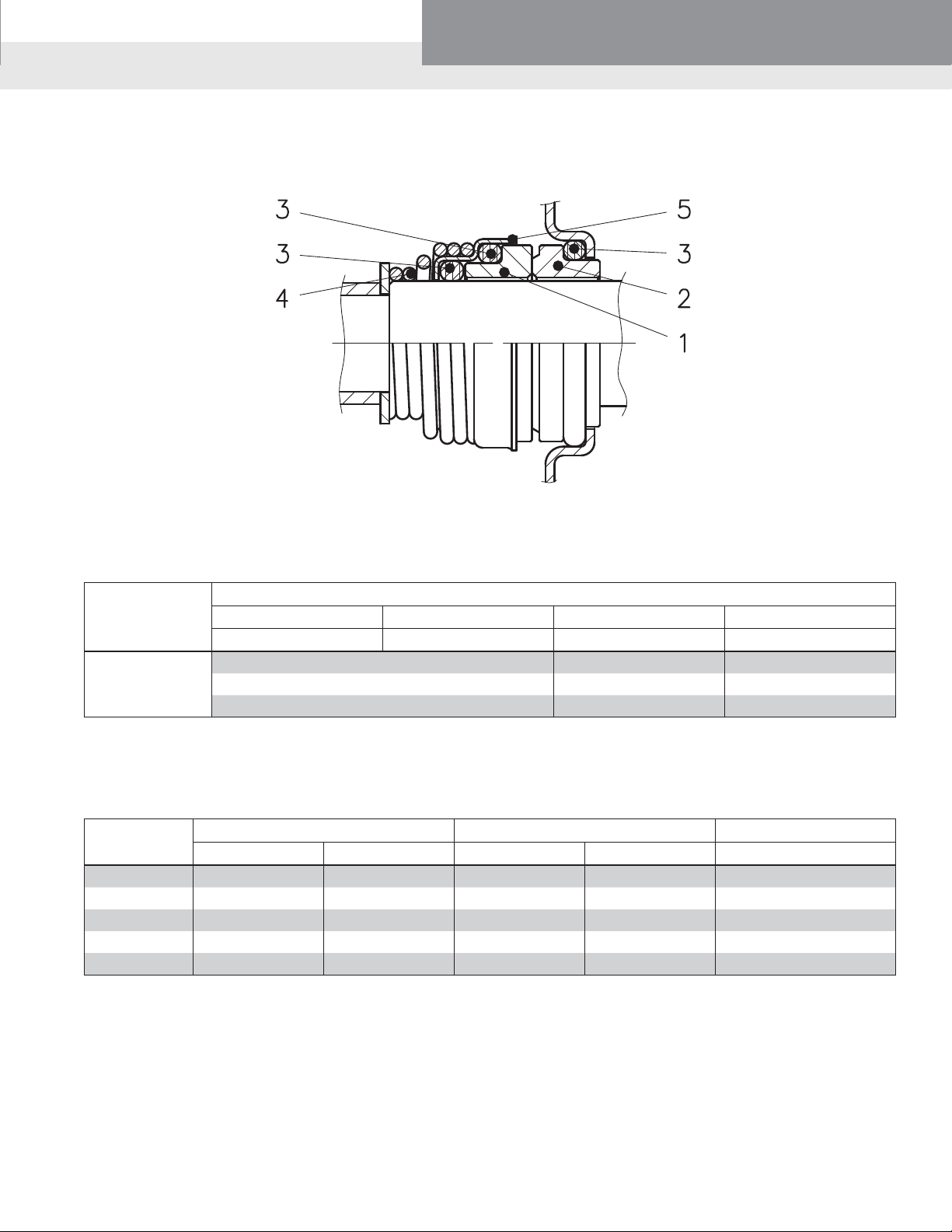

e-HM™ SERIES MECHANICAL SEALS
LIST OF MATERIALS
Part Number
Components
Materials
1 2 3 4 and 5
Rotory Face Stationary Face Elastomers Hardware
B - Carbon E - EPDM (EPR) All 316 SS
Q - Sil Carbide : - :iton
: - Ceramic
PRESSURE AND TEMPERATURES LIMITS
Seal Code
BQE 147PSI at 248F 235PSI at 248F 147PSI at 248F 235PSI at 248F 235PSI at 248F
BQ: 147PSI at 248F 235PSI at 248F 147PSI at 248F 235PSI at 248F 235PSI at 248F
QQE 147PSI at 248F 235PSI at 194F 147PSI at 248F 235PSI at 194F 235PSI at 194F
QQ: 147PSI at 248F 235PSI at 194F 147PSI at 248F 235PSI at 194F 235PSI at 194F
B:E 147PSI at 194F Not Available 147PSI at 194F Not Available Not Available
2-6 Stages 7+ Stages 2-5 Stages 6+ Stages All Stages
1HM, 3HM 5HM 10HM, 15HM, 22HM
PAGE 13
Page 14
Commercial Water
MOTOR DATA
3500 RPM, 60Hz, Lowara Motors
HP Ph Volts Enclosure SF FL Amps SF Amps Frame Size Motor Flange Type GWT P/N
3/4 1 115 TEFC / IP55 1.0 8.07 N/A 71 COMPACT 1-3-5 EHM 107236000
1.0 1 115 TEFC / IP55 1.0 10.3 N/A 71
3/4 1 230 TEFC / IP55 1.0 3.69 N/A 71 COMPACT 1-3-5 EHM 107236010
1.0
1 230 TEFC / IP55 1.0 4.84 N/A
1.5
1 230 TEFC / IP55 1.0 6.85 N/A 80
2.0 1 230 TEFC / IP55 1.0 9.22 N/A 80
3/4 3 208-230/460 TEFC / IP55 1.15 2.61-2.64/1.32 2.87 71 COMPACT 1-3-5 EHM 107236020
1.0
3 208-230/460 TEFC / IP55 1.15 3.09-3.02/1.51 3.46 80
1.5 3 208-230/460 TEFC / IP55 1.15 4.35-4.24/2.12 4.89 80
2.0
3 208-230/460 TEFC / IP55 1.15 5.77-5.58/2.79 6.51 80
3.0 3 208-230/460 TEFC / IP55 1.15 8.23-7.98/3.99 9.33 90
4.0 3 208-230/460 TEFC / IP55 1.15 11.3-10.9/5.45 12.8 90
5.5 3 208-230/460 TEFC / IP55 1.15 14.1-13.4/6.7 16 100 S0EE:E 10-15-22 EHM 50A08R500H
7.5 3 208-230/460 TEFC / IP55 1.15 18.7-17.8/8.91 21.4 112 S0EE:E 10-15-22 EHM 50A13R500H
3/4 3 575 TEFC / IP55 1.15 1.04 1.12 71 COMPACT 1-3-5 EHM 107236030
1.0
3 575 TEFC / IP55 1.15 1.20 1.31 80
1.5 3 575 TEFC / IP55 1.15 1.69 1.87 80
2.0
3 575 TEFC / IP55 1.15 2.2 2.44 80
3.0 3 575 TEFC / IP55 1.15 3.18 3.53 90
4.0 3 575 TEFC / IP55 1.15 4.36 4.86 90
5.5 3 575 TEFC / IP55 1.15 5.26 5.92 100 S0EE:E 10-15-22 EHM 50A08T500H
7.5 3 575 TEFC / IP55 1.15 7.2 8.07 112 S0EE:E 10-15-22 EHM 50A13T500H
Above data is for 0owaraš Motors. SpeciŶcations are subNect to change.
PAGE 14
71
80 S0EE:E 10-15-22 EHM 107236100
COMPACT 1-3-5 EHM 107236040
S0EE:E 1-3-5 EHM 107236050
COMPACT 1-3-5 EHM 107236060
S0EE:E 1-3-5 EHM 107236070
COMPACT 1-3-5 EHM 107236110
S0EE:E 1-3-5 EHM 107236120
S0EE:E 10-15-22 EHM 107236130
S0EE:E 1-3-5 EHM 107236160
S0EE:E 10-15-22 EHM 107236170
COMPACT 1-3-5 EHM 107236180
S0EE:E 1-3-5 EHM 107236190
S0EE:E 10-15-22 EHM 107236200
COMPACT 1-3-5 EHM 107236240
S0EE:E 1-3-5 EHM 107236250
COMPACT 1-3-5 EHM 107236280
S0EE:E 1-3-5 EHM 107236290
S0EE:E 10-15-22 EHM 107236300
S0EE:E 1-3-5 EHM 50A01R300H
S0EE:E 10-15-22 EHM 50A01R500H
S0EE
:E 1-3-5 EHM 50A02R300H
S0EE:E 10-15-22 EHM 50A02R500H
COMPACT 1-3-5 EHM 107236210
S0EE:E 1-3-5 EHM 107236220
S0EE:E 10-15-22 EHM 107236230
COMPACT 1-3-5 EHM 107236260
S0EE:E 1-3-5 EHM 107236270
COMPACT 1-3-5 EHM 107236310
S0EE:E 1-3-5 EHM 107236320
S0EE:E 10-15-22 EHM 107236330
S0EE:E 1-3-5 EHM 50A01T300H
S0EE:E 10-15-22 EHM 50A01T500H
S0EE:E 1-3-5 EHM 50A02T300H
S0EE:E 10-15-22 EHM 50A02T500H
Page 15
Commercial Water

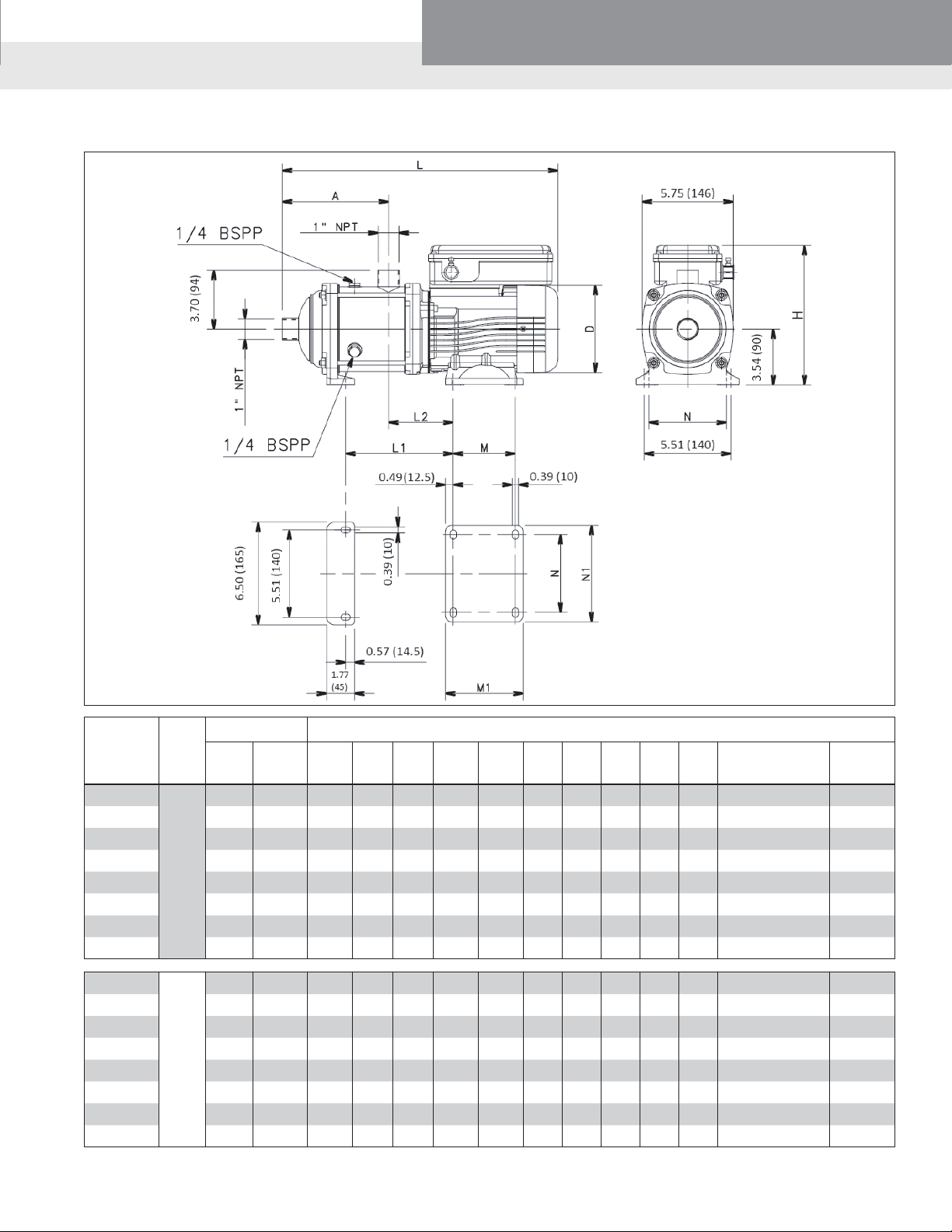

1HM..N SERIES, (2 TO 10 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM
X
Z
Pump
Size
Stages
1HM02
1HM03 0.75 71 3.43 5.51 8.86 13.78 –––––– 147 18
1HM04 0.75 71 4.21 5.51 8.86 14.57 –––––– 147 20
1HM05 0.75 71 5.00 5.51 8.86 15.35 –––––– 147 20
1HM06 0.75 71 5.79 5.51 8.86 16.14 –––––– 147 20
1HM07
1HM08 1 71 6.73 5.51 8.86 17.48 6.81 4.09 3.94 4.92 4.92 6.10 235 26
1HM09 1 71 7.52 5.51 8.86 18.27 7.60 4.09 3.94 4.92 4.92 6.10 235 26
1HM10 1.5 80 8.31 6.10 9.13 20.79 8.39 4.09 3.94 4.92 4.92 6.10 235 35
1HM02
1HM03 0.75 71 3.43 5.51 8.86 13.78 –––––– 147 18
1HM04 0.75 71 4.21 5.51 8.86 14.57 –––––– 147 20
1HM05 0.75 71 5.00 5.51 8.86 15.35 –––––– 147 20
1HM06 0.75 71 5.79 5.51 8.86 16.14 –––––– 147 20
1HM07
1HM08 1 71 6.73 6.10 9.13 19.21 6.81 4.09 3.94 4.92 4.92 6.10 235 33
1HM09 1 71 7.52 6.10 9.13 20.00 7.60 4.09 3.94 4.92 4.92 6.10 235 33
1HM10 1.5 80 8.31 6.10 9.13 20.79 8.39 4.09 3.94 4.92 4.92 6.10 235 35
DWG
No.
Phase
X
SING0E PHASE
Z
X
THREE PHASE
Z
Motor Dimensions (in)
Frame
HP
0.75 71 3.43 5.51 8.86 13.78 –––––– 147 18
0.75 71 3.43 5.51 8.86 13.78 –––––– 147 18
Size
1 71 5.94 5.51 8.86 16.69 6.02 4.09 3.94 4.92 4.92 6.10 235 24
1 71 5.94 6.10 9.13 18.43 6.02 4.09 3.94 4.92 4.92 6.10 235 31
A D H L L1 L2 M M1 N N1
Max. Working
Pressure (PSI)
Weight
(lbs)
PAGE 15
Page 16
Commercial Water
1HM..N SERIES, (2 TO 10 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM
TOTAL STAGES
10
9
8
7
6
1Ø
3Ø
5
4
3
2
)JŶGMIRG]
LTWXEKI
1-2-191*03;6%8)+41
PAGE 16
Page 17
Commercial Water
1HM..N SERIES, (11 TO 18 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM
Pump
Size
Stages
1HM11
1HM12 1.5 80 9.88 6.10 9.13 22.36 9.96 4.09 3.94 4.92 4.92 6.10 235 37
1HM13 1.5 80 10.67 6.10 9.13 23.15 10.75 4.09 3.94 4.92 4.92 6.10 235 37
1HM14 2 80 11.46 6.10 9.13 23.94 11.54 4.09 3.94 4.92 4.92 6.10 235 42
1HM15 2 80 12.24 6.10 9.13 24.72 12.32 4.09 3.94 4.92 4.92 6.10 235 42
1HM16 2 80 13.03 6.10 9.13 25.51 13.11 4.09 3.94 4.92 4.92 6.10 235 42
1HM17 2 80 13.82 6.10 9.13 26.30 13.90 4.09 3.94 4.92 4.92 6.10 235 44
1HM18 2 80 14.61 6.10 9.13 27.09 14.69 4.09 3.94 4.92 4.92 6.10 235 44
1HM11
1HM12 1.5 80 9.88 6.10 9.13 22.36 9.96 4.09 3.94 4.92 4.92 6.10 235 37
1HM13 1.5 80 10.67 6.10 9.13 23.15 10.75 4.09 3.94 4.92 4.92 6.10 235 37
1HM14 2 80 11.46 6.10 9.13 23.94 11.54 4.09 3.94 4.92 4.92 6.10 235 42
1HM15 2 80 12.24 6.10 9.13 24.72 12.32 4.09 3.94 4.92 4.92 6.10 235 42
1HM16 2 80 13.03 6.10 9.13 25.51 13.11 4.09 3.94 4.92 4.92 6.10 235 42
1HM17 2 80 13.82 6.10 9.13 26.30 13.90 4.09 3.94 4.92 4.92 6.10 235 44
1HM18 2 80 14.61 6.10 9.13 27.09 14.69 4.09 3.94 4.92 4.92 6.10 235 44
Phase
SING0E PHASE
THREE PHASE
Motor Dimensions (in)
Frame
HP
1.5 80 9.09 6.10 9.13 21.57 9.17 4.09 3.94 4.92 4.92 6.10 235 37
1.5 80 9.09 6.10 9.13 21.57 9.17 4.09 3.94 4.92 4.92 6.10 235 37
Size
A D H L L1 L2 M M1 N N1
Max. Working
Pressure (PSI)
Weight
(lbs)
PAGE 17
Page 18
Commercial Water
1HM..N SERIES, (11 TO 18 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM
18
17
16
15
14
13
12
11
TOTAL STAGES
1Ø
3Ø
1-2-191*03;6%8)+41
PAGE 18
)JŶGMIRG]
LTWXEKI
Page 19
Commercial Water

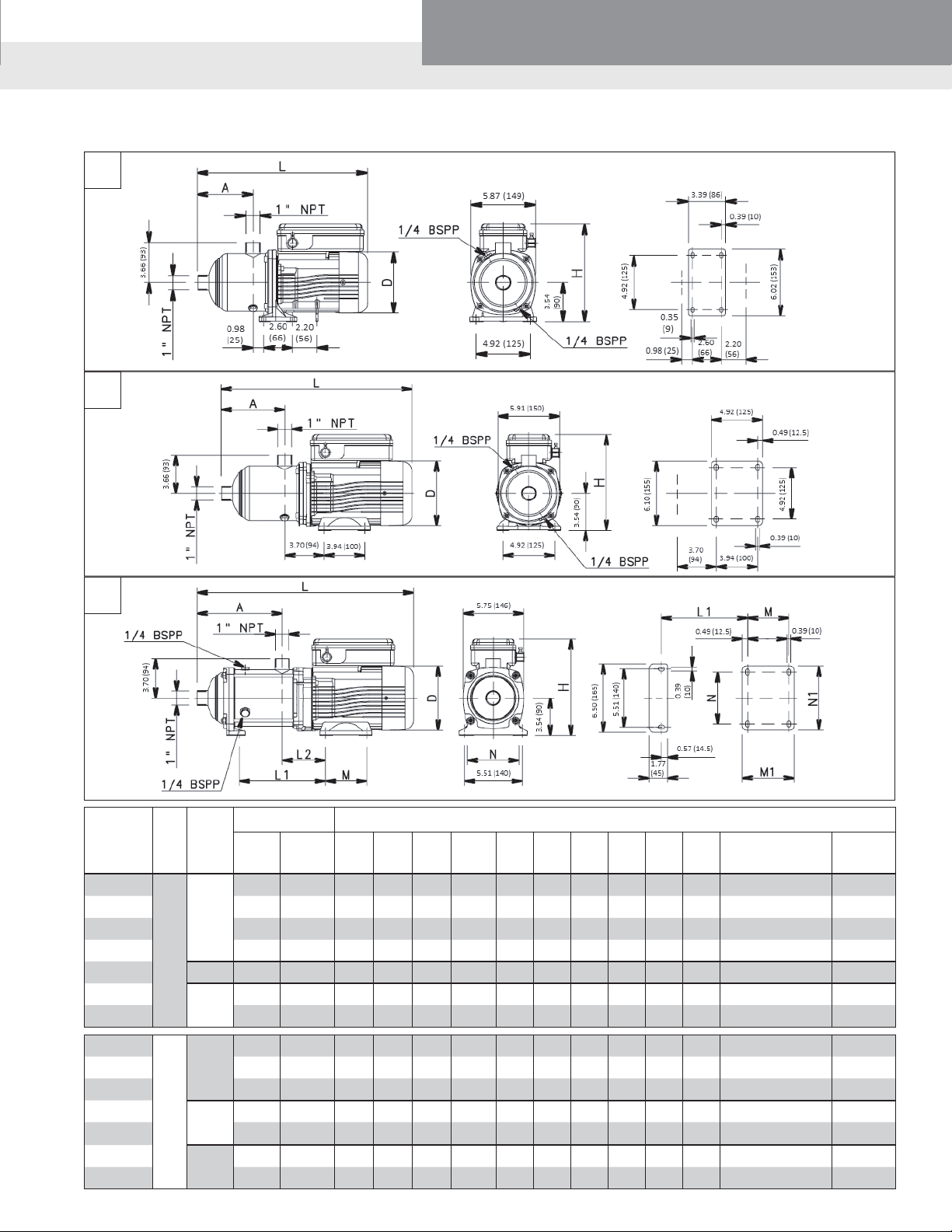

3HM..N SERIES, (2 TO 8 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM
X
Y
Z
Pump
Size
Stages
3HM02
3HM03 0.75 71 3.43 5.51 8.86 13.78 –––––– 147 18
3HM04 0.75 71 4.21 5.51 8.86 14.57 –––––– 147 20
3HM05 1 71 5.00 5.51 9.13 16.85 –––––– 147 22
3HM06 Y 1.5 80 5.79 5.94 9.13 17.64 –––––– 147 31
3HM07
3HM08 1.5 80 6.73 5.94 9.13 19.21 6.81 4.09 3.94 4.92 4.92 6.10 235 35
3HM02
3HM03 0.75 71 3.43 5.51 8.86 13.78 –––––– 147 18
3HM04 0.75 71 4.21 5.51 8.86 14.57 –––––– 147 20
3HM05
3HM06 1.5 80 5.79 5.94 9.13 17.64 –––––– 147 31
3HM07
3HM08 2 80 6.73 5.94 9.13 19.21 6.81 4.09 3.94 4.92 4.92 6.10 235 37
DWG
No.
Phase
X
SING0E PHASE
Z
X
Y
THREE PHASE
Z
Motor Dimensions (in)
Frame
HP
0.75 71 3.43 5.51 8.86 13.78 –––––– 147 18
1.5 80 5.94 5.94 9.13 18.43 6.02 4.09 3.94 4.92 4.92 6.10 235 33
0.75 71 3.43 5.51 8.86 13.78 –––––– 147 18
1.5 80 5.94 5.94 9.13 18.43 6.02 4.09 3.94 4.92 4.92 6.10 235 33
Size
1 80 5.00 5.51 9.13 16.85 –––––– 147 29
A D H L L1 L2 M M1 N N1
Max. Working
Pressure (PSI)
Weight
(lbs)
PAGE 19
Page 20
Commercial Water
3HM..N SERIES, (2 TO 8 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM
8
7
6
5
4
3
1Ø
3Ø
2
TOTAL STAGES
)JŶGMIRG]
LTWXEKI
1-2-191*03;6%8)+41
PAGE 20
Page 21
Commercial Water
3HM..N SERIES, (9 TO 14 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM
Pump
Size
Stages
3HM09
3HM10 2 80 8.31 6.10 9.13 20.79 8.39 4.09 3.94 4.92 4.92 6.10 235 37
3HM09
3HM10 2 80 8.31 6.10 9.13 20.79 8.39 4.09 3.94 4.92 4.92 6.10 235 37
3HM11 3 90 9.09 6.85 9.13 23.58 10.08 5.00 4.92 5.91 5.51 6.46 235 51
3HM12 3 90 9.88 6.85 9.13 24.37 10.87 5.00 4.92 5.91 5.51 6.46 235 51
3HM13 3 90 10.67 6.85 9.13 25.16 11.65 5.00 4.92 5.91 5.51 6.46 235 51
3HM14 3 90 11.46 6.85 9.13 25.94 12.44 5.00 4.92 5.91 5.51 6.46 235 53
Phase
SING0E
THREE PHASE
Motor Dimensions (in)
Frame
HP
PHASE
Size
2 80 7.52 6.10 9.13 20.00 7.60 4.09 3.94 4.92 4.92 6.10 235 37
2 80 7.52 6.10 9.13 20.00 7.60 4.09 3.94 4.92 4.92 6.10 235 37
A D H L L1 L2 M M1 N N1
Max. Working
Pressure (PSI)
Weight
(lbs)
PAGE 21
Page 22
Commercial Water
3HM..N SERIES, (9 TO 14 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM
TOTAL STAGES
14
13
12
11
10
9
1Ø
3Ø
)JŶGMIRG]
LTWXEKI
1-2-191*03;6%8)+41
PAGE 22
Page 23
Commercial Water
5HM..N SERIES, (2 TO 7 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM
X
Y
Z
Pump
Size
Stages
5HM02
5HM03 1 71 4.09 5.51 8.86 14.45 –––––– 147 20
5HM04
5HM05 1.5 80 6.06 6.10 9.13 17.91 –––––– 147 31
5HM06 Z 2 80 6.22 6.10 9.13 18.70 6.22 4.09 3.94 4.92 4.92 6.10 235 36
5HM02
5HM03
5HM04 1.5 80 5.08 6.10 9.13 16.93 –––––– 147 31
5HM05 2 80 6.06 6.10 9.13 17.91 –––––– 147 34
5HM06
5HM07 3 90 7.20 6.85 9.13 21.89 8.11 5.00 4.92 5.91 5.51 6.46 235 49
DWG
No.
Phase
X
Y
SING0E PHASE
X 0.75 71 4.09 5.51 8.86 14.45 –––––– 147 18
Y
THREE PHASE
Z
Motor Dimensions (in)
Frame
HP
0.75 71 4.09 5.51 8.86 14.45 –––––– 147 18
1.5 80 5.08 6.10 9.13 16.93 –––––– 147 31
Size
1 80 4.09 6.10 9.13 15.94 –––––– 147 27
2 80 6.22 6.10 9.13 18.70 6.22 4.09 3.94 4.92 4.92 6.10 235 36
A D H L L1 L2 M M1 N N1
Max. Working
Pressure (PSI)
Weight
(lbs)
PAGE 23
Page 24
Commercial Water
5HM..N SERIES, (2 TO 7 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM
7
6
5
4
3
2
TOTAL STAGES
1Ø
3Ø
)JŶGMIRG]
LTWXEKI
1-2-191*03;6%8)+41
PAGE 24
Page 25
Commercial Water
5HM..N SERIES, (8 TO 12 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM
Pump
Size
Stages
5HM08
5HM09 3 90 9.17 6.85 9.13 23.86 10.08 5.00 4.92 5.91 5.51 6.46 235 51
5HM10 4 90 10.16 6.85 9.13 24.84 11.06 5.00 4.92 5.91 5.51 6.46 235 58
5HM11 4 90 11.14 6.85 9.13 25.83 12.05 5.00 4.92 5.91 5.51 6.46 235 60
5HM12 4 90 12.13 6.85 9.13 26.81 13.03 5.00 4.92 5.91 5.51 6.46 235 60
Phase
THREE PHASE
Motor Dimensions (in)
Frame
HP
Size
3 90 8.19 6.85 9.13 22.87 9.09 5.00 4.92 5.91 5.51 6.46 235 49
A D H L L1 L2 M M1 N N1
Max. Working
Pressure (PSI)
Weight
(lbs)
PAGE 25
Page 26
Commercial Water
5HM..N SERIES, (8 TO 12 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM
12
11
10
9
8
TOTAL STAGES
1Ø / 3Ø
)JŶGMIRG]
LTWXEKI
1-2-191*03;6%8)+41
PAGE 26
Page 27
Commercial Water
10HM..N SERIES, (1 TO 8 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM
Pump
Size
Stages
10HM01
10HM02 2 80 4.92 6.1 9.13 3.54 17.44 4.8 4.13 3.94 4.92 4.92 6.1 0.49 0.39 235 38
10HM01
10HM02 2 80 4.92 6.1 9.13 3.54 17.4 4.8 4.13 3.94 4.92 4.92 6.1 0.49 0.39 235 38
10HM03 3 90 4.92 6.85 9.13 3.54 19.45 5.67 5.04 4.92 5.91 5.51 6.46 0.49 0.39 235 51
10HM04 4 90 6.18 6.85 9.13 3.54 20.71 6.93 5.04 4.92 5.91 5.51 6.46 0.49 0.39 235 60
10HM05 5.5 100 7.44 7.76 10 3.94 23.31 8.98 5.79 5.51 6.69 6.3 7.24 0.59 0.47 235 75
10HM06 5.5 100 8.7 7.76 10 3.94 24.57 10.24 5.79 5.51 6.69 6.3 7.24 0.59 0.47 235 78
10HM07 7.5 112 9.96 8.43 11.02 4.41 27.17 11.77 6.06 5.51 6.69 7.48 8.62 0.59 0.47 235 95
10HM08 7.5 112 11.22 8.43 11.02 4.41 28.43 13.03 6.06 5.51 6.69 7.48 8.62 0.59 0.47 235 98
Motor Dimensions (in)
Frame
HP
Phase
SING0E
THREE PHASE
Size
1.5 80 4.92 6.1 9.13 3.54 17.44 4.8 4.13 3.94 4.92 4.92 6.1 0.49 0.39 235 36
PHASE
1 80 4.92 6.1 9.13 3.54 17.44 4.8 4.13 3.94 4.92 4.92 6.1 0.49 0.39 235 34
A D H H1 L L1 L2 M M1 N N1 P K
Max. Working
Pressure (PSI)
Weight
(lbs)
PAGE 27
Page 28
Commercial Water
10HM..N SERIES, (1 TO 8 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM
TOTAL STAGES
8
7
6
5
4
3
2
1
1Ø / 3Ø
1-2-191*03;6%8)+41
PAGE 28
)JŶGMIRG]
LTWXEKI
Page 29
Commercial Water
15HM..N SERIES, (1 TO 4 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM
Pump
Size
Stages
15HM01
15HM01
15HM02 4 90 5.67 6.85 9.13 3.54 20.87 6.93 5.67 4.92 5.91 5.51 6.46 0.49 0.39 235 58
15HM03 5.5 100 5.67 7.76 10.00 3.94 22.17 7.72 6.42 5.51 6.69 6.30 7.24 0.59 0.47 235 71
15HM04 7.5 112 7.56 8.43 11.02 4.41 25.39 9.88 6.69 5.51 6.69 7.48 8.62 0.59 0.47 235 89
Motor Dimensions (in)
Frame
HP
Phase
SING0E
THREE PHASE
Size
2 80 5.67 6.10 9.13 3.54 18.82 6.06 4.76 3.94 4.92 4.92 6.10 0.49 0.39 235 38
PHASE
2 80 5.67 6.10 9.13 3.54 18.82 6.06 4.76 3.94 4.92 4.92 6.10 0.49 0.39 235 38
A D H H1 L L1 L2 M M1 N N1 P K
Max. Working
Pressure (PSI)
Weight
(lbs)
PAGE 29
Page 30
Commercial Water
15HM..N SERIES, (1 TO 4 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM
TOTAL STAGES
4
3
2
1
1Ø / 3Ø
)JŶGMIRG]
LTWXEKI
1-2-191*03;6%8)+41
PAGE 30
Page 31
Commercial Water
22HM..N SERIES, (1 TO 3 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM
Pump
Size
Stages
22HM01
22HM02 5.5 100 5.67 7.76 10.00 3.94 22.17 7.72 6.42 5.51 6.69 6.30 7.24 0.59 0.47 235 71
22HM03 7.5 112 5.67 8.43 11.02 4.41 23.50 7.99 6.69 5.51 6.69 7.48 8.62 0.59 0.47 235 86
Motor Dimensions (in)
Frame
HP
Phase
THREE PHASE
Size
3 90 5.67 6.85 9.13 3.54 20.83 6.93 5.67 4.92 5.91 5.51 6.46 0.49 0.39 235 49
A D H H1 L L1 L2 M M1 N N1 P K
Max. Working
Pressure (PSI)
Weight
(lbs)
PAGE 31
Page 32
Commercial Water
22HM..N SERIES, (1 TO 3 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM
TOTAL STAGES
3
2
1
1Ø / 3Ø
)JŶGMIRG]
LTWXEKI
1-2-191*03;6%8)+41
PAGE 32
Page 33
Commercial Water
TECHNICAL DATA – WATER PROPERTY CHART
Temp ºF Temp ºC
32 0.0 0.01602 1.000 1.001 1.002 62.42 0.088
35 1.7 0.01602 1.000 1.001 1.002 62.42 0.100
40 4.4 0.01602 1.000 1.001 1.002 62.42 0.122
50 10.0 0.01603 0.999 1.001 1.002 62.38 0.178
60 15.6 0.01604 0.999 1.000 1.001 62.34 0.256
70 21.1 0.01606 0.998 0.999 1.000 62.27 0.363
80 26.7 0.01608 0.996 0.998 0.999 62.19 0.507
90 32.2 0.0161 0.995 0.996 0.997 62.11 0.698
100 37.8 0.01613 0.993 0.994 0.995 62.00 0.949
120 48.9 0.0162 0.989 0.990 0.991 61.73 1.692
140 60.0 0.01629 0.983 0.985 0.986 61.39 2.889
160 71.1 0.01639 0.977 0.979 0.979 61.01 4.741
180 82.2 0.01651 0.970 0.972 0.973 60.57 7.510
200 93.3 0.01663 0.963 0.964 0.966 60.13 11.526
212 100.0 0.01672 0.958 0.959 0.960 59.81 14.696
220 104.4 0.01677 0.955 0.956 0.957 59.63 17.186
240 115.6 0.01692 0.947 0.948 0.949 59.10 24.97
260 126.7 0.01709 0.938 0.939 0.940 58.51 35.43
280 137.8 0.01726 0.928 0.929 0.930 58.00 49.20
300 148.9 0.01745 0.918 0.919 0.920 57.31 67.01
320 160.0 0.01756 0.908 0.909 0.910 56.66 89.66
340 171.1 0.01787 0.896 0.898 0.899 55.96 118.01
360 182.2 0.01811 0.885 0.886 0.887 55.22 153.04
380 193.3 0.01836 0.873 0.874 0.875 54.47 195.77
400 204.4 0.01864 0.859 0.860 0.862 53.65 247.31
420 215.6 0.01894 0.846 0.847 0.848 52.80 308.83
440 226.7 0.01926 0.832 0.833 0.834 51.92 381.59
460 237.8 0.0196 0.817 0.818 0.819 51.02 466.9
480 248.9 0.02 0.801 0.802 0.803 50.00 566.1
500 260.0 0.0204 0.785 0.786 0.787 49.02 680.8
520 271.1 0.0209 0.765 0.766 0.767 47.85 812.4
540 282.2 0.0215 0.746 0.747 0.748 46.51 962.5
560 293.3 0.0221 0.726 0.727 0.728 45.30 1133.1
580 304.4 0.0228 0.703 0.704 0.704 43.90 1325.8
600 315.6 0.0236 0.678 0.679 0.680 42.30 1542.9
620 326.7 0.0247 0.649 0.650 0.650 40.50 1786.6
640 337.8 0.026 0.617 0.618 0.618 38.50 2059.7
660 348.9 0.0278 0.577 0.577 0.578 36.00 2365.4
680 360.0 0.0305 0.525 0.526 0.527 32.80 2708.1
700 371.1 0.0369 0.434 0.435 0.435 27.10 3093.7
SpeciŶc Volume
(Cubic ft/lb)
@ 39.2ºF @ 60ºF @ 68ºF
SpeciŶc Gravity
Weight
(lb/cubic ft)
Vapor Pressure
(psi Abs)
PAGE 33
Page 34
Commercial Water
TECHNICAL DATA – NPSH
NPSH
The minimum operating values that can be reached at the pump suction end are limited by the onset of cavitation.
Cavitation is the formation of vapor-Ŷlled cavities within liquids where the pressure is locally reduced to a criti­cal value, or where the local pressure is equal to, or Nust below the vapor pressure of the liquid.
The vapor-Ŷlled cavities ŷow with the current and when they reach a higher pressure ares the vapor contained in the cavities condenses. The cavities collide, generat­ing pressure waves that are transmitted to the walls. These, being subNected to stress cycles, gradually become deformed and yield due to fatigue. This phe­nomenon, characterized by a metallic noise produced by the hammering on the pipe walls, is called incipient cavitation.
The damage caused by cavitation may be magniŶed by electrochemical corrosion and a local rise in tempera­ture due to the plastic deformation of the walls. The materials that offer the highest resistance to heat and corrosion are alloy steels, especially austenitic steel. The conditions that trigger cavitation may be assessed by calculating the total net suction head, referred to in technical literature with the acronym NPSH (Net Posi­tive Suction Head).
The NPSH represents the total energy (expressed in feet) of the liquid measured at suction under condi­tions of incipient cavitation, excluding the vapor pres­sure (expressed in feet) that the liquid has at the pump inlet.
To Ŷnd the static height (hz) at which to install the machine under safe conditions, the following formula must be veriŶed:
h
p + hz ű (NPSHr + 2 ft) + hf + hpv
where:
h
p is the absolute pressure applied to the free liquid
surface in the suction tank, expressed in feet of liquid hp is the quotient between the barometric pressure and the speciŶc weight of the liquid.
h
z is the suction lift between the pump axis and the
free liquid surface in the suction tank, expressed in feet hz is negative when the liquid level is lower than the pump axis.
h
f is the ŷow resistance in the suction line and its ac-
cessories, such as: Ŷttings, foot valve, gate valve, elbows, etc.
h
pv is the vapor pressure of the liquid at the operating
temperature, expressed in feet of the liquid. hpv is the quotient between the Pv vapor pressure and the liquidős speciŶc weight.
0.5 is the safety factor.
The maximum possible suction head for installation depends on the value of the atmospheric pressure (i.e. the elevation above sea level at which the pump is installed) and the temperature of the liquid.
To help the user, with reference to water temperature (40ºF) and to the elevation above sea level, the follow­ing tables show the drop in hydraulic pressure head in relation to the elevation above sea level, and the suc­tion loss in relation to temperature.
Water Temperature (ºF) 68 104 140 176 194 230 248 Suction Loss (ft) -.7 2.3 6.6 16.4 24.3 50.5 70.5
Elevation Above Sea Level (ft) 1600 3300 4900 6500 8200 9800 Suction Loss (ft) 1.8 3.6 5.4 7.2 9.0 10.8
To reduce it to a minimum, especially in cases of high suction head (over 13 – 16 feet) or within the operat­ing limits with high ŷow rates, we recommend using a suction line having a larger diameter than that of the pump’s suction port. It is always a good idea to posi­tion the pump as close as possible to the liquid to be pumped.
PAGE 34
Page 35
Commercial Water
TECHNICAL DATA – COMPATABILITY CHART FOR MATERIALS IN CONTACT WITH MOST COMMONLY USED LIQUIDS
Liquid
Water 100 23/248 • QBEGG E
Deionized, demineralized 100 -13/230 • QBEGG E
Water and oil emulsion any 23/194 • QB:GG :
Acetic acid (•) 80 14/158 .038 • QBEGG E
Citric acid 5 14/158 .056 • QBEGG E
Hydrochloric acid 2 23/77 .043 • QQ:GG :
Phosphoric acid 10 23/86 .048 • QBEGG E
Nitric acid (•) 50 23/86 .053 • QQ:GG :
Sulphuric acid (•) 2 14/77 .066 • QB:GG :
Tannic acid 20 32/122 • QBEGG E
Tartaric acid 50 14/77 .063 • QQ:GG :
9ric acid 80 14/176 .068 • QBEGG E
Benzoic acid 70 32/158 .047 • QB:GG :
Boric acid Saturated 14/194 .052 • QQ:GG :
Formic acid (•) 5 5/77 .044 • QBEGG E
Ethyl alcohol (•) 100 23/104 .029 • QBEGG E
Methyl alcohol (•) 100 23/104 .029 • QBEGG E
Propyl alcohol (•) 100 23/176 .029 • QBEGG E
Butyl alcohol 100 23/176 .030 • QB:GG :
Denatured alcohol (•) 100 23/158 .030 • QBEGG E
Ammonia in water (•) 25 -4/122 .038 • QBEGG E
Chloroform 14/86 .053 • QB:GG :
Caustic soda 25 32/158 .077 • QQEGG E
Water, detergents, 23/176 • QQ:GG :
Cleaning products 23/212 • QQ:GG :
Diesel oil (•) 100 32/176 .033 • QB:GG :
Kerosene (•) 100 32/176 • QB:GG :
Fuel oil (•) 32/194 .027 • QB:GG :
Glycerine 100 68/194 .046 • QBEGG E
Sodium Hypochlorite 1 14/77 • QQ:GG :
Phosphates/polyphosphates 23/194 • QQ:GG :
Sodium nitrate Saturated 14/176 .081 • QBEGG E
Cutting ŷuid 100 23/230 .033 • QB:GG :
Peanut oil (•) 100 23/230 .034 • QBEGG E
Colza oil (•) 100 23/230 .034 • QBEGG E
0inseed oil (•) 100 23/230 .034 • QBEGG E
Coconut oil (•) 100 -4/194 .033 • QBEGG E
Soybean oil (•) 100 32/194 • QBEGG E
Diathermic oil 100 23/230 .033 • QB:GG :
Hydraulic oil 100 23/230 • QB:GG :
Mineral oil 100 23/230 .034 • QB:GG :
Sodium sulfate 15 14/104 .094 • QQEGG E
Aluminum sulfate 30 23/122 .097 • QQEGG E
Ammonium sulfate 10 14/140 .064 • QQEGG E
Iron sulfate 10 23/86 .076 • QBEGG E
Copper sulfate 20 32/86 .082 • QQ:GG :
Trichloroethylene 14/104 .053 • QB:GG :
Perchlorethylene 14/86 .057 • QB:GG :
Legend
Q = Silicon carbide B = Carbon E = EPDM
(ř) A special version may be necessary for this ŷuid. For additional information, please contact our sales network.
Concentration
(%)
Temperature
Min/Max ºF
: = :iton G = AISI 316 (spring, metal components)
SpeciŶc
Weight (lb/in
1HM - 22HM
3
)
316
Recommended
Seal
Elastomers
PAGE 35
Page 36
<]PIQ
1) The tissue in plants that brings water upward from the roots
2) a leading global water technology company.
We’re a global team uniŶed in a common purpose: creating innovative solutions to meet our world’s water needs. Developing new technologies that will improve the way water is used, conserved, and re-used in the future is central to our work. We move, treat, analyze, and return water to the environment, and we help people use water efŶciently, in their homes, buildings, factories and farms. In more than 150 countries, we have strong, long-standing relationships with customers who know us for our powerful combination of leading product brands and applications expertise, backed by a legacy of innovation.
For more information on how Xylem can help you, go to www.xyleminc.com
<]PIQ-RG
+SYPHW(VMZI %YFYVR2= 4LSRI *E\
[[[KSYPHW[EXIVXIGLRSPSK]GSQ
Goulds is a registered trademark of Goulds Pumps, Inc. and is used under license.
© 2016 Xylem Inc. BeHM R9 October 2016
Loading...
