Gotop TL-206 User Manual

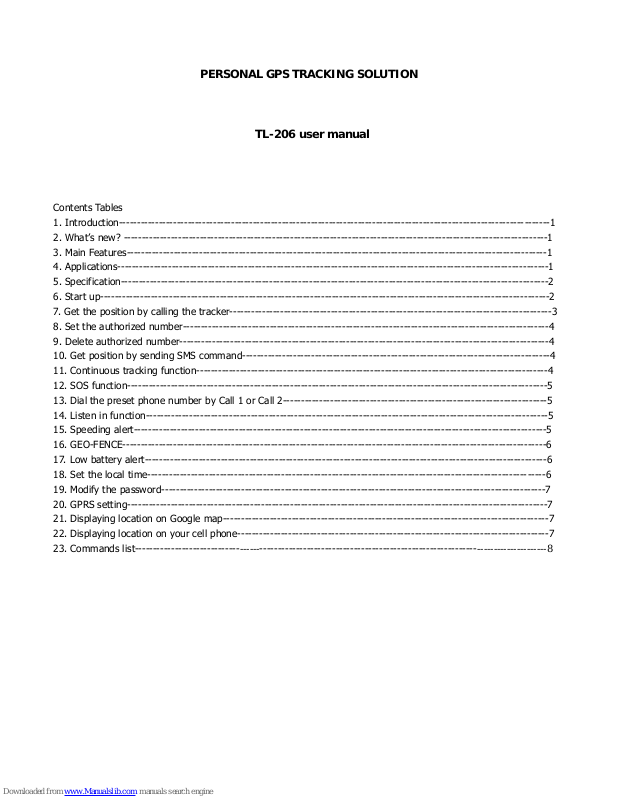

PERSONAL GPS TRACKING SOLUTION
TL-206 user manual
Contents Tables
1. Introduction-----------------------------------------------------------------------------------------------------------------------1
2. What’s new? ---------------------------------------------------------------------------------------------------------------------1
3. Main Features--------------------------------------------------------------------------------------------------------------------1
4. Applications-----------------------------------------------------------------------------------------------------------------------1
5. Specification----------------------------------------------------------------------------------------------------------------------2
6. Start up----------------------------------------------------------------------------------------------------------------------------2
7. Get the position by calling the tracker-----------------------------------------------------------------------------------------3
8. Set the authorized number-----------------------------------------------------------------------------------------------------4
9. Delete authorized number------------------------------------------------------------------------------------------------------4
10. Get position by sending SMS command-------------------------------------------------------------------------------------4
11. Continuous tracking function-------------------------------------------------------------------------------------------------4
12. SOS function--------------------------------------------------------------------------------------------------------------------5
13. Dial the preset phone number by Call 1 or Call 2-------------------------------------------------------------------------5
14. Listen in function---------------------------------------------------------------------------------------------------------------5
15. Speeding alert------------------------------------------------------------------------------------------------------------------5
16. GEO-FENCE---------------------------------------------------------------------------------------------------------------------6
17. Low battery alert---------------------------------------------------------------------------------------------------------------6
18. Set the local time--------------------------------------------------------------------------------------------------------------6
19. Modify the password----------------------------------------------------------------------------------------------------------7
20. GPRS setting--------------------------------------------------------------------------------------------------------------------7
21. Displaying location on Google map------------------------------------------------------------------------------------------7
22. Displaying location on your cell phone--------------------------------------------------------------------------------------7
23. Commands list--------------------------------------------------------------------------------------------------------------------8
1
1. Introduction
Working Based on existing GSM /GPRS network and GPS satellites, this tracker is a small and powerful tracking device
that is developed for personal, vehicle and pet etc. Not only transmit the longitude and latitude coordinate to your cell
phone by SMS, but also transmitting the longitude and latitude coordinate to the designated server by GPRS and then
displaying the location by tracking software.
2. What’s new?
2.1 Smaller size.
2.2 Big SOS button for emergency;
2.3 Different color LED to show GPS, GSM, Power, Location request;
2.4 Longer battery life (standby time is 200hours)
3. Main Features
Locating and tracking via SMS or GPRS
Support voice call
Listen in function
SOS alert
Geo-fence alarm
Speeding alert
Low battery alert
Base station locating
Position transmit
Voice calls adjustable
4. Applications
Protect the child/elderly/disabled/pet etc.
Personnel management
Track the vehicle/ equipment etc.
Provide peace-of-mind for businessmen
Tracking system for Express/Carriers/Logistics
2
5. Specification
Content Specs.
Dimension 65mm x 40mm x 18mm
Weight 50g
Network GSM/GPRS
Band 900/1800Mhz
850/900/1800/1900Mhz
GPS chip SIRF3 chip
GPS sensitivity -159dBm
GPS accuracy 5m
Cold start 42 sec.
Warm starts 38 sec.
Hot start 1 sec.
Battery Chargeable3.7V
1500mA/h battery
Operation temperature -20°C to +55°C
Humidity 5%--95% non-condensing
6. Start up
Charge the battery for 8 -12 hours at first three times. After the first three times, the battery can be charged fully in
3-5hours. In order to protect the device please use the battery and charger provided by the manufacturer.
1. USB;
2. Switch button;
3. Call2 button;
4. Call1 button;
5. SIM card cover;
6. SIM card;
7. Mi c r ophone;
8. SOS button
9. Speaker;
10. Power led (Red);
11. GPS signal led (blue);
12. Transmit led (green);
13. GSM signal led (Orange)
Switch on the unit outdoors. Four lights will be bright at the same time
3
during the tracker starting.
Insert the sim card with the key
In 10 to 30seconds, the unit will begin working and indicators will blink as the following:
Three LED Bright at the same time The device is starting
Orange LED(GSM) Blink like Work in GSM mode
Orange LED(GSM) Blink like Connecting GPRS
Orange LED(GSM) Blink like Had connected to GPRS
Red LED (power) Blink like Power on
Blue LED (GPS) Blink like Had got GPS signal
Green LED
(Once position
transmit)
Blink like
Send one position
