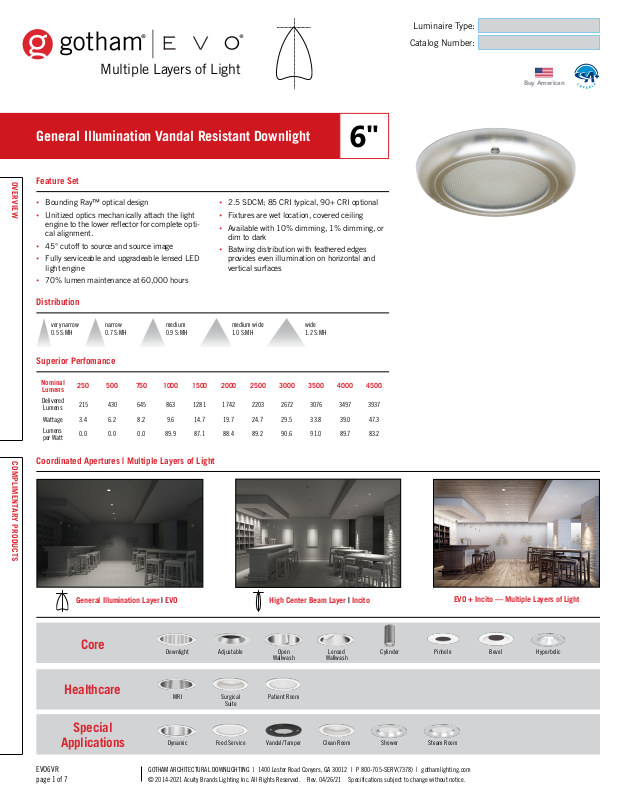

GOTHAM EVO6VR User Manual

Multiple Layers of Light

Luminaire Type:

Catalog Number:

Buy American

General Illumination Vandal Resistant Downlight

OVERVIEW COMPLIMENTARY PRODUCTS

Feature Set

• Bounding Ray™ optical design

• Unitized optics mechanically attach the light

engine to the lower reflector for complete opti­cal alignment.

• 45° cutoff to source and source image

• Fully serviceable and upgradeable lensed LED

light engine

• 70% lumen maintenance at 60,000 hours

Distribution

very narrow

0.5 S:MH

narrow

0.7 S:MH

medium

0.9 S:MH

Superior Perfomance

Nominal

Lumens

Delivered

Lumens

Wattage 3.4 6.2 8.2 9.6 14.7 19.7 24.7 29.5 33.8 39.0 47.3

Lumens

per Watt

250 500 750 1000 1500 2000 2500 3000 3500 4000 4500

215 430 645 863 1281 1742 2203 2672 3076 3497 3937

0.0 0.0 0.0 89.9 87.1 88.4 89.2 90.6 91.0 89.7 83.2

• 2.5 SDCM; 85 CRI typical, 90+ CRI optional

• Fixtures are wet location, covered ceiling

• Available with 10% dimming, 1% dimming, or

dim to dark

• Batwing distribution with feathered edges

provides even illumination on horizontal and
vertical surfaces

medium wide

1.0 S:MH

6"

wide

1.2 S:MH

Coordinated Apertures | Multiple Layers of Light

General Illumination Layer | EVO High Center Beam Layer | Incito

Core

Healthcare

Downlight Adjustable Open

MRI Surgical

Special

Applications

Dynamic Food Ser vice Va ndal/ Tamper Clean Room Shower Steam Ro om

Suite

Wallwash

Patient Room

Lensed

Wallwash

EVO + Incito — Multiple Layers of Light

Cylinder Pinhole Bevel Hyperbolic

EVO6VR
page 1 of 7

GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers, GA 30012 | P 800-705-SERV(7378) | gothamlighting.com
© 2014-2021 Acuity Brands Lighting Inc. All Rights Reserved. Rev. 04/26/21 Specifications subject to change without notice.

6"

General Illumination Vandal Resistant Downlight

ORDERING INFORMATION

A+ Capabl e options indi cated
by this color background.

EXAMPLE: EVO6VR 35/10 AR MWD LSS MVOLT EZ1

Luminaire Type:

Catalog Number:

Series Color Temperature Nominal Lumen Values Reflector & Flange Color Distribution Lens Ty pe

EVO6VR 27/ 2700 K

30/ 3000 K
35/ 3500 K

40/ 4000 K
50/ 5000 K

Voltage Driver

MVOLT
120
277

3,4

347

5

GZ10 0-10V driver dims to 10%
GZ1 0-10V driver dims to 1%
EZ10 eldoLED 0-10V ECOdrive. Linear dimming to 10% min.
EZ1 eldoLED 0-10V ECOdrive. Linear dimming to 1% min.
EZB eldoLED 0-10V SOLOdrive. Logarithmic dimming to <1%.

6

EDAB
EDXB

ECOS2

eldoLED SOLOdrive DALI. Logarithmic dimming to <1%.

6

eldoLED POWERdrive DMX with RDM (remote device management). Square Law dimming to
<1%. Includes termination resistor. Refer to DMXR Manual. Minimum 1000 lumens.

6

Lutron® Hi-Lume® 2-wire forward-phase driver. Minimum dimming level 1%. 120V only. Mini-

02 250 lumens
05 500 lumens
07 750 lumens
10 1000 lumens
15 1500 lumens
20 2000 lumens

25 2500 lumens
30 3000 lumens
35 3500 lumens
40 4000 lumens
45 4500 lumens

AR Clear
PR Pewter
WTR Wheat
GR Gold

1

WR
BR
WRAMF

1

1

White
Black
White Anti-microbial

VND Very Narrow (0.5 s/mh)
ND Narrow (0.7 s/mh)
MD Medium (0.9 s/mh)
MWD Medium Wide (1.0 s/mh)
WD Wide (1.2 s/mh)

Control Interface

7

NLT

3,7,10

NLTER
NLTAIR2
NLTAIRER2
EXA1

nLight® dimming pack
nLight® dimming pack emergency circuit

13

nLight® AIR enabled

3,10,13

nLight® AIR enabled emergency
XPoint Wireless, eldoLED driver. Linear

dimming to 1%

EXAB

XPoint Wireless, eldoLED driver. Logarithmic
dimming to dark

mum 1000lumens/Maximum 4000 lumens.

ECOD6Lutron Ecosystem digital Hi-Lume 1% soft-on, fade to black. Max: 4000LM.

CGL 1/8" clear glass lens
FOL 1/8" tempered flush

opal glass lens

CVX 3/16" clear convex

glass lens

2

PCL

3/16" clear polycar­bonate lenses

2

PPC

1/8" prismatic poly­carbonate lenses

Options

SF Single fuse. Specify 120V or 277V.

8

TRW
TRBL

9

White painted flange
Black painted flange

ELR Emergency battery pack, 10W, with remote test switch
ELRSD Emergency battery pack, 10W, with self-diagnostics, remote

test switch

E10WCPR Emergency battery pack, 10W Constant Power, CA Title 20

compliant with remote test switch

ACCESSORIES — order as separate catalog numbers (shipped separately)

ISD BC 0-10V wallbox dimmer. Refer to ISD-BC.

ORDERING NOTES

1. Not available with finishes.

2. Provided standard with clear polycarbonate underlay (2 lenses total).

3. Not available with emergency battery pack options.

4. Supplied with factory installed step down transformer.

5. Refer to TECH-240 for compatible dimmers.

6. Not available with nLight

7. Specify voltage.

8. For use with different reflector finish only (i.e. AR, PR, WTR, GR op­tions). Not applicable with White Reflector or FL option.

9. For use with different reflector finish only (i.e. AR, PR, WTR, GR options).
Not applicable with Black Reflector or FL option.

®

and XPoint options.

N8011nLight® Lumen Compensation
BGTD Bodine generator transfer device. Specify 120V or 277V.
90CRI High CRI (90+)

12

CP

Chicago plenum. Specify 120V or 277V for 5000lm and
above.

14

PCU

3/16" clear polycarbonate lens underlay (roomside)

RRL_ RELOC

®

-ready luminaire connectors enable a simple and
consistent factory installed option across all ABL lumi­naire brands. Refer to RRL for complete nomenclature

Architectural Colors - Powder Paint

DWHG Textured White (Standard)
DDB Dark Bronze
DBL Black
DWH Gloss White
DMB Medium Bronze
DNA Natural Aluminum

Architectural Colors - Plating

PWR Pewter
SCH Satin Chrome
ORB Oil-Rubbed Bronze

10. ER for use with generator supply power. Will require an emergency hot feed and normal hot
feed.

11. Fixture begins at 80% light level. Must be specified with NTL or NLTER. Only available with
EZ10 and EZ1 drivers.

12. ELR not available. CP and ECOS2 - 3000 lumen max. CP and ECOD - 4000 lumen max.

13. Not available DALI or DMX drivers. Not available with CP or N80 options. Not recommended
for metal ceiling installations.

14. Not available with CVX, PCL or PPC lens.

15. Additional architectural colors available; see www.lithonia.com/archcolors.

15

EVO6VR
page 2 of 7

GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers, GA 30012 | P 800-705-SERV(7378) | gothamlighting.com
© 2014-2021 Acuity Brands Lighting Inc. All Rights Reserved. Rev. 04/26/21 Specifications subject to change without notice.

6"

SPECIFICATIONS

Optical Assembly

Fully serviceable and upgradeable lensed LED light engine suitable for field maintenance or service from below the ceiling.

Optical design is a Bounding RayTM design with 45° cutoff to source and source image. Top-down flash characteristic for superior glare control.

Unitized optics shall have mechanical attachment of the light engine to the lower reflector for complete optical alignment.

Marine-grade die-cast aluminum bezel, low copper alloy (<1% copper)

Stainless steel Torx® T20 tamper-resistant screws

One-piece closed-cell silicone gaskets

General Illumination Vandal Resistant Downlight

Electrical

The luminaire shall operate from a 50 or 60 Hz ±3 Hz AC line over a voltage ranging from 120 VAC to 277 VAC. The fluctuations of line voltage shall have no
visible effect on the luminous output.

The luminaire shall have a power factor of 90% or greater at all standard operating voltages and full luminaire output.

Sound Rated A+. Driver shall be >80% efficient at full load across all input voltages.

Input wires shall be 18AWG, 300V minimum, solid copper.

Controls

Luminaire shall be equipped with interface for nLight wired or wireless network with integral power supply as per specification.

Dimming

The luminaire shall be capable of continuous dimming without perceivable stroboscopic flicker as measured by flicker index (ANSI/IES RP-16-10) over a range
of 100 – 10%, 100 – 1.0% or 100 – 0.1% of rated lumen output with a smooth shut off function to step to 0%.

eldoLED LED drivers shall conform to IEEE P1789 standards. Alternatively, manufacturers must demonstrate conformance with product literature and testing
which demonstrates this performance. Systems that do not meet IEEE P1789 will not be considered.

Driver is inaudible in 24dB environment, and stable when input voltage conditions fluctuate over what is typically experienced in a commercial environment.

Construction

Luminaire housing shall be constructed of 16-gauge galvanized steel and have preinstalled telescopic mounting bars with maximum 32” and minimum 15”
extension and 4” vertical adjustment.

Luminaires shall be suitable for installation in ceilings up to 1½” thick.

Tool-less adjustments shall be possible after installation.

25°C ambient temperature standard (1/2” clearance on all sides unless marked spacing noted otherwise).

Listings

Fixtures are CSA certified to meet US and Canadian Standards: All fixtures manufactured in strict accordance with the appropriate and current requirements of
the “Standards for Safety” to UL, wet location covered ceiling.

IP55 rating (below the mounting surface) standard; IP65 rating with use of silicone at installation. Refer to TECH-200 for ingress protection ratings.

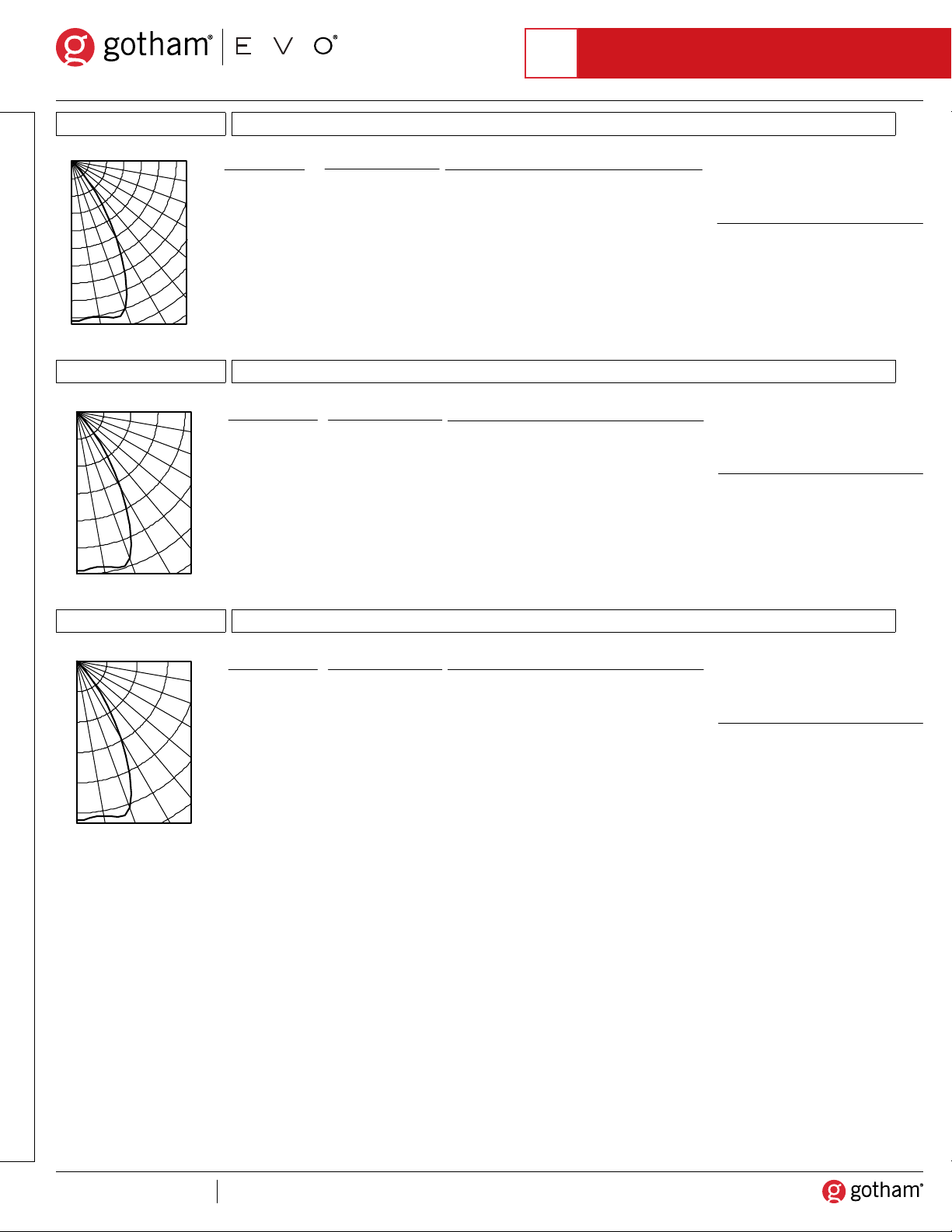

Photometrics

LEDs tested to LM-80 standards. Measured by IESNA Standard LM-79-08 in an accredited lab. Lumen output shall not decrease by more than 30% over the
minimum operational life of 60,000 hours.

Color appearance from luminaire to luminaire of the same type and in all configurations, shall be consistent both initially and at 6,000 hours and operate with­in a tolerance of <2.5 MacAdam ellipse as defined by a point at the intersection of the CCT line and the black body locus line in CIE chromaticity space.

Buy American

This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT.
Please refer to www.acuitybrands.com/buy-american for additional information.

Warranty

5-year limited warranty. Complete warranty terms located at: www.acuitybrands.com/support/customer-support/terms-and-conditions

Note:

Actual performance may differ as a result of end user environment and application.
All values are design or typical values, measured under laboratory conditions at 25 °C.

Capable Luminaire

This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.

• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency

• This luminaire is part of an A+ Certified solution for nLight

• This luminaire is part of an A+ Certified solution for nLight
options marked by a shaded background*

To learn more about A+, visit www.acuitybrands.com/aplus.
*See ordering tree for details

EVO6VR
page 3 of 7

GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers, GA 30012 | P 800-705-SERV(7378) | gothamlighting.com
© 2014-2021 Acuity Brands Lighting Inc. All Rights Reserved. Rev. 04/26/21 Specifications subject to change without notice.

®

control networks when ordered with drivers marked by a shaded background*

®

control networks, providing advanced control functionality at the luminaire level, when selection includes driver and control

6"

General Illumination Vandal Resistant Downlight

Tables of Use

Nomenclature Min Dimming Driver Dim Curve Control Dim Curve

EZ10 10% Linear Linear/Logarithmic

EZ1 1% Linear Linear/Logarithmic

EXA1 1% Linear Linear/Logarithmic

EZB <1% Logarithmic Linear

EDAB <1% Logarithmic Linear

EXAB <1% Logarithmic Linear

EDXB <1% Square Linear

Nomenclature Description NLT NLTER NLTAIR2 NLTAIRER2

GZ10 0-10V driver dims to 10% nPP16 D EFP nPP16 D ER EFP RPP20 D 24V G2 RPP20 D 24V ER G2

GZ1 0-10V driver dims to 1% nPP16 D EFP nPP16 D ER EFP RPP20 D 24V G2 RPP20 D 24V ER G2

EZ10 eldoLED 0-10V ECOdrive nPS 80 EZ nPS 80 EZ ER RPP20 D 24V G2 RPP20 D 24V ER G2

EZ1 eldoLED 0-10V ECOdrive nPS 80 EZ nPS 80 EZ ER RPP20 D 24V G2 RPP20 D 24V ER G2

EZB eldoLED 0-10V SOLOdrive nPS 80 EZ nPS 80 EZ ER RPP20 D 24V G2 RPP20 D 24V ER G2

EVO - eldoLED Driver Default Dimming Curve

Driver

(note: 347V/UVOLT versions provided with 347 option selected)

Control Provided

How to Estimate Delivered Lumens in Emergency Mode

Delivered Lumens = 1.25 x P x LPW

P = Output power of emergency driver. P = 10W for PS1055CP

LPW = Lumen per watt rating of the luminaire. This information is available on the ABL luminaire spec sheet.

Lumen Output Multiplier

CRI CCT Multplier

2700K 0.96

300K 1.00

80

90

Reflector Finish Multiplier

LSS - Semi Specular 0.956

LD - Matte Diffuse 0.85

Nomenclature Beam Angle Field Angle

VND 30 64

ND 44 69

MD 54 82

MWD 67 89

WD 71 92

3500K 1.00

4000K 1.01

5000K 1.07

2700K 0.80

300K 0.83

3500K 0.85

4000K 0.87

5000K 0.91

Reflector Finish Multiplier

LS - Specular 1

WR - White 0.87

BR - Black 0.73

Distributions

EVO6VR
page 4 of 7

GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers, GA 30012 | P 800-705-SERV(7378) | gothamlighting.com
© 2014-2021 Acuity Brands Lighting Inc. All Rights Reserved. Rev. 04/26/21 Specifications subject to change without notice.

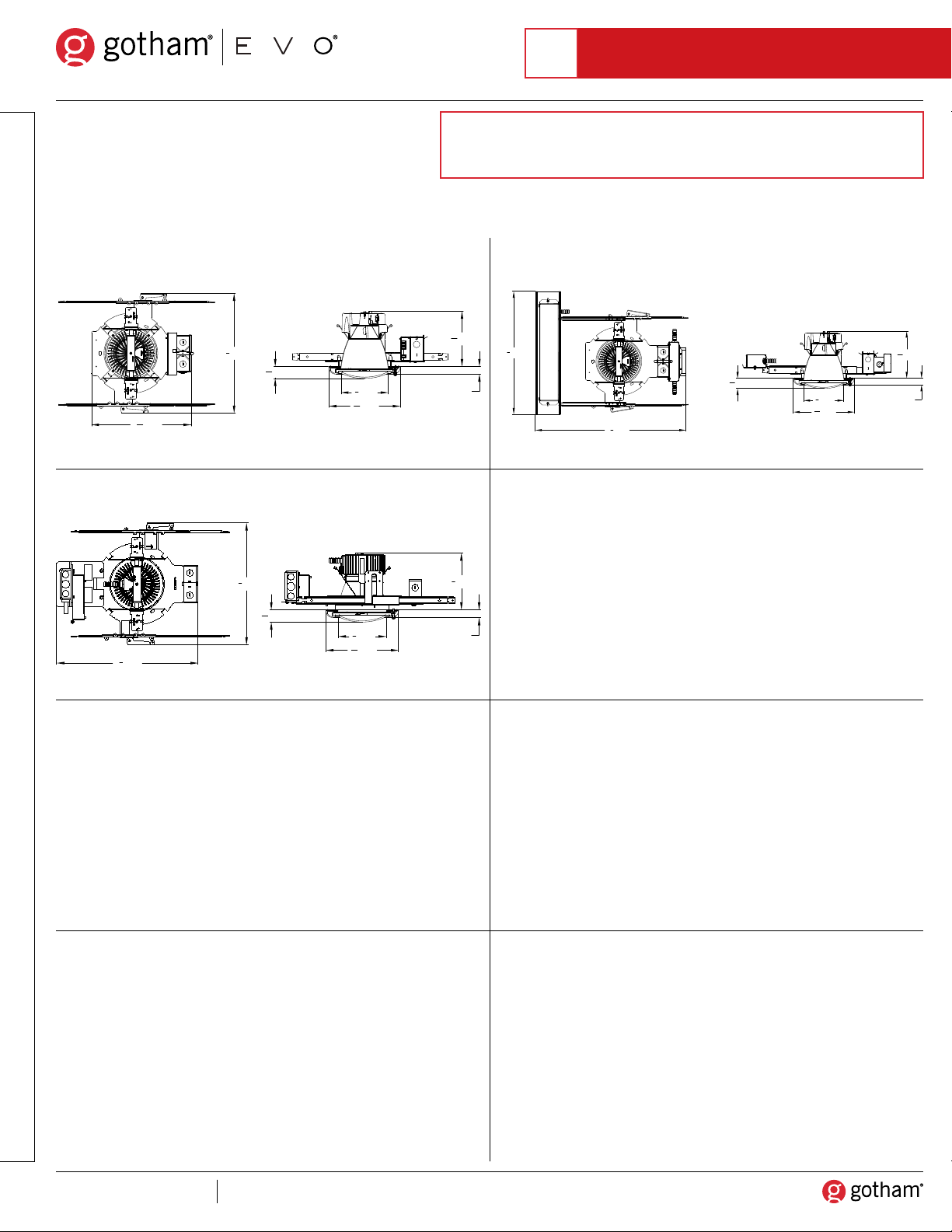

DIMENSIONAL DATA

8

*Dimensions in inches [centimeters]

6"

General Illumination Vandal Resistant Downlight

Aperture: 6 1/4” [15.9)] Ceiling Opening: 7 1/8” [18.1] self-flanged

Overlap Trim: 7 1/2” [19.1]

Standard

5

[18.6]

7

7

15

[40.3]

8

9

[4.0]

1

16

3

[33.5]

13

16

1

[15.9]

6

4
7

[24.0]

9

16

16

1 [2.6]

1

19

[48.5]

8

3

23

[59.4]

Battery Pack

1

16

5

[18.6]

7

16

9

[4.0]

1

[15.9]

6

4
7

[24.0]

9

16

1 [2.6]

CP Open Frame

7

15

[40.3]

8

9

[4.0]

1

16

3

18

[46.7]

8

9

6

16

1

[15.9]

4
7

[24.0]

7

3

[18.8]

8

1 [2.6]

EVO6VR
page 5 of 7

GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers, GA 30012 | P 800-705-SERV(7378) | gothamlighting.com
© 2014-2021 Acuity Brands Lighting Inc. All Rights Reserved. Rev. 04/26/21 Specifications subject to change without notice.

6"

PRINT DATE: TEST NO:
MANUFACTURER:
LUMINAIRE CATALOG NO.:
LUMINAIRE DESCRIPTION:
LUMENS PER LAMP:
[_LAMPTYPE]
[_FAMILY]
[_PRODUCTID]
[_MOUNTING]
[_TOTALLUMINAIRELUMENS ]
[_INPUTWATTAGE]
[_PHYSICALDIMENSIONS]

August 22, 2019 ISF 19805P195

Gotham Architectural Lighting

EVO6VR 35/10 6AR LS CGL

EVO6 Vandal Resistant, 3500K, 1000LM, Clear Refl, Specular Finish, CG L

909.0036

LED

EVO6VR Downlight

677a4a91-be6d-44fc-9fe2-870289552bc7

INDOOR

909

9.6

-0.5, -0.5, 0.5

200

400

600

800

Coefficients of Utilization

Spacing to Mounting Height:1.0

PRINT DATE: TEST NO :
MANUFACTURER:
LUMINAIRE CATALOG NO.:
LUMINAIRE DESCRIPTION:
LUMENS PER LAMP:
[_LAMPTYPE]
[_FAMILY]
[_PRODUCTID]
[_MOUNTING]
[_TOTALLUMINAIRELUMENS ]
[_INPUTWATTAGE]
[_PHYSICALDIMENSIONS]

August 22, 2019 ISF 19805P231

Gotham Architectural Lighting

EVO6VR 35/25 6AR LS CGL

EVO6 Vandal Resistant, 3500K, 2500LM, Clear Refl, Specular Finish, CG L

2319.712

LED

EVO6VR Downlight

540c57ab-1bed-48bb-a6dd-2129694ba38e

INDOOR

2319.7

24.7

-0.5, -0.5, 0.5

1600

Coefficients of Utilization

Spacing to Mounting Height:1.0

PRINT DATE: TEST NO :
MANUFACTURER:
LUMINAIRE CATALOG NO.:
LUMINAIRE DESCRIPTION:
LUMENS PER LAMP:
[_LAMPTYPE]
[_FAMILY]
[_PRODUCTID]
[_MOUNTING]
[_TOTALLUMINAIRELUMENS ]
[_INPUTWATTAGE]
[_PHYSICALDIMENSIONS]

August 22, 2019 ISF 19805P279

Gotham Architectural Lighting

EVO6VR 35/45 6AR LS CGL

EVO6 Vandal Resistant, 3500K, 4500LM, Clear Refl, Specular Finish, CG L

4144.912

LED

EVO6VR Downlight

03c8e0a3-1772-4491-b462-73ed78ffa124

INDOOR

4144.9

47.3

-0.5, -0.5, 0.5

1600

3200

Coefficients of Utilization

Spacing to Mounting Height:1.0

General Illumination Vandal Resistant Downlight

Photometry

EVO6VR 35/10 AR LS CGL

100° 120° 140° 160°180°

0° 20°

EVO6VR 35/25 AR LS CGL

100° 120° 140° 160°180°

800

80°

60°

40°

80°

60°

40°

INPUT WATTS: 9.6, DELIVERED LUMENS: 909LM, LPW = 94.7, 1.01 S/MH, TEST NO. ISF 19805P195

pf 20%

Ave Lumens
918

0

908

5

929

15

726

25

313

35

31

45

4

55

1

65

1

75

0

85

0

90

261
326
195

Zone Lumens % Lamp

0° - 30°

87

34

4
2
1
0

0° - 40°
0° - 60°

0° - 90°
90° - 120°
90° - 130°
90° - 150°
90° - 180°

0° - 180°

*Efficiency

673.8

868.5

906.2

909.0

0.0

0.0

0.0

0.0

909.0

74.1

95.5

99.7

100.0

*100.0

pc 80% 70% 50%

pw 50% 30% 10% 50% 30% 10% 50% 30% 10%

0

119

119

119

116

1

111

108

103

106

99

96

97

92

88

90

85

81

85

79

75

80

74

69

75

69

65

70

65

61

67

61

57

63

57

53

2

0.0

0.0

0.0

0.0

3
4
5

RCR

6
7
8
9

10

109
102

116
107

98

95

91

89

84

84

78

79

73

74

69

70

64

66

60

62

57

116
105

95
87
80
74
69
65
60
57
53

111
105

111

111

103

101

98

95

93

93

89

87

83

82

77

77

72

73

68

69

64

65

60

62

57

Mounting

86

Height

79

8.0

74

10.0

69

12.0

64

14.0

60

16.0

56
53

INPUT WATTS: 24.7, DELIVERED LUMENS: 2319.7LM, LPW = 94, 1.01 S/MH, TEST NO. ISF 19805P231

pf 20%

Ave Lumens

0

2344

5

2318

15

2371

25

1852

35

798

45

80

55

10
65
75
85
90

Zone Lumens % Lamp
0° - 30°
0° - 40°

221

0° - 60°

666

0° - 90°

833

90° - 120°

497

90° - 130°

86

90° - 150°

10
4
2
0
0

90° - 180°

4

0° - 180°

2
1

*Efficiency

1719.6

2216.2

2312.5

2319.7

0.0

0.0

0.0

0.0

2319.7

74.1

95.5

99.7

100.0

*100.0

pc 80% 70% 50%

pw 50% 30% 10% 50% 30%10% 50% 30% 10%

0

119

119

119

116

1

111

108

103

106

99

96

97

92

88

90

85

81

85

79

75

80

74

69

75

69

65

70

65

61

67

61

57

63

57

53

2
3

0.0

4

0.0

5

RCR

0.0

6

0.0

7
8
9

10

109
102

95
89
84
79
74
70
66
62

116
107

98
91
84
78
73
69
64
60
57

116
105

111

111

111

105

103
95
87
80
74
69
65
60
57
53

101

98

95

93

93

89

87

83

82

77

77

72

73

68

69

64

65

60

62

57

Mounting

86

Height

79
74

10.0

69

12.0

64

14.0

60

16.0

56
53

50% beam -

Inital FC

Center

Beam Diameter FC Diameter FC

30.4

16.3

10.2

6.9

5.0

Inital FC

Center

Beam Diameter FC Diameter FC

8.0

77.5

41.7

26.0

17.7

12.9

53.6°

5.6

15.2

7.6

8.2

9.6

5.1

11.6

3.5

13.6

2.5

50% beam -

53.6°

5.6

38.7

7.6

20.8

9.6

13.0

11.6

8.9

13.6

6.4

10% beam -

76.8°

8.7

11.9

15.1

18.2

21.4

10% beam -

76.8°

8.7

11.9

15.1

18.2

21.4

3.0

1.6

1.0

0.7

0.5

7.7

4.2

2.6

1.8

1.3

0° 20°

EVO6VR 35/25 AR LS CGL

100° 120° 140° 160°180°

80°

60°

0° 20°

40°

INPUT WATTS: 47.3, DELIVERED LUMENS: 4145LM, LPW= 87.6, 1.01 S/MH, TEST NO. ISF 19805P279

pf 20%

Ave Lumens

0

4188

5

4142

15

4237

25

3309

35

1426

45

142

55

18
65
75
85
90

Zone Lumens % Lamp
0° - 30°
0° - 40°

395

0° - 60°

1189

0° - 90°

1489

90° - 120°

887

90° - 130°

154

90° - 150°

18
7
3
0
0

90° - 180°

8

0° - 180°

4
1

*Efficiency

3072.6

3960.0

4132.0

4144.8

0.0

0.0

0.0

0.1

4144.9

74.1

95.5

99.7

100.0

*100.0

pc 80% 70% 50%

pw 50% 30% 10% 50% 30%10% 50% 30% 10%

0
1
2
3

0.0

4

0.0

5

RCR

0.0

6

0.0

7
8
9

10

119
111
103

119

119

116

116

116

111

111

108

106

109

107

99

96

97

92

88

90

85

81

85

79

75

80

74

69

75

69

65

70

65

61

67

61

57

63

57

53

102

95
89
84
79
74
70
66
62

105

98

95

91

87

84

80

78

74

73

69

69

65

64

60

60

57

57

53

105

98
93
87
82
77
73
69
65
62

103

95
89
83
77
72
68
64
60
57

111
101

93

Mounting

86

Height

79

8.0

74

10.0

69

12.0

64

14.0

60

16.0

56
53

50% beam -

5.6

7.6

9.6

11.6

13.6

53.6°

Inital FC

Center

Beam Diameter FC Diameter FC

138.4

74.5

46.4

31.7

23.0

69.2

37.2

23.2

15.8

11.5

10% beam -

76.8°

8.7

13.8

11.9

15.1

18.2

21.4

7.4

4.6

3.2

2.3

EVO6VR
page 6 of 7

GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers, GA 30012 | P 800-705-SERV(7378) | gothamlighting.com
© 2014-2021 Acuity Brands Lighting Inc. All Rights Reserved. Rev. 04/26/21 Specifications subject to change without notice.

6"

General Illumination Vandal Resistant Downlight

NLIGHT AIR NLIGHT

nLight® AIR is the ideal solution for retrofit or new construction spaces where

adding communication wiring is cost prohibitive. The integrated nLight AIR
rPP20 Power Pack is part of each EVO Luminaire ordered with the NLTAIR option.
These individually addressable controls offer the ultimate in flexibility during
initial setup and for space repurposing.

nLight® AIR Control Accessories

Order as separate catalog number. Visit nLight AIR.

Wall Switches

On/Off single pole

On/Off two pole

On/Off & raise/lower single pole

On/Off & raise/lower two pole

®

AIR Control Accessories (cont.)

nLight

Occupancy Sensors (PIR/dual tech)

Small motion 360

Large motion 360

o

, ceiling

o

, ceiling

Model Number

rPODB (color) G2

rPODB 2P (color) G2

rPODB DX (color) G2

rPODB 2P DX (color) G2

Model Number

rCMS 9 / rCMS PDT 9

rCMS 10 / rCMS PDT 10

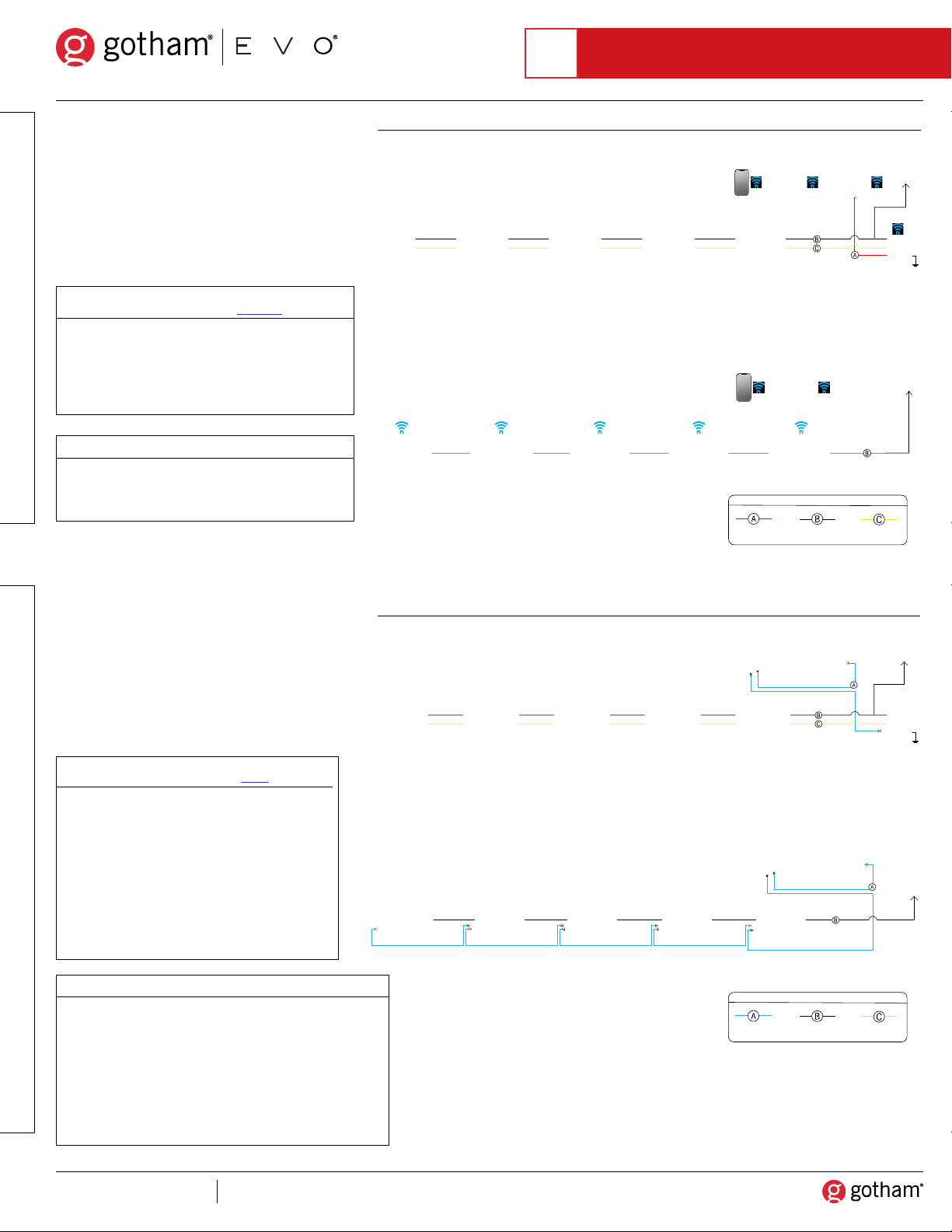

Possibilites for nLight

®

AIR

Fixtures ordered without the NLTAIR option

Fixtures ordered with the NLTAIR option

CLAIRITYTM Pro

Mobile App

CLAIRITYTM Pro

Mobile App

+24v DC Aux Line Power

rPODB rCMS

rPODB

Wiring Key

rPP20

Low Voltage

Dimming Wires

®

The nLight® solution is a digital networked lighting control system

nLight

that provides both energy savings and increased user configurability by cost
effectively integrating time-based, daylight-based, sensor-based and manual
lighting control schemes.

®

nLight

Wired Control Accessories

Order as separate catalog number. Visit nLight.

Wall Switches

On/Off single pole

On/Off two pole

On/Off & raise/lower single pole

On/Off & raise/lower two pole

Graphic touchscreen

Model Number

nPODM (color)

nPODM 2P (color)

nPOD DX (color)

nPODM 2P DX (color)

nPOD GFX (color)

Photocell Controls

Dimming

nCM ADCX

nLight® Wired Control Accessories (cont.)

Occupancy Sensors (PIR/dual tech)

Small motion 360

Large motion 360

o

, ceiling

o

, ceiling

Wide View

Wall switch with raise/lower

Model Number

nCM 9 / nCM PDT 9

nCM 10 / nCM PDT 10

nWV 16 / nWV PDT 16

nWSX LV DX / nWSX PDT LV DX

Cat-5 Cables (plenum rated)

10’, CAT5

15’, CAT5

CAT5 10FT J1

CAT5 15FT J1

Possibilites for nLight® wired

Fixtures ordered without the NLT option

Fixtures ordered with the NLT option

nCM

nCM nPODM

Wiring Key

CAT-5e Cable Line Power

nPODM

nPS 80 EZ or nPP16 D

Low Voltage

Dimming Wires

EVO6VR
page 7 of 7

GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers, GA 30012 | P 800-705-SERV(7378) | gothamlighting.com
© 2014-2021 Acuity Brands Lighting Inc. All Rights Reserved. Rev. 04/26/21 Specifications subject to change without notice.
