GOTHAM Architectural Downlighting User Manual

Luminaire Type:
Catalog Number
(autopopulated):

Gotham Architectural Downlighting
LED Downlights

6" Incito® Square

Downlight

Solid-State Lighting
(US and International Patents Pending)

Buy American

FEAT URES ORDERING INFORMATION

INTENDED USE

• Achieve the lowest installed power density and operating costs while achieving
every layer of light via the optimized general illumination distributions from
the EVO family, and the high centerbeam accent layers from the highly flexible
Incito family. The EVO and Incito families maintain consistent luminous
apertures, dimming characteristics, and color quality to ensure the blending of
families in common spaces renders an unparalleled, tailored visual experience.

OPTICAL SYSTEM

• Ten optimized distribution patterns allow designers to achieve tailored effects.

• Self-flanged semi-specular or matte-diffuse lower reflector utilized in
combination with a highly transmissive lens.

• Patented Bounding Ray™ Optical Principle design (U.S. Patent No. 5,800,050)
provides smooth and continuous transition from lensed source to the top of the
reflector down to the bottom of the reflector.

MECHANICAL SYSTEM

• Light engine and driver are accessible from above or below ceiling.

• 16-gauge black painted steel mounting frame with C-channel mounting bars
included. Post-installation adjustment possible from above or below ceiling.

• Galvanized steel junction box with hinged access covers and spring latch. Three
combination 1/2"-3/4" and one 1/2" knockout for straight-through conduit runs.
Capacity: 8 (4in, 4out) No. 12 AWG conductors rated for 90°C.

• Accommodates up to 1½"-thick ceilings.

• Patented adjustable aperture allows 1/4" adjustments in all directions and up to
5° of rotation allowing post-installation adjustments to ensure proper alignment.

A+ Capable options
indicated by this
color background

EXAMPLE: ICO SQ 30/50 6ARFL LSS 20D 120 EZB

Series

temperature

ICO SQ 27/ 2700 K

30/ 3000 K
35/ 3500 K
40/ 4000 K

Color

Nominal lumen
values

25 2500 lumens
30 3000 lumens
35 3500 lumens
40 4000 lumens
45 4500 lumens

50 5000 lumens

Design2Ship Quick Ship Program: Options in green text qualify
for Design2Ship — 5 business days from order entry to ship. Refer
to Design2Ship Brochure for complete program details. Maximum

Order Quantity: 50 units.

1

Aperture/Trim color Trim st y le Finish Beam Voltage

6AR Clear

6PR Pewter
6WTR Wheat
6GR Gold

2

6WR
6BR

White

2

Black

(blank) Self-

FL Flangeless

55 5500 lumens
60 6000 lumens
65 6500 lumens
70 7000 lumens
75 7500 lumens
80 8000 lumens
85 8500 lumens

ELECTRICAL SYSTEM

• Solid-state LED light engine available in 2700 K, 3000 K, 3500 K or 4000 K
color temperatures. CRI: 85 typical.

• eldoLED ecoDrive 0-10V driver available with 10% dimming level.

• eldoLED ecoDrive 0-10V driver available with 1% dimming level.

• eldoLED SOLOdrive 0-10V driver available with <1% dimming level.

• eldoLED SOLOdrive DALI driver available with <1% dimming level.

• eldoLED POWERdrive DMX with RDM (remote device management) available
with <1% dimming level.

• Rated system life of 60,000 hours at >70% output.

• Emergency battery pack with remote test switch available.

• Tested in accordance with LM-79 and LM-80 standards.

LISTINGS

• Fixtures are CSA certified to meet US and Canadian standards; wet location,
covered ceiling.

BUY AMERICAN

• This product is assembled in the USA and meets the Buy America(n)
government procurement requirements under FAR, DFARS and DOT. Please
refer to www.acuitybrands.com/buy-american for additional information.

WARRANTY

• 5-year limited warranty. Complete warranty terms located at:

www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx

Note: Actual performance may differ as a result of end user environment and application.
All values are design or typical values, measured under laboratory conditions at 25 °C.

flanged

LSS Semi-specular
LD Matte diffuse

20D 20° beam angle
25D 25° beam angle
30D 30° beam angle

120
277
347

3

35D 35° beam angle
40D 40° beam angle
45D 45° beam angle
55D 55° beam angle
60D 60° beam angle
65D 65° beam angle
70D 70° beam angle

Driver Options

EZ10 eldoLED 0-10V ECOdrive. Linear dimming to 10% min.
EZ1 eldoLED 0-10V ECOdrive. Linear dimming to 1% min.

EZB eldoLED 0-10V SOLOdrive. Logarithmic dimming to

<1%.

SF Single fuse

TRW
TRBL

ELR

EDAB eldoLED SOLOdrive DALI. Logarithmic dimming to <1%.
EDXB

eldoLED POWERdrive DMX with RDM (remote device
management). Square Law dimming to <1%. Includes
termination resistor. Refer to DMXR Manual.

7

CP

BGTD Bodine generator

CRI90 High CRI (90+)

ICO-SQ-6-OPEN

PAGE 1 OF 3

GOTHAM ARCHITECTURAL DOWNLIGHTING | P 800.705.SERV (7378) | gothamlighting.com

© 2012-2021 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 04/27/21. Specifications subject to change without notice.

4

White painted flange

5

Black painted flange

6

Emergency battery pack
with remote test switch,
CEC compliant
Chicago plenum

transfer device

HAO High ambient capability up to 40°C. Fixture height is 10-3/8".

NPS80EZ nLight
NPS80EZ ER

9

LTVI

®

8

dimming pack controls 0-10V eldoLED drivers.
nLight® dimming pack controls 0-10V eldoLED drivers. ER
controls fixtures on emergency circuit.

Lutron ECOsystem interface for compatibility with 0-10V
EZ10, EZ1 or EZB.

RRL__

RELOC®-ready luminaire connectors enable a simple and
consistent factory installed option across all ABL luminaire
brands. Refer to RRL for complete nomenclature. Available
only in RRLA, RRLB, RRLAE, and RRLC12S.

6" INCITO SQUARE
Open Reflector

Solid-State Lighting

DIMENSIONAL DATA ELECTRICAL NOTES

All dimensions are inches (centimeters) unless otherwise noted.

1

10

[26.7]

2

8

16

5

[21.2]

*

Incito Square Downlight - Flanged

1

15

[38.2]

16

Aperture: 6-1/8 [15.6]

* HIGH AMBIENT FIXTURE HEIGHT - 10-5/8"
Ceiling opening: 6-9/16 [16.7]
Overlap trim: 7-3/16 [18.3] self-flanged
6-7/16 [16.4] flangeless

Incito Square Downlight – Flangless (FL)

WATTAGE CONSUMPTION MATRIX

LUMENS

20 25 30 35 40 45 55 60 65 70

BEAM ANGLES

8500 108.7 108.7 10 8.7 10 8.7 108.7 108.7 108.7 108.7 108 .7 108.7
8000 99.8 99.8 99.8 99.8 99.8 99.8 99.8 99.8 99.8 99.8
7500 95.5 95.5 95.5 95.5 95.5 95.5 95.5 95.5 95.5 95.5
7000 86.7 86.7 86.7 86.7 86.7 86.7 86.7 86.7 86.7 86.7
6500 82.3 82.3 82.3 82.3 82.3 82.3 82.3 82.3 82.3 82.3
6000 73.6 73.6 73.6 73.6 73.6 73.6 73.6 73.6 73.6 73.6
5500 65.1 65.1 65.1 65.1 65.1 65.1 65.1 65.1 65.1 65.1
5000 60.9 60.9 60.9 60.9 60.9 60.9 60.9 60.9 60.9 60.9
4500 52.5 52.5 52.5 52.5 52.5 52.5 52.5 52.5 52.5 52.5
4000 56.9 56.9 56.9 56.9 56.9 56.9 56.9 56.9 56.9 56.9
3500 48.3 48.3 48.3 48.3 48.3 48.3 48.3 48.3 48.3 48.3
3000 39.9 39.9 39.9 39.9 39.9 39.9 39.9 39.9 39.9 39.9
2500 36.1 36.1 36.1 36.1 36.1 36.1 36.1 36.1 36.1 36.1
2000 33 33 33 33 33 33 33 33 33 33

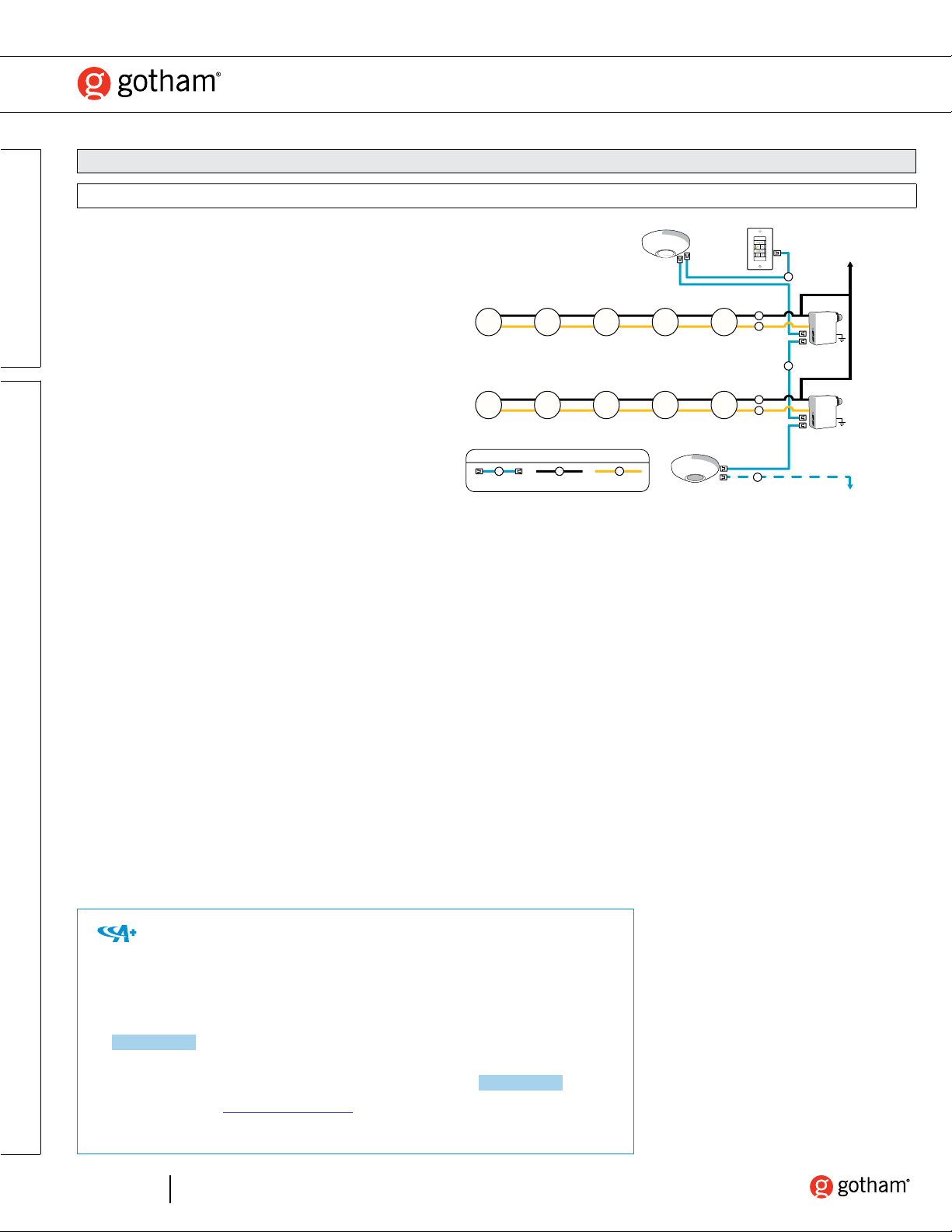

Order as separate catalog number. Visit www.acuitybrands.com/products/controls/nlight for complete listing of nLight controls.

WallPod stations Model number Occupancy sensors Model number

On/Off nPODM [color] Small motion 360°, ceiling (PIR / dual tech) nCM 9 / nCM PDT 9

EL/ELR AVAILABILITY / COMPATIBILITY – Initial Lumens

LED Initial Lumens

Product Lumens Watts

EL/
ELR

ELRHL

On/Off & Raise/Lower nPODM DX [color] Large motion 360°, ceiling (PIR / dual tech) nCM 10 / nCM PDT 10
Graphic Touchscreen nPOD GFX [color] Wide view (PIR / dual tech) nWV 16 / nWV PDT 16
Photocell controls Model number Wall Switch w/ Raise/Lower (PIR / dual tech) nWSX LV DX / nWSX PDT LV DX
On/Off & Dimming nCM ADCX Cat-5 cables (plenum rated) Model number

ICO 6" 2000-8500 24-101 580 N/A

ORDERING NOTES

1. Nominal downlight lumens.

2. Not available with finishes. Not available with flangeless (FL) trim style.

3. Add 2" to over all height.

4. Not available with white reflector. Not applicable with FL option.

5. Not available with black reflector. Not applicable with FL option.

© 2012-2021 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 04/27/21. Specifications subject to change without notice.

nLight® Control Accessories:

10', CAT5 10FT CAT5 10FT J1
15', CAT5 15FT CAT5 15FT J1

6. For dimensional changes, refer to TECH-140. Must specify 120V or 277V.
Not available with 347V.

7. Chicago plenum available 7500 lumens and below.

8. For use with generator supply EM power. Will require an emergency hot feed
and normal hot feed

9. Shipped installed from the factory. Not available with CP.
