Gotham 8 AHZ SpecSheet

Luminaire Type: Catalog Number (autopopulated):
Gotham Architectural Downlighting HID Low-Profile Downlights
8” AHZ
Open Reflector
Horizontal, Metal Halide Lamp
FEAT URES ORDERING INFORMATION NOTES
OPTICAL SYSTEM
• Self-flanged, semi-specular or matte-diffuse reflector. Patented Bounding Ray™ Optical Principle design (U.S. Patent No. 5,800,050).
MECHANICAL SYSTEM
• 16-gauge galvanized steel construction; maximum 1-1/2” ceiling thickness.
• Telescopic mounting bars maximum of 32” and minimum of 15”, preinstalled,
4” vertical adjustment.
• Toolless adjustments post installation.
• Junction box capacity: 8 (4 in, 4 out) No. 12AWG rated for 90°C.
ELECTRICAL SYSTEM
• Galvanized steel lampholder housing.
• Medium-base porcelain socket with nickel-plated screw shell.
• Thermally activated insulation detector.
EXAMPLE: AHZ 100M 8AR 120
LISTING
• Fixtures are UL Listed for thru-branch wiring, non-IC recessed mounting and damp locations. Listed and labeled to comply with Canadian standards.
WARRANTY
• 1-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Series Wattage/Lamp Aperture/Trim color Finish Voltage Options
AHZ
Metal halide
50M MP50/C/U/MED 70M MP70/C/U/MED 100M MP100/C/U/MED
Color-corrected metal halide
50MHC MPC50/C/U/MED 70MHC MPC70/C/U/MED 100MHC MPC100/C/U/MED
8AR Clear 8PR Pewter 8WTR Wheat 8WR
1
8BC 8MB 8WB
2
2
2
2
White painted Black cone Black baffle White baffle
(blank) Semi-
specular
LD Matte-
diffuse
120 277 347
TRW White painted flange TRBL Black painted flange CP Chicago plenum
3
RRL
RELOC®-ready luminaire. Provides compatibility with Lithonia RELOC system. Access above ceiling required.
4
QRS
Quartz restrike system
5
QRSTD
Quartz restrike system with time delay
6
EC
Emergency circuit
SF Single fuse WLP With lamp (shipped separately) GSKT Foam gasketing
ACCESSORIES order as separate catalog numbers (shipped separately)
SCA8 Sloped ceiling adapter
. Degree of slope must be specified (10D, 15D, 20D, 25D, 30D). Ex: SCA8 10D
ORDERING NOTES
1. Ceramic arc tube consistent-color lamp. Phillips Master Color or GE Constant Color.
2. Not available with LD finish.
3. For compatible RELOC systems, refer to TECH-110.
4. Uses 100W max. DC-base quartz lamp.
AHZ-8-OPEN
PAGE 1 OF 3
GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com
© 2006-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 06/26/13. Specifications subject to change without notice.
5. Lamp remains on for two minutes after HID lamp restrikes.
6. DC socket with leads for connection to external emergency power source; max. 100W lamp.
8” AHZ Open Reflector
Horizontal, Metal Halide Lamp
DIMENSIONAL DATA
All dimensions are inches (centimeters) unless otherwise noted.
8-3/4
(22.2)
17-3/4 (45.1)
Aperture: 7-7/8 (20.1) Ceiling Opening: 8-7/8 (22.5) Overlap Trim: 9-1/4 (23.5)
20-1/4 (51.4)
GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com
© 2006-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 06/26/13. Specifications subject to change without notice.
AHZ-8-OPEN
PAGE 2 OF 3
8” AHZ
Open Reflector
Horizontal, Metal Halide Lamp

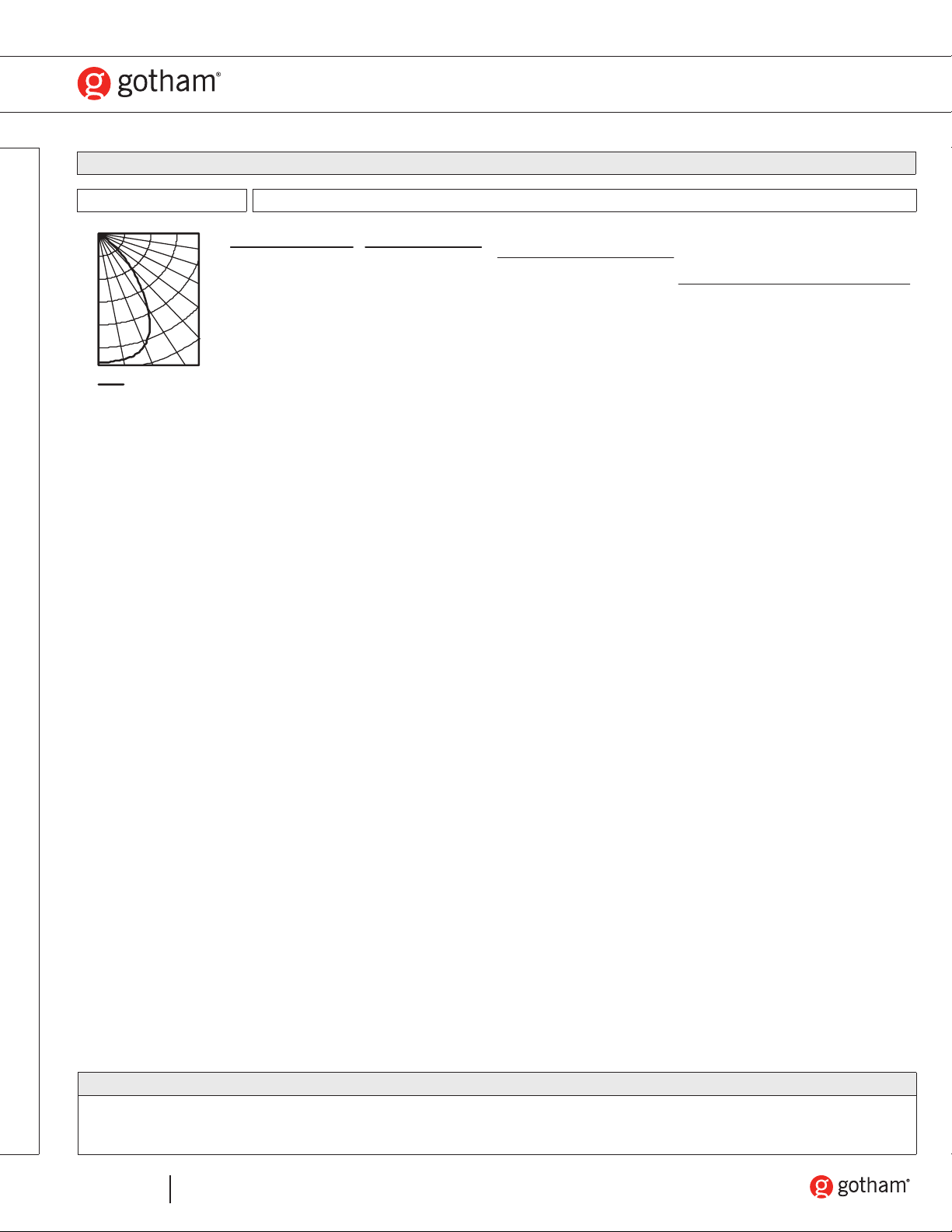

PHOTOMETRY
Distribution Curve Distribution Data Output Data Coefficient of Utilization Illuminance: Single Luminaire 30” Above Floor
AHZ 100M 8AR
500
1000
1500
2000
2500
0° 10° 20° 30°
Average
90°
80°
70°
60°
50°
40°
(1) MP100/C/U/MED LAMP, 7900 RATED LUMENS, 1.1 S/MH, TEST NO. LTL14302
.47 .43 .39 .36 .33 .30 .28 .26 .24 .22
.48 .44
.41 .38 .35 .33 .30 .28 .27 .25
20%
.47 .42 .39 .35 .33 .30 .28 .26 .24 .22
From 0° AveLumens
0
2823
5
2819 2743 2313 1385
590
62
268 769
1047
865 455
78
5
5
2
2
0
0
0
15 25 35 45 55 65 75 85 90
Zone Lumens % Lamp
2084.5
0° - 30°
2949.3
0° - 40°
3482.6
0° - 60°
3490.1
0° - 90°
90° - 180°
0° - 180°
0.0
3490.1
*E fficiency
*44.2
26.4
37.3
44.1
44.2
0.0
pf
80%70% 50%
pc
50%30% 50%30% 50%30%
pw
.49
1
.45
2
.41
3
.38
4 5
.36
6
.33
7
.31
8
.29
9
.27
10
.25
.46 .43 .40 .37 .34 .32 .30 .28 .26 .25
.45 .41 .38 .35 .32 .30 .27 .26 .24 .22
Mount height
8 10 12 14 16
Inital fc at be am
center
93.3
50.2
31.3
21.3
15.5
50% be am angle
56.2° fc at
beam
Beam
5.9
8.0
10.1
12.3
14.4
edge
46.7
25.1
15.6
10.7
7.7
diameter
10% be am angle
86.1° fc at
beam
Beam
10.3
14.0
17.7
21.5
25.2
edge
9.3
5.0
3.1
2.1
1.5
diameter
PHOTOMETRY NOTES
• Tested to current IES and NEMA standards under stabilized laboratory conditions.
• Actual performance may differ as a result of end-user environment and application.
• Consult factory or IES file for microgroove baffle, black cone or other photometric reports.
AHZ-8-OPEN
PAGE 3 OF 3
