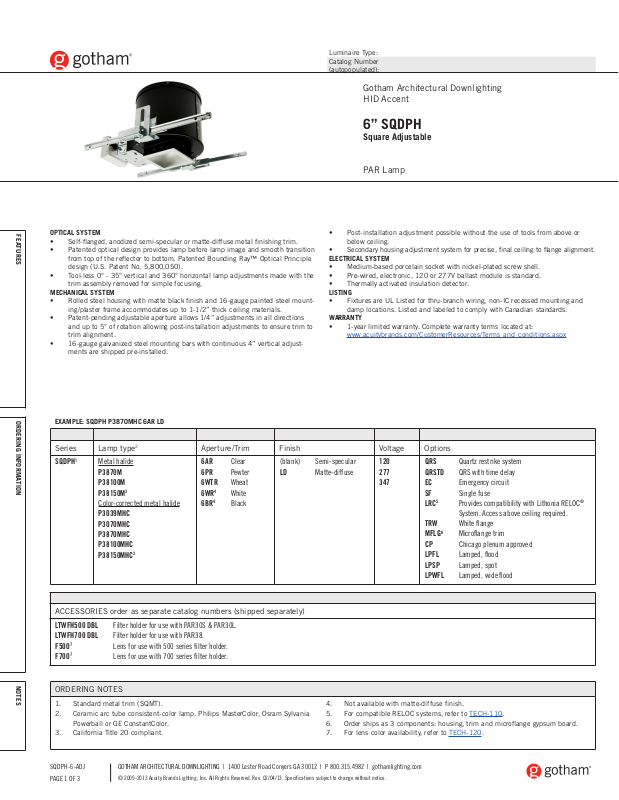

Gotham 6 SQDPH SpecSheet
Luminaire Type:
Catalog Number
(autopopulated):
Gotham Architectural Downlighting
HID Accent
6” SQDPH
Square Adjustable
PAR Lamp
FEAT URE S ORDERING INFORMATION NOTES
OPTICAL SYSTEM
• Self-flanged, anodized semi-specular or matte-diffuse metal finishing trim.
• Patented optical design provides lamp before lamp image and smooth transition
from top of the reflector to bottom. Patented Bounding Ray™ Optical Principle
design (U.S. Patent No. 5,800,050).
• Tool-less 0° - 35° vertical and 360° horizontal lamp adjustments made with the
trim assembly removed for simple focusing.
MECHANICAL SYSTEM
• Rolled steel housing with matte black finish and 16-gauge painted steel mounting/plaster frame accommodates up to 1-1/2” thick ceiling materials.
• Patent-pending adjustable aperture allows 1/4” adjustments in all directions
and up to 5° of rotation allowing post-installation adjustments to ensure trim to
trim alignment.
• 16-gauge galvanized steel mounting bars with continuous 4” vertical adjustments are shipped pre-installed.
EXAMPLE: SQDPH P3870MHC 6AR LD
Series Lamp type
1
SQDPH
Metal halide
P3870M
P38100M
P38150M
Color-corrected metal halide
2
3
Ap e r tur e / Trim Finish Voltage Options
6AR Clear
6PR Pewter
6WTR Wheat
4
6WR
White
4
6BR
Black
(blank) Semi-specular
LD Matte-diffuse
P3039MHC
P3070MHC
P3870MHC
P38100MHC
P38150MHC
3
• Post-installation adjustment possible without the use of tools from above or
below ceiling.
• Secondary housing adjustment system for precise, final ceiling to flange alignment.
ELECTRICAL SYSTEM
• Medium-based porcelain socket with nickel-plated screw shell.
• Pre-wired, electronic, 120 or 277V ballast module is standard.
• Thermally activated insulation detector.
LISTING
• Fixtures are UL Listed for thru-branch wiring, non-IC recessed mounting and
damp locations. Listed and labeled to comply with Canadian standards.
WARRANTY
• 1-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
120
277
347
QRS Quartz restrike system
QRSTD QRS with time delay
EC Emergency circuit
SF Single fuse
5
LRC
Provides compatibility with Lithonia RELOC®
System. Access above ceiling required.
TRW White flange
6
MFLG
Microflange trim
CP Chicago plenum approved
LPFL Lamped, flood
LPSP Lamped, spot
LPWFL Lamped, wide flood
ACCESSORIES order as separate catalog numbers (shipped separately)
LTWFH500 DBL Filter holder for use with P
LTWFH700 DBL Filter holder for use with PAR38.
7
F500
F700
7
Lens for use with 500 series filter holder.
Lens for use with 700 series filter holder.
AR30S & PAR30L.
ORDERING N OTES
1. Standard metal trim (SQMT).
2. Ceramic arc tube consistent-color lamp. Philips MasterColor, Osram Sylvania
Powerball or GE ConstantColor.
3. California Title 20 compliant.
SQDPH-6-ADJ
PAGE 1 OF 3
GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com
© 2009-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 02/04/13. Specifications subject to change without notice.
4. Not available with matte-diffuse finish.
5. For compatible RELOC systems, refer to TECH-110.
6. Order ships as 3 components: housing, trim and microflange gypsum board.
7. For lens color availability, refer to TECH-120.
6” SQDPH
Square Adjustable
PAR Lamp
DIMENSIONAL DATA
All dimensions are inches (centimeters) unless otherwise noted.
13-7/8
19-7/8
(35.2)
(50.6)
Ceiling opening: 6-5/8 (16.8)
Overlap trim: 7-3/16 (18.3)
Aperture opening: 5-15/16 (15.1)
21-3/4
(55.2)
GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com
© 2009-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 02/04/13. Specifications subject to change without notice.
SQDPH-6-ADJ
PAGE 2 OF 3
