Luminaire Type:
Catalog Number
(autopopulated):
Gotham Architectural Downlighting
Compact Fluorescent Downlights
5” AFV
Open Reflector
Vertical Lamp
Double Twin-Tube or Triple-Tube
FEAT URES ORDERING INFORMATION
OPTICAL SYSTEM
• Self-flanged, semi-specular or matte-diffuse reflector. Patented Vertisys® Bounding Ray™ Optical Principle design (US Patent No. 5,800,050).
MECHANICAL SYSTEM
• 16-gauge galvanized steel construction; maximum 7/8” ceiling thickness.
• Telescopic mounting bars maximum of 32” and minimum of 15”, preinstalled,
4” vertical adjustment.
• Toolless post-installation adjustments.
• Junction box capacity: 8 (4 in, 4 out) 12AWG rated for 90°C.
ELECTRICAL SYSTEM
• Rugged aluminum lampholder housing.
• Vertically mounted, positive-latch, thermoplastic socket.
• Class P, thermally protected, high-power-factor electronic ballast mounted to the
junction box.
• SIMPLY5™ technology available.
EXAMPLE: AFV 26TRT 5AR MVOLT WLP
LISTING
• Fixtures are UL Listed for thru-branch wiring, non-IC recessed mounting and
damp locations. Listed and labeled to comply with Canadian standards.
WARRANTY
• 1-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Series Wattage/Lamp Aperture/Trim color Finish Lens type Voltage Ballast
AFV 13DTT
13TRT
18TRT
26TRT
32TRT
5AR Clear
5PR Pewter
5WTR Wheat
1
5WR
White painted
1
5MB
Black baffle
1
5WB
White baffle
(blank) Semi-specular
LD Matte-diffuse
(blank) No lens
CGL Clear glass lens
PCL Clear polycar-
bonate lens
MVOLT
120
277
347
2
(blank) Electronic ballast
ECOS
ADEZ
ADZT
3
2, 4
Lutron® EcoSystem® electronic dimming
ballast. Minimum dimming level 5%
4, 5
Advance Mark 10® electronic dimming
ballast. Minimum dimming level 5%
2
Advance Mark 7® electronic dimming
ballast. Minimum dimming level 5%
Options
5, 6
ELR
ELRHL
GMF
GLR
Emergency battery pack with remote test switch
5, 6
High-lumen-output emergency battery pack with remote test switch
7
Single, slow-blow fuse
7
Single, fast-blow fuse
TRW White painted flange (standard on MB and WB)
TRBL Black painted flange
GSKT Foam gasketing
WLP With 3500 K lamp (shipped separately)
8
RRL
RELOC®-ready luminaire. Provides compatibility with Lithonia RELOC system. Access above ceiling required.
HW Hardwire for S5 system; replaces RELOC
9
CP
BDP
Chicago plenum
9, 10
Ballast disconnect plug
NEPP Interface for Sensor Switch
TN-623-01.
WL Wet location; lens required
11
WRL
Wattage restriction label
TWS Twist lock socket
ACCESSORIES order as separate catalog numbers (shipped separately)
SCA5 Sloped ceiling adapter. Degree of slope must be specified (10D, 15D, 20D, 25D, 30D). Ex: SCA5 10D.
AFV-5-OPEN
PAGE 1 OF 3
GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com
© 2003-2014 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 01/30/14. Specifications subject to change without notice.
®
®
nLight® network with integral power supply. Refer to
5” AFV
(33.3)
Open Reflector
Vertical Lamp, Double Twin-Tube or Triple-Tube
DIMENSIONAL DATA ELECTRICAL NOTES
All dimensions are inches (centimeters) unless otherwise noted.
13-7/8
(35.2)
13-1/8
Aperture: 5 (12.7)
Ceiling opening: 5-1/2 (14.0)
Overlap trim: 6-1/4 (15.9)
Lens recess:
1-1/2 (3.8)
9-1/8
(23.2)
ENERGY
Annual LampBallast Input
LER.DOHEnergy Cost LampsLumensFactor Watts
30 $7.99 (1) 26TRT1800.98 27
Calculated in accordance with NEMA standard LE-5.
ORDERING NOTES
1. Not available with finishes.
2. Multi-volt electronic ballast capable of operating on any voltage from 120V
through 277V, 50 or 60 Hz.
3. For additional ballast types, refer to TECH-250.
4. Not available with 13W.
5. Available in 120V or 277V only.
6. For dimensional changes, refer to TECH-140.
7. Not available with MVOLT;must specify voltage
8. For compatible RELOC systems, refer to TECH-110.
9. Not available with ELR or ELRHL option.
10. Meets codes that require in-fixture disconnect.
11. Must specify wattage: Ex.: WRL26
GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com
© 2003-2014 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 01/30/14. Specifications subject to change without notice.
AFV-5-OPEN
PAGE 2 OF 3
5” AFV
90° 0
ρf 20%
10 29 26 28 26 28 26
%1
°
'2
700
90° 0
ρf 20%
°
180
360
900
90° 0
ρf20%
10 21 20 21 20 21 19
°
120
240
600
0
90° 0
ρf 20%
10 20 18 20 18 19 18
°
'2
'0
'0
'0
700
140
560
Open Reflector
Vertical Lamp, Double Twin-Tube or Triple-Tube

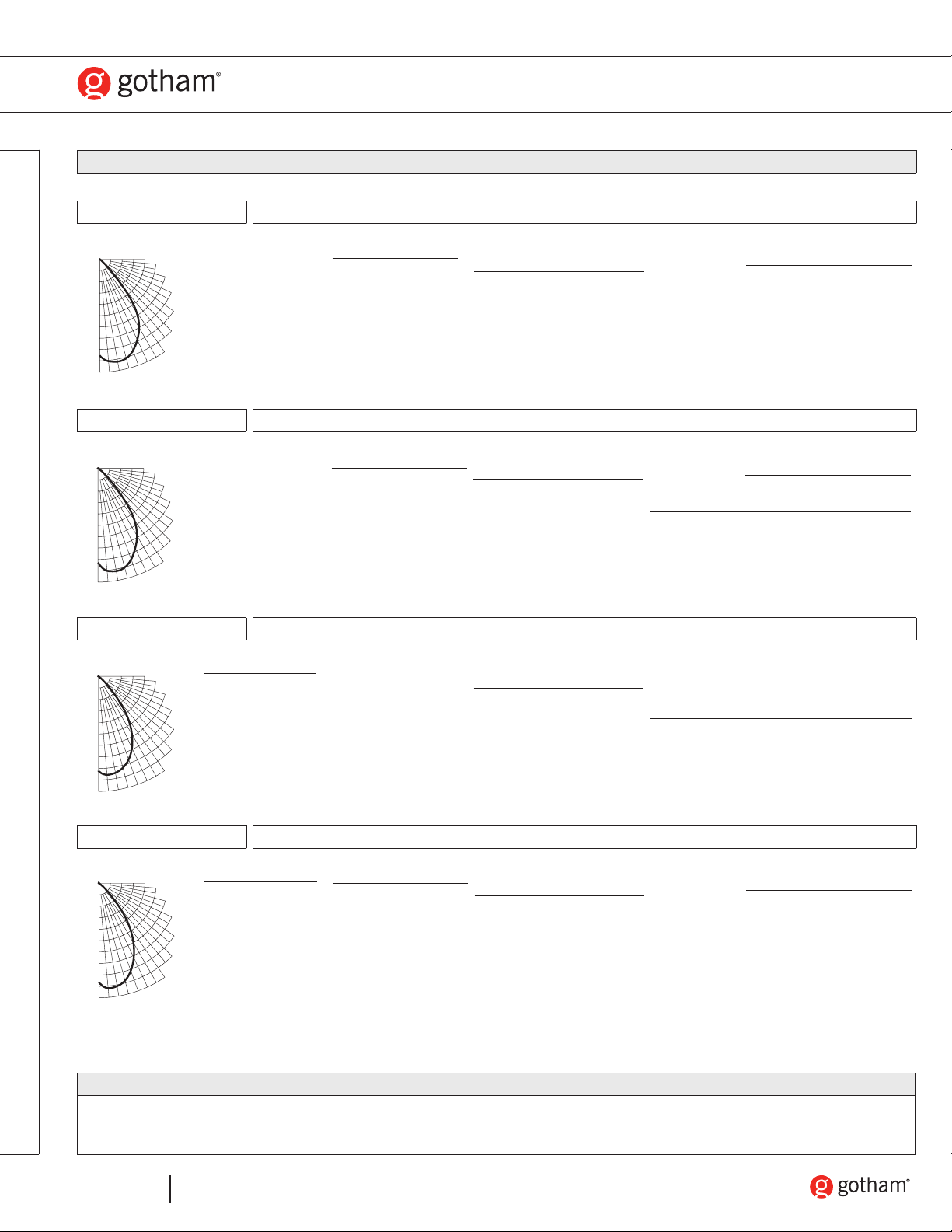

PHOTOMETRY
Distribution Curve Distribution Data Output Data Coefficient of Utilization Illuminance: Single Luminaire 30” Above Floor
AFV 26TRT 5AR
90
140
280
420
560
o
0
AFV 32TRT 5AR
540
720
o
0
o
90
From 0° cp. Lumens
o
45
o
From 0° cp. Lumens
o
45
15° 636 181
25° 551 254
35° 398 244
45° 81 86
55° 33
65° 11
75° 01
85° 01
15° 813227
25° 696317
35° 504308
45° 139113
55° 33
65° 33
75° 42
85° 21
(1) PL-T 26W/30/4P LAMP, 1800 RATED LUMENS, 1.2 S/MH, TEST NO. 2196030802
Zone Lumens %lamp
0° 595
5° 63561
(1) PL-T 32W/30/4P LAMP, 2400 RATED LUMENS, 1.2 S/MH, TEST NO. 2195082303
0° 745
5° 81580
0°-30°493 27.4
0°-40°736 40.9
0°-60°824 45.8
0°-90°825 45.8
90°-180° 00.0
0°-180° 825 45.8*
*Efficiency
Zone Lumens %lamp
0°-30°624 26.0
0°-40°932 38.8
0°-60°104843.7
0°-90°105443.9
90°-180° 00.0
0°-180° 1054 43.9*
*Efficiency
ρc 80% 70% 50%
ρw 50% 30%50% 30% 50% 30%
1515050494848
2484647464645
3454344434342
4424042404139
5403739373937
6373537353634
7353235323432
8333032303230
9312830283028
ρc 80% 70% 50%
ρw 50% 30% 50%30% 50% 30%
1484747464645
2454344424341
3413941394038
4383638353735
5363335333432
6333033303230
7312831283028
8292629262826
9272427242624
10 25 23 25 22 25 22
50
Initial fc fc at fc at
Mount at beam Beam beam Beam beam
height center diameter edge diameter edge
8' 19.7 6.6' 9.8 10.3
10'10.6 8.9' 5.314.1' 1.1
12'6.6 11.3'3.3 17.8' 0.7
14'4.5 13.7'2.3 21.6' 0.5
16'3.3 16.1'1.6 25.3' 0.3
Initial fc fc at fc at
Mount at beam Beam beam Beam beam
height center diameter edge diameter edge
8' 24.6 6.6' 12.3 10.5' 2.5
10'13.2 8.9' 6.614.4' 1.3
12'8.3 11.4'4.1 18.2' 0.8
14'5.6 13.8'2.8 22.0' 0.6
16'4.1 16.0'2.0 25.8' 0.4
beam angle 61.6° beam angle 86.4
50% 10%
beam angle 61.7° beam angle 87.4
0%
.0
AFV 26TRT 5MB
o
90
360
480
o
From 0° cp. Lumens
15° 494 139
25° 413 190
o
35° 270 167
45
45° 70 61
55° 01
65° 01
75° 01
85° 01
AFV 32TRT 5MB
o
90
280
From 0° cp. Lumens
o
45
420
o
0
PHOTOMETRY NOTES
• Tested to current IES and NEMA standards under stabilized laboratory conditions.
• Actual performance may differ as a result of end-user environment and application.
• Consult factory or IES file for microgroove baffle, black cone or other photometric reports.
AFV-5-OPEN
PAGE 3 OF 3
GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com
© 2003-2014 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 01/30/14. Specifications subject to change without notice.
(1) PL-T 26W/30/4P LAMP, 1800 RATED LUMENS, 1.1 S/MH, TEST NO. 2196101602
Zone Lumens %lamp
0° 493
5° 516 49
(1) PL-T 32W/30/4P LAMP, 2400 RATED LUMENS, 1.1 S/MH, TEST NO. 2196101701
0° 605
5° 645 61
15° 616 174
25° 503 231
35° 325 201
45° 91 76
55° 12
65° 01
75° 01
85° 01
0°-30° 376 20.9
0°-40° 543 30.2
0°-60° 604 33.6
0°-90° 604 33.6
90°-180° 0 0.0
0°-180° 604 33.6*
*Efficiency
Zone Lumens %lamp
0°-30° 464 19.4
0°-40° 665 27.7
0°-60° 742 31.0
0°-90° 742 31.0
90°-180° 0 0.0
0°-180° 742 31.0*
*Efficiency
ρc 80% 70%50%
ρw50% 30% 50% 30% 50%30%
1383737363635
2353435343433
3333233313231
4313031303029
5292829272927
6282628262726
7262426242524
8242324222422
9232123212221
ρc 80% 70% 50%
ρw 50% 30% 50%30% 50% 30%
1353434333332
2333232313130
3312930292928
4292729272827
5272527252625
6262425242524
7242224222322
8232122212221
9211921192119
50% 10%
Initial fc fc at fc at
Mount at beam Beam beam Beam beam
height center diameter edge diameter edge
8' 16.3 6.1' 8.210.0' 1.6
10' 8.88.3' 4.4 13.7' 0.9
12' 5.510.5' 2.717.3' 0.5
14' 3.712.7' 1.920.9' 0.4
16' 2.715.0' 1.424.6' 0.3
Initial fc fc at fc at
Mount at beam Beam beam Beam beam
height center diameter edge diameter edge
8' 20.0 6.0' 10.0 10.0
10'10.8 8.2' 5.413.7' 1.1
12'6.7 10.4'3.4 17.3
14'4.6 12.6'2.3 21.0
16'3.3 14.7'1.7 24.6
beam angle 58.0° beam angle 84.6
50% 10%
beam angle 57.3° beam angle 84.7
.0
.7
.5
.3
