Luminaire Type:
Catalog Number
(autopopulated):
Gotham Architectural Downlighting
Compact Fluorescent Cylinders
10” CFL
Lensed Cylinders
Wet Location, Horizontal Lamp, Double Twin-Tube (DTT)
or Triple-Tube (TRT), 6” Aperture
FEAT URES ORDERING INFORMATION
OPTICAL SYSTEM
• Aluminum upper reflector coated with highly reflective white paint provides
high efficiency.
• Available with tempered prismatic lens (T73), flat Fresnel lens (FFL) or flat opal
lens (FOL).
• Regressed door (RW) or stepped black baffle (SB) are available.
• Door is retained by two self-aligning, torsion support springs.
HOUSING
• Heavy-gauge aluminum housing with integral bottom deck for clean appearance.
Matte white textured polyester powder paint finish standard.
• Reveal on standard ceiling and optional pendant mount give floating
luminaire appearance.
EXAMPLE: CFL10 1/32TRT 6RW T73 MVOLT DWHG
MOUNTING
• Ceiling mount (standard), wall mount or pendant mount available. Wires
supplied by others.
ELECTRICAL SYSTEM
• Horizontally-mounted, four-pin, positive-latch thermoplastic socket.
• Class P, thermally-protected, high-power factor electronic ballast.
LISTINGS
• Fixtures are UL Listed for wet locations. Wall mount suitable for wet locations.
Ceiling and pendant mount suitable for wet locations in covered ceiling installations only.
WARRANTY
• 1-year limited warranty. Complete warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Series Wattage/Lamp Door frame Shielding Voltage Ballas t
CFL10 1/26DTT
1/26TRT
1/32TRT
1/42TRT
1
6RW Regressed door
6SB Stepped black baffle
T73 Tempered prismatic lens
FFL Flat Fresnel lens
FOL Flat opal lens
MVOLT
120
277
347
2
(blank) Electronic ballast
ECOS
ADEZ
ADZT
2
Lutron® EcoSystem® electronic dimming ballast.
Minimum dimming level 5%
3
Advance Mark 10® electronic dimming ballast.
Minimum dimming level 5%
2
Advance Mark 7® electronic dimming ballast.
Minimum dimming level 5%
Mounting
(blank)
WM Wall mount
PM
4
Ceiling mount
5
Pendant 3/8” thread mount
Options
Architectural Colors - Powder Paint
DWHG Matte white (standard)
DDB
Dark bronze
6
DBL Black
DNA
Natural aluminum
ACCESSORIES order as separate catalog numbers (shipped separately)
7
CYS
7
CRS
nSP5 D Sensor Switch
CFL-10-LENSED
PAGE 1 OF 3
3/8” stem and canopy with 5° “hang straight” swivel
3/8” stem and canopy with 45° swivel
GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com
© 2006-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 12/19/13. Specifications subject to change without notice.
®
nLight® 0-10V dimming relay. Requires additional nLight bus power supply (nPS 80)
DWH Gloss white
DTG Tennis green
DGC Charcoal grey
DSS Sandstone
10” CFL
Reflector
Housing Diameter: 9-3/4 (24.8)
2
(24.1)
D =13 (33.0)
(22.2)
Lensed Cylinders
Wet Location, Horizontal Lamp, Double Twin-Tube (DTT) or Triple-Tube (TRT), 6” Aperture

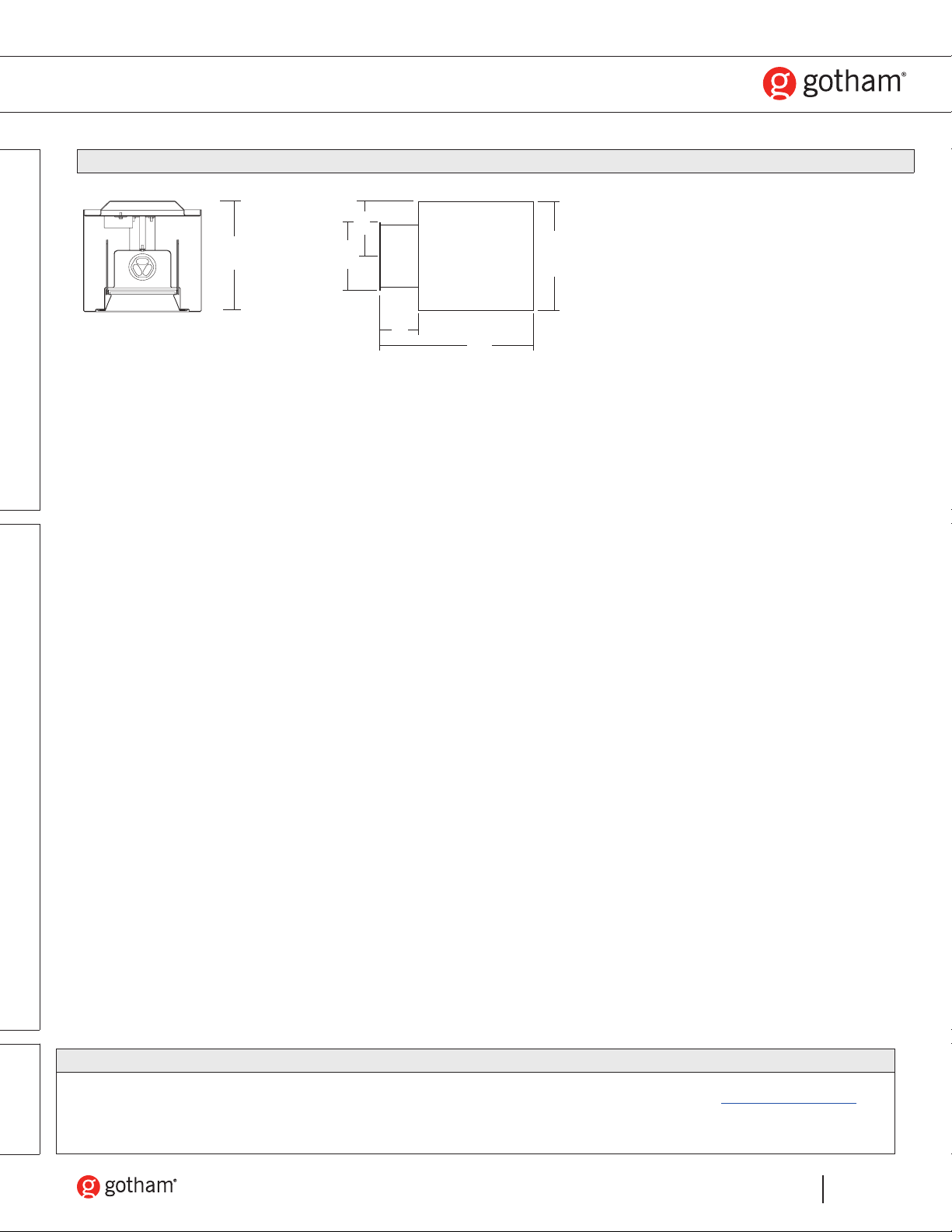

DIMENSIONAL DATA NOTES
All dimensions are inches (centimeters) unless otherwise noted.
A
A
9-1/
Aperture:6 (15.2)
B
B
C
C
Wall Mount Dimensions
A = 4-5/8 (11.7)
B = 5-5/16 (13.5)
8-3/4
D
D
C = 3-1/4 (8.3)
ORDERING NOTES
1. Requires four-pin lamp, ships as a TRT fixture.
2. Multi-volt electronic ballast capable of operating on any line voltage from
120V through 277V, 50 or 60 Hz.
3. Available in 120V or 277V only.
4. Wires supplied by others.
5. Stem not included.
6. Additional architectural colors available; see www.lithonia.com/archcolors.
GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com
© 2006-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 12/19/13. Specifications subject to change without notice.
7. Color and length of stem must be specified (from 6” to 240” in even increments in maximum sections of 48”). Ex.: CYS06 DWHG. Ceiling attachment
for interior use. Consult factory for exterior use. Wire not included.
CFL-10-LENSED
PAGE 2 OF 3
10” CFL
90°
10
20
30
40
50
60
70
90°
100
200
300
400
500
600
700
800
Lensed Cylinders
Wet Location, Horizontal Lamp, Double Twin-Tube (DTT) or Triple-Tube (TRT), 6” Aperture
PHOTOMETRY
Distribution Curve Distribution Data Output Data Coefficient of Utilization Illuminance: Single Luminaire 30” Above Floor
CFL10 1/32TRT 6RW T73
0
0
0
0
0
0
0
0° 10° 20° 30°
80°
70°
60°
50°
40°
CFL10 1/32TRT 6RW FFL
80°
70°
60°
50°
40°
0° 10° 20° 30°
32TRT LAMP, 1.1 S/MH, 2400 RATED LUMENS, TEST NO. LTL14212
From 0° AveLumens
0
760
5
758
724
627
460
270
130
62
23
72
203
287
286
209
119
62
26
6
6
0
15
25
35
45
55
65
75
85
90
Zone Lumens % Lamp
562.1
0° - 30°
848.1
0° - 40°
1176.6
0° - 60°
1271.4
0° - 90°
90° - 180°
0° - 180°
0.0
1271.4
*E fficiency
*53.0
23.4
35.3
49.0
53.0
0.0
pf
pc
pw
50% 30%50% 30% 50% 30%
1
.57
2
.52
3
.47
4
.42
5
.39
6
.35
7
.33
8
.30
9
.28
10
.26
32TRT LAMP, 1.1 S/MH, 2400 RATED LUMENS, TEST NO. LTL14213
F rom 0° AveLumens
0
848
5
855
800
661
487
296
163
82
30
81
224
304
303
229
148
82
33
7
8
0
15
25
35
45
55
65
75
85
90
Zone Lumens % Lamp
608.8
0° - 30°
911.3
0° - 40°
1288.2
0° - 60°
1410.0
0° - 90°
90° - 180°
0° - 180°
0.0
1410.0
*E fficiency
*58.7
25.4
38.0
53.7
58.7
0.0
pf
pc
pw
50% 30% 50% 30% 50% 30%
1
.63
2
.57
3
.51
4
.47
5
.42
6
.39
7
.36
8
.33
9
.31
10
.29
.55
.49
.43
.39
.35
.31
.29
.26
.24
.22
.61
.54
.47
.42
.38
.34
.31
.29
.26
.24
.56
.51
.46
.42
.38
.35
.32
.30
.28
.26
.62
.56
.50
.46
.42
.38
.35
.33
.30
.28
20%
20%
.54
.48
.43
.38
.34
.31
.28
.26
.24
.22
.60
.53
.47
.42
.38
.34
.31
.28
.26
.24
.54
.49
.44
.40
.37
.34
.31
.29
.27
.25
.59
.54
.49
.44
.41
.37
.34
.32
.30
.28
80% 70% 50%
80% 70% 50%
.52
.47
.42
.37
.34
.31
.28
.26
.24
.22
.58
.51
.46
.41
.37
.34
.31
.28
.26
.24
Mount
height
8
10
12
14
16
Mount
height
8
10
12
14
16
Inital fc
at beam
center
25.1
13.5
8.4
5.7
4.2
Inital fc
at beam
center
28.0
15.1
9.4
6.4
4.7
50% be am angle
57.9°
fc at
beam
Beam
6.1
8.3
10.5
12.7
14.9
Beam
5.8
7.9
10.1
12.2
14.3
55.8°
edge
12.6
6.8
4.2
2.9
2.1
fc at
beam
edge
14.0
7.5
4.7
3.2
2.3
diameter
50% be am angle
diameter
10% be am angle
93.8°
fc at
beam
Beam
11.7
16.0
20.3
24.6
28.8
Beam
11.8
16.1
20.4
24.7
28.9
94.0°
edge
2.5
1.4
0.8
0.6
0.4
fc at
beam
edge
2.8
1.5
0.9
0.6
0.5
diameter
10% be am angle
diameter
PHOTOMETRY NOTES
• Tested to current IES and NEMA standards under stabilized laboratory conditions.
• Actual performance may differ as a result of end-user environment and application.
• Consult factory or IES file for microgroove baffle, black cone or other photometric reports.
CFL-10-LENSED
PAGE 3 OF 3
GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com
© 2006-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 12/19/13. Specifications subject to change without notice.
